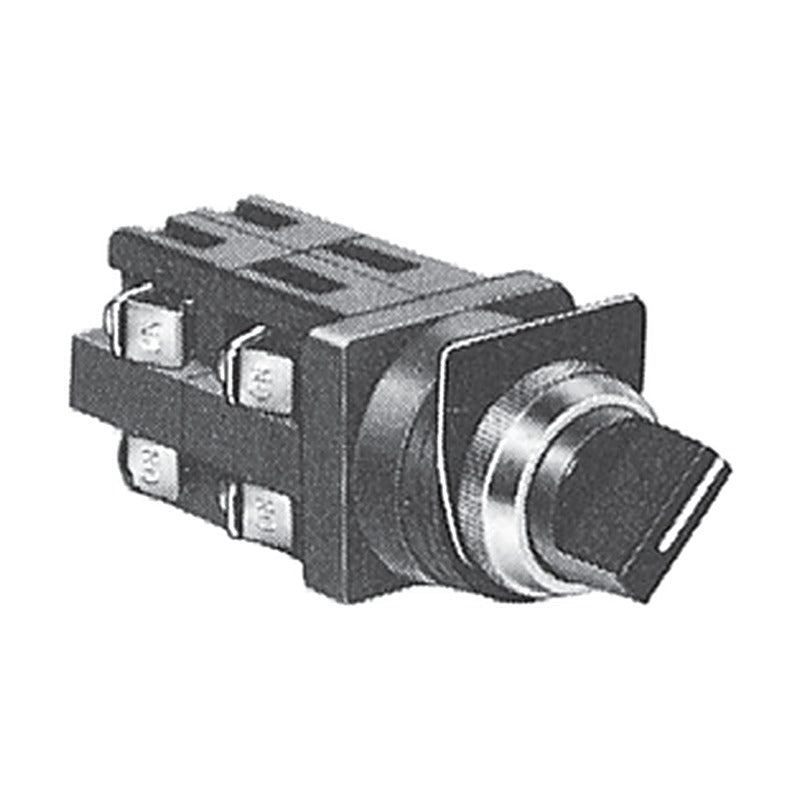

IDEC φ30 Series ASN Selector Switches (Arrow / Lever)

IDEC φ30 Series ASN Selector Switches (Arrow / Lever)

φ30 Series ASN selector switches with arrow or lever handle, including twin-rod (-T) types; 90° 2-position and 45° 3-position.

Key features

  • Black handle, chrome-plated ring
  • Nameplate sold separately
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 27-30
ASN310 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN311 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN320 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN322 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN37S Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN111 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN122 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN15S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN17S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASN18S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASN410 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASN411 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN420 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN422 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN47S Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(7s) [7s]
ASN211 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN222 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN25S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN27S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASN28S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASN3010 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN3011 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN3020 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN3022 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN307S Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN1011 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN1022 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN105S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN107S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASN108S Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASN4010 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASN4011 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN4020 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN4022 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN407S Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b(7s) [7s]
ASN2011 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN2022 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN205S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN207S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASN208S Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASN120-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASN140-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASN220-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN240-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASN2020-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN2040-T Operator: Arrow handle, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASN3L10 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN3L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN3L20 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN3L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN3L7S Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN1L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN1L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN1L5S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN1L7S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASN1L8S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASN4L10 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASN4L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN4L20 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN4L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN4L7S Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(7s) [7s]
ASN2L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN2L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN2L5S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN2L7S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASN2L8S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASN30L10 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN30L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN30L20 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN30L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN30L7S Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN10L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN10L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN10L5S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN10L7S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASN10L8S Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASN40L10 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASN40L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN40L20 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN40L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN40L7S Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b(7s) [7s]
ASN20L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN20L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN20L5S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN20L7S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASN20L8S Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASN1L20-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASN1L40-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASN2L20-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN2L40-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASN20L20-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN20L40-T Operator: Lever handle, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
Selector SwitchesIDEC
92 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series ASN Selector Switches (Arrow / Lever)

Brand IDEC·Selector Switches

Available part numbers (92)

ASN310, ASN311, ASN320, ASN322, ASN37S, ASN111, ASN122, ASN15S, ASN17S, ASN18S + 82 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
