IDEC φ30 Series ASTN Selector Switches (Arrow / Lever)

IDEC φ30 Series ASTN Selector Switches (Arrow / Lever)

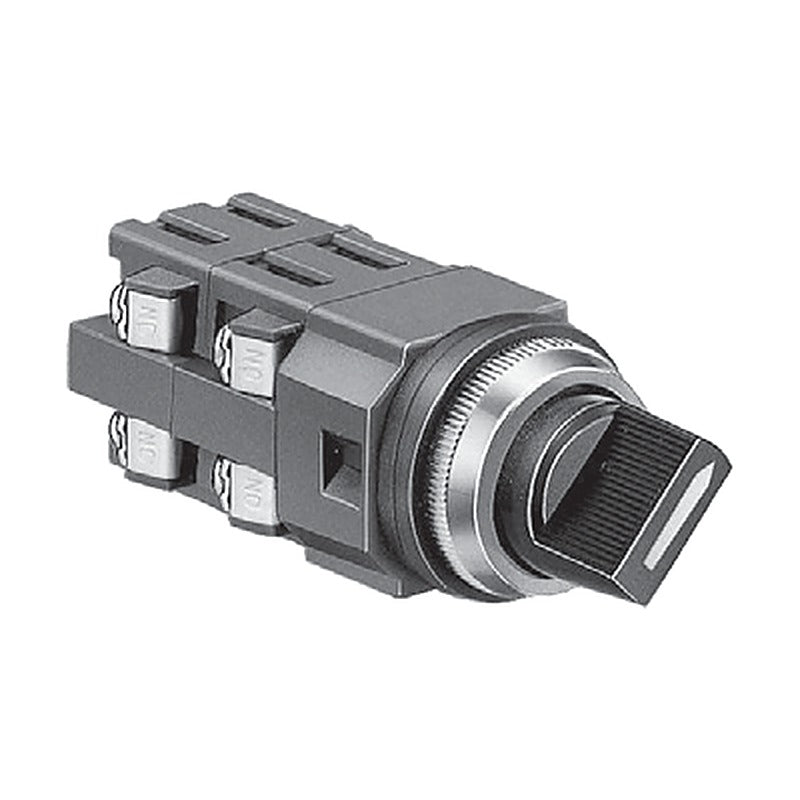

φ30 Series ASTN selector switches with arrow or lever handle, 90° 2-position and 45° 3-position, maintained or spring return.

Key features

  • Extended contact arrangements per ASTN tables
  • Black handle, chrome-plated ring
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 34-35
ASTN3211 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN3222 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1122 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1222 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1340 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN1422 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1520 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASTN1540 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN1611 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN1622 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN4211 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASTN4222 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN2122 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN2222 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN20122 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20222 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20422 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20520 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASTN20540 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASTN5120 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASTN5122 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN5222 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN5111 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC)
ASTN32L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN32L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN11L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN12L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN13L40 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN14L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN15L20 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASTN15L40 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN16L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN16L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN42L11 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASTN42L22 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN21L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN22L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN201L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN202L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN204L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN205L20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASTN205L40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASTN51L20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASTN51L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN52L22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN51L11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC)
Selector SwitchesIDEC
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series ASTN Selector Switches (Arrow / Lever)

Brand IDEC·Selector Switches

Available part numbers (46)

ASTN3211, ASTN3222, ASTN1122, ASTN1222, ASTN1340, ASTN1422, ASTN1520, ASTN1540, ASTN1611, ASTN1622 + 36 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASTN3211Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN3222Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1122Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1222Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1340Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN1422Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN1520Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASTN1540Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN1611Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN1622Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN4211Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASTN4222Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN2122Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN2222Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN20122Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20222Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20422Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN20520Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASTN20540Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASTN5120Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASTN5122Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN5222Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN5111Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC)
ASTN32L11Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN32L22Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN11L22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN12L22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN13L40Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN14L22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN15L20Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASTN15L40Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN16L11Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN16L22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN42L11Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASTN42L22Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN21L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN22L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN201L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN202L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN204L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN205L20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASTN205L40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASTN51L20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASTN51L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN52L22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN51L11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC)
