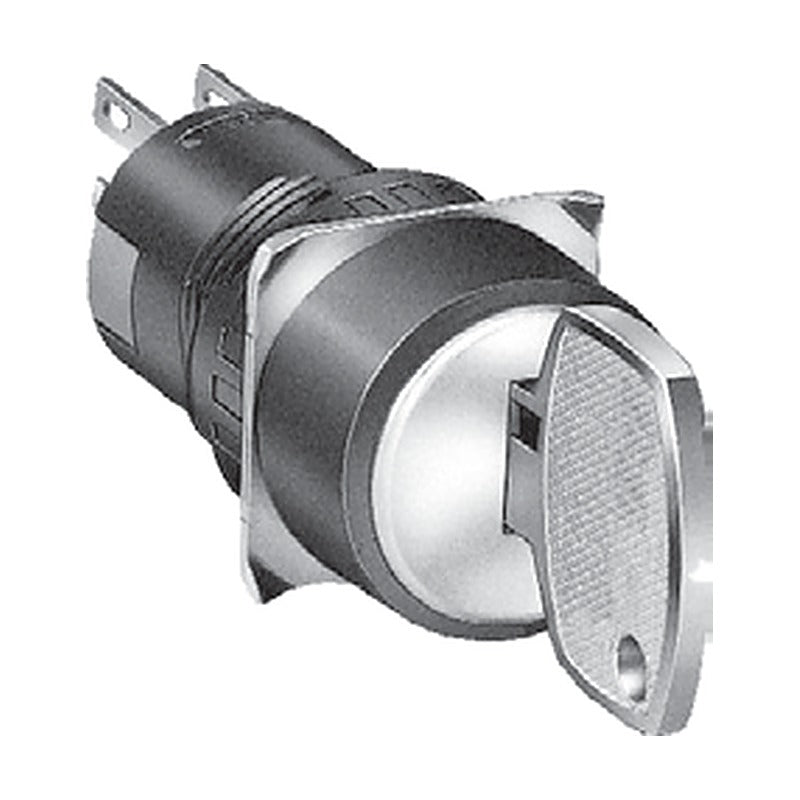

IDEC A6 Series 16 mm Key Selector Switches

IDEC A6 Series 16 mm Key Selector Switches

A6 Series φ16 key selector switches (round, square, rectangular) with disc tumbler (T) or wave key (S) cylinder, 2- and 3-position, IP40 or IP65.

Key features

  • Two keys supplied; key-removal position selectable by part number
  • Wave key type: key number selectable (standard 0H)
  • φ16 mm mounting, one-piece light-duty design
  • Gold-clad contacts, 1c or 2c (rated 250 V / 3 A)
  • IP40 and IP65 (IEC 60529) versions for every operator
  • LED units have built-in current-limiting resistor and diode

Specifications

Series IDEC A6 Series (φ16)
Mounting φ16 mm
Contacts Gold-clad, rated 250 V / 3 A
Operating temperature -25 to +55 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Contact resistance 50 mΩ max. (initial)
Source IDEC A6 Series φ16 Miniature Control Units catalogue, p. 10-12
AS6M-2KT1A Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1A Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-2KT2A Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2A Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-2KT1B Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1B Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-2KT2B Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2B Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-2KT1C Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1C Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-2KT2C Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2C Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-21KT1B Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-21KS1B Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-21KT2B Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-21KS2B Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-3KT2A Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2A Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-3KT2B Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2B Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6M-3KT2C Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2C Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6M-3KT2D Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2D Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-3KT2E Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2E Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6M-3KT2G Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2G Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-3KT2H Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2H Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-31KT2B Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2B Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6M-31KT2D Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2D Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-31KT2G Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2G Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-32KT2C Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2C Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6M-32KT2D Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2D Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-32KT2H Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2H Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-33KT2D Operator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-33KS2D Operator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-2KT1PA Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PA Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-2KT2PA Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PA Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-2KT1PB Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PB Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-2KT2PB Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PB Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-2KT1PC Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PC Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-2KT2PC Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PC Operator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-21KT1PB Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-21KS1PB Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-21KT2PB Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-21KS2PB Operator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PA Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PA Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-3KT2PB Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PB Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6M-3KT2PC Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PC Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6M-3KT2PD Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PD Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PE Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PE Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6M-3KT2PG Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PG Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PH Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PH Operator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-31KT2PB Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PB Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6M-31KT2PD Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PD Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-31KT2PG Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PG Operator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-32KT2PC Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PC Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6M-32KT2PD Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PD Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-32KT2PH Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PH Operator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-33KT2PD Operator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-33KS2PD Operator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-2KT1A Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1A Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-2KT2A Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2A Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-2KT1B Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1B Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-2KT2B Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2B Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-2KT1C Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1C Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-2KT2C Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2C Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-21KT1B Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-21KS1B Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-21KT2B Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-21KS2B Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2A Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2A Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-3KT2B Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2B Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6Q-3KT2C Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2C Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6Q-3KT2D Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2D Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2E Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2E Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6Q-3KT2G Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2G Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2H Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2H Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-31KT2B Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2B Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6Q-31KT2D Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2D Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-31KT2G Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2G Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-32KT2C Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2C Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6Q-32KT2D Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2D Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-32KT2H Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2H Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-33KT2D Operator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Disc tumbler
AS6Q-33KS2D Operator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Wave key
AS6Q-2KT1PA Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PA Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PA Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PA Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-2KT1PB Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PB Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PB Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PB Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-2KT1PC Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PC Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PC Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PC Operator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-21KT1PB Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-21KS1PB Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-21KT2PB Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-21KS2PB Operator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PA Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PA Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PB Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PB Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PC Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PC Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PD Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PD Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PE Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PE Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PG Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PG Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PH Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PH Operator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PB Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PB Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PD Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PD Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PG Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PG Operator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PC Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PC Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PD Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PD Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PH Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PH Operator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-33KT2PD Operator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Disc tumbler
AS6Q-33KS2PD Operator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Wave key
AS6H-2KT1A Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1A Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-2KT2A Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2A Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-2KT1B Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1B Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-2KT2B Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2B Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-2KT1C Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1C Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-2KT2C Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2C Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-21KT1B Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-21KS1B Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-21KT2B Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-21KS2B Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-3KT2A Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2A Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-3KT2B Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2B Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6H-3KT2C Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2C Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6H-3KT2D Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2D Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-3KT2E Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2E Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6H-3KT2G Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2G Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-3KT2H Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2H Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-31KT2B Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2B Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6H-31KT2D Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2D Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-31KT2G Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2G Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-32KT2C Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2C Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6H-32KT2D Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2D Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-32KT2H Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2H Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-33KT2D Operator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Disc tumbler
AS6H-33KS2D Operator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Wave key
AS6H-2KT1PA Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PA Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-2KT2PA Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PA Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-2KT1PB Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PB Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-2KT2PB Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PB Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-2KT1PC Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PC Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-2KT2PC Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PC Operator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-21KT1PB Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-21KS1PB Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-21KT2PB Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-21KS2PB Operator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PA Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PA Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-3KT2PB Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PB Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6H-3KT2PC Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PC Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6H-3KT2PD Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PD Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PE Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PE Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6H-3KT2PG Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PG Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PH Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PH Operator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-31KT2PB Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PB Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6H-31KT2PD Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PD Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-31KT2PG Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PG Operator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-32KT2PC Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PC Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6H-32KT2PD Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PD Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-32KT2PH Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PH Operator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-33KT2PD Operator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Disc tumbler
AS6H-33KS2PD Operator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Wave key
Key SwitchesIDEC
264 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC A6 Series 16 mm Key Selector Switches

Brand IDEC·Key Switches

Available part numbers (264)

AS6M-2KT1A, AS6M-2KS1A, AS6M-2KT2A, AS6M-2KS2A, AS6M-2KT1B, AS6M-2KS1B, AS6M-2KT2B, AS6M-2KS2B, AS6M-2KT1C, AS6M-2KS1C + 254 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS6M-2KT1AOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1AOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-2KT2AOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2AOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-2KT1BOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1BOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-2KT2BOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2BOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-2KT1COperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS1COperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-2KT2COperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-2KS2COperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-21KT1BOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-21KS1BOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-21KT2BOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-21KS2BOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-3KT2AOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2AOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6M-3KT2BOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2BOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6M-3KT2COperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2COperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6M-3KT2DOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2DOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-3KT2EOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2EOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6M-3KT2GOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2GOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-3KT2HOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-3KS2HOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-31KT2BOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2BOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6M-31KT2DOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2DOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-31KT2GOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6M-31KS2GOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6M-32KT2COperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2COperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6M-32KT2DOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2DOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-32KT2HOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6M-32KS2HOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6M-33KT2DOperator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6M-33KS2DOperator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6M-2KT1PAOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PAOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-2KT2PAOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PAOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-2KT1PBOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PBOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-2KT2PBOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PBOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-2KT1PCOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS1PCOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-2KT2PCOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-2KS2PCOperator: Round | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-21KT1PBOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-21KS1PBOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-21KT2PBOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-21KS2PBOperator: Round | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PAOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PAOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6M-3KT2PBOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PBOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6M-3KT2PCOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PCOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6M-3KT2PDOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PDOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PEOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PEOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6M-3KT2PGOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PGOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-3KT2PHOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-3KS2PHOperator: Round | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-31KT2PBOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PBOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6M-31KT2PDOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PDOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-31KT2PGOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6M-31KS2PGOperator: Round | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6M-32KT2PCOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PCOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6M-32KT2PDOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PDOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6M-32KT2PHOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6M-32KS2PHOperator: Round | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6M-33KT2PDOperator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6M-33KS2PDOperator: Round | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-2KT1AOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1AOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-2KT2AOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2AOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-2KT1BOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1BOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-2KT2BOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2BOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-2KT1COperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS1COperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-2KT2COperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-2KS2COperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-21KT1BOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-21KS1BOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-21KT2BOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-21KS2BOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2AOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2AOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6Q-3KT2BOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2BOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6Q-3KT2COperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2COperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6Q-3KT2DOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2DOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2EOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2EOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6Q-3KT2GOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2GOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-3KT2HOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-3KS2HOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-31KT2BOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2BOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6Q-31KT2DOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2DOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-31KT2GOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6Q-31KS2GOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6Q-32KT2COperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2COperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6Q-32KT2DOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2DOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6Q-32KT2HOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6Q-32KS2HOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6Q-33KT2DOperator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Disc tumbler
AS6Q-33KS2DOperator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Wave key
AS6Q-2KT1PAOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PAOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PAOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PAOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-2KT1PBOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PBOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PBOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PBOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-2KT1PCOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS1PCOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-2KT2PCOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-2KS2PCOperator: Square | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-21KT1PBOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-21KS1PBOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-21KT2PBOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-21KS2PBOperator: Square | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PAOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PAOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PBOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PBOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PCOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PCOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PDOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PDOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PEOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PEOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PGOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PGOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-3KT2PHOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-3KS2PHOperator: Square | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PBOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PBOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PDOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PDOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-31KT2PGOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6Q-31KS2PGOperator: Square | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PCOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PCOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PDOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PDOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6Q-32KT2PHOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6Q-32KS2PHOperator: Square | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6Q-33KT2PDOperator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Disc tumbler
AS6Q-33KS2PDOperator: Square | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Wave key
AS6H-2KT1AOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1AOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-2KT2AOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2AOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-2KT1BOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1BOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-2KT2BOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2BOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-2KT1COperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS1COperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-2KT2COperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-2KS2COperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-21KT1BOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-21KS1BOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-21KT2BOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-21KS2BOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-3KT2AOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2AOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP40 | Key type: Wave key
AS6H-3KT2BOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2BOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6H-3KT2COperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2COperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6H-3KT2DOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2DOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-3KT2EOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2EOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP40 | Key type: Wave key
AS6H-3KT2GOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2GOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-3KT2HOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-3KS2HOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-31KT2BOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2BOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP40 | Key type: Wave key
AS6H-31KT2DOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2DOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-31KT2GOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Disc tumbler
AS6H-31KS2GOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP40 | Key type: Wave key
AS6H-32KT2COperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2COperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP40 | Key type: Wave key
AS6H-32KT2DOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2DOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP40 | Key type: Wave key
AS6H-32KT2HOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Disc tumbler
AS6H-32KS2HOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP40 | Key type: Wave key
AS6H-33KT2DOperator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Disc tumbler
AS6H-33KS2DOperator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP40 | Key type: Wave key
AS6H-2KT1PAOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PAOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-2KT2PAOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PAOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-2KT1PBOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PBOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-2KT2PBOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PBOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-2KT1PCOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS1PCOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 1c (1CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-2KT2PCOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-2KS2PCOperator: Rectangular | Positions: 90° 2-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-21KT1PBOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-21KS1PBOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 1c (1CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-21KT2PBOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-21KS2PBOperator: Rectangular | Positions: 90° 2-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PAOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PAOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: All positions | Protection: IP65 | Key type: Wave key
AS6H-3KT2PBOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PBOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6H-3KT2PCOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PCOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6H-3KT2PDOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PDOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PEOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PEOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left & right | Protection: IP65 | Key type: Wave key
AS6H-3KT2PGOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PGOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-3KT2PHOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-3KS2PHOperator: Rectangular | Positions: 45° 3-pos., maintained | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-31KT2PBOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PBOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left & centre | Protection: IP65 | Key type: Wave key
AS6H-31KT2PDOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PDOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-31KT2PGOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Disc tumbler
AS6H-31KS2PGOperator: Rectangular | Positions: 45° 3-pos., spring return from right | Contacts: 2c (2CO) | Key removal: Left only | Protection: IP65 | Key type: Wave key
AS6H-32KT2PCOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PCOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre & right | Protection: IP65 | Key type: Wave key
AS6H-32KT2PDOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PDOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Centre only | Protection: IP65 | Key type: Wave key
AS6H-32KT2PHOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Disc tumbler
AS6H-32KS2PHOperator: Rectangular | Positions: 45° 3-pos., spring return from left | Contacts: 2c (2CO) | Key removal: Right only | Protection: IP65 | Key type: Wave key
AS6H-33KT2PDOperator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Disc tumbler
AS6H-33KS2PDOperator: Rectangular | Positions: 45° 3-pos., spring return both sides | Contacts: 2c (2CO) | Key removal: - | Protection: IP65 | Key type: Wave key

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
