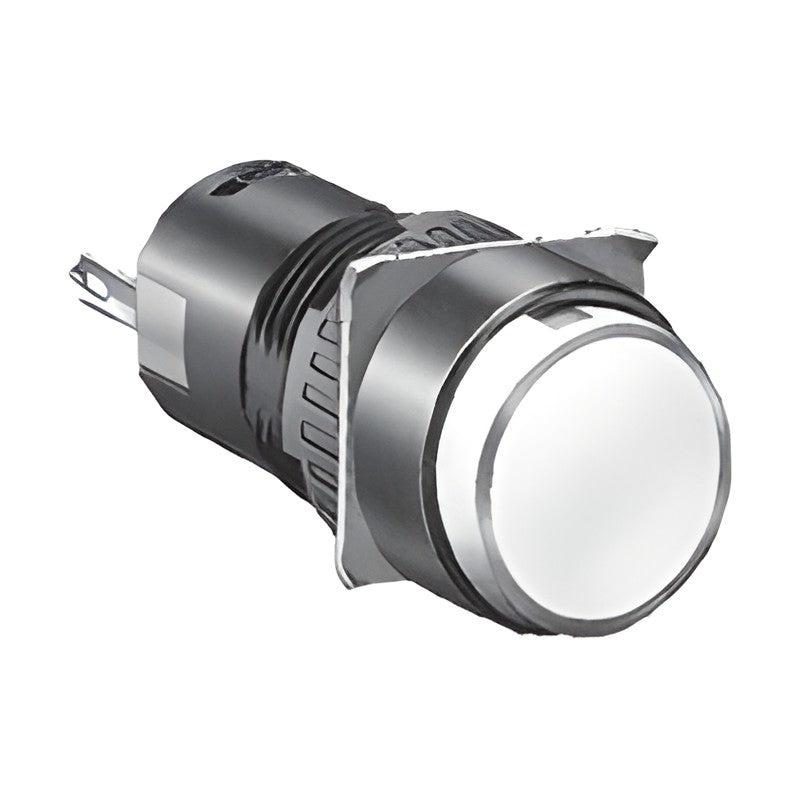

IDEC A6 Series 16 mm Pilot Lights

IDEC A6 Series 16 mm Pilot Lights

A6 Series φ16 miniature LED pilot lights in round, square, rectangular and rectangular 3-side barrier shapes, IP40 or IP65.

Key features

  • LED colours R, G, Y, A, W, S, JW
  • DC5V to AC200V versions
  • φ16 mm mounting, one-piece light-duty design
  • Gold-clad contacts, 1c or 2c (rated 250 V / 3 A)
  • IP40 and IP65 (IEC 60529) versions for every operator
  • LED units have built-in current-limiting resistor and diode

Specifications

Series IDEC A6 Series (φ16)
Mounting φ16 mm
Contacts Gold-clad, rated 250 V / 3 A
Operating temperature -25 to +55 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Contact resistance 50 mΩ max. (initial)
Source IDEC A6 Series φ16 Miniature Control Units catalogue, p. 4-5
AL6M-P1R Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6M-P1G Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6M-P1Y Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6M-P1A Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6M-P1W Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: White
AL6M-P1S Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6M-P1JW Operator: Round | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6M-P3R Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6M-P3G Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6M-P3Y Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6M-P3A Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6M-P3W Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6M-P3S Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6M-P3JW Operator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6M-P4R Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6M-P4G Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6M-P4Y Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6M-P4A Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6M-P4W Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6M-P4S Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6M-P4JW Operator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6Q-P1R Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6Q-P1G Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6Q-P1Y Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6Q-P1A Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6Q-P1W Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: White
AL6Q-P1S Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6Q-P1JW Operator: Square | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6Q-P3R Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6Q-P3G Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6Q-P3Y Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6Q-P3A Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6Q-P3W Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6Q-P3S Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6Q-P3JW Operator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6Q-P4R Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6Q-P4G Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6Q-P4Y Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6Q-P4A Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6Q-P4W Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6Q-P4S Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6Q-P4JW Operator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6H-P1R Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6H-P1G Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6H-P1Y Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6H-P1A Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6H-P1W Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: White
AL6H-P1S Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6H-P1JW Operator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6H-P3R Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6H-P3G Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6H-P3Y Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6H-P3A Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6H-P3W Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6H-P3S Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6H-P3JW Operator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6H-P4R Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6H-P4G Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6H-P4Y Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6H-P4A Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6H-P4W Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6H-P4S Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6H-P4JW Operator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6G-P1R Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6G-P1G Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6G-P1Y Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6G-P1A Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6G-P1W Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: White
AL6G-P1S Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6G-P1JW Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6G-P3R Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6G-P3G Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6G-P3Y Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6G-P3A Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6G-P3W Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6G-P3S Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6G-P3JW Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6G-P4R Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6G-P4G Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6G-P4Y Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6G-P4A Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6G-P4W Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6G-P4S Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6G-P4JW Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6M-P1PR Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6M-P1PG Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6M-P1PY Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6M-P1PA Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6M-P1PW Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: White
AL6M-P1PS Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6M-P1PJW Operator: Round | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6M-P3PR Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6M-P3PG Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6M-P3PY Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6M-P3PA Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6M-P3PW Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6M-P3PS Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6M-P3PJW Operator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6M-P4PR Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6M-P4PG Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6M-P4PY Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6M-P4PA Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6M-P4PW Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6M-P4PS Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6M-P4PJW Operator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6Q-P1PR Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6Q-P1PG Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6Q-P1PY Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6Q-P1PA Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6Q-P1PW Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: White
AL6Q-P1PS Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6Q-P1PJW Operator: Square | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6Q-P3PR Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6Q-P3PG Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6Q-P3PY Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6Q-P3PA Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6Q-P3PW Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6Q-P3PS Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6Q-P3PJW Operator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6Q-P4PR Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6Q-P4PG Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6Q-P4PY Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6Q-P4PA Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6Q-P4PW Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6Q-P4PS Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6Q-P4PJW Operator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6H-P1PR Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6H-P1PG Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6H-P1PY Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6H-P1PA Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6H-P1PW Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: White
AL6H-P1PS Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6H-P1PJW Operator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6H-P3PR Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6H-P3PG Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6H-P3PY Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6H-P3PA Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6H-P3PW Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6H-P3PS Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6H-P3PJW Operator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6H-P4PR Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6H-P4PG Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6H-P4PY Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6H-P4PA Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6H-P4PW Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6H-P4PS Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6H-P4PJW Operator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6G-P1PR Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6G-P1PG Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6G-P1PY Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6G-P1PA Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6G-P1PW Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: White
AL6G-P1PS Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6G-P1PJW Operator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6G-P3PR Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6G-P3PG Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6G-P3PY Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6G-P3PA Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6G-P3PW Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6G-P3PS Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6G-P3PJW Operator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6G-P4PR Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6G-P4PG Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6G-P4PY Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6G-P4PA Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6G-P4PW Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6G-P4PS Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6G-P4PJW Operator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6M-P21R Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6M-P21G Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6M-P21Y Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6M-P21A Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6M-P21W Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: White
AL6M-P21S Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6M-P21JW Operator: Round | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6M-P22R Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6M-P22G Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6M-P22Y Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6M-P22A Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6M-P22W Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: White
AL6M-P22S Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6M-P22JW Operator: Round | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6Q-P21R Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6Q-P21G Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6Q-P21Y Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6Q-P21A Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6Q-P21W Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: White
AL6Q-P21S Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6Q-P21JW Operator: Square | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6Q-P22R Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6Q-P22G Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6Q-P22Y Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6Q-P22A Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6Q-P22W Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: White
AL6Q-P22S Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6Q-P22JW Operator: Square | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6H-P21R Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6H-P21G Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6H-P21Y Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6H-P21A Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6H-P21W Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: White
AL6H-P21S Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6H-P21JW Operator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6H-P22R Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6H-P22G Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6H-P22Y Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6H-P22A Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6H-P22W Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: White
AL6H-P22S Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6H-P22JW Operator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6G-P21R Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6G-P21G Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6G-P21Y Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6G-P21A Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6G-P21W Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: White
AL6G-P21S Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6G-P21JW Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6G-P22R Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6G-P22G Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6G-P22Y Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6G-P22A Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6G-P22W Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: White
AL6G-P22S Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6G-P22JW Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6M-P21PR Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6M-P21PG Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6M-P21PY Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6M-P21PA Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6M-P21PW Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: White
AL6M-P21PS Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6M-P21PJW Operator: Round | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6M-P22PR Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6M-P22PG Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6M-P22PY Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6M-P22PA Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6M-P22PW Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: White
AL6M-P22PS Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6M-P22PJW Operator: Round | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6Q-P21PR Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6Q-P21PG Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6Q-P21PY Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6Q-P21PA Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6Q-P21PW Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: White
AL6Q-P21PS Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6Q-P21PJW Operator: Square | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6Q-P22PR Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6Q-P22PG Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6Q-P22PY Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6Q-P22PA Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6Q-P22PW Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: White
AL6Q-P22PS Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6Q-P22PJW Operator: Square | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6H-P21PR Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6H-P21PG Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6H-P21PY Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6H-P21PA Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6H-P21PW Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: White
AL6H-P21PS Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6H-P21PJW Operator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6H-P22PR Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6H-P22PG Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6H-P22PY Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6H-P22PA Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6H-P22PW Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: White
AL6H-P22PS Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6H-P22PJW Operator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6G-P21PR Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6G-P21PG Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6G-P21PY Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6G-P21PA Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6G-P21PW Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: White
AL6G-P21PS Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6G-P21PJW Operator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6G-P22PR Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6G-P22PG Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6G-P22PY Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6G-P22PA Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6G-P22PW Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: White
AL6G-P22PS Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6G-P22PJW Operator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Pure white
Pilot LightsIDEC
280 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC A6 Series 16 mm Pilot Lights

Brand IDEC·Pilot Lights

Available part numbers (280)

AL6M-P1R, AL6M-P1G, AL6M-P1Y, AL6M-P1A, AL6M-P1W, AL6M-P1S, AL6M-P1JW, AL6M-P3R, AL6M-P3G, AL6M-P3Y + 270 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL6M-P1ROperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6M-P1GOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6M-P1YOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6M-P1AOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6M-P1WOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: White
AL6M-P1SOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6M-P1JWOperator: Round | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6M-P3ROperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6M-P3GOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6M-P3YOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6M-P3AOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6M-P3WOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6M-P3SOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6M-P3JWOperator: Round | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6M-P4ROperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6M-P4GOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6M-P4YOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6M-P4AOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6M-P4WOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6M-P4SOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6M-P4JWOperator: Round | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6Q-P1ROperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6Q-P1GOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6Q-P1YOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6Q-P1AOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6Q-P1WOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: White
AL6Q-P1SOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6Q-P1JWOperator: Square | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6Q-P3ROperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6Q-P3GOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6Q-P3YOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6Q-P3AOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6Q-P3WOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6Q-P3SOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6Q-P3JWOperator: Square | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6Q-P4ROperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6Q-P4GOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6Q-P4YOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6Q-P4AOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6Q-P4WOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6Q-P4SOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6Q-P4JWOperator: Square | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6H-P1ROperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6H-P1GOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6H-P1YOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6H-P1AOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6H-P1WOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: White
AL6H-P1SOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6H-P1JWOperator: Rectangular | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6H-P3ROperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6H-P3GOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6H-P3YOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6H-P3AOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6H-P3WOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6H-P3SOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6H-P3JWOperator: Rectangular | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6H-P4ROperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6H-P4GOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6H-P4YOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6H-P4AOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6H-P4WOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6H-P4SOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6H-P4JWOperator: Rectangular | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6G-P1ROperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Red
AL6G-P1GOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Green
AL6G-P1YOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Yellow
AL6G-P1AOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Amber
AL6G-P1WOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: White
AL6G-P1SOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Blue
AL6G-P1JWOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP40 | Colour: Pure white
AL6G-P3ROperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Red
AL6G-P3GOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Green
AL6G-P3YOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Yellow
AL6G-P3AOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Amber
AL6G-P3WOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: White
AL6G-P3SOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Blue
AL6G-P3JWOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP40 | Colour: Pure white
AL6G-P4ROperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Red
AL6G-P4GOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Green
AL6G-P4YOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Yellow
AL6G-P4AOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Amber
AL6G-P4WOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: White
AL6G-P4SOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Blue
AL6G-P4JWOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP40 | Colour: Pure white
AL6M-P1PROperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6M-P1PGOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6M-P1PYOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6M-P1PAOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6M-P1PWOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: White
AL6M-P1PSOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6M-P1PJWOperator: Round | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6M-P3PROperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6M-P3PGOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6M-P3PYOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6M-P3PAOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6M-P3PWOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6M-P3PSOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6M-P3PJWOperator: Round | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6M-P4PROperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6M-P4PGOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6M-P4PYOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6M-P4PAOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6M-P4PWOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6M-P4PSOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6M-P4PJWOperator: Round | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6Q-P1PROperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6Q-P1PGOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6Q-P1PYOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6Q-P1PAOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6Q-P1PWOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: White
AL6Q-P1PSOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6Q-P1PJWOperator: Square | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6Q-P3PROperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6Q-P3PGOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6Q-P3PYOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6Q-P3PAOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6Q-P3PWOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6Q-P3PSOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6Q-P3PJWOperator: Square | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6Q-P4PROperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6Q-P4PGOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6Q-P4PYOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6Q-P4PAOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6Q-P4PWOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6Q-P4PSOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6Q-P4PJWOperator: Square | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6H-P1PROperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6H-P1PGOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6H-P1PYOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6H-P1PAOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6H-P1PWOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: White
AL6H-P1PSOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6H-P1PJWOperator: Rectangular | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6H-P3PROperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6H-P3PGOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6H-P3PYOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6H-P3PAOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6H-P3PWOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6H-P3PSOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6H-P3PJWOperator: Rectangular | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6H-P4PROperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6H-P4PGOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6H-P4PYOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6H-P4PAOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6H-P4PWOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6H-P4PSOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6H-P4PJWOperator: Rectangular | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6G-P1PROperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Red
AL6G-P1PGOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Green
AL6G-P1PYOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Yellow
AL6G-P1PAOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Amber
AL6G-P1PWOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: White
AL6G-P1PSOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Blue
AL6G-P1PJWOperator: Rectangular, 3-side barrier | Voltage: DC5V | Protection: IP65 | Colour: Pure white
AL6G-P3PROperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Red
AL6G-P3PGOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Green
AL6G-P3PYOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Yellow
AL6G-P3PAOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Amber
AL6G-P3PWOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: White
AL6G-P3PSOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Blue
AL6G-P3PJWOperator: Rectangular, 3-side barrier | Voltage: AC/DC12V | Protection: IP65 | Colour: Pure white
AL6G-P4PROperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Red
AL6G-P4PGOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Green
AL6G-P4PYOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Yellow
AL6G-P4PAOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Amber
AL6G-P4PWOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: White
AL6G-P4PSOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Blue
AL6G-P4PJWOperator: Rectangular, 3-side barrier | Voltage: AC/DC24V | Protection: IP65 | Colour: Pure white
AL6M-P21ROperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6M-P21GOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6M-P21YOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6M-P21AOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6M-P21WOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: White
AL6M-P21SOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6M-P21JWOperator: Round | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6M-P22ROperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6M-P22GOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6M-P22YOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6M-P22AOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6M-P22WOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: White
AL6M-P22SOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6M-P22JWOperator: Round | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6Q-P21ROperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6Q-P21GOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6Q-P21YOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6Q-P21AOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6Q-P21WOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: White
AL6Q-P21SOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6Q-P21JWOperator: Square | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6Q-P22ROperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6Q-P22GOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6Q-P22YOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6Q-P22AOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6Q-P22WOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: White
AL6Q-P22SOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6Q-P22JWOperator: Square | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6H-P21ROperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6H-P21GOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6H-P21YOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6H-P21AOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6H-P21WOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: White
AL6H-P21SOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6H-P21JWOperator: Rectangular | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6H-P22ROperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6H-P22GOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6H-P22YOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6H-P22AOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6H-P22WOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: White
AL6H-P22SOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6H-P22JWOperator: Rectangular | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6G-P21ROperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Red
AL6G-P21GOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Green
AL6G-P21YOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Yellow
AL6G-P21AOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Amber
AL6G-P21WOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: White
AL6G-P21SOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Blue
AL6G-P21JWOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP40 | Colour: Pure white
AL6G-P22ROperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Red
AL6G-P22GOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Green
AL6G-P22YOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Yellow
AL6G-P22AOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Amber
AL6G-P22WOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: White
AL6G-P22SOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Blue
AL6G-P22JWOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP40 | Colour: Pure white
AL6M-P21PROperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6M-P21PGOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6M-P21PYOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6M-P21PAOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6M-P21PWOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: White
AL6M-P21PSOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6M-P21PJWOperator: Round | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6M-P22PROperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6M-P22PGOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6M-P22PYOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6M-P22PAOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6M-P22PWOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: White
AL6M-P22PSOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6M-P22PJWOperator: Round | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6Q-P21PROperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6Q-P21PGOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6Q-P21PYOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6Q-P21PAOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6Q-P21PWOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: White
AL6Q-P21PSOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6Q-P21PJWOperator: Square | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6Q-P22PROperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6Q-P22PGOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6Q-P22PYOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6Q-P22PAOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6Q-P22PWOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: White
AL6Q-P22PSOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6Q-P22PJWOperator: Square | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6H-P21PROperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6H-P21PGOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6H-P21PYOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6H-P21PAOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6H-P21PWOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: White
AL6H-P21PSOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6H-P21PJWOperator: Rectangular | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6H-P22PROperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6H-P22PGOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6H-P22PYOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6H-P22PAOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6H-P22PWOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: White
AL6H-P22PSOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6H-P22PJWOperator: Rectangular | Voltage: AC200V | Protection: IP65 | Colour: Pure white
AL6G-P21PROperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Red
AL6G-P21PGOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Green
AL6G-P21PYOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Yellow
AL6G-P21PAOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Amber
AL6G-P21PWOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: White
AL6G-P21PSOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Blue
AL6G-P21PJWOperator: Rectangular, 3-side barrier | Voltage: AC100V | Protection: IP65 | Colour: Pure white
AL6G-P22PROperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Red
AL6G-P22PGOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Green
AL6G-P22PYOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Yellow
AL6G-P22PAOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Amber
AL6G-P22PWOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: White
AL6G-P22PSOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Blue
AL6G-P22PJWOperator: Rectangular, 3-side barrier | Voltage: AC200V | Protection: IP65 | Colour: Pure white

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
