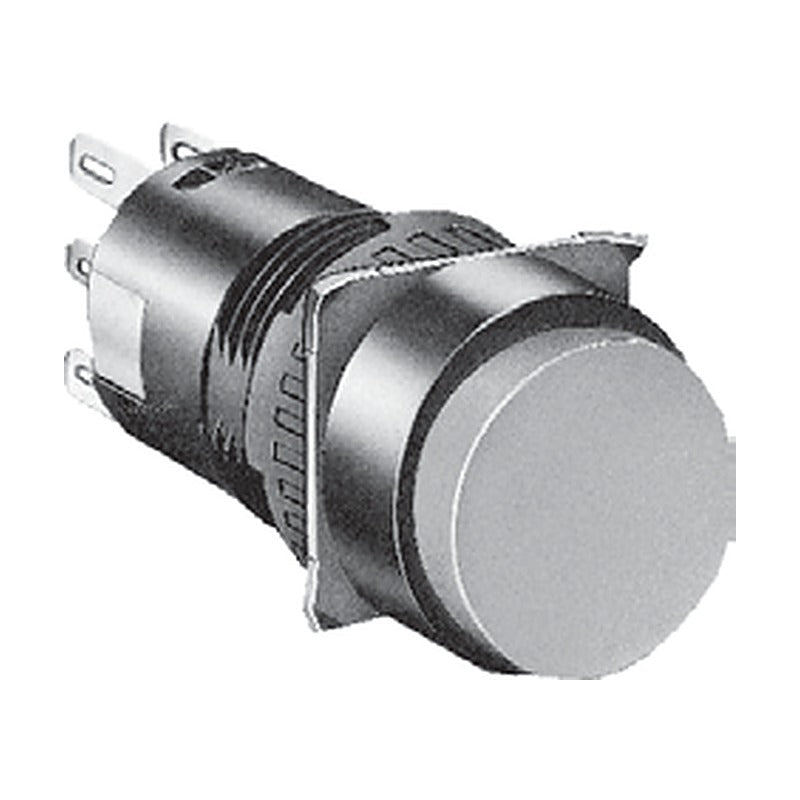

IDEC A6 Series 16 mm Pushbuttons

IDEC A6 Series 16 mm Pushbuttons

A6 Series φ16 non-illuminated pushbuttons with opaque button or translucent lens, momentary or alternate, 1c or 2c contacts, IP40 or IP65.

Key features

  • Button colours B, G, R, Y, S, W; lens colours R, G, Y, A, W, S
  • Round, square, rectangular and 3-side barrier shapes
  • φ16 mm mounting, one-piece light-duty design
  • Gold-clad contacts, 1c or 2c (rated 250 V / 3 A)
  • IP40 and IP65 (IEC 60529) versions for every operator
  • LED units have built-in current-limiting resistor and diode

Specifications

Series IDEC A6 Series (φ16)
Mounting φ16 mm
Contacts Gold-clad, rated 250 V / 3 A
Operating temperature -25 to +55 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Contact resistance 50 mΩ max. (initial)
Source IDEC A6 Series φ16 Miniature Control Units catalogue, p. 7
AB6M-M1B Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6M-M1G Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-M1R Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-M1Y Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-M1S Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-M1W Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-M2B Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6M-M2G Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-M2R Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-M2Y Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-M2S Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-M2W Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-A1B Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6M-A1G Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-A1R Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-A1Y Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-A1S Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-A1W Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-A2B Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6M-A2G Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-A2R Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-A2Y Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-A2S Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-A2W Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-M1LR Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-M1LG Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-M1LY Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-M1LA Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6M-M1LW Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-M1LS Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-M2LR Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-M2LG Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-M2LY Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-M2LA Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6M-M2LW Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-M2LS Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-A1LR Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-A1LG Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-A1LY Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-A1LA Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6M-A1LW Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-A1LS Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-A2LR Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-A2LG Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-A2LY Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-A2LA Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6M-A2LW Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-A2LS Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-M1B Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6Q-M1G Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-M1R Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-M1Y Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-M1S Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-M1W Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-M2B Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6Q-M2G Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-M2R Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-M2Y Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-M2S Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-M2W Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-A1B Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6Q-A1G Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-A1R Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-A1Y Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-A1S Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-A1W Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-A2B Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6Q-A2G Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-A2R Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-A2Y Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-A2S Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-A2W Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-M1LR Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-M1LG Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-M1LY Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-M1LA Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6Q-M1LW Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-M1LS Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-M2LR Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-M2LG Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-M2LY Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-M2LA Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6Q-M2LW Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-M2LS Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-A1LR Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-A1LG Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-A1LY Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-A1LA Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6Q-A1LW Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-A1LS Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-A2LR Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-A2LG Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-A2LY Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-A2LA Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6Q-A2LW Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-A2LS Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-M1B Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6H-M1G Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-M1R Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-M1Y Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-M1S Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-M1W Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-M2B Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6H-M2G Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-M2R Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-M2Y Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-M2S Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-M2W Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-A1B Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6H-A1G Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-A1R Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-A1Y Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-A1S Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-A1W Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-A2B Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6H-A2G Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-A2R Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-A2Y Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-A2S Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-A2W Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-M1LR Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-M1LG Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-M1LY Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-M1LA Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6H-M1LW Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-M1LS Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-M2LR Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-M2LG Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-M2LY Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-M2LA Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6H-M2LW Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-M2LS Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-A1LR Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-A1LG Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-A1LY Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-A1LA Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6H-A1LW Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-A1LS Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-A2LR Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-A2LG Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-A2LY Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-A2LA Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6H-A2LW Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-A2LS Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-M1B Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6G-M1G Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-M1R Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-M1Y Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-M1S Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-M1W Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-M2B Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6G-M2G Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-M2R Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-M2Y Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-M2S Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-M2W Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-A1B Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6G-A1G Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-A1R Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-A1Y Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-A1S Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-A1W Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-A2B Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6G-A2G Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-A2R Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-A2Y Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-A2S Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-A2W Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-M1LR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-M1LG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-M1LY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-M1LA Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6G-M1LW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-M1LS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-M2LR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-M2LG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-M2LY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-M2LA Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6G-M2LW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-M2LS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-A1LR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-A1LG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-A1LY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-A1LA Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6G-A1LW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-A1LS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-A2LR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-A2LG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-A2LY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-A2LA Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6G-A2LW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-A2LS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-M1PB Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6M-M1PG Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-M1PR Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-M1PY Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-M1PS Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-M1PW Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-M2PB Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6M-M2PG Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-M2PR Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-M2PY Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-M2PS Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-M2PW Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-A1PB Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6M-A1PG Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-A1PR Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-A1PY Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-A1PS Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-A1PW Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-A2PB Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6M-A2PG Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-A2PR Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-A2PY Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-A2PS Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-A2PW Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-M1PLR Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-M1PLG Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-M1PLY Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-M1PLA Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6M-M1PLW Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-M1PLS Operator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-M2PLR Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-M2PLG Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-M2PLY Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-M2PLA Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6M-M2PLW Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-M2PLS Operator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-A1PLR Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-A1PLG Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-A1PLY Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-A1PLA Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6M-A1PLW Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-A1PLS Operator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-A2PLR Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-A2PLG Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-A2PLY Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-A2PLA Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6M-A2PLW Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-A2PLS Operator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-M1PB Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6Q-M1PG Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-M1PR Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-M1PY Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-M1PS Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-M1PW Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-M2PB Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6Q-M2PG Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-M2PR Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-M2PY Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-M2PS Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-M2PW Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-A1PB Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6Q-A1PG Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-A1PR Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-A1PY Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-A1PS Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-A1PW Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-A2PB Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6Q-A2PG Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-A2PR Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-A2PY Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-A2PS Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-A2PW Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-M1PLR Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-M1PLG Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-M1PLY Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-M1PLA Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6Q-M1PLW Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-M1PLS Operator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-M2PLR Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-M2PLG Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-M2PLY Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-M2PLA Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6Q-M2PLW Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-M2PLS Operator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-A1PLR Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-A1PLG Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-A1PLY Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-A1PLA Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6Q-A1PLW Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-A1PLS Operator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-A2PLR Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-A2PLG Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-A2PLY Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-A2PLA Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6Q-A2PLW Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-A2PLS Operator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-M1PB Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6H-M1PG Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-M1PR Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-M1PY Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-M1PS Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-M1PW Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-M2PB Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6H-M2PG Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-M2PR Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-M2PY Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-M2PS Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-M2PW Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-A1PB Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6H-A1PG Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-A1PR Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-A1PY Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-A1PS Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-A1PW Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-A2PB Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6H-A2PG Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-A2PR Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-A2PY Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-A2PS Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-A2PW Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-M1PLR Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-M1PLG Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-M1PLY Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-M1PLA Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6H-M1PLW Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-M1PLS Operator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-M2PLR Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-M2PLG Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-M2PLY Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-M2PLA Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6H-M2PLW Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-M2PLS Operator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-A1PLR Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-A1PLG Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-A1PLY Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-A1PLA Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6H-A1PLW Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-A1PLS Operator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-A2PLR Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-A2PLG Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-A2PLY Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-A2PLA Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6H-A2PLW Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-A2PLS Operator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-M1PB Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6G-M1PG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-M1PR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-M1PY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-M1PS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-M1PW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-M2PB Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6G-M2PG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-M2PR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-M2PY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-M2PS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-M2PW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-A1PB Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6G-A1PG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-A1PR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-A1PY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-A1PS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-A1PW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-A2PB Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6G-A2PG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-A2PR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-A2PY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-A2PS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-A2PW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-M1PLR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-M1PLG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-M1PLY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-M1PLA Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6G-M1PLW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-M1PLS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-M2PLR Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-M2PLG Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-M2PLY Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-M2PLA Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6G-M2PLW Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-M2PLS Operator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-A1PLR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-A1PLG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-A1PLY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-A1PLA Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6G-A1PLW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-A1PLS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-A2PLR Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-A2PLG Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-A2PLY Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-A2PLA Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6G-A2PLW Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-A2PLS Operator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
PushbuttonsIDEC
384 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC A6 Series 16 mm Pushbuttons

Brand IDEC·Pushbuttons

Available part numbers (384)

AB6M-M1B, AB6M-M1G, AB6M-M1R, AB6M-M1Y, AB6M-M1S, AB6M-M1W, AB6M-M2B, AB6M-M2G, AB6M-M2R, AB6M-M2Y + 374 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB6M-M1BOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6M-M1GOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-M1ROperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-M1YOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-M1SOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-M1WOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-M2BOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6M-M2GOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-M2ROperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-M2YOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-M2SOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-M2WOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-A1BOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6M-A1GOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-A1ROperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-A1YOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-A1SOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-A1WOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-A2BOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6M-A2GOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-A2ROperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-A2YOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-A2SOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-A2WOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-M1LROperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-M1LGOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-M1LYOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-M1LAOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6M-M1LWOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-M1LSOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-M2LROperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-M2LGOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-M2LYOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-M2LAOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6M-M2LWOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-M2LSOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-A1LROperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6M-A1LGOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6M-A1LYOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6M-A1LAOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6M-A1LWOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6M-A1LSOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6M-A2LROperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6M-A2LGOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6M-A2LYOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6M-A2LAOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6M-A2LWOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6M-A2LSOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-M1BOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6Q-M1GOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-M1ROperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-M1YOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-M1SOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-M1WOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-M2BOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6Q-M2GOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-M2ROperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-M2YOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-M2SOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-M2WOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-A1BOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6Q-A1GOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-A1ROperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-A1YOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-A1SOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-A1WOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-A2BOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6Q-A2GOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-A2ROperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-A2YOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-A2SOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-A2WOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-M1LROperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-M1LGOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-M1LYOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-M1LAOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6Q-M1LWOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-M1LSOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-M2LROperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-M2LGOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-M2LYOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-M2LAOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6Q-M2LWOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-M2LSOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6Q-A1LROperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6Q-A1LGOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6Q-A1LYOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6Q-A1LAOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6Q-A1LWOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6Q-A1LSOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6Q-A2LROperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6Q-A2LGOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6Q-A2LYOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6Q-A2LAOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6Q-A2LWOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6Q-A2LSOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-M1BOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6H-M1GOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-M1ROperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-M1YOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-M1SOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-M1WOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-M2BOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6H-M2GOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-M2ROperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-M2YOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-M2SOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-M2WOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-A1BOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6H-A1GOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-A1ROperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-A1YOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-A1SOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-A1WOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-A2BOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6H-A2GOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-A2ROperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-A2YOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-A2SOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-A2WOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-M1LROperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-M1LGOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-M1LYOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-M1LAOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6H-M1LWOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-M1LSOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-M2LROperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-M2LGOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-M2LYOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-M2LAOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6H-M2LWOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-M2LSOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6H-A1LROperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6H-A1LGOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6H-A1LYOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6H-A1LAOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6H-A1LWOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6H-A1LSOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6H-A2LROperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6H-A2LGOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6H-A2LYOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6H-A2LAOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6H-A2LWOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6H-A2LSOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-M1BOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6G-M1GOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-M1ROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-M1YOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-M1SOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-M1WOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-M2BOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6G-M2GOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-M2ROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-M2YOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-M2SOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-M2WOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-A1BOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Black
AB6G-A1GOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-A1ROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-A1YOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-A1SOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-A1WOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-A2BOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Black
AB6G-A2GOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-A2ROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-A2YOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-A2SOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-A2WOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-M1LROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-M1LGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-M1LYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-M1LAOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6G-M1LWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-M1LSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-M2LROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-M2LGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-M2LYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-M2LAOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6G-M2LWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-M2LSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6G-A1LROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Red
AB6G-A1LGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Green
AB6G-A1LYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Yellow
AB6G-A1LAOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Amber
AB6G-A1LWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: White
AB6G-A1LSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP40 | Colour: Blue
AB6G-A2LROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Red
AB6G-A2LGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Green
AB6G-A2LYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Yellow
AB6G-A2LAOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Amber
AB6G-A2LWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: White
AB6G-A2LSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP40 | Colour: Blue
AB6M-M1PBOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6M-M1PGOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-M1PROperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-M1PYOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-M1PSOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-M1PWOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-M2PBOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6M-M2PGOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-M2PROperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-M2PYOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-M2PSOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-M2PWOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-A1PBOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6M-A1PGOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-A1PROperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-A1PYOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-A1PSOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-A1PWOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-A2PBOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6M-A2PGOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-A2PROperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-A2PYOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-A2PSOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-A2PWOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-M1PLROperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-M1PLGOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-M1PLYOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-M1PLAOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6M-M1PLWOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-M1PLSOperator: Round | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-M2PLROperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-M2PLGOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-M2PLYOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-M2PLAOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6M-M2PLWOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-M2PLSOperator: Round | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6M-A1PLROperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6M-A1PLGOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6M-A1PLYOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6M-A1PLAOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6M-A1PLWOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6M-A1PLSOperator: Round | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6M-A2PLROperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6M-A2PLGOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6M-A2PLYOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6M-A2PLAOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6M-A2PLWOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6M-A2PLSOperator: Round | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-M1PBOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6Q-M1PGOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-M1PROperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-M1PYOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-M1PSOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-M1PWOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-M2PBOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6Q-M2PGOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-M2PROperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-M2PYOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-M2PSOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-M2PWOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-A1PBOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6Q-A1PGOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-A1PROperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-A1PYOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-A1PSOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-A1PWOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-A2PBOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6Q-A2PGOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-A2PROperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-A2PYOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-A2PSOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-A2PWOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-M1PLROperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-M1PLGOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-M1PLYOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-M1PLAOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6Q-M1PLWOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-M1PLSOperator: Square | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-M2PLROperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-M2PLGOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-M2PLYOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-M2PLAOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6Q-M2PLWOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-M2PLSOperator: Square | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6Q-A1PLROperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6Q-A1PLGOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6Q-A1PLYOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6Q-A1PLAOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6Q-A1PLWOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6Q-A1PLSOperator: Square | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6Q-A2PLROperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6Q-A2PLGOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6Q-A2PLYOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6Q-A2PLAOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6Q-A2PLWOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6Q-A2PLSOperator: Square | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-M1PBOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6H-M1PGOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-M1PROperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-M1PYOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-M1PSOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-M1PWOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-M2PBOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6H-M2PGOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-M2PROperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-M2PYOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-M2PSOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-M2PWOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-A1PBOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6H-A1PGOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-A1PROperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-A1PYOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-A1PSOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-A1PWOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-A2PBOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6H-A2PGOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-A2PROperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-A2PYOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-A2PSOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-A2PWOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-M1PLROperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-M1PLGOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-M1PLYOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-M1PLAOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6H-M1PLWOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-M1PLSOperator: Rectangular | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-M2PLROperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-M2PLGOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-M2PLYOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-M2PLAOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6H-M2PLWOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-M2PLSOperator: Rectangular | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6H-A1PLROperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6H-A1PLGOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6H-A1PLYOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6H-A1PLAOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6H-A1PLWOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6H-A1PLSOperator: Rectangular | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6H-A2PLROperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6H-A2PLGOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6H-A2PLYOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6H-A2PLAOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6H-A2PLWOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6H-A2PLSOperator: Rectangular | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-M1PBOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6G-M1PGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-M1PROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-M1PYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-M1PSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-M1PWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-M2PBOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6G-M2PGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-M2PROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-M2PYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-M2PSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-M2PWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-A1PBOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Black
AB6G-A1PGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-A1PROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-A1PYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-A1PSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-A1PWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-A2PBOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Black
AB6G-A2PGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-A2PROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-A2PYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-A2PSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-A2PWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-M1PLROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-M1PLGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-M1PLYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-M1PLAOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6G-M1PLWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-M1PLSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-M2PLROperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-M2PLGOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-M2PLYOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-M2PLAOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6G-M2PLWOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-M2PLSOperator: Rectangular, 3-side barrier | Action: Momentary | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue
AB6G-A1PLROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Red
AB6G-A1PLGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Green
AB6G-A1PLYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Yellow
AB6G-A1PLAOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Amber
AB6G-A1PLWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: White
AB6G-A1PLSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 1c (1CO) | Protection: IP65 | Colour: Blue
AB6G-A2PLROperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Red
AB6G-A2PLGOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Green
AB6G-A2PLYOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Yellow
AB6G-A2PLAOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Amber
AB6G-A2PLWOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: White
AB6G-A2PLSOperator: Rectangular, 3-side barrier | Action: Alternate | Contacts: 2c (2CO) | Protection: IP65 | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
