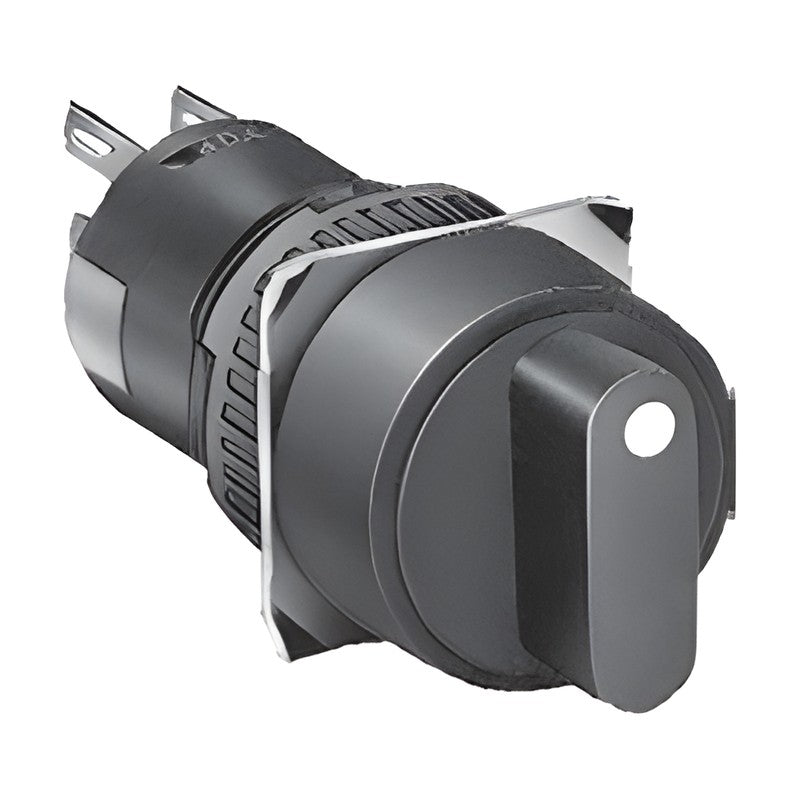

IDEC A6 Series 16 mm Selector Switches

IDEC A6 Series 16 mm Selector Switches

A6 Series φ16 selector switches, 90° 2-position and 45° 3-position, maintained or spring return; notch position changeable with the rotating bezel.

Key features

  • Black bezel and knob
  • Round, square and rectangular shapes, IP40 or IP65
  • φ16 mm mounting, one-piece light-duty design
  • Gold-clad contacts, 1c or 2c (rated 250 V / 3 A)
  • IP40 and IP65 (IEC 60529) versions for every operator
  • LED units have built-in current-limiting resistor and diode

Specifications

Series IDEC A6 Series (φ16)
Mounting φ16 mm
Contacts Gold-clad, rated 250 V / 3 A
Operating temperature -25 to +55 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Contact resistance 50 mΩ max. (initial)
Source IDEC A6 Series φ16 Miniature Control Units catalogue, p. 9
AS6M-2Y1 Operator: Round | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP40
AS6M-2Y2 Operator: Round | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6M-21Y1 Operator: Round | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP40
AS6M-21Y2 Operator: Round | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6M-3Y2 Operator: Round | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6M-31Y2 Operator: Round | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6M-32Y2 Operator: Round | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP40
AS6M-33Y2 Operator: Round | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP40
AS6Q-2Y1 Operator: Square | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP40
AS6Q-2Y2 Operator: Square | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6Q-21Y1 Operator: Square | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP40
AS6Q-21Y2 Operator: Square | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6Q-3Y2 Operator: Square | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6Q-31Y2 Operator: Square | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6Q-32Y2 Operator: Square | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP40
AS6Q-33Y2 Operator: Square | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP40
AS6H-2Y1 Operator: Rectangular | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP40
AS6H-2Y2 Operator: Rectangular | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6H-21Y1 Operator: Rectangular | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP40
AS6H-21Y2 Operator: Rectangular | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6H-3Y2 Operator: Rectangular | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP40
AS6H-31Y2 Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP40
AS6H-32Y2 Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP40
AS6H-33Y2 Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP40
AS6M-2Y1P Operator: Round | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP65
AS6M-2Y2P Operator: Round | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6M-21Y1P Operator: Round | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP65
AS6M-21Y2P Operator: Round | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6M-3Y2P Operator: Round | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6M-31Y2P Operator: Round | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6M-32Y2P Operator: Round | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP65
AS6M-33Y2P Operator: Round | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP65
AS6Q-2Y1P Operator: Square | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP65
AS6Q-2Y2P Operator: Square | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6Q-21Y1P Operator: Square | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP65
AS6Q-21Y2P Operator: Square | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6Q-3Y2P Operator: Square | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6Q-31Y2P Operator: Square | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6Q-32Y2P Operator: Square | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP65
AS6Q-33Y2P Operator: Square | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP65
AS6H-2Y1P Operator: Rectangular | Positions: 90° 2-position | Operation: Maintained | Contacts: 1c (1CO) | Protection: IP65
AS6H-2Y2P Operator: Rectangular | Positions: 90° 2-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6H-21Y1P Operator: Rectangular | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1c (1CO) | Protection: IP65
AS6H-21Y2P Operator: Rectangular | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6H-3Y2P Operator: Rectangular | Positions: 45° 3-position | Operation: Maintained | Contacts: 2c (2CO) | Protection: IP65
AS6H-31Y2P Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2c (2CO) | Protection: IP65
AS6H-32Y2P Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2c (2CO) | Protection: IP65
AS6H-33Y2P Operator: Rectangular | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2c (2CO) | Protection: IP65
Selector SwitchesIDEC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC A6 Series 16 mm Selector Switches

Brand IDEC·Selector Switches

Available part numbers (48)

AS6M-2Y1, AS6M-2Y2, AS6M-21Y1, AS6M-21Y2, AS6M-3Y2, AS6M-31Y2, AS6M-32Y2, AS6M-33Y2, AS6Q-2Y1, AS6Q-2Y2 + 38 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
