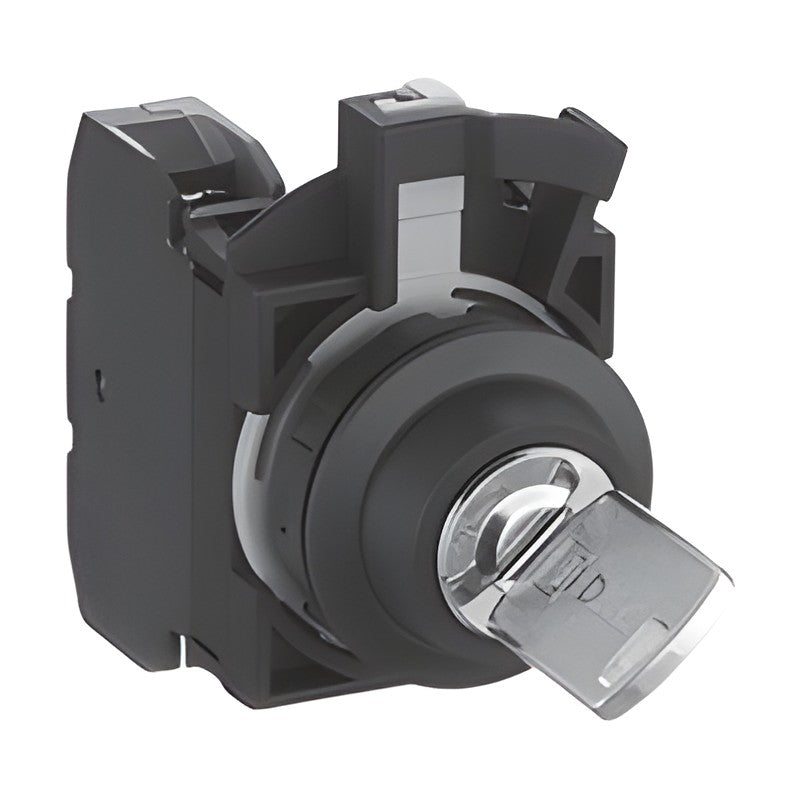

IDEC CW Series 22 mm Flush Silhouette Key Selector Switches

IDEC CW Series 22 mm Flush Silhouette Key Selector Switches

CW Series φ22 key selector switches, 90° 2-position and 45° 3-position, maintained or spring return, with key-removal position code in the part number.

Key features

  • Two keys supplied; standard key 0H
  • Key cylinder front is metal
  • φ22.3 mm panel cut-out per IEC 60947-5-1 with flush silhouette bezel
  • Black or metallic-colour bezel options
  • NC contacts with direct opening action; contact rating up to 10 A
  • Finger-protected IP20 terminals; IP66/67 and UL Type 4X front with dust cover

Specifications

Operator Key operated
Series IDEC CW Series (φ22 flush silhouette)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Operating temperature -25 to +60 °C (LED -25 to +55 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminal protection IP20 finger-protected
Contact rating Up to 10 A
Source IDEC CW Series φ22 Flush Silhouette Switches catalogue, p. 13-14
CW1K-2AE10 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW4K-2AE10 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1K-2AE01 Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW4K-2AE01 Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1K-2AE11 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-2AE11 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-2AE20 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4K-2AE20 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-2AE02 Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4K-2AE02 Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-2AE21 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-2AE21 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-2AE12 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-2AE12 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-2AE30 Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4K-2AE30 Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-2AE03 Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4K-2AE03 Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-2AE22 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-2AE22 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-2AE40 Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4K-2AE40 Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-21BE10 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW4K-21BE10 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1K-21BE01 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW4K-21BE01 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1K-21BE11 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-21BE11 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-21BE20 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4K-21BE20 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-21BE02 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4K-21BE02 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-21BE21 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-21BE21 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-21BE12 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-21BE12 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-21BE30 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4K-21BE30 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-21BE03 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4K-21BE03 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-21BE22 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-21BE22 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-21BE40 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4K-21BE40 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-3AE11 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-3AE11 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-3AE11N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-3AE11N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-3AE11N2 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-3AE11N2 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-3AE11N3 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-3AE11N3 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-3AE11N4 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-3AE11N4 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-3AE20 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4K-3AE20 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-3AE20N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-3AE20N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-3AE02 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4K-3AE02 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-3AE02N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-3AE02N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-3AE21 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-3AE21 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-3AE21N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-3AE21N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-3AE12 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-3AE12 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-3AE12N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-3AE12N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-3AE30 Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4K-3AE30 Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-3AE03 Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4K-3AE03 Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-3AE22 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-3AE22 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-3AE40 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4K-3AE40 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-3AE22N2 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-3AE22N2 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-31BE11 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-31BE11 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-31BE11N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-31BE11N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-31BE11N2 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-31BE11N2 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-31BE11N3 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-31BE11N3 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-31BE11N4 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-31BE11N4 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-31BE20 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4K-31BE20 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-31BE20N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-31BE20N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-31BE02 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4K-31BE02 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-31BE02N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-31BE02N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-31BE21 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-31BE21 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-31BE21N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-31BE21N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-31BE12 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-31BE12 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-31BE12N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-31BE12N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-31BE30 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4K-31BE30 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-31BE03 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4K-31BE03 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-31BE22 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-31BE22 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-31BE40 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4K-31BE40 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-31BE22N2 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-31BE22N2 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-32CE11 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-32CE11 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-32CE11N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-32CE11N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-32CE11N2 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-32CE11N2 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-32CE11N3 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-32CE11N3 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-32CE11N4 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-32CE11N4 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-32CE20 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW4K-32CE20 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-32CE20N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-32CE20N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-32CE02 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW4K-32CE02 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-32CE02N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-32CE02N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-32CE21 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-32CE21 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-32CE21N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-32CE21N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-32CE12 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-32CE12 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-32CE12N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-32CE12N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-32CE30 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW4K-32CE30 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-32CE03 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW4K-32CE03 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-32CE22 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-32CE22 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-32CE40 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW4K-32CE40 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-32CE22N2 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-32CE22N2 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-33DE11 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-33DE11 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-33DE11N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-33DE11N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-33DE11N2 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-33DE11N2 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-33DE11N3 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-33DE11N3 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-33DE11N4 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-33DE11N4 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-33DE20 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW4K-33DE20 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-33DE20N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-33DE20N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-33DE02 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW4K-33DE02 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-33DE02N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-33DE02N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-33DE21 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-33DE21 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-33DE21N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-33DE21N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-33DE12 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-33DE12 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-33DE12N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-33DE12N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-33DE30 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW4K-33DE30 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-33DE03 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW4K-33DE03 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-33DE22 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-33DE22 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-33DE40 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW4K-33DE40 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-33DE22N2 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-33DE22N2 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
Key SwitchesIDEC
188 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC CW Series 22 mm Flush Silhouette Key Selector Switches

Brand IDEC·Key Switches

Available part numbers (188)

CW1K-2AE10, CW4K-2AE10, CW1K-2AE01, CW4K-2AE01, CW1K-2AE11, CW4K-2AE11, CW1K-2AE20, CW4K-2AE20, CW1K-2AE02, CW4K-2AE02 + 178 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CW1K-2AE10Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW4K-2AE10Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1K-2AE01Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW4K-2AE01Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1K-2AE11Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-2AE11Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-2AE20Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4K-2AE20Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-2AE02Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4K-2AE02Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-2AE21Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-2AE21Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-2AE12Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-2AE12Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-2AE30Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4K-2AE30Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-2AE03Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4K-2AE03Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-2AE22Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-2AE22Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-2AE40Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4K-2AE40Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-21BE10Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW4K-21BE10Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1K-21BE01Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW4K-21BE01Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1K-21BE11Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-21BE11Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-21BE20Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4K-21BE20Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-21BE02Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4K-21BE02Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-21BE21Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-21BE21Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-21BE12Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-21BE12Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-21BE30Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4K-21BE30Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-21BE03Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4K-21BE03Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-21BE22Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-21BE22Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-21BE40Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4K-21BE40Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-3AE11Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-3AE11Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-3AE11N1Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-3AE11N1Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-3AE11N2Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-3AE11N2Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-3AE11N3Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-3AE11N3Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-3AE11N4Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-3AE11N4Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-3AE20Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4K-3AE20Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-3AE20N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-3AE20N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-3AE02Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4K-3AE02Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-3AE02N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-3AE02N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-3AE21Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-3AE21Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-3AE21N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-3AE21N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-3AE12Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-3AE12Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-3AE12N1Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-3AE12N1Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-3AE30Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4K-3AE30Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-3AE03Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4K-3AE03Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-3AE22Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-3AE22Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-3AE40Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4K-3AE40Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-3AE22N2Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-3AE22N2Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-31BE11Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-31BE11Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-31BE11N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-31BE11N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-31BE11N2Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-31BE11N2Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-31BE11N3Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-31BE11N3Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-31BE11N4Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-31BE11N4Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-31BE20Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4K-31BE20Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-31BE20N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-31BE20N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-31BE02Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4K-31BE02Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-31BE02N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-31BE02N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-31BE21Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-31BE21Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-31BE21N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-31BE21N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-31BE12Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-31BE12Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-31BE12N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-31BE12N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-31BE30Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4K-31BE30Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-31BE03Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4K-31BE03Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-31BE22Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-31BE22Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-31BE40Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4K-31BE40Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-31BE22N2Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-31BE22N2Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-32CE11Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-32CE11Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-32CE11N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-32CE11N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-32CE11N2Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-32CE11N2Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-32CE11N3Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-32CE11N3Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-32CE11N4Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-32CE11N4Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-32CE20Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW4K-32CE20Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-32CE20N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-32CE20N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-32CE02Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW4K-32CE02Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-32CE02N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-32CE02N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-32CE21Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-32CE21Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-32CE21N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-32CE21N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-32CE12Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-32CE12Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-32CE12N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-32CE12N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-32CE30Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW4K-32CE30Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-32CE03Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW4K-32CE03Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-32CE22Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-32CE22Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-32CE40Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW4K-32CE40Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-32CE22N2Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-32CE22N2Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1K-33DE11Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4K-33DE11Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1K-33DE11N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4K-33DE11N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1K-33DE11N2Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4K-33DE11N2Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1K-33DE11N3Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4K-33DE11N3Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1K-33DE11N4Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4K-33DE11N4Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1K-33DE20Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW4K-33DE20Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1K-33DE20N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4K-33DE20N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1K-33DE02Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW4K-33DE02Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1K-33DE02N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4K-33DE02N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1K-33DE21Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4K-33DE21Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1K-33DE21N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4K-33DE21N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1K-33DE12Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4K-33DE12Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1K-33DE12N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4K-33DE12N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1K-33DE30Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW4K-33DE30Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1K-33DE03Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW4K-33DE03Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1K-33DE22Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4K-33DE22Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1K-33DE40Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW4K-33DE40Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1K-33DE22N2Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4K-33DE22N2Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
