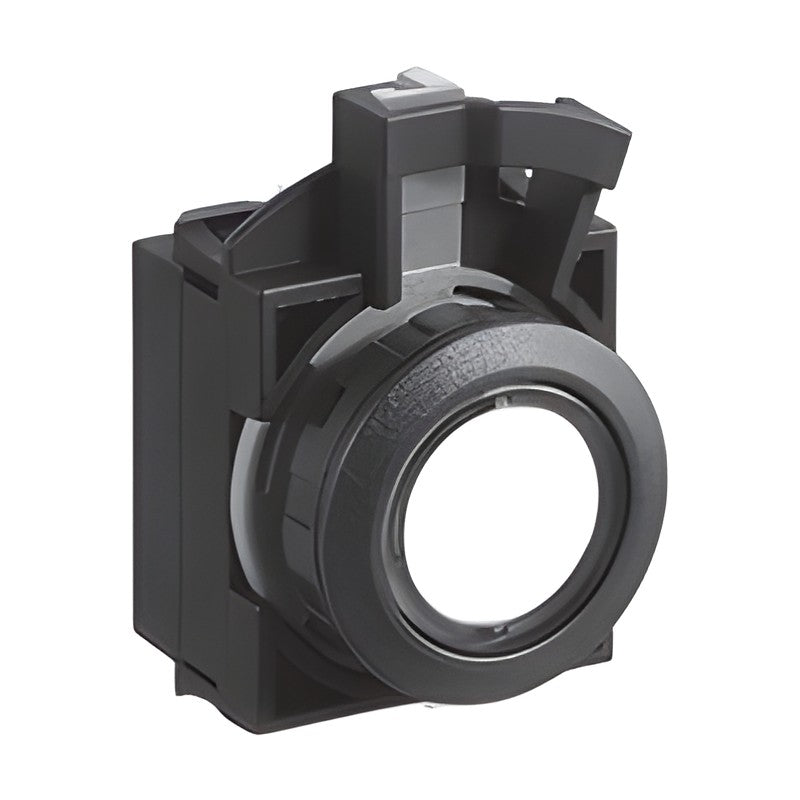

IDEC CW Series 22 mm Flush Silhouette Pilot Lights

CW Series φ22 flush silhouette LED pilot lights, flush or extended, with black or metallic bezel.

Key features

LED colours R, G, Y, A, S, PW
Rated voltage AC/DC24V, AC100/120V, AC200/220V
φ22.3 mm panel cut-out per IEC 60947-5-1 with flush silhouette bezel
Black or metallic-colour bezel options
NC contacts with direct opening action; contact rating up to 10 A
Finger-protected IP20 terminals; IP66/67 and UL Type 4X front with dust cover

Specifications

Series	IDEC CW Series (φ22 flush silhouette)
Mounting hole	φ22.3 mm (IEC 60947-5-1)
Operating temperature	-25 to +60 °C (LED -25 to +55 °C)
Insulation resistance	100 MΩ min. (500 V DC megger)
Terminal protection	IP20 finger-protected
Contact rating	Up to 10 A
Source	IDEC CW Series φ22 Flush Silhouette Switches catalogue, p. 5

CW1P-1EQ4R		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Red
CW4P-1EQ4R		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Red
CW1P-1EQ4G		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Green
CW4P-1EQ4G		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Green
CW1P-1EQ4Y		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Yellow
CW4P-1EQ4Y		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-1EQ4A		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Amber
CW4P-1EQ4A		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Amber
CW1P-1EQ4S		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Blue
CW4P-1EQ4S		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Blue
CW1P-1EQ4PW		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Pure white
CW4P-1EQ4PW		Operator: Flush \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Pure white
CW1P-1EQHR		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Red
CW4P-1EQHR		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Red
CW1P-1EQHG		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Green
CW4P-1EQHG		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Green
CW1P-1EQHY		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Yellow
CW4P-1EQHY		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-1EQHA		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Amber
CW4P-1EQHA		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Amber
CW1P-1EQHS		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Blue
CW4P-1EQHS		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Blue
CW1P-1EQHPW		Operator: Flush \| Voltage: AC100/120V \| Bezel: Black \| Colour: Pure white
CW4P-1EQHPW		Operator: Flush \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Pure white
CW1P-1EQMR		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Red
CW4P-1EQMR		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Red
CW1P-1EQMG		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Green
CW4P-1EQMG		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Green
CW1P-1EQMY		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Yellow
CW4P-1EQMY		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-1EQMA		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Amber
CW4P-1EQMA		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Amber
CW1P-1EQMS		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Blue
CW4P-1EQMS		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Blue
CW1P-1EQMPW		Operator: Flush \| Voltage: AC200/220V \| Bezel: Black \| Colour: Pure white
CW4P-1EQMPW		Operator: Flush \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Pure white
CW1P-2EQ4R		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Red
CW4P-2EQ4R		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Red
CW1P-2EQ4G		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Green
CW4P-2EQ4G		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Green
CW1P-2EQ4Y		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Yellow
CW4P-2EQ4Y		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-2EQ4A		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Amber
CW4P-2EQ4A		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Amber
CW1P-2EQ4S		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Blue
CW4P-2EQ4S		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Blue
CW1P-2EQ4PW		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Black \| Colour: Pure white
CW4P-2EQ4PW		Operator: Extended \| Voltage: AC/DC24V \| Bezel: Metallic colour \| Colour: Pure white
CW1P-2EQHR		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Red
CW4P-2EQHR		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Red
CW1P-2EQHG		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Green
CW4P-2EQHG		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Green
CW1P-2EQHY		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Yellow
CW4P-2EQHY		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-2EQHA		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Amber
CW4P-2EQHA		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Amber
CW1P-2EQHS		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Blue
CW4P-2EQHS		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Blue
CW1P-2EQHPW		Operator: Extended \| Voltage: AC100/120V \| Bezel: Black \| Colour: Pure white
CW4P-2EQHPW		Operator: Extended \| Voltage: AC100/120V \| Bezel: Metallic colour \| Colour: Pure white
CW1P-2EQMR		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Red
CW4P-2EQMR		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Red
CW1P-2EQMG		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Green
CW4P-2EQMG		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Green
CW1P-2EQMY		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Yellow
CW4P-2EQMY		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Yellow
CW1P-2EQMA		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Amber
CW4P-2EQMA		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Amber
CW1P-2EQMS		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Blue
CW4P-2EQMS		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Blue
CW1P-2EQMPW		Operator: Extended \| Voltage: AC200/220V \| Bezel: Black \| Colour: Pure white
CW4P-2EQMPW		Operator: Extended \| Voltage: AC200/220V \| Bezel: Metallic colour \| Colour: Pure white

Pilot LightsIDEC

72 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC CW Series 22 mm Flush Silhouette Pilot Lights

Brand IDEC·Pilot Lights

Available part numbers (72)

CW1P-1EQ4R, CW4P-1EQ4R, CW1P-1EQ4G, CW4P-1EQ4G, CW1P-1EQ4Y, CW4P-1EQ4Y, CW1P-1EQ4A, CW4P-1EQ4A, CW1P-1EQ4S, CW4P-1EQ4S + 62 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
