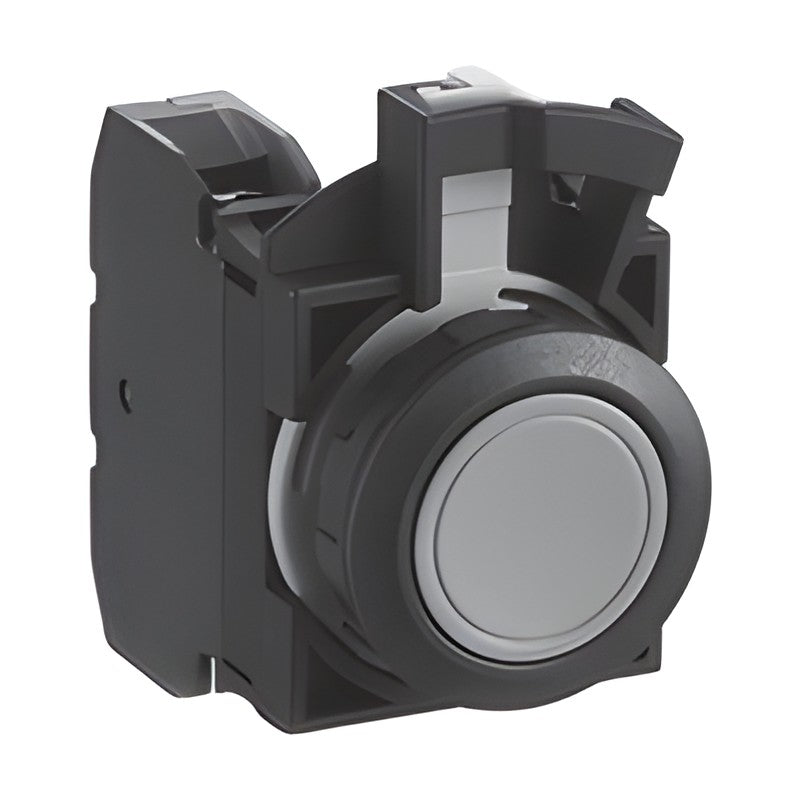

IDEC CW Series 22 mm Flush Silhouette Pushbuttons

IDEC CW Series 22 mm Flush Silhouette Pushbuttons

CW Series φ22 flush silhouette non-illuminated pushbuttons, flush or extended, momentary or alternate, 1a to 2a-2b contacts.

Key features

  • Button colours B, G, R, Y, S, W
  • 3a/3b and 1a-2b/2a-1b configurations momentary only
  • φ22.3 mm panel cut-out per IEC 60947-5-1 with flush silhouette bezel
  • Black or metallic-colour bezel options
  • NC contacts with direct opening action; contact rating up to 10 A
  • Finger-protected IP20 terminals; IP66/67 and UL Type 4X front with dust cover

Specifications

Series IDEC CW Series (φ22 flush silhouette)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Operating temperature -25 to +60 °C (LED -25 to +55 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminal protection IP20 finger-protected
Contact rating Up to 10 A
Source IDEC CW Series φ22 Flush Silhouette Switches catalogue, p. 7
CW1B-M1E10B Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW1B-A1E10B Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW4B-M1E10B Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW4B-A1E10B Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E10G Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW1B-A1E10G Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW4B-M1E10G Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW4B-A1E10G Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E10R Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW1B-A1E10R Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW4B-M1E10R Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW4B-A1E10R Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E10Y Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW1B-A1E10Y Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW4B-M1E10Y Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E10Y Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E10S Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW1B-A1E10S Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW4B-M1E10S Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E10S Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E10W Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW1B-A1E10W Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW4B-M1E10W Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW4B-A1E10W Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E01B Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW1B-A1E01B Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW4B-M1E01B Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E01B Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E01G Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW1B-A1E01G Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW4B-M1E01G Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E01G Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E01R Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW1B-A1E01R Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW4B-M1E01R Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E01R Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E01Y Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW1B-A1E01Y Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E01Y Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E01Y Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E01S Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW1B-A1E01S Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW4B-M1E01S Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E01S Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E01W Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW1B-A1E01W Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW4B-M1E01W Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E01W Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E11B Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW1B-A1E11B Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW4B-M1E11B Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E11B Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E11G Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW1B-A1E11G Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW4B-M1E11G Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E11G Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E11R Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW1B-A1E11R Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW4B-M1E11R Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E11R Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E11Y Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW1B-A1E11Y Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E11Y Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E11Y Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E11S Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW1B-A1E11S Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M1E11S Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E11S Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E11W Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW1B-A1E11W Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW4B-M1E11W Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E11W Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E20B Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW1B-A1E20B Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW4B-M1E20B Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW4B-A1E20B Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E20G Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW1B-A1E20G Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW4B-M1E20G Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW4B-A1E20G Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E20R Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW1B-A1E20R Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW4B-M1E20R Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW4B-A1E20R Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E20Y Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW1B-A1E20Y Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW4B-M1E20Y Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E20Y Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E20S Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW1B-A1E20S Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW4B-M1E20S Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E20S Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E20W Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW1B-A1E20W Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW4B-M1E20W Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW4B-A1E20W Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E02B Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW1B-A1E02B Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW4B-M1E02B Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E02B Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E02G Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW1B-A1E02G Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW4B-M1E02G Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E02G Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E02R Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW1B-A1E02R Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW4B-M1E02R Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E02R Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E02Y Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW1B-A1E02Y Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E02Y Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E02Y Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E02S Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW1B-A1E02S Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW4B-M1E02S Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E02S Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E02W Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW1B-A1E02W Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW4B-M1E02W Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E02W Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E21B Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Black
CW4B-M1E21B Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E21G Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Green
CW4B-M1E21G Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E21R Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Red
CW4B-M1E21R Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E21Y Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E21Y Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E21S Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M1E21S Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E21W Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: White
CW4B-M1E21W Operator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E12B Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Black
CW4B-M1E12B Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E12G Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Green
CW4B-M1E12G Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E12R Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Red
CW4B-M1E12R Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E12Y Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E12Y Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E12S Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M1E12S Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E12W Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: White
CW4B-M1E12W Operator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E30B Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Black
CW4B-M1E30B Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E30G Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Green
CW4B-M1E30G Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E30R Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Red
CW4B-M1E30R Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E30Y Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Yellow
CW4B-M1E30Y Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E30S Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Blue
CW4B-M1E30S Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E30W Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: White
CW4B-M1E30W Operator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E03B Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Black
CW4B-M1E03B Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E03G Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Green
CW4B-M1E03G Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E03R Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Red
CW4B-M1E03R Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E03Y Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Yellow
CW4B-M1E03Y Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E03S Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Blue
CW4B-M1E03S Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E03W Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: White
CW4B-M1E03W Operator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E22B Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW1B-A1E22B Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW4B-M1E22B Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E22B Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E22G Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW1B-A1E22G Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW4B-M1E22G Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E22G Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E22R Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW1B-A1E22R Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW4B-M1E22R Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E22R Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E22Y Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW1B-A1E22Y Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E22Y Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E22Y Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E22S Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW1B-A1E22S Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M1E22S Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E22S Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E22W Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW1B-A1E22W Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW4B-M1E22W Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E22W Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E10B Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW1B-A2E10B Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW4B-M2E10B Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW4B-A2E10B Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E10G Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW1B-A2E10G Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW4B-M2E10G Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW4B-A2E10G Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E10R Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW1B-A2E10R Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW4B-M2E10R Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW4B-A2E10R Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E10Y Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW1B-A2E10Y Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW4B-M2E10Y Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E10Y Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E10S Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW1B-A2E10S Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW4B-M2E10S Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E10S Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E10W Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW1B-A2E10W Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW4B-M2E10W Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW4B-A2E10W Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E01B Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW1B-A2E01B Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW4B-M2E01B Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E01B Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E01G Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW1B-A2E01G Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW4B-M2E01G Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E01G Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E01R Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW1B-A2E01R Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW4B-M2E01R Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E01R Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E01Y Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW1B-A2E01Y Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E01Y Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E01Y Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E01S Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW1B-A2E01S Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW4B-M2E01S Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E01S Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E01W Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW1B-A2E01W Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW4B-M2E01W Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E01W Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E11B Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW1B-A2E11B Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW4B-M2E11B Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E11B Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E11G Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW1B-A2E11G Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW4B-M2E11G Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E11G Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E11R Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW1B-A2E11R Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW4B-M2E11R Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E11R Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E11Y Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW1B-A2E11Y Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E11Y Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E11Y Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E11S Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW1B-A2E11S Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M2E11S Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E11S Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E11W Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW1B-A2E11W Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW4B-M2E11W Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E11W Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E20B Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW1B-A2E20B Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW4B-M2E20B Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW4B-A2E20B Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E20G Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW1B-A2E20G Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW4B-M2E20G Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW4B-A2E20G Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E20R Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW1B-A2E20R Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW4B-M2E20R Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW4B-A2E20R Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E20Y Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW1B-A2E20Y Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW4B-M2E20Y Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E20Y Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E20S Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW1B-A2E20S Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW4B-M2E20S Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E20S Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E20W Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW1B-A2E20W Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW4B-M2E20W Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW4B-A2E20W Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E02B Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW1B-A2E02B Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW4B-M2E02B Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E02B Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E02G Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW1B-A2E02G Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW4B-M2E02G Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E02G Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E02R Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW1B-A2E02R Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW4B-M2E02R Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E02R Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E02Y Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW1B-A2E02Y Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E02Y Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E02Y Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E02S Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW1B-A2E02S Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW4B-M2E02S Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E02S Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E02W Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW1B-A2E02W Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW4B-M2E02W Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E02W Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E21B Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Black
CW4B-M2E21B Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E21G Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Green
CW4B-M2E21G Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E21R Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Red
CW4B-M2E21R Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E21Y Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E21Y Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E21S Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M2E21S Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E21W Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: White
CW4B-M2E21W Operator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E12B Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Black
CW4B-M2E12B Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E12G Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Green
CW4B-M2E12G Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E12R Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Red
CW4B-M2E12R Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E12Y Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E12Y Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E12S Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M2E12S Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E12W Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: White
CW4B-M2E12W Operator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E30B Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Black
CW4B-M2E30B Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E30G Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Green
CW4B-M2E30G Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E30R Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Red
CW4B-M2E30R Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E30Y Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Yellow
CW4B-M2E30Y Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E30S Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Blue
CW4B-M2E30S Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E30W Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: White
CW4B-M2E30W Operator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E03B Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Black
CW4B-M2E03B Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E03G Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Green
CW4B-M2E03G Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E03R Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Red
CW4B-M2E03R Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E03Y Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Yellow
CW4B-M2E03Y Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E03S Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Blue
CW4B-M2E03S Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E03W Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: White
CW4B-M2E03W Operator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E22B Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW1B-A2E22B Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW4B-M2E22B Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E22B Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E22G Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW1B-A2E22G Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW4B-M2E22G Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E22G Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E22R Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW1B-A2E22R Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW4B-M2E22R Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E22R Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E22Y Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW1B-A2E22Y Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E22Y Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E22Y Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E22S Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW1B-A2E22S Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M2E22S Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E22S Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E22W Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW1B-A2E22W Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW4B-M2E22W Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E22W Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
PushbuttonsIDEC
384 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC CW Series 22 mm Flush Silhouette Pushbuttons

Brand IDEC·Pushbuttons

Available part numbers (384)

CW1B-M1E10B, CW1B-A1E10B, CW4B-M1E10B, CW4B-A1E10B, CW1B-M1E10G, CW1B-A1E10G, CW4B-M1E10G, CW4B-A1E10G, CW1B-M1E10R, CW1B-A1E10R + 374 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CW1B-M1E10BOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW1B-A1E10BOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW4B-M1E10BOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW4B-A1E10BOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E10GOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW1B-A1E10GOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW4B-M1E10GOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW4B-A1E10GOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E10ROperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW1B-A1E10ROperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW4B-M1E10ROperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW4B-A1E10ROperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E10YOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW1B-A1E10YOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW4B-M1E10YOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E10YOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E10SOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW1B-A1E10SOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW4B-M1E10SOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E10SOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E10WOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW1B-A1E10WOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW4B-M1E10WOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW4B-A1E10WOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E01BOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW1B-A1E01BOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW4B-M1E01BOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E01BOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E01GOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW1B-A1E01GOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW4B-M1E01GOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E01GOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E01ROperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW1B-A1E01ROperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW4B-M1E01ROperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E01ROperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E01YOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW1B-A1E01YOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E01YOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E01YOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E01SOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW1B-A1E01SOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW4B-M1E01SOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E01SOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E01WOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW1B-A1E01WOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW4B-M1E01WOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E01WOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E11BOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW1B-A1E11BOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW4B-M1E11BOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E11BOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E11GOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW1B-A1E11GOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW4B-M1E11GOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E11GOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E11ROperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW1B-A1E11ROperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW4B-M1E11ROperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E11ROperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E11YOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW1B-A1E11YOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E11YOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E11YOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E11SOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW1B-A1E11SOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M1E11SOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E11SOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E11WOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW1B-A1E11WOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW4B-M1E11WOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E11WOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E20BOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW1B-A1E20BOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW4B-M1E20BOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW4B-A1E20BOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E20GOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW1B-A1E20GOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW4B-M1E20GOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW4B-A1E20GOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E20ROperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW1B-A1E20ROperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW4B-M1E20ROperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW4B-A1E20ROperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E20YOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW1B-A1E20YOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW4B-M1E20YOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E20YOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E20SOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW1B-A1E20SOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW4B-M1E20SOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E20SOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E20WOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW1B-A1E20WOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW4B-M1E20WOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW4B-A1E20WOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E02BOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW1B-A1E02BOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW4B-M1E02BOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E02BOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E02GOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW1B-A1E02GOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW4B-M1E02GOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E02GOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E02ROperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW1B-A1E02ROperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW4B-M1E02ROperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E02ROperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E02YOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW1B-A1E02YOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E02YOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E02YOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E02SOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW1B-A1E02SOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW4B-M1E02SOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E02SOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E02WOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW1B-A1E02WOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW4B-M1E02WOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E02WOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E21BOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Black
CW4B-M1E21BOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E21GOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Green
CW4B-M1E21GOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E21ROperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Red
CW4B-M1E21ROperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E21YOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M1E21YOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E21SOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M1E21SOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E21WOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: White
CW4B-M1E21WOperator: Flush | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E12BOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Black
CW4B-M1E12BOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E12GOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Green
CW4B-M1E12GOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E12ROperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Red
CW4B-M1E12ROperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E12YOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E12YOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E12SOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M1E12SOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E12WOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: White
CW4B-M1E12WOperator: Flush | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E30BOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Black
CW4B-M1E30BOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Black
CW1B-M1E30GOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Green
CW4B-M1E30GOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Green
CW1B-M1E30ROperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Red
CW4B-M1E30ROperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Red
CW1B-M1E30YOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Yellow
CW4B-M1E30YOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E30SOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Blue
CW4B-M1E30SOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E30WOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: White
CW4B-M1E30WOperator: Flush | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: White
CW1B-M1E03BOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Black
CW4B-M1E03BOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E03GOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Green
CW4B-M1E03GOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E03ROperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Red
CW4B-M1E03ROperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E03YOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Yellow
CW4B-M1E03YOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E03SOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Blue
CW4B-M1E03SOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E03WOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: White
CW4B-M1E03WOperator: Flush | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: White
CW1B-M1E22BOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW1B-A1E22BOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW4B-M1E22BOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A1E22BOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M1E22GOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW1B-A1E22GOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW4B-M1E22GOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A1E22GOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M1E22ROperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW1B-A1E22ROperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW4B-M1E22ROperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A1E22ROperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M1E22YOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW1B-A1E22YOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M1E22YOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A1E22YOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M1E22SOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW1B-A1E22SOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M1E22SOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A1E22SOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M1E22WOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW1B-A1E22WOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW4B-M1E22WOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW4B-A1E22WOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E10BOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW1B-A2E10BOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Black
CW4B-M2E10BOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW4B-A2E10BOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E10GOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW1B-A2E10GOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Green
CW4B-M2E10GOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW4B-A2E10GOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E10ROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW1B-A2E10ROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Red
CW4B-M2E10ROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW4B-A2E10ROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E10YOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW1B-A2E10YOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Yellow
CW4B-M2E10YOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E10YOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E10SOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW1B-A2E10SOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: Blue
CW4B-M2E10SOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E10SOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E10WOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW1B-A2E10WOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Black | Colour: White
CW4B-M2E10WOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW4B-A2E10WOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E01BOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW1B-A2E01BOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Black
CW4B-M2E01BOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E01BOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E01GOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW1B-A2E01GOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Green
CW4B-M2E01GOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E01GOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E01ROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW1B-A2E01ROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Red
CW4B-M2E01ROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E01ROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E01YOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW1B-A2E01YOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E01YOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E01YOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E01SOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW1B-A2E01SOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: Blue
CW4B-M2E01SOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E01SOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E01WOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW1B-A2E01WOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Black | Colour: White
CW4B-M2E01WOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E01WOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E11BOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW1B-A2E11BOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Black
CW4B-M2E11BOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E11BOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E11GOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW1B-A2E11GOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Green
CW4B-M2E11GOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E11GOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E11ROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW1B-A2E11ROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Red
CW4B-M2E11ROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E11ROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E11YOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW1B-A2E11YOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E11YOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E11YOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E11SOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW1B-A2E11SOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M2E11SOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E11SOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E11WOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW1B-A2E11WOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Black | Colour: White
CW4B-M2E11WOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E11WOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E20BOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW1B-A2E20BOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Black
CW4B-M2E20BOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW4B-A2E20BOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E20GOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW1B-A2E20GOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Green
CW4B-M2E20GOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW4B-A2E20GOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E20ROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW1B-A2E20ROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Red
CW4B-M2E20ROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW4B-A2E20ROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E20YOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW1B-A2E20YOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Yellow
CW4B-M2E20YOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E20YOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E20SOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW1B-A2E20SOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: Blue
CW4B-M2E20SOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E20SOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E20WOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW1B-A2E20WOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Black | Colour: White
CW4B-M2E20WOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW4B-A2E20WOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E02BOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW1B-A2E02BOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Black
CW4B-M2E02BOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E02BOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E02GOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW1B-A2E02GOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Green
CW4B-M2E02GOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E02GOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E02ROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW1B-A2E02ROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Red
CW4B-M2E02ROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E02ROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E02YOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW1B-A2E02YOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E02YOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E02YOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E02SOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW1B-A2E02SOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: Blue
CW4B-M2E02SOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E02SOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E02WOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW1B-A2E02WOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Black | Colour: White
CW4B-M2E02WOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E02WOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E21BOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Black
CW4B-M2E21BOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E21GOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Green
CW4B-M2E21GOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E21ROperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Red
CW4B-M2E21ROperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E21YOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Yellow
CW4B-M2E21YOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E21SOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: Blue
CW4B-M2E21SOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E21WOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Black | Colour: White
CW4B-M2E21WOperator: Extended | Action: Momentary | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E12BOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Black
CW4B-M2E12BOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E12GOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Green
CW4B-M2E12GOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E12ROperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Red
CW4B-M2E12ROperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E12YOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E12YOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E12SOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M2E12SOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E12WOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Black | Colour: White
CW4B-M2E12WOperator: Extended | Action: Momentary | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E30BOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Black
CW4B-M2E30BOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Black
CW1B-M2E30GOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Green
CW4B-M2E30GOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Green
CW1B-M2E30ROperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Red
CW4B-M2E30ROperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Red
CW1B-M2E30YOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Yellow
CW4B-M2E30YOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E30SOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: Blue
CW4B-M2E30SOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E30WOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Black | Colour: White
CW4B-M2E30WOperator: Extended | Action: Momentary | Contacts: 3a (3NO) | Bezel: Metallic colour | Colour: White
CW1B-M2E03BOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Black
CW4B-M2E03BOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E03GOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Green
CW4B-M2E03GOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E03ROperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Red
CW4B-M2E03ROperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E03YOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Yellow
CW4B-M2E03YOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E03SOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: Blue
CW4B-M2E03SOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E03WOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Black | Colour: White
CW4B-M2E03WOperator: Extended | Action: Momentary | Contacts: 3b (3NC) | Bezel: Metallic colour | Colour: White
CW1B-M2E22BOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW1B-A2E22BOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Black
CW4B-M2E22BOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW4B-A2E22BOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Black
CW1B-M2E22GOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW1B-A2E22GOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Green
CW4B-M2E22GOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW4B-A2E22GOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Green
CW1B-M2E22ROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW1B-A2E22ROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Red
CW4B-M2E22ROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW4B-A2E22ROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Red
CW1B-M2E22YOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW1B-A2E22YOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Yellow
CW4B-M2E22YOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW4B-A2E22YOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Yellow
CW1B-M2E22SOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW1B-A2E22SOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: Blue
CW4B-M2E22SOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW4B-A2E22SOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: Blue
CW1B-M2E22WOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW1B-A2E22WOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Black | Colour: White
CW4B-M2E22WOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White
CW4B-A2E22WOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Bezel: Metallic colour | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
