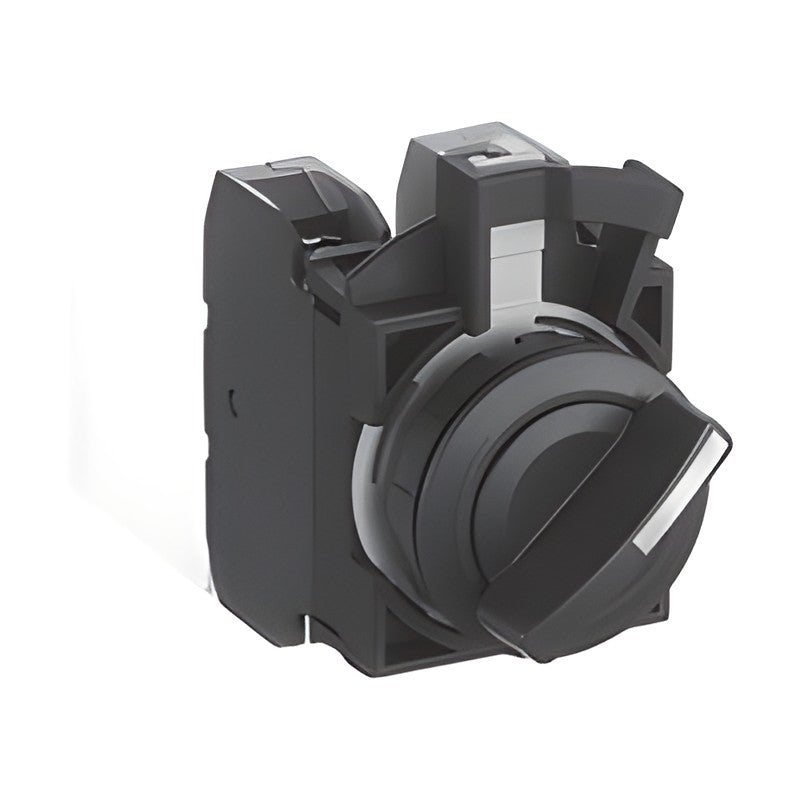

IDEC CW Series 22 mm Flush Silhouette Selector Switches

IDEC CW Series 22 mm Flush Silhouette Selector Switches

CW Series φ22 selector switches with arrow or lever handle, 90° 2-position and 45° 3-position, maintained or spring return.

Key features

  • Lever handle versions marked L before E in the part number
  • Up to 4 contacts with 2-tier contact blocks
  • φ22.3 mm panel cut-out per IEC 60947-5-1 with flush silhouette bezel
  • Black or metallic-colour bezel options
  • NC contacts with direct opening action; contact rating up to 10 A
  • Finger-protected IP20 terminals; IP66/67 and UL Type 4X front with dust cover

Specifications

Series IDEC CW Series (φ22 flush silhouette)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Operating temperature -25 to +60 °C (LED -25 to +55 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminal protection IP20 finger-protected
Contact rating Up to 10 A
Source IDEC CW Series φ22 Flush Silhouette Switches catalogue, p. 9-10
CW1S-2E10 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW1S-2LE10 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW4S-2E10 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW4S-2LE10 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1S-2E01 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW1S-2LE01 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW4S-2E01 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW4S-2LE01 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1S-2E11 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW1S-2LE11 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW4S-2E11 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW4S-2LE11 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW1S-2E20 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW1S-2LE20 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4S-2E20 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-2LE20 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-2E02 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW1S-2LE02 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4S-2E02 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-2LE02 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-2E21 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW1S-2LE21 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW4S-2E21 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW4S-2LE21 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW1S-2E12 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW1S-2LE12 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW4S-2E12 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW4S-2LE12 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW1S-2E30 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW1S-2LE30 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4S-2E30 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-2LE30 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-2E03 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW1S-2LE03 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4S-2E03 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-2LE03 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-2E22 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-2LE22 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-2E22 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-2LE22 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-2E40 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW1S-2LE40 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4S-2E40 Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-2LE40 Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-21E10 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW1S-21LE10 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW4S-21E10 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW4S-21LE10 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1S-21E01 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW1S-21LE01 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW4S-21E01 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW4S-21LE01 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1S-21E11 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW1S-21LE11 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW4S-21E11 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW4S-21LE11 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW1S-21E20 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW1S-21LE20 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4S-21E20 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-21LE20 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-21E02 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW1S-21LE02 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4S-21E02 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-21LE02 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-21E21 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW1S-21LE21 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW4S-21E21 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW4S-21LE21 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW1S-21E12 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW1S-21LE12 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW4S-21E12 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW4S-21LE12 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW1S-21E30 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW1S-21LE30 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4S-21E30 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-21LE30 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-21E03 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW1S-21LE03 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4S-21E03 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-21LE03 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-21E22 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-21LE22 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-21E22 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-21LE22 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-21E40 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW1S-21LE40 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4S-21E40 Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-21LE40 Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-3E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-3LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-3E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-3LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-3E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-3LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-3E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-3LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-3E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-3LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-3E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-3LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-3E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-3LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-3E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-3LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-3E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-3LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-3E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-3LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-3E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW1S-3LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4S-3E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-3LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-3E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-3LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-3E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-3LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-3E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW1S-3LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4S-3E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-3LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-3E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-3LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-3E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-3LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-3E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-3LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-3E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-3LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-3E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-3LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-3E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-3LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-3E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-3LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-3E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-3LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-3E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-3LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-3E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-3LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-3E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW1S-3LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4S-3E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-3LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-3E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW1S-3LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4S-3E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-3LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-3E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-3LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-3E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-3LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-3E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW1S-3LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4S-3E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-3LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-3E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-3LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-3E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-3LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-31E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-31LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-31E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-31LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-31E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-31LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-31E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-31LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-31E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-31LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-31E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-31LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-31E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-31LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-31E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-31LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-31E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-31LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-31E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-31LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-31E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW1S-31LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4S-31E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-31LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-31E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-31LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-31E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-31LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-31E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW1S-31LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4S-31E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-31LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-31E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-31LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-31E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-31LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-31E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-31LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-31E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-31LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-31E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-31LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-31E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-31LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-31E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-31LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-31E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-31LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-31E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-31LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-31E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-31LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-31E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW1S-31LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4S-31E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-31LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-31E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW1S-31LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4S-31E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-31LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-31E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-31LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-31E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-31LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-31E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW1S-31LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4S-31E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-31LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-31E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-31LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-31E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-31LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-32E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-32LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-32E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-32LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-32E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW1S-32LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW4S-32E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-32LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-32E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW1S-32LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW4S-32E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-32LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-32E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-32LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-32E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-32LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-32E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-32LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-32E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-32LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-32E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW1S-32LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW4S-32E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-32LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-32E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW1S-32LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW4S-32E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-32LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-32E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-32LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-32E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-32LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-32E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW1S-32LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW4S-32E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-32LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-32E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-32LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-32E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-32LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-32E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-32LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-32E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-32LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-32E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-32LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-32E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-32LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-32E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-32LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-32E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-32LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-32E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-32LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-32E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-32LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-32E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-32LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-32E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-32LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-32E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-32LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-32E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-32LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-32E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-32LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-32E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-32LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-32E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-32LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-32E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-32LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-33E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-33LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-33E22 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-33LE22 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-33E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW1S-33LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW4S-33E40 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-33LE40 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-33E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-33LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-33E11 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-33LE11 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-33E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-33LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-33E11N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-33LE11N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-33E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-33LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-33E11N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-33LE11N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-33E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-33LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-33E11N3 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-33LE11N3 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-33E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-33LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-33E11N4 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-33LE11N4 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-33E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW1S-33LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW4S-33E20 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-33LE20 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-33E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-33LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-33E20N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-33LE20N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-33E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW1S-33LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW4S-33E02 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-33LE02 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-33E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-33LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-33E02N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-33LE02N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-33E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-33LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-33E21 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-33LE21 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-33E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-33LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-33E21N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-33LE21N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-33E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-33LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-33E12 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-33LE12 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-33E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-33LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-33E12N1 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-33LE12N1 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-33E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW1S-33LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW4S-33E30 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-33LE30 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-33E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW1S-33LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW4S-33E03 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-33LE03 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-33E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-33LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-33E22N2 Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-33LE22N2 Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
Selector SwitchesIDEC
376 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC CW Series 22 mm Flush Silhouette Selector Switches

Brand IDEC·Selector Switches

Available part numbers (376)

CW1S-2E10, CW1S-2LE10, CW4S-2E10, CW4S-2LE10, CW1S-2E01, CW1S-2LE01, CW4S-2E01, CW4S-2LE01, CW1S-2E11, CW1S-2LE11 + 366 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CW1S-2E10Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW1S-2LE10Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Black
CW4S-2E10Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW4S-2LE10Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1S-2E01Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW1S-2LE01Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Black
CW4S-2E01Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW4S-2LE01Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1S-2E11Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW1S-2LE11Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW4S-2E11Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW4S-2LE11Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW1S-2E20Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW1S-2LE20Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4S-2E20Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-2LE20Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-2E02Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW1S-2LE02Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4S-2E02Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-2LE02Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-2E21Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW1S-2LE21Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW4S-2E21Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW4S-2LE21Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW1S-2E12Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW1S-2LE12Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW4S-2E12Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW4S-2LE12Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW1S-2E30Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW1S-2LE30Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4S-2E30Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-2LE30Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-2E03Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW1S-2LE03Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4S-2E03Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-2LE03Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-2E22Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-2LE22Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-2E22Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-2LE22Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-2E40Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW1S-2LE40Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4S-2E40Operator: Arrow handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-2LE40Operator: Lever handle | Positions: 90° 2-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-21E10Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW1S-21LE10Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Black
CW4S-21E10Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW4S-21LE10Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a(1NO) | Bezel: Metallic colour
CW1S-21E01Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW1S-21LE01Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Black
CW4S-21E01Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW4S-21LE01Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1b(1NC) | Bezel: Metallic colour
CW1S-21E11Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW1S-21LE11Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Black
CW4S-21E11Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW4S-21LE11Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(1NO+1NC) | Bezel: Metallic colour
CW1S-21E20Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW1S-21LE20Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4S-21E20Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-21LE20Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-21E02Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW1S-21LE02Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4S-21E02Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-21LE02Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-21E21Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW1S-21LE21Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Black
CW4S-21E21Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW4S-21LE21Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-1b(2NO+1NC) | Bezel: Metallic colour
CW1S-21E12Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW1S-21LE12Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Black
CW4S-21E12Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW4S-21LE12Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-2b(1NO+2NC) | Bezel: Metallic colour
CW1S-21E30Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW1S-21LE30Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4S-21E30Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-21LE30Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-21E03Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW1S-21LE03Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4S-21E03Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-21LE03Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-21E22Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-21LE22Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-21E22Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-21LE22Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-21E40Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW1S-21LE40Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4S-21E40Operator: Arrow handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-21LE40Operator: Lever handle | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-3E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-3LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-3E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-3LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-3E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-3LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-3E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-3LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-3E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-3LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-3E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-3LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-3E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-3LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-3E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-3LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-3E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-3LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-3E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-3LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-3E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW1S-3LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Black
CW4S-3E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-3LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-3E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-3LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-3E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-3LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-3E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW1S-3LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Black
CW4S-3E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-3LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-3E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-3LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-3E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-3LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-3E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-3LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-3E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-3LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-3E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-3LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-3E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-3LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-3E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-3LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-3E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-3LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-3E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-3LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-3E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-3LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-3E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW1S-3LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Black
CW4S-3E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-3LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-3E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW1S-3LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Black
CW4S-3E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-3LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-3E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-3LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-3E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-3LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-3E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW1S-3LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Black
CW4S-3E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-3LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-3E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-3LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-3E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-3LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-31E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-31LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-31E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-31LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-31E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-31LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-31E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-31LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-31E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-31LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-31E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-31LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-31E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-31LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-31E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-31LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-31E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-31LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-31E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-31LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-31E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW1S-31LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Black
CW4S-31E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-31LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-31E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-31LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-31E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-31LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-31E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW1S-31LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Black
CW4S-31E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-31LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-31E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-31LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-31E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-31LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-31E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-31LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-31E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-31LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-31E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-31LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-31E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-31LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-31E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-31LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-31E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-31LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-31E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-31LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-31E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-31LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-31E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW1S-31LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Black
CW4S-31E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-31LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-31E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW1S-31LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Black
CW4S-31E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-31LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-31E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-31LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-31E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-31LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-31E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW1S-31LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Black
CW4S-31E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-31LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-31E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-31LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-31E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-31LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-32E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-32LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-32E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-32LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-32E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW1S-32LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Black
CW4S-32E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-32LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-32E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW1S-32LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Black
CW4S-32E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-32LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-32E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-32LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-32E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-32LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-32E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-32LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-32E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-32LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-32E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW1S-32LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Black
CW4S-32E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-32LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-32E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW1S-32LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Black
CW4S-32E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-32LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-32E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-32LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-32E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-32LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-32E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW1S-32LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Black
CW4S-32E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-32LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-32E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-32LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-32E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-32LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW1S-32E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-32LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-32E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-32LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-32E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-32LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-32E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-32LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-32E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-32LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-32E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-32LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-32E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-32LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-32E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-32LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-32E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-32LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-32E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-32LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-32E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-32LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-32E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-32LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-32E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-32LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-32E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-32LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-32E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-32LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-32E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-32LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-33E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW1S-33LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Black
CW4S-33E22Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW4S-33LE22Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC) | Bezel: Metallic colour
CW1S-33E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW1S-33LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Black
CW4S-33E40Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW4S-33LE40Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a(4NO) | Bezel: Metallic colour
CW1S-33E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW1S-33LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Black
CW4S-33E11Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW4S-33LE11Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) | Bezel: Metallic colour
CW1S-33E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW1S-33LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Black
CW4S-33E11N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW4S-33LE11N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N1] | Bezel: Metallic colour
CW1S-33E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW1S-33LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Black
CW4S-33E11N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW4S-33LE11N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N2] | Bezel: Metallic colour
CW1S-33E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW1S-33LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Black
CW4S-33E11N3Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW4S-33LE11N3Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N3] | Bezel: Metallic colour
CW1S-33E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW1S-33LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Black
CW4S-33E11N4Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW4S-33LE11N4Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC) [11N4] | Bezel: Metallic colour
CW1S-33E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW1S-33LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Black
CW4S-33E20Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW4S-33LE20Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a(2NO) | Bezel: Metallic colour
CW1S-33E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW1S-33LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Black
CW4S-33E20N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW4S-33LE20N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO) [20N1] | Bezel: Metallic colour
CW1S-33E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW1S-33LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Black
CW4S-33E02Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW4S-33LE02Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b(2NC) | Bezel: Metallic colour
CW1S-33E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW1S-33LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Black
CW4S-33E02N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW4S-33LE02N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC) [02N1] | Bezel: Metallic colour
CW1S-33E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW1S-33LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Black
CW4S-33E21Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW4S-33LE21Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) | Bezel: Metallic colour
CW1S-33E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW1S-33LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Black
CW4S-33E21N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW4S-33LE21N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-1b (2NO+1NC) [21N1] | Bezel: Metallic colour
CW1S-33E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW1S-33LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Black
CW4S-33E12Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW4S-33LE12Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) | Bezel: Metallic colour
CW1S-33E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW1S-33LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Black
CW4S-33E12N1Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW4S-33LE12N1Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-2b (1NO+2NC) [12N1] | Bezel: Metallic colour
CW1S-33E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW1S-33LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Black
CW4S-33E30Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW4S-33LE30Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3a(3NO) | Bezel: Metallic colour
CW1S-33E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW1S-33LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Black
CW4S-33E03Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW4S-33LE03Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 3b(3NC) | Bezel: Metallic colour
CW1S-33E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW1S-33LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Black
CW4S-33E22N2Operator: Arrow handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour
CW4S-33LE22N2Operator: Lever handle | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b(2NO+2NC)[22N2] | Bezel: Metallic colour

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
