IDEC HS5D Safety Interlock Switches (head removal detection)

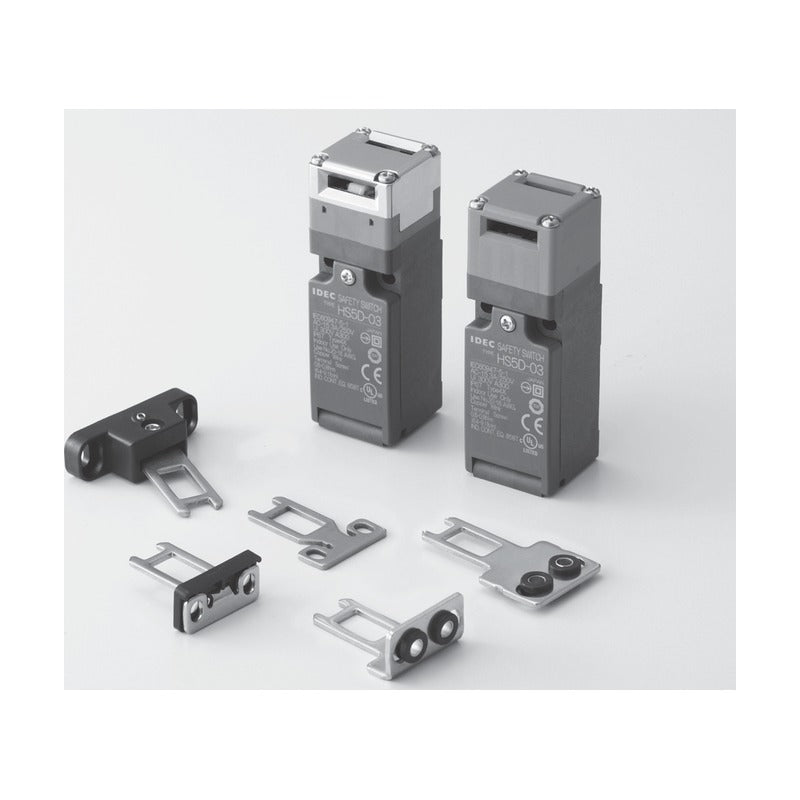

IDEC HS5D compact tongue-type safety interlock switches (30 x 30 x 91 mm) with operating head removal detection that opens the main circuit when the head is removed.

Key features

Head removal detection function on all models
Up to 3 contacts (2 main + monitor) in a 30 x 30 x 91 mm body
NC contacts with direct opening action (IEC/EN 60947-5-1)
Head orientation changeable for 8 actuator entry patterns
IP67 contact section; double insulation, no earth required
Plastic or metal operating head; actuators common with HS5B/HS5E

Specifications

Rated insulation voltage	300 V
Thermal current	10 A
AC-15 rating	10 A/30V, 5 A/125V, 3 A/250V
Degree of protection	IP67 (IEC 60529)
Direct opening force	50 N min.
Direct opening travel	10 mm min.
Mechanical life	1,000,000 operations min.
Operating temperature	-30 to +70 C
Colour	Red / grey
Actuator	HS9Z series, sold separately
Source	IDEC HS5D catalogue, p. 1-2

HS5D-11RN		Contacts: 1NC-1NO \| Operating head: Plastic \| Conduit: G1/2
HS5D-11RNP		Contacts: 1NC-1NO \| Operating head: Plastic \| Conduit: PG13.5
HS5D-11RNM		Contacts: 1NC-1NO \| Operating head: Plastic \| Conduit: M20
HS5D-11ZRN		Contacts: 1NC-1NO \| Operating head: Metal \| Conduit: G1/2
HS5D-11ZRNP		Contacts: 1NC-1NO \| Operating head: Metal \| Conduit: PG13.5
HS5D-11ZRNM		Contacts: 1NC-1NO \| Operating head: Metal \| Conduit: M20
HS5D-02RN		Contacts: 2NC \| Operating head: Plastic \| Conduit: G1/2
HS5D-02RNP		Contacts: 2NC \| Operating head: Plastic \| Conduit: PG13.5
HS5D-02RNM		Contacts: 2NC \| Operating head: Plastic \| Conduit: M20
HS5D-02ZRN		Contacts: 2NC \| Operating head: Metal \| Conduit: G1/2
HS5D-02ZRNP		Contacts: 2NC \| Operating head: Metal \| Conduit: PG13.5
HS5D-02ZRNM		Contacts: 2NC \| Operating head: Metal \| Conduit: M20
HS5D-12RN		Contacts: 1NO-2NC \| Operating head: Plastic \| Conduit: G1/2
HS5D-12RNP		Contacts: 1NO-2NC \| Operating head: Plastic \| Conduit: PG13.5
HS5D-12RNM		Contacts: 1NO-2NC \| Operating head: Plastic \| Conduit: M20
HS5D-12ZRN		Contacts: 1NO-2NC \| Operating head: Metal \| Conduit: G1/2
HS5D-12ZRNP		Contacts: 1NO-2NC \| Operating head: Metal \| Conduit: PG13.5
HS5D-12ZRNM		Contacts: 1NO-2NC \| Operating head: Metal \| Conduit: M20
HS5D-03RN		Contacts: 3NC \| Operating head: Plastic \| Conduit: G1/2
HS5D-03RNP		Contacts: 3NC \| Operating head: Plastic \| Conduit: PG13.5
HS5D-03RNM		Contacts: 3NC \| Operating head: Plastic \| Conduit: M20
HS5D-03ZRN		Contacts: 3NC \| Operating head: Metal \| Conduit: G1/2
HS5D-03ZRNP		Contacts: 3NC \| Operating head: Metal \| Conduit: PG13.5
HS5D-03ZRNM		Contacts: 3NC \| Operating head: Metal \| Conduit: M20
