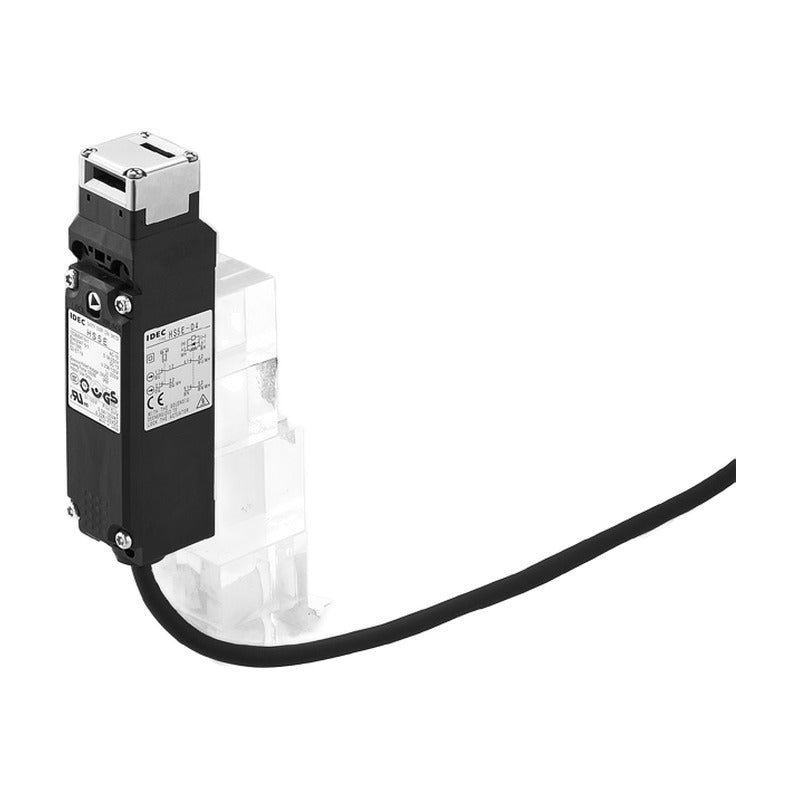

IDEC HS5E Solenoid Interlock Safety Switches (4 contacts, cable)

IDEC HS5E Solenoid Interlock Safety Switches (4 contacts, cable)

IDEC HS5E compact solenoid interlock safety switches (35 x 40 x 146 mm) with 4 built-in contacts, pre-wired cable and spring-lock or solenoid-lock versions.

Key features

  • Spring lock (locks without power) and solenoid lock types
  • Locking strength 1,400 N min. (GS-ET-19)
  • Rear unlock button type for emergency escape
  • 4-circuit independent output and dual safety circuit versions
  • Pre-wired cable, no wiring required; green LED solenoid indicator
  • Metal actuator entry slot; 8 actuator entry patterns

Specifications

Solenoid DC24V, 266 mA (100% duty)
Indicator Green LED, DC24V 10 mA
Thermal current 2.5 A
AC-15 rating 2 A/125V, 1 A/250V
Degree of protection IP67 (IEC 60529)
Locking strength 1,400 N min.
Direct opening force 80 N min.
Mechanical life 1,000,000 operations min.
Operating temperature -25 to +50 C
Actuator HS9Z series, sold separately
Source IDEC HS5E catalogue, p. 1-6
HS5E-A4001 Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-A4003 Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-A4005 Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-A4401-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-A4403-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-A4405-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-B4001 Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-B4003 Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-B4005 Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-B4401-G Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-B4403-G Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-B4405-G Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-C4001 Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-C4003 Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-C4005 Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-C4401-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-C4403-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-C4405-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-D4001 Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-D4003 Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-D4005 Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-D4401-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-D4403-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-D4405-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-F4001 Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-F4003 Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-F4005 Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-F4401-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-F4403-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-F4405-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-G4001 Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-G4003 Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-G4005 Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-G4401-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-G4403-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-G4405-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-H4001 Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-H4003 Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-H4005 Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-H4401-G Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-H4403-G Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-H4405-G Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-J4001 Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-J4003 Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-J4005 Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-J4401-G Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-J4403-G Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-J4405-G Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-A7Y001 Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-A7Y003 Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-A7Y005 Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-A7Y401-G Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-A7Y403-G Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-A7Y405-G Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-B7Y001 Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-B7Y003 Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-B7Y005 Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-B7Y401-G Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-B7Y403-G Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-B7Y405-G Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-C7Y001 Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-C7Y003 Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-C7Y005 Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-C7Y401-G Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-C7Y403-G Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-C7Y405-G Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-D7Y001 Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-D7Y003 Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-D7Y005 Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-D7Y401-G Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-D7Y403-G Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-D7Y405-G Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-F7Y001 Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-F7Y003 Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-F7Y005 Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-F7Y401-G Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-F7Y403-G Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-F7Y405-G Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-G7Y001 Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-G7Y003 Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-G7Y005 Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-G7Y401-G Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-G7Y403-G Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-G7Y405-G Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-H7Y001 Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-H7Y003 Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-H7Y005 Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-H7Y401-G Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-H7Y403-G Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-H7Y405-G Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-J7Y001 Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-J7Y003 Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-J7Y005 Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-J7Y401-G Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-J7Y403-G Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-J7Y405-G Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-A44L01-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-A44L03-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-A44L05-G Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-C44L01-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-C44L03-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-C44L05-G Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-D44L01-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-D44L03-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-D44L05-G Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-F44L01-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-F44L03-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-F44L05-G Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-G44L01-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-G44L03-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-G44L05-G Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-DD4401-G Lock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 1 m | Version: Dual safety circuit
HS5E-DD4403-G Lock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 3 m | Version: Dual safety circuit
HS5E-DD4405-G Lock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 5 m | Version: Dual safety circuit
HS5E-VA4401-G Lock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VA4403-G Lock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VA4405-G Lock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VB4401-G Lock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VB4403-G Lock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VB4405-G Lock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VC4401-G Lock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VC4403-G Lock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VC4405-G Lock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VD4401-G Lock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VD4403-G Lock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VD4405-G Lock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VA7Y401-G Lock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VA7Y403-G Lock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VA7Y405-G Lock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VB7Y401-G Lock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VB7Y403-G Lock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VB7Y405-G Lock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VC7Y401-G Lock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VC7Y403-G Lock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VC7Y405-G Lock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VD7Y401-G Lock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VD7Y403-G Lock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VD7Y405-G Lock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
Safety Interlock SwitchesIDEC
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HS5E Solenoid Interlock Safety Switches (4 contacts, cable)

Brand IDEC·Safety Interlock Switches

Available part numbers (138)

HS5E-A4001, HS5E-A4003, HS5E-A4005, HS5E-A4401-G, HS5E-A4403-G, HS5E-A4405-G, HS5E-B4001, HS5E-B4003, HS5E-B4005, HS5E-B4401-G + 128 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HS5E-A4001Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-A4003Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-A4005Lock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-A4401-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-A4403-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-A4405-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-B4001Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-B4003Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-B4005Lock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-B4401-GLock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-B4403-GLock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-B4405-GLock: Spring lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-C4001Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-C4003Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-C4005Lock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-C4401-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-C4403-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-C4405-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-D4001Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-D4003Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-D4005Lock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-D4401-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-D4403-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-D4405-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-F4001Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-F4003Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-F4005Lock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-F4401-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-F4403-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-F4405-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-G4001Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-G4003Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-G4005Lock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-G4401-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-G4403-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-G4405-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-H4001Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-H4003Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-H4005Lock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-H4401-GLock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-H4403-GLock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-H4405-GLock: Spring lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-J4001Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-J4003Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-J4005Lock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-J4401-GLock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-J4403-GLock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-J4405-GLock: Spring lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-A7Y001Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-A7Y003Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-A7Y005Lock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-A7Y401-GLock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-A7Y403-GLock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-A7Y405-GLock: Solenoid lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-B7Y001Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-B7Y003Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-B7Y005Lock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-B7Y401-GLock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-B7Y403-GLock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-B7Y405-GLock: Solenoid lock, DC24V | Circuit: B: Main 1NC+1NC, DM 1NO, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-C7Y001Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-C7Y003Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-C7Y005Lock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-C7Y401-GLock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-C7Y403-GLock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-C7Y405-GLock: Solenoid lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-D7Y001Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-D7Y003Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-D7Y005Lock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-D7Y401-GLock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-D7Y403-GLock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-D7Y405-GLock: Solenoid lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-F7Y001Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-F7Y003Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-F7Y005Lock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-F7Y401-GLock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-F7Y403-GLock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-F7Y405-GLock: Solenoid lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-G7Y001Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-G7Y003Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-G7Y005Lock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-G7Y401-GLock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-G7Y403-GLock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-G7Y405-GLock: Solenoid lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-H7Y001Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 1 m | Version: Standard
HS5E-H7Y003Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 3 m | Version: Standard
HS5E-H7Y005Lock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: None | Cable: 5 m | Version: Standard
HS5E-H7Y401-GLock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-H7Y403-GLock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-H7Y405-GLock: Solenoid lock, DC24V | Circuit: H: Main 1NC+1NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-J7Y001Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 1 m | Version: Standard
HS5E-J7Y003Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 3 m | Version: Standard
HS5E-J7Y005Lock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: None | Cable: 5 m | Version: Standard
HS5E-J7Y401-GLock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Standard
HS5E-J7Y403-GLock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Standard
HS5E-J7Y405-GLock: Solenoid lock, DC24V | Circuit: J: Main 1NC+1NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Standard
HS5E-A44L01-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-A44L03-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-A44L05-GLock: Spring lock, DC24V | Circuit: A: Main 1NC+1NC, DM 1NO, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-C44L01-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-C44L03-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-C44L05-GLock: Spring lock, DC24V | Circuit: C: Main 1NC+1NC, DM 1NC, LM 1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-D44L01-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-D44L03-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-D44L05-GLock: Spring lock, DC24V | Circuit: D: Main 1NC+1NC, DM 1NC, LM 1NC | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-F44L01-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-F44L03-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-F44L05-GLock: Spring lock, DC24V | Circuit: F: Main 1NC+1NC, DM 2NC | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-G44L01-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: Rear unlock button
HS5E-G44L03-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: Rear unlock button
HS5E-G44L05-GLock: Spring lock, DC24V | Circuit: G: Main 1NC+1NC, DM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: Rear unlock button
HS5E-DD4401-GLock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 1 m | Version: Dual safety circuit
HS5E-DD4403-GLock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 3 m | Version: Dual safety circuit
HS5E-DD4405-GLock: Spring lock, DC24V | Circuit: DD: Dual main 1NC+1NC / 1NC+1NC | Indicator: Green LED | Cable: 5 m | Version: Dual safety circuit
HS5E-VA4401-GLock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VA4403-GLock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VA4405-GLock: Spring lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VB4401-GLock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VB4403-GLock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VB4405-GLock: Spring lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VC4401-GLock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VC4403-GLock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VC4405-GLock: Spring lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VD4401-GLock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VD4403-GLock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VD4405-GLock: Spring lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VA7Y401-GLock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VA7Y403-GLock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VA7Y405-GLock: Solenoid lock, DC24V | Circuit: VA: DM 1NC+1NO, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VB7Y401-GLock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VB7Y403-GLock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VB7Y405-GLock: Solenoid lock, DC24V | Circuit: VB: DM 1NC+1NO, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VC7Y401-GLock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VC7Y403-GLock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VC7Y405-GLock: Solenoid lock, DC24V | Circuit: VC: DM 2NC, LM 1NC+1NO | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent
HS5E-VD7Y401-GLock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 1 m | Version: 4-circuit independent
HS5E-VD7Y403-GLock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 3 m | Version: 4-circuit independent
HS5E-VD7Y405-GLock: Solenoid lock, DC24V | Circuit: VD: DM 2NC, LM 2NC | Indicator: Green LED | Cable: 5 m | Version: 4-circuit independent

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
