IDEC HS5L Solenoid Interlock Safety Switches (2/4 contacts, M20)

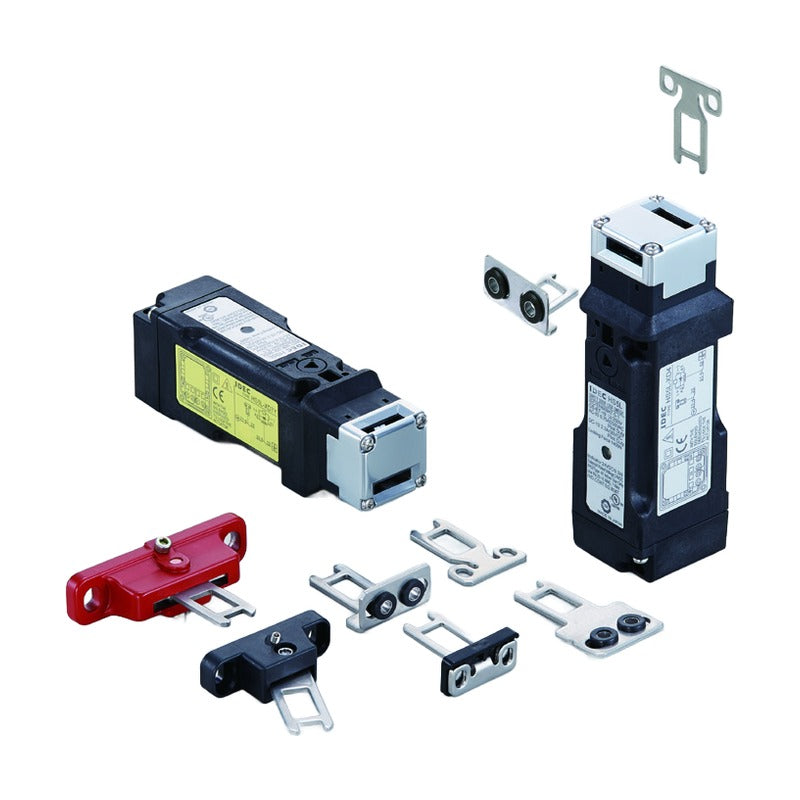

IDEC HS5L compact solenoid interlock safety switches (35 x 40 x 127 mm) with 2 or 4 contacts, spring-clamp terminals and M20 conduit entry, in spring-lock and solenoid-lock versions.

Key features

Spring lock and solenoid lock types; locking strength 1,400 N min.
2-contact type suited to Category 2 applications such as food machinery
Spring clamp terminals resist loosening by vibration
Rear unlock button and dual safety circuit versions
Green LED solenoid indicator; head removal detection (spring lock)
Type 2 interlocking device, low level coded (ISO 14119)

Specifications

Solenoid	DC24V, 200 mA (100% duty)
Indicator	Green LED, DC24V 10 mA
Thermal current	2.5 A
AC-15 rating	2.5 A/125V, 1.5 A/250V
Degree of protection	IP67 (IEC 60529)
Conduit	M20
Direct opening force	120 N min.
Mechanical life	2,000,000 operations min.
Operating temperature	-25 to +55 C
Weight	Approx. 300 g
Actuator	HS9Z series, sold separately
Source	IDEC HS5L catalogue, p. 1-2, 4-6

HS5L-XD44M-G		Contacts: 2 \| Lock: Spring lock, DC24V \| Circuit: XD: DM 1NC, LM 1NC \| Version: Standard
HS5L-XD7Y4M-G		Contacts: 2 \| Lock: Solenoid lock, DC24V \| Circuit: XD: DM 1NC, LM 1NC \| Version: Standard
HS5L-XF7Y4M-G		Contacts: 2 \| Lock: Solenoid lock, DC24V \| Circuit: XF: DM 2NC \| Version: Standard
HS5L-XG7Y4M-G		Contacts: 2 \| Lock: Solenoid lock, DC24V \| Circuit: XG: DM 1NC+1NO \| Version: Standard
HS5L-XH44M-G		Contacts: 2 \| Lock: Spring lock, DC24V \| Circuit: XH: LM 2NC \| Version: Standard
HS5L-XH7Y4M-G		Contacts: 2 \| Lock: Solenoid lock, DC24V \| Circuit: XH: LM 2NC \| Version: Standard
HS5L-VA44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VA: DM 1NC+1NO, LM 1NC+1NO \| Version: Standard
HS5L-VA7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VA: DM 1NC+1NO, LM 1NC+1NO \| Version: Standard
HS5L-VB44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VB: DM 1NC+1NO, LM 2NC \| Version: Standard
HS5L-VB7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VB: DM 1NC+1NO, LM 2NC \| Version: Standard
HS5L-VC44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VC: DM 2NC, LM 1NC+1NO \| Version: Standard
HS5L-VC7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VC: DM 2NC, LM 1NC+1NO \| Version: Standard
HS5L-VD44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VD: DM 2NC, LM 2NC \| Version: Standard
HS5L-VD7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VD: DM 2NC, LM 2NC \| Version: Standard
HS5L-VF44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VF: DM 3NC, LM 1NC \| Version: Standard
HS5L-VF7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VF: DM 3NC, LM 1NC \| Version: Standard
HS5L-VG44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VG: DM 2NC+1NO, LM 1NC \| Version: Standard
HS5L-VG7Y4M-G		Contacts: 4 \| Lock: Solenoid lock, DC24V \| Circuit: VG: DM 2NC+1NO, LM 1NC \| Version: Standard
HS5L-VA44LM-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VA: DM 1NC+1NO, LM 1NC+1NO \| Version: Rear unlock button
HS5L-VB44LM-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VB: DM 1NC+1NO, LM 2NC \| Version: Rear unlock button
HS5L-VC44LM-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VC: DM 2NC, LM 1NC+1NO \| Version: Rear unlock button
HS5L-VD44LM-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: VD: DM 2NC, LM 2NC \| Version: Rear unlock button
HS5L-DD44M-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: DD: Dual main 1NC+1NC / 1NC+1NC \| Version: Dual safety circuit
HS5L-DD44LM-G		Contacts: 4 \| Lock: Spring lock, DC24V \| Circuit: DD: Dual main 1NC+1NC / 1NC+1NC \| Version: Dual, rear unlock button
