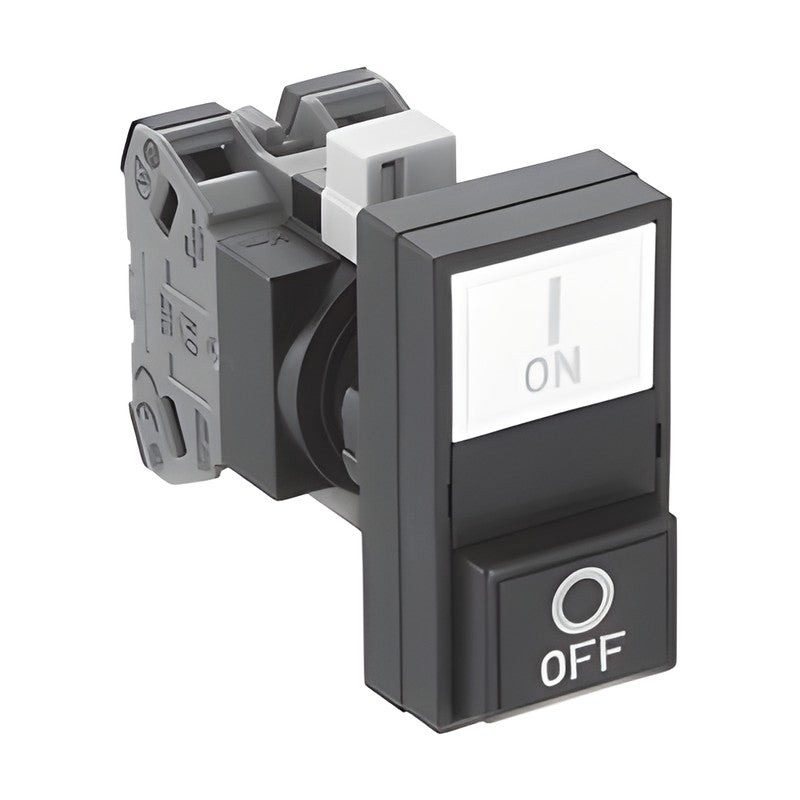

IDEC HW Series 22 mm Two-Point Pushbuttons (Non-Illuminated)

IDEC HW Series 22 mm Two-Point Pushbuttons (Non-Illuminated)

HW7D two-point (dual) pushbuttons with flush/flush or flush/extended buttons in one φ22 unit, momentary or interlocked.

Key features

  • Button colour pairs GR or WB; optional I/O marking
  • Independent contacts for top and bottom buttons
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 30
HW7D-B111001GR Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-B111001GR1 Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B111001WB Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-B111001WB1 Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B111010GR Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-B111010GR1 Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B111010WB Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-B111010WB1 Type: Flush + flush, momentary | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B111111GR Type: Flush + flush, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-B111111GR1 Type: Flush + flush, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B111111WB Type: Flush + flush, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-B111111WB1 Type: Flush + flush, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B112020GR Type: Flush + flush, momentary | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-B112020GR1 Type: Flush + flush, momentary | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B112020WB Type: Flush + flush, momentary | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-B112020WB1 Type: Flush + flush, momentary | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121001GR Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-B121001GR1 Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121001WB Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-B121001WB1 Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121010GR Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-B121010GR1 Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121010WB Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-B121010WB1 Type: Flush + extended, momentary | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121111GR Type: Flush + extended, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-B121111GR1 Type: Flush + extended, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B121111WB Type: Flush + extended, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-B121111WB1 Type: Flush + extended, momentary | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B122002GR Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-B122002GR1 Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B122002WB Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-B122002WB1 Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B122020GR Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-B122020GR1 Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B122020WB Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-B122020WB1 Type: Flush + extended, momentary | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211001GR Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-B211001GR1 Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211001WB Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-B211001WB1 Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211010GR Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-B211010GR1 Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211010WB Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-B211010WB1 Type: Flush + flush, interlock | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211111GR Type: Flush + flush, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-B211111GR1 Type: Flush + flush, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B211111WB Type: Flush + flush, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-B211111WB1 Type: Flush + flush, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B212002GR Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-B212002GR1 Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B212002WB Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-B212002WB1 Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B212020GR Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-B212020GR1 Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B212020WB Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-B212020WB1 Type: Flush + flush, interlock | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221001GR Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-B221001GR1 Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221001WB Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-B221001WB1 Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221010GR Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-B221010GR1 Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221010WB Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-B221010WB1 Type: Flush + extended, interlock | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221111GR Type: Flush + extended, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-B221111GR1 Type: Flush + extended, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B221111WB Type: Flush + extended, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-B221111WB1 Type: Flush + extended, interlock | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B222002GR Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-B222002GR1 Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B222002WB Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-B222002WB1 Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-B222020GR Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-B222020GR1 Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-B222020WB Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-B222020WB1 Type: Flush + extended, interlock | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
PushbuttonsIDEC
76 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series 22 mm Two-Point Pushbuttons (Non-Illuminated)

Brand IDEC·Pushbuttons

Available part numbers (76)

HW7D-B111001GR, HW7D-B111001GR1, HW7D-B111001WB, HW7D-B111001WB1, HW7D-B111010GR, HW7D-B111010GR1, HW7D-B111010WB, HW7D-B111010WB1, HW7D-B111111GR, HW7D-B111111GR1 + 66 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
