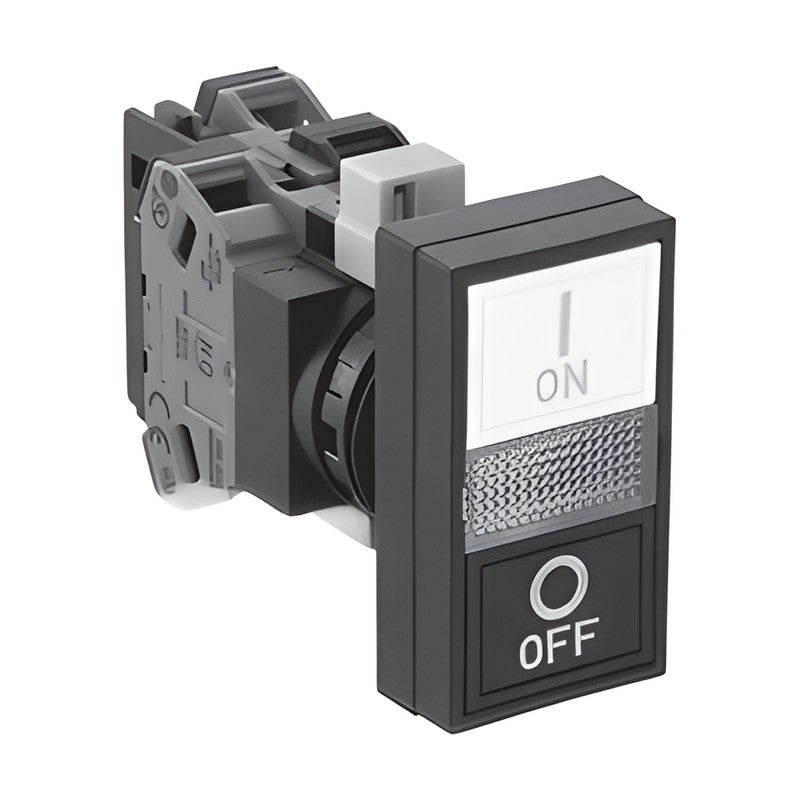

IDEC HW 22 mm Two-Point Pushbuttons, Incandescent Indicator

IDEC HW 22 mm Two-Point Pushbuttons, Incandescent Indicator

HW7D two-point pushbuttons with incandescent indicator and white lens, momentary or interlocked.

Key features

  • Lens and illumination colour W (milky white) only
  • Specify button colour pair and marking in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Lamp Incandescent
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 32
HW7D-L111001Q7WGR Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001Q7WGR1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001Q7WWB Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001Q7WWB1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010Q7WGR Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010Q7WGR1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010Q7WWB Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010Q7WWB1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111Q7WGR Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111Q7WGR1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111Q7WWB Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111Q7WWB1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002Q7WGR Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002Q7WGR1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002Q7WWB Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002Q7WWB1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020Q7WGR Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020Q7WGR1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020Q7WWB Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020Q7WWB1 Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001H5WGR Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001H5WGR1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001H5WWB Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001H5WWB1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010H5WGR Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010H5WGR1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010H5WWB Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010H5WWB1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111H5WGR Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111H5WGR1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111H5WWB Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111H5WWB1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002H5WGR Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002H5WGR1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002H5WWB Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002H5WWB1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020H5WGR Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020H5WGR1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020H5WWB Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020H5WWB1 Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001M5WGR Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001M5WGR1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001M5WWB Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001M5WWB1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010M5WGR Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010M5WGR1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010M5WWB Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010M5WWB1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111M5WGR Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111M5WGR1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111M5WWB Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111M5WWB1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002M5WGR Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002M5WGR1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002M5WWB Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002M5WWB1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020M5WGR Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020M5WGR1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020M5WWB Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020M5WWB1 Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001Q7WGR Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001Q7WGR1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001Q7WWB Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001Q7WWB1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010Q7WGR Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010Q7WGR1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010Q7WWB Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010Q7WWB1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111Q7WGR Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111Q7WGR1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111Q7WWB Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111Q7WWB1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002Q7WGR Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002Q7WGR1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002Q7WWB Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002Q7WWB1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020Q7WGR Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020Q7WGR1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020Q7WWB Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020Q7WWB1 Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001H5WGR Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001H5WGR1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001H5WWB Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001H5WWB1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010H5WGR Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010H5WGR1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010H5WWB Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010H5WWB1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111H5WGR Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111H5WGR1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111H5WWB Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111H5WWB1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002H5WGR Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002H5WGR1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002H5WWB Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002H5WWB1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020H5WGR Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020H5WGR1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020H5WWB Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020H5WWB1 Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001M5WGR Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001M5WGR1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001M5WWB Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001M5WWB1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010M5WGR Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010M5WGR1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010M5WWB Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010M5WWB1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111M5WGR Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111M5WGR1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111M5WWB Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111M5WWB1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002M5WGR Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002M5WGR1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002M5WWB Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002M5WWB1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020M5WGR Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020M5WGR1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020M5WWB Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020M5WWB1 Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001Q7WGR Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001Q7WGR1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001Q7WWB Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001Q7WWB1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010Q7WGR Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010Q7WGR1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010Q7WWB Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010Q7WWB1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111Q7WGR Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111Q7WGR1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111Q7WWB Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111Q7WWB1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002Q7WGR Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002Q7WGR1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002Q7WWB Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002Q7WWB1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020Q7WGR Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020Q7WGR1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020Q7WWB Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020Q7WWB1 Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001H5WGR Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001H5WGR1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001H5WWB Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001H5WWB1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010H5WGR Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010H5WGR1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010H5WWB Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010H5WWB1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111H5WGR Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111H5WGR1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111H5WWB Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111H5WWB1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002H5WGR Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002H5WGR1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002H5WWB Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002H5WWB1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020H5WGR Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020H5WGR1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020H5WWB Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020H5WWB1 Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001M5WGR Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001M5WGR1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001M5WWB Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001M5WWB1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010M5WGR Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010M5WGR1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010M5WWB Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010M5WWB1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111M5WGR Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111M5WGR1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111M5WWB Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111M5WWB1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002M5WGR Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002M5WGR1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002M5WWB Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002M5WWB1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020M5WGR Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020M5WGR1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020M5WWB Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020M5WWB1 Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001Q7WGR Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001Q7WGR1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001Q7WWB Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001Q7WWB1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010Q7WGR Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010Q7WGR1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010Q7WWB Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010Q7WWB1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111Q7WGR Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111Q7WGR1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111Q7WWB Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111Q7WWB1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002Q7WGR Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002Q7WGR1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002Q7WWB Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002Q7WWB1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020Q7WGR Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020Q7WGR1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020Q7WWB Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020Q7WWB1 Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001H5WGR Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001H5WGR1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001H5WWB Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001H5WWB1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010H5WGR Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010H5WGR1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010H5WWB Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010H5WWB1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111H5WGR Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111H5WGR1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111H5WWB Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111H5WWB1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002H5WGR Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002H5WGR1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002H5WWB Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002H5WWB1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020H5WGR Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020H5WGR1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020H5WWB Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020H5WWB1 Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001M5WGR Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001M5WGR1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001M5WWB Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001M5WWB1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010M5WGR Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010M5WGR1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010M5WWB Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010M5WWB1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111M5WGR Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111M5WGR1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111M5WWB Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111M5WWB1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002M5WGR Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002M5WGR1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002M5WWB Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002M5WWB1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020M5WGR Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020M5WGR1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020M5WWB Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020M5WWB1 Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
Illuminated PushbuttonsIDEC
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Two-Point Pushbuttons, Incandescent Indicator

Brand IDEC·Illuminated Pushbuttons

Available part numbers (240)

HW7D-L111001Q7WGR, HW7D-L111001Q7WGR1, HW7D-L111001Q7WWB, HW7D-L111001Q7WWB1, HW7D-L111010Q7WGR, HW7D-L111010Q7WGR1, HW7D-L111010Q7WWB, HW7D-L111010Q7WWB1, HW7D-L111111Q7WGR, HW7D-L111111Q7WGR1 + 230 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW7D-L111001Q7WGRType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001Q7WGR1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001Q7WWBType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001Q7WWB1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010Q7WGRType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010Q7WGR1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010Q7WWBType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010Q7WWB1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111Q7WGRType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111Q7WGR1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111Q7WWBType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111Q7WWB1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002Q7WGRType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002Q7WGR1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002Q7WWBType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002Q7WWB1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020Q7WGRType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020Q7WGR1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020Q7WWBType: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020Q7WWB1Type: Flush + flush, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001H5WGRType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001H5WGR1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001H5WWBType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001H5WWB1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010H5WGRType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010H5WGR1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010H5WWBType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010H5WWB1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111H5WGRType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111H5WGR1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111H5WWBType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111H5WWB1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002H5WGRType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002H5WGR1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002H5WWBType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002H5WWB1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020H5WGRType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020H5WGR1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020H5WWBType: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020H5WWB1Type: Flush + flush, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001M5WGRType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111001M5WGR1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111001M5WWBType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L111001M5WWB1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010M5WGRType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L111010M5WGR1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111010M5WWBType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L111010M5WWB1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111M5WGRType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L111111M5WGR1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L111111M5WWBType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L111111M5WWB1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002M5WGRType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L112002M5WGR1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112002M5WWBType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L112002M5WWB1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020M5WGRType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L112020M5WGR1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L112020M5WWBType: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L112020M5WWB1Type: Flush + flush, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001Q7WGRType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001Q7WGR1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001Q7WWBType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001Q7WWB1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010Q7WGRType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010Q7WGR1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010Q7WWBType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010Q7WWB1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111Q7WGRType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111Q7WGR1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111Q7WWBType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111Q7WWB1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002Q7WGRType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002Q7WGR1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002Q7WWBType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002Q7WWB1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020Q7WGRType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020Q7WGR1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020Q7WWBType: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020Q7WWB1Type: Flush + extended, momentary | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001H5WGRType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001H5WGR1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001H5WWBType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001H5WWB1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010H5WGRType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010H5WGR1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010H5WWBType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010H5WWB1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111H5WGRType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111H5WGR1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111H5WWBType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111H5WWB1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002H5WGRType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002H5WGR1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002H5WWBType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002H5WWB1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020H5WGRType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020H5WGR1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020H5WWBType: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020H5WWB1Type: Flush + extended, momentary | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001M5WGRType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121001M5WGR1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121001M5WWBType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L121001M5WWB1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010M5WGRType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L121010M5WGR1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121010M5WWBType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L121010M5WWB1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111M5WGRType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L121111M5WGR1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L121111M5WWBType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L121111M5WWB1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002M5WGRType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L122002M5WGR1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122002M5WWBType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L122002M5WWB1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020M5WGRType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L122020M5WGR1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L122020M5WWBType: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L122020M5WWB1Type: Flush + extended, momentary | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001Q7WGRType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001Q7WGR1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001Q7WWBType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001Q7WWB1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010Q7WGRType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010Q7WGR1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010Q7WWBType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010Q7WWB1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111Q7WGRType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111Q7WGR1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111Q7WWBType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111Q7WWB1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002Q7WGRType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002Q7WGR1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002Q7WWBType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002Q7WWB1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020Q7WGRType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020Q7WGR1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020Q7WWBType: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020Q7WWB1Type: Flush + flush, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001H5WGRType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001H5WGR1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001H5WWBType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001H5WWB1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010H5WGRType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010H5WGR1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010H5WWBType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010H5WWB1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111H5WGRType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111H5WGR1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111H5WWBType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111H5WWB1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002H5WGRType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002H5WGR1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002H5WWBType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002H5WWB1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020H5WGRType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020H5WGR1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020H5WWBType: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020H5WWB1Type: Flush + flush, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001M5WGRType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211001M5WGR1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211001M5WWBType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L211001M5WWB1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010M5WGRType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L211010M5WGR1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211010M5WWBType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L211010M5WWB1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111M5WGRType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L211111M5WGR1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L211111M5WWBType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L211111M5WWB1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002M5WGRType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L212002M5WGR1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212002M5WWBType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L212002M5WWB1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020M5WGRType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L212020M5WGR1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L212020M5WWBType: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L212020M5WWB1Type: Flush + flush, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001Q7WGRType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001Q7WGR1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001Q7WWBType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001Q7WWB1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010Q7WGRType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010Q7WGR1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010Q7WWBType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010Q7WWB1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111Q7WGRType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111Q7WGR1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111Q7WWBType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111Q7WWB1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002Q7WGRType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002Q7WGR1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002Q7WWBType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002Q7WWB1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020Q7WGRType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020Q7WGR1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020Q7WWBType: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020Q7WWB1Type: Flush + extended, interlock | Voltage: AC/DC24V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001H5WGRType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001H5WGR1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001H5WWBType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001H5WWB1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010H5WGRType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010H5WGR1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010H5WWBType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010H5WWB1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111H5WGRType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111H5WGR1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111H5WWBType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111H5WWB1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002H5WGRType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002H5WGR1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002H5WWBType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002H5WWB1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020H5WGRType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020H5WGR1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020H5WWBType: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020H5WWB1Type: Flush + extended, interlock | Voltage: AC100/110V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001M5WGRType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221001M5WGR1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221001M5WWBType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: None
HW7D-L221001M5WWB1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010M5WGRType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: None
HW7D-L221010M5WGR1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221010M5WWBType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: None
HW7D-L221010M5WWB1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a / bottom 1a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111M5WGRType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: None
HW7D-L221111M5WGR1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L221111M5WWBType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: None
HW7D-L221111M5WWB1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 1a-1b / bottom 1a-1b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002M5WGRType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: None
HW7D-L222002M5WGR1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222002M5WWBType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: None
HW7D-L222002M5WWB1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2b | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020M5WGRType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: None
HW7D-L222020M5WGR1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: Green top / red bottom | Marking: I&ON top / O&OFF bottom
HW7D-L222020M5WWBType: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: None
HW7D-L222020M5WWB1Type: Flush + extended, interlock | Voltage: AC200/220V | Contacts: Top 2a / bottom 2a | Button colour: White top / black bottom | Marking: I&ON top / O&OFF bottom

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
