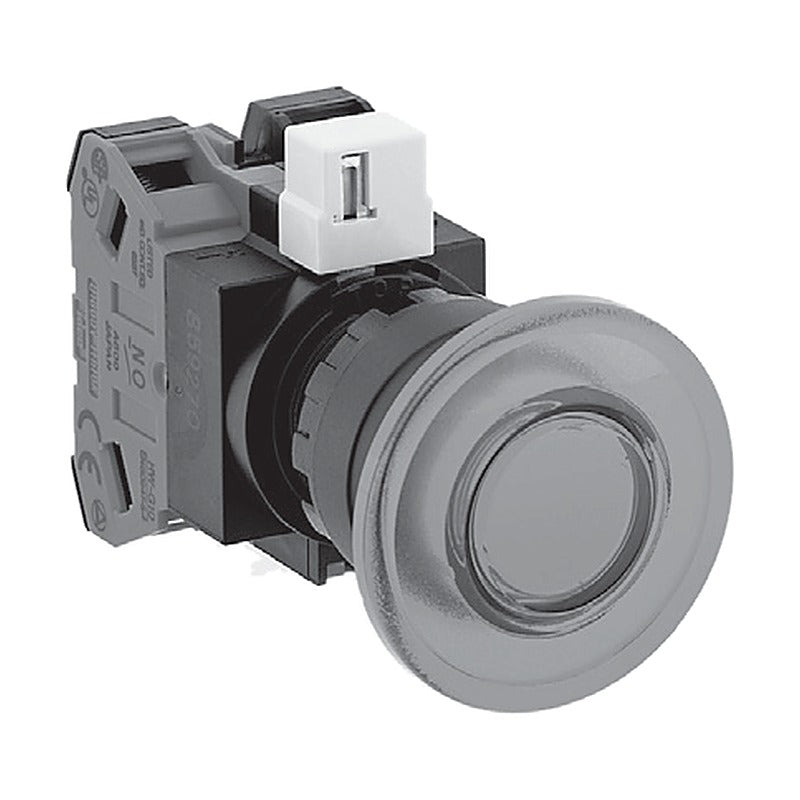

IDEC HW 22 mm Illuminated Pushbuttons (φ40 Large, Marking)

IDEC HW 22 mm Illuminated Pushbuttons (φ40 Large, Marking)

HW Series φ22 illuminated pushbuttons, φ40 large (marking) type, with LED or incandescent lamp, momentary or alternate action, AC/DC6V to AC200/220V and DC110V (LED).

Key features

  • 1a to 2a-2b contact configurations
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator φ40 large (marking)
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 27-28
HW1L-M410Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411H2R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411H2G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411H2A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411H2W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411H2S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411M2R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411M2G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411M2A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411M2W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411M2S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M420M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M402M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411D2R Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411D2G Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411D2Y Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411D2A Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411D2W Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411D2S Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411D2PW Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420D2R Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420D2G Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420D2A Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420D2W Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420D2S Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402D2R Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402D2G Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402D2Y Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402D2A Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402D2W Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402D2S Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402D2PW Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422D2R Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422D2G Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422D2A Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422D2W Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422D2S Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411H2R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411H2G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411H2A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411H2W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411H2S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411M2R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411M2G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411M2A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411M2W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411M2S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A420M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A402M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411D2R Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411D2G Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411D2Y Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411D2A Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411D2W Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411D2S Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411D2PW Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420D2R Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420D2G Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420D2A Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420D2W Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420D2S Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402D2R Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402D2G Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402D2Y Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402D2A Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402D2W Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402D2S Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402D2PW Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422D2R Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422D2G Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422D2A Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422D2W Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422D2S Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M410Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M410Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M411H5R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411H5G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411H5A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411H5W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411H5S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M411M5R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411M5G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411M5A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411M5W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411M5S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M420M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M402M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A411H5R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411H5G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411H5A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411H5W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411H5S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A411M5R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411M5G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411M5A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411M5W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411M5S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A420M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A402M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
680 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Illuminated Pushbuttons (φ40 Large, Marking)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (680)

HW1L-M410Q2R, HW1L-M410Q2G, HW1L-M410Q2Y, HW1L-M410Q2A, HW1L-M410Q2W, HW1L-M410Q2S, HW1L-M410Q2PW, HW1L-M401Q2R, HW1L-M401Q2G, HW1L-M401Q2Y + 670 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW1L-M410Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M410Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M410Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M401Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M401Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M401Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M411Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411H2RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411H2GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411H2YAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411H2AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411H2WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411H2SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411M2RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411M2GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411M2YAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411M2AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411M2WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411M2SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M420M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M402M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M411D2RAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411D2GAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411D2YAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M411D2AAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411D2WAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411D2SAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M411D2PWAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M420D2RAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420D2GAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420D2YAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M420D2AAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420D2WAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420D2SAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M420D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M402D2RAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402D2GAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402D2YAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M402D2AAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402D2WAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402D2SAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M402D2PWAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M422D2RAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422D2GAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422D2YAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M422D2AAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422D2WAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422D2SAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M422D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A410Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A410Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A410Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A401Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A401Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A401Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A411Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411H2RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411H2GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411H2YAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411H2AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411H2WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411H2SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411M2RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411M2GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411M2YAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411M2AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411M2WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411M2SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A420M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A402M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A411D2RAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411D2GAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411D2YAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A411D2AAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411D2WAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411D2SAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A411D2PWAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A420D2RAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420D2GAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420D2YAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A420D2AAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420D2WAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420D2SAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A420D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A402D2RAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402D2GAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402D2YAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A402D2AAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402D2WAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402D2SAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A402D2PWAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A422D2RAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422D2GAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422D2YAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A422D2AAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422D2WAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422D2SAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A422D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M410Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M410Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M410Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M410Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M410Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M410Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M410Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M401Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M401Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M401Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M401Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M401Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M411Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M420Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M402Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M411H5RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411H5GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411H5AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411H5WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411H5SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M420H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M402H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M411M5RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M411M5GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M411M5AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M411M5WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M411M5SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M420M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M420M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M420M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M420M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M420M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M402M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M402M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M402M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M402M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M402M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M422M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M422M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M422M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M422M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M422M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A410Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A410Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A410Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A410Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A410Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A401Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A401Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A401Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A401Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A401Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A411Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A420Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A402Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A411H5RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411H5GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411H5AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411H5WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411H5SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A420H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A402H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A411M5RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A411M5GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A411M5AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A411M5WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A411M5SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A420M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A420M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A420M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A420M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A420M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A402M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A402M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A402M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A402M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A402M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A422M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A422M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A422M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A422M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A422M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
