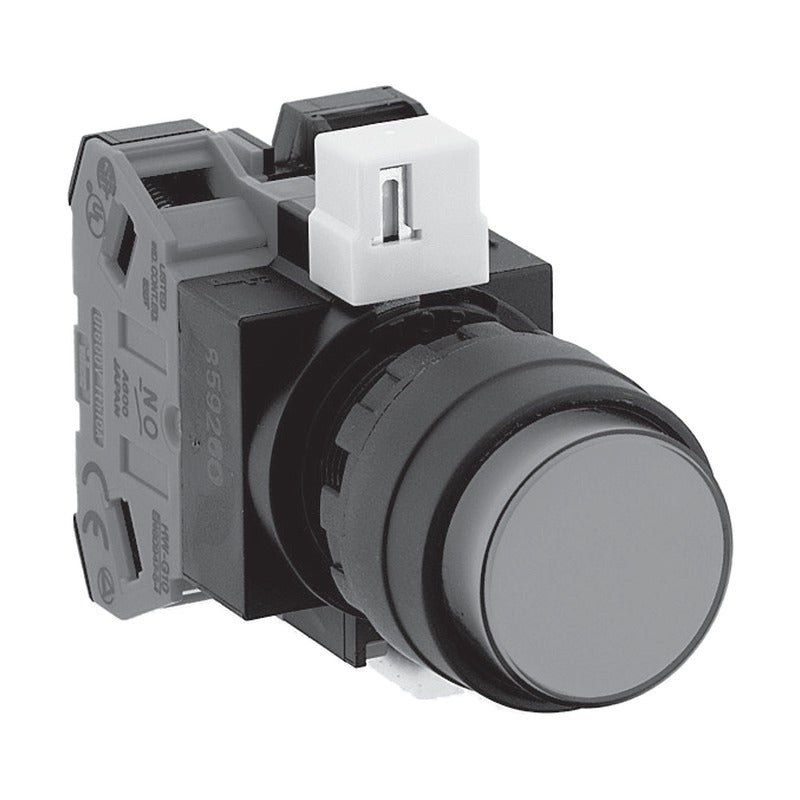

IDEC HW 22 mm Illuminated Pushbuttons (Round Extended, Marking)

IDEC HW 22 mm Illuminated Pushbuttons (Round Extended, Marking)

HW Series φ22 illuminated pushbuttons, round extended (marking) type, with LED or incandescent lamp, momentary or alternate action, AC/DC6V to AC200/220V and DC110V (LED).

Key features

  • 1a to 2a-2b contact configurations
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Round extended (marking)
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 15-16
HW1L-M210Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211H2R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211H2G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211H2A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211H2W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211H2S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211M2R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211M2G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211M2A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211M2W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211M2S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M220M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M202M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211D2R Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211D2G Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211D2Y Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211D2A Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211D2W Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211D2S Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211D2PW Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220D2R Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220D2G Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220D2A Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220D2W Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220D2S Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202D2R Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202D2G Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202D2Y Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202D2A Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202D2W Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202D2S Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202D2PW Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222D2R Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222D2G Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222D2A Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222D2W Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222D2S Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211H2R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211H2G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211H2A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211H2W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211H2S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211M2R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211M2G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211M2A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211M2W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211M2S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A220M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A202M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211D2R Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211D2G Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211D2Y Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211D2A Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211D2W Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211D2S Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211D2PW Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220D2R Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220D2G Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220D2A Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220D2W Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220D2S Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202D2R Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202D2G Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202D2Y Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202D2A Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202D2W Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202D2S Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202D2PW Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222D2R Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222D2G Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222D2A Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222D2W Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222D2S Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M210Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M210Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M211H5R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211H5G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211H5A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211H5W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211H5S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M211M5R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211M5G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211M5A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211M5W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211M5S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M220M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M202M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A211H5R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211H5G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211H5A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211H5W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211H5S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A211M5R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211M5G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211M5A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211M5W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211M5S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A220M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A202M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
680 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Illuminated Pushbuttons (Round Extended, Marking)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (680)

HW1L-M210Q2R, HW1L-M210Q2G, HW1L-M210Q2Y, HW1L-M210Q2A, HW1L-M210Q2W, HW1L-M210Q2S, HW1L-M210Q2PW, HW1L-M201Q2R, HW1L-M201Q2G, HW1L-M201Q2Y + 670 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW1L-M210Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M210Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M210Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M201Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M201Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M201Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M211Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211H2RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211H2GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211H2YAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211H2AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211H2WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211H2SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211M2RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211M2GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211M2YAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211M2AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211M2WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211M2SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M220M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M202M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M211D2RAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211D2GAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211D2YAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M211D2AAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211D2WAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211D2SAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M211D2PWAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M220D2RAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220D2GAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220D2YAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M220D2AAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220D2WAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220D2SAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M220D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M202D2RAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202D2GAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202D2YAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M202D2AAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202D2WAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202D2SAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M202D2PWAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M222D2RAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222D2GAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222D2YAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M222D2AAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222D2WAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222D2SAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M222D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A210Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A210Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A210Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A201Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A201Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A201Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A211Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211H2RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211H2GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211H2YAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211H2AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211H2WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211H2SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211M2RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211M2GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211M2YAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211M2AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211M2WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211M2SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A220M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A202M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A211D2RAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211D2GAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211D2YAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A211D2AAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211D2WAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211D2SAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A211D2PWAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A220D2RAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220D2GAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220D2YAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A220D2AAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220D2WAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220D2SAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A220D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A202D2RAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202D2GAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202D2YAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A202D2AAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202D2WAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202D2SAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A202D2PWAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A222D2RAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222D2GAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222D2YAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A222D2AAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222D2WAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222D2SAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A222D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M210Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M210Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M210Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M210Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M210Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M210Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M210Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M201Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M201Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M201Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M201Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M201Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M211Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M220Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M202Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M211H5RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211H5GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211H5AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211H5WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211H5SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M220H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M202H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M211M5RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M211M5GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M211M5AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M211M5WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M211M5SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M220M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M220M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M220M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M220M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M220M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M202M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M202M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M202M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M202M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M202M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M222M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M222M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M222M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M222M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M222M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A210Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A210Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A210Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A210Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A210Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A201Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A201Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A201Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A201Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A201Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A211Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A220Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A202Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A211H5RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211H5GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211H5AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211H5WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211H5SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A220H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A202H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A211M5RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A211M5GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A211M5AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A211M5WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A211M5SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A220M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A220M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A220M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A220M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A220M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A202M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A202M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A202M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A202M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A202M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A222M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A222M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A222M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A222M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A222M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
