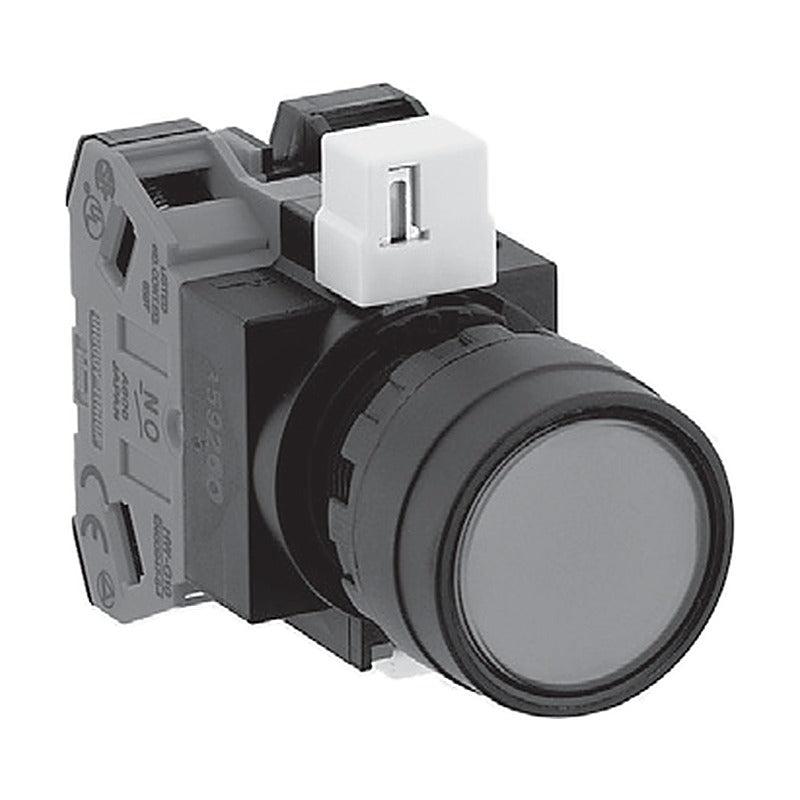

IDEC HW 22 mm Illuminated Pushbuttons (Round Flush, Marking)

IDEC HW 22 mm Illuminated Pushbuttons (Round Flush, Marking)

HW Series φ22 illuminated pushbuttons, round flush (marking) type, with LED or incandescent lamp, momentary or alternate action, AC/DC6V to AC200/220V and DC110V (LED).

Key features

  • 1a to 2a-2b contact configurations
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Round flush (marking)
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 13-14
HW1L-M110Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111H2R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111H2G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111H2A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111H2W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111H2S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111M2R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111M2G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111M2A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111M2W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111M2S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M120M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M102M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111D2R Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111D2G Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111D2Y Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111D2A Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111D2W Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111D2S Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111D2PW Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120D2R Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120D2G Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120D2A Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120D2W Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120D2S Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102D2R Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102D2G Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102D2Y Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102D2A Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102D2W Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102D2S Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102D2PW Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122D2R Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122D2G Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122D2A Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122D2W Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122D2S Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111H2R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111H2G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111H2A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111H2W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111H2S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111M2R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111M2G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111M2A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111M2W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111M2S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A120M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A102M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111D2R Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111D2G Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111D2Y Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111D2A Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111D2W Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111D2S Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111D2PW Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120D2R Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120D2G Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120D2A Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120D2W Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120D2S Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102D2R Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102D2G Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102D2Y Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102D2A Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102D2W Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102D2S Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102D2PW Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122D2R Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122D2G Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122D2A Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122D2W Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122D2S Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M110Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M110Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M111H5R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111H5G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111H5A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111H5W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111H5S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M111M5R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111M5G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111M5A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111M5W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111M5S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M120M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M102M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A111H5R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111H5G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111H5A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111H5W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111H5S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A111M5R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111M5G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111M5A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111M5W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111M5S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A120M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A102M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
680 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Illuminated Pushbuttons (Round Flush, Marking)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (680)

HW1L-M110Q2R, HW1L-M110Q2G, HW1L-M110Q2Y, HW1L-M110Q2A, HW1L-M110Q2W, HW1L-M110Q2S, HW1L-M110Q2PW, HW1L-M101Q2R, HW1L-M101Q2G, HW1L-M101Q2Y + 670 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW1L-M110Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-M110Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M110Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-M101Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-M101Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M101Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-M111Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111H2RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111H2GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111H2YAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111H2AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111H2WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111H2SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111M2RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111M2GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111M2YAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111M2AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111M2WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111M2SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M120M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M102M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M111D2RAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111D2GAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111D2YAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-M111D2AAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111D2WAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111D2SAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M111D2PWAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-M120D2RAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120D2GAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120D2YAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-M120D2AAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120D2WAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120D2SAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M120D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-M102D2RAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102D2GAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102D2YAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-M102D2AAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102D2WAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102D2SAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M102D2PWAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-M122D2RAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122D2GAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122D2YAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-M122D2AAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122D2WAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122D2SAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M122D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A110Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW1L-A110Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A110Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW1L-A101Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW1L-A101Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A101Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW1L-A111Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111H2RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111H2GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111H2YAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111H2AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111H2WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111H2SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111M2RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111M2GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111M2YAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111M2AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111M2WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111M2SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A120M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A102M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-A111D2RAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111D2GAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111D2YAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1L-A111D2AAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111D2WAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111D2SAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A111D2PWAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW1L-A120D2RAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120D2GAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120D2YAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW1L-A120D2AAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120D2WAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120D2SAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A120D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW1L-A102D2RAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102D2GAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102D2YAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW1L-A102D2AAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102D2WAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102D2SAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A102D2PWAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW1L-A122D2RAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122D2GAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122D2YAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1L-A122D2AAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122D2WAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122D2SAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A122D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW1L-M110Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M110Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M110Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-M110Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-M110Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-M110Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-M110Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-M101Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-M101Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-M101Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-M101Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-M101Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-M111Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-M120Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-M102Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M111H5RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111H5GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111H5AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111H5WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111H5SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-M120H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-M102H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-M111M5RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-M111M5GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-M111M5AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-M111M5WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-M111M5SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-M120M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-M120M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-M120M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-M120M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-M120M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-M102M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-M102M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-M102M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-M102M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-M102M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-M122M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-M122M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-M122M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-M122M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-M122M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A110Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW1L-A110Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW1L-A110Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW1L-A110Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW1L-A110Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW1L-A101Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW1L-A101Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW1L-A101Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW1L-A101Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW1L-A101Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW1L-A111Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW1L-A120Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW1L-A102Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A111H5RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111H5GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111H5AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111H5WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111H5SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW1L-A120H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW1L-A102H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1L-A111M5RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1L-A111M5GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1L-A111M5AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW1L-A111M5WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1L-A111M5SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1L-A120M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW1L-A120M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW1L-A120M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW1L-A120M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW1L-A120M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW1L-A102M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW1L-A102M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW1L-A102M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW1L-A102M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW1L-A102M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW1L-A122M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1L-A122M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1L-A122M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW1L-A122M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1L-A122M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
