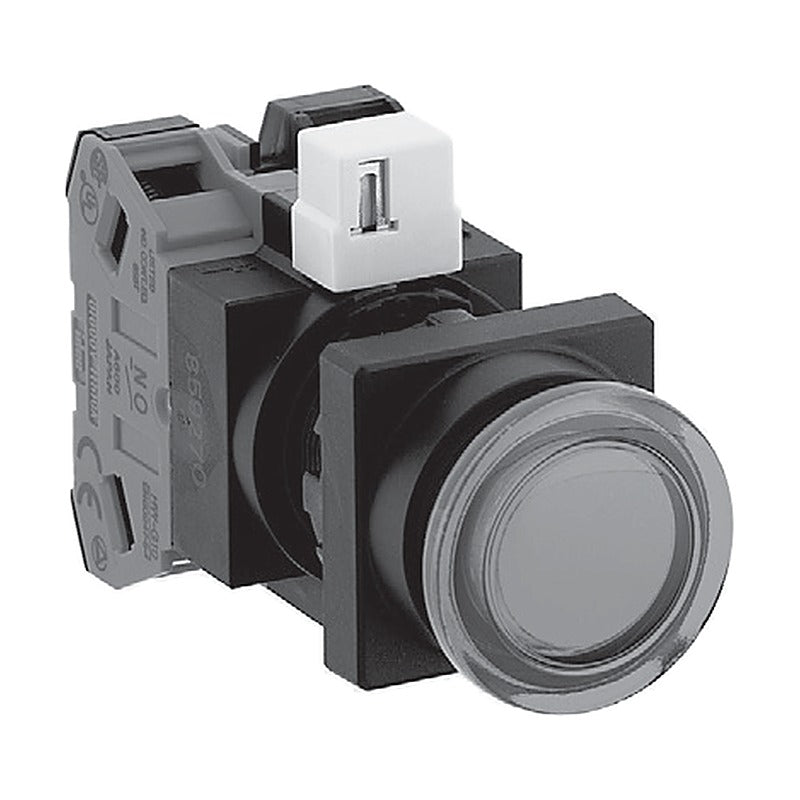

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel φ29 Medium)

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel φ29 Medium)

HW Series φ22 illuminated pushbuttons, square-bezel φ29 medium (marking) type, with LED or incandescent lamp, momentary or alternate action, AC/DC6V to AC200/220V and DC110V (LED).

Key features

  • 1a to 2a-2b contact configurations
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Square-bezel φ29 medium (marking)
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 25-26
HW3L-M310Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311H2R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311H2G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311H2A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311H2W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311H2S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311M2R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311M2G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311M2A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311M2W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311M2S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M320M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M302M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311D2R Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311D2G Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311D2Y Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311D2A Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311D2W Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311D2S Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311D2PW Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320D2R Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320D2G Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320D2A Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320D2W Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320D2S Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302D2R Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302D2G Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302D2Y Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302D2A Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302D2W Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302D2S Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302D2PW Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322D2R Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322D2G Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322D2A Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322D2W Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322D2S Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311H2R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311H2G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311H2A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311H2W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311H2S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311M2R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311M2G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311M2A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311M2W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311M2S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A320M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A302M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311D2R Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311D2G Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311D2Y Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311D2A Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311D2W Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311D2S Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311D2PW Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320D2R Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320D2G Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320D2A Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320D2W Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320D2S Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302D2R Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302D2G Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302D2Y Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302D2A Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302D2W Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302D2S Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302D2PW Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322D2R Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322D2G Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322D2A Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322D2W Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322D2S Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M310Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M310Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M311H5R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311H5G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311H5A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311H5W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311H5S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M311M5R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311M5G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311M5A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311M5W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311M5S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M320M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M302M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A311H5R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311H5G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311H5A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311H5W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311H5S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A311M5R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311M5G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311M5A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311M5W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311M5S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A320M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A302M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
680 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel φ29 Medium)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (680)

HW3L-M310Q2R, HW3L-M310Q2G, HW3L-M310Q2Y, HW3L-M310Q2A, HW3L-M310Q2W, HW3L-M310Q2S, HW3L-M310Q2PW, HW3L-M301Q2R, HW3L-M301Q2G, HW3L-M301Q2Y + 670 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW3L-M310Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M310Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M310Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M301Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M301Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M301Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M311Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311H2RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311H2GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311H2YAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311H2AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311H2WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311H2SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311M2RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311M2GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311M2YAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311M2AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311M2WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311M2SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M320M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M302M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M311D2RAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311D2GAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311D2YAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M311D2AAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311D2WAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311D2SAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M311D2PWAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M320D2RAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320D2GAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320D2YAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M320D2AAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320D2WAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320D2SAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M320D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M302D2RAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302D2GAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302D2YAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M302D2AAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302D2WAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302D2SAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M302D2PWAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M322D2RAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322D2GAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322D2YAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M322D2AAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322D2WAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322D2SAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M322D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A310Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A310Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A310Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A301Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A301Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A301Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A311Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311H2RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311H2GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311H2YAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311H2AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311H2WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311H2SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311M2RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311M2GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311M2YAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311M2AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311M2WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311M2SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A320M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A302M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A311D2RAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311D2GAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311D2YAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A311D2AAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311D2WAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311D2SAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A311D2PWAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A320D2RAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320D2GAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320D2YAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A320D2AAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320D2WAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320D2SAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A320D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A302D2RAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302D2GAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302D2YAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A302D2AAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302D2WAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302D2SAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A302D2PWAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A322D2RAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322D2GAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322D2YAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A322D2AAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322D2WAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322D2SAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A322D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M310Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M310Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M310Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M310Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M310Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M310Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M310Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M301Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M301Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M301Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M301Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M301Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M311Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M320Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M302Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M311H5RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311H5GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311H5AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311H5WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311H5SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M320H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M302H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M311M5RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M311M5GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M311M5AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M311M5WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M311M5SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M320M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M320M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M320M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M320M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M320M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M302M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M302M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M302M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M302M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M302M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M322M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M322M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M322M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M322M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M322M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A310Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A310Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A310Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A310Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A310Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A301Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A301Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A301Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A301Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A301Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A311Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A320Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A302Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A311H5RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311H5GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311H5AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311H5WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311H5SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A320H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A302H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A311M5RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A311M5GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A311M5AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A311M5WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A311M5SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A320M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A320M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A320M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A320M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A320M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A302M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A302M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A302M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A302M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A302M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A322M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A322M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A322M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A322M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A322M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
