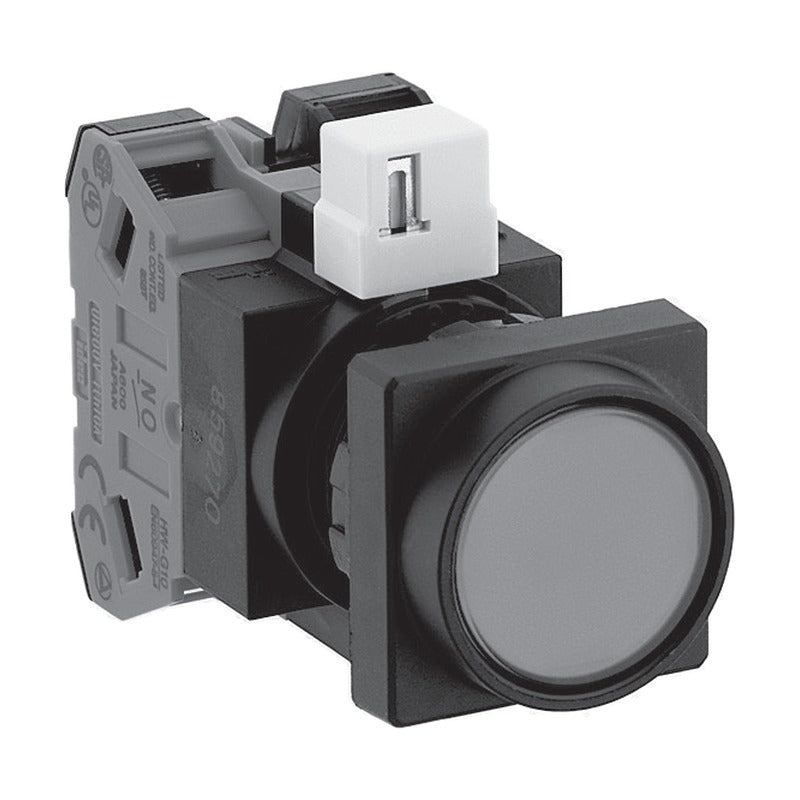

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel Flush, Marking)

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel Flush, Marking)

HW Series φ22 illuminated pushbuttons, square-bezel flush (marking) type, with LED or incandescent lamp, momentary or alternate action, AC/DC6V to AC200/220V and DC110V (LED).

Key features

  • 1a to 2a-2b contact configurations
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Square-bezel flush (marking)
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 21-22
HW3L-M110Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q2R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q2G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q2Y Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q2A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q2W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q2S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q2PW Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q3R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q3G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q3Y Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q3A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q3W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q3S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q3PW Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q4R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q4G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q4Y Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q4A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q4W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q4S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q4PW Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111H2R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111H2G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111H2A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111H2W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111H2S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122H2R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122H2G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122H2Y Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122H2A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122H2W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122H2S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122H2PW Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111M2R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111M2G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111M2A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111M2W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111M2S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M120M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M102M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122M2R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122M2G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122M2Y Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122M2A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122M2W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122M2S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122M2PW Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111D2R Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111D2G Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111D2Y Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111D2A Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111D2W Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111D2S Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111D2PW Action: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120D2R Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120D2G Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120D2A Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120D2W Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120D2S Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102D2R Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102D2G Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102D2Y Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102D2A Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102D2W Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102D2S Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102D2PW Action: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122D2R Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122D2G Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122D2Y Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122D2A Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122D2W Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122D2S Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122D2PW Action: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q2R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q2G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q2Y Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q2A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q2W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q2S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q2PW Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q3R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q3G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q3Y Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q3A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q3W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q3S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q3PW Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q4R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q4G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q4Y Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q4A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q4W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q4S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q4PW Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111H2R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111H2G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111H2A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111H2W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111H2S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122H2R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122H2G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122H2Y Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122H2A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122H2W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122H2S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122H2PW Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111M2R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111M2G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111M2A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111M2W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111M2S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A120M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A102M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122M2R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122M2G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122M2Y Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122M2A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122M2W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122M2S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122M2PW Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111D2R Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111D2G Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111D2Y Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111D2A Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111D2W Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111D2S Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111D2PW Action: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120D2R Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120D2G Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120D2A Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120D2W Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120D2S Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102D2R Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102D2G Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102D2Y Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102D2A Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102D2W Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102D2S Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102D2PW Action: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122D2R Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122D2G Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122D2Y Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122D2A Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122D2W Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122D2S Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122D2PW Action: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q5R Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q5G Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q5A Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q5W Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q5S Action: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M110Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q6R Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q6G Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q6A Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q6W Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q6S Action: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M110Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q7R Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q7G Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q7A Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q7W Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q7S Action: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M111H5R Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111H5G Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111H5A Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111H5W Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111H5S Action: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122H5R Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122H5G Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122H5A Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122H5W Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122H5S Action: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M111M5R Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111M5G Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111M5A Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111M5W Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111M5S Action: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M120M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M102M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122M5R Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122M5G Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122M5A Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122M5W Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122M5S Action: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q5R Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q5G Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q5A Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q5W Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q5S Action: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q6R Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q6G Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q6A Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q6W Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q6S Action: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q7R Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q7G Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q7A Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q7W Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q7S Action: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A111H5R Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111H5G Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111H5A Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111H5W Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111H5S Action: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122H5R Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122H5G Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122H5A Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122H5W Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122H5S Action: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A111M5R Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111M5G Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111M5A Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111M5W Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111M5S Action: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A120M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A102M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122M5R Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122M5G Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122M5A Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122M5W Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122M5S Action: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
680 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW 22 mm Illuminated Pushbuttons (Square-Bezel Flush, Marking)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (680)

HW3L-M110Q2R, HW3L-M110Q2G, HW3L-M110Q2Y, HW3L-M110Q2A, HW3L-M110Q2W, HW3L-M110Q2S, HW3L-M110Q2PW, HW3L-M101Q2R, HW3L-M101Q2G, HW3L-M101Q2Y + 670 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW3L-M110Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q2RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q2GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q2YAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q2AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q2WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q2SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q2PWAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q3RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q3GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q3YAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q3AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q3WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q3SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q3PWAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-M110Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M110Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-M101Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-M101Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M101Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-M111Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122Q4RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q4GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q4YAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122Q4AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q4WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q4SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122Q4PWAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111H2RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111H2GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111H2YAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111H2AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111H2WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111H2SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122H2RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122H2GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122H2YAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122H2AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122H2WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122H2SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122H2PWAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111M2RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111M2GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111M2YAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111M2AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111M2WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111M2SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M120M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M102M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122M2RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122M2GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122M2YAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122M2AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122M2WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122M2SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122M2PWAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M111D2RAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111D2GAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111D2YAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-M111D2AAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111D2WAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111D2SAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M111D2PWAction: Momentary | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-M120D2RAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120D2GAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120D2YAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-M120D2AAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120D2WAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120D2SAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M120D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-M102D2RAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102D2GAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102D2YAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-M102D2AAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102D2WAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102D2SAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M102D2PWAction: Momentary | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-M122D2RAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122D2GAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122D2YAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-M122D2AAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122D2WAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122D2SAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M122D2PWAction: Momentary | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q2RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q2GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q2YAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q2AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q2WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q2SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q2PWAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q3RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q3GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q3YAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q3AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q3WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q3SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q3PWAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A110Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Yellow
HW3L-A110Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A110Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Pure white
HW3L-A101Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Yellow
HW3L-A101Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A101Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Pure white
HW3L-A111Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122Q4RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q4GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q4YAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122Q4AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q4WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q4SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122Q4PWAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111H2RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111H2GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111H2YAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111H2AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111H2WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111H2SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122H2RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122H2GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122H2YAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122H2AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122H2WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122H2SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122H2PWAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111M2RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111M2GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111M2YAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111M2AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111M2WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111M2SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A120M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A102M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122M2RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122M2GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122M2YAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122M2AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122M2WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122M2SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122M2PWAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-A111D2RAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111D2GAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111D2YAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3L-A111D2AAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111D2WAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111D2SAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A111D2PWAction: Alternate | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
HW3L-A120D2RAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120D2GAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120D2YAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
HW3L-A120D2AAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120D2WAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120D2SAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A120D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
HW3L-A102D2RAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102D2GAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102D2YAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Yellow
HW3L-A102D2AAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102D2WAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102D2SAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A102D2PWAction: Alternate | Voltage: DC110V | Contacts: 2b (2NC) | Colour: Pure white
HW3L-A122D2RAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122D2GAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122D2YAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3L-A122D2AAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122D2WAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122D2SAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A122D2PWAction: Alternate | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
HW3L-M110Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q5RAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q5GAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q5AAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q5WAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q5SAction: Momentary | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M110Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q6RAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q6GAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q6AAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q6WAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q6SAction: Momentary | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M110Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-M110Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-M110Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-M110Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-M110Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-M101Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-M101Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-M101Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-M101Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-M101Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-M111Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-M120Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-M102Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122Q7RAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122Q7GAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122Q7AAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122Q7WAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122Q7SAction: Momentary | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M111H5RAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111H5GAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111H5AAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111H5WAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111H5SAction: Momentary | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-M120H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-M102H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122H5RAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122H5GAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122H5AAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122H5WAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122H5SAction: Momentary | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-M111M5RAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-M111M5GAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-M111M5AAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-M111M5WAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-M111M5SAction: Momentary | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-M120M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-M120M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-M120M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-M120M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-M120M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-M102M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-M102M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-M102M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-M102M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-M102M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-M122M5RAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-M122M5GAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-M122M5AAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-M122M5WAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-M122M5SAction: Momentary | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q5RAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q5GAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q5AAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q5WAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q5SAction: Alternate | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q6RAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q6GAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q6AAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q6WAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q6SAction: Alternate | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A110Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Red
HW3L-A110Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Green
HW3L-A110Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Amber
HW3L-A110Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: White
HW3L-A110Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a (1NO) | Colour: Blue
HW3L-A101Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Red
HW3L-A101Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Green
HW3L-A101Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Amber
HW3L-A101Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: White
HW3L-A101Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1b (1NC) | Colour: Blue
HW3L-A111Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
HW3L-A120Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
HW3L-A102Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122Q7RAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122Q7GAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122Q7AAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122Q7WAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122Q7SAction: Alternate | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A111H5RAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111H5GAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111H5AAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111H5WAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111H5SAction: Alternate | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
HW3L-A120H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
HW3L-A102H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122H5RAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122H5GAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122H5AAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122H5WAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122H5SAction: Alternate | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3L-A111M5RAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3L-A111M5GAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3L-A111M5AAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
HW3L-A111M5WAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3L-A111M5SAction: Alternate | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3L-A120M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
HW3L-A120M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
HW3L-A120M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
HW3L-A120M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
HW3L-A120M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
HW3L-A102M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
HW3L-A102M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
HW3L-A102M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
HW3L-A102M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
HW3L-A102M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
HW3L-A122M5RAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3L-A122M5GAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3L-A122M5AAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
HW3L-A122M5WAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3L-A122M5SAction: Alternate | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
