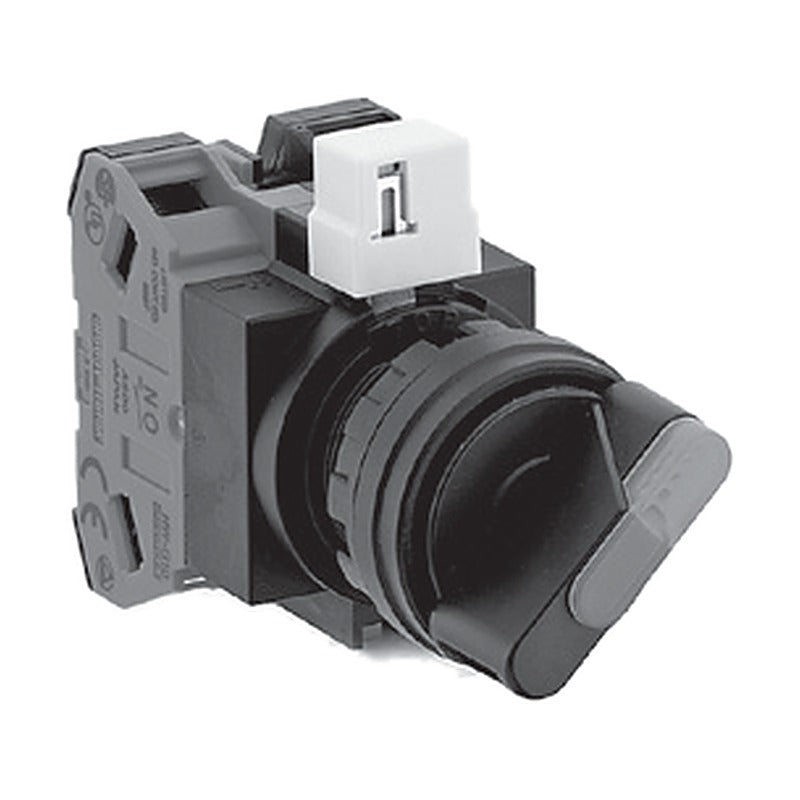

IDEC HW Series 22 mm Illuminated Selector Switches (Incandescent)

HW1F φ22 illuminated selector switches with incandescent lamp, 2- and 3-position, maintained or spring return.

Key features

Arrow handle (lever handle on request per catalogue)
Specify illumination colour code in the part number
φ22.3 mm panel cut-out with finger-protected SS terminals
HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
Up to 2 tiers (4 blocks) of contacts per operator
LED or incandescent illumination with direct or transformer type supply

Specifications

Operator	Illuminated arrow handle
Series	IDEC HW Series (φ22)
Mounting hole	φ22.3 mm
Panel thickness	0.8 to 6 mm
Contact block	HW-G, finger-protected SS terminals
Operating temperature	-25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance	100 MΩ min. (500 V DC megger)
Dielectric strength	AC 2500 V, 1 min (live to dead metal)
Source	IDEC HW Series φ22 Control Units catalogue, p. 41

HW1F-211Q5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211Q6R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q6G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q6A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q6W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q6S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211Q7R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q7G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q7A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q7W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q7S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211H5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211H5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211H5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211H5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211H5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211M5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211M5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211M5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211M5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211M5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-220Q5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220Q6R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q6G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q6A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q6W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q6S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220Q7R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q7G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q7A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q7W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q7S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220H5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220H5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220H5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220H5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220H5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220M5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220M5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220M5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220M5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220M5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-222Q5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222Q6R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q6G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q6A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q6W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q6S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222Q7R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q7G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q7A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q7W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q7S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222H5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222H5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222H5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222H5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222H5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222M5R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222M5G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222M5A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222M5W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222M5S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-320Q5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320Q6R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q6G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q6A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q6W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q6S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320Q7R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q7G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q7A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q7W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q7S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320H5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320H5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320H5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320H5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320H5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320M5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320M5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320M5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320M5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320M5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-302Q5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302Q6R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q6G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q6A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q6W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q6S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302Q7R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q7G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q7A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q7W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q7S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302H5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302H5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302H5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302H5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302H5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302M5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302M5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302M5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302M5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302M5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-322N1Q5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1Q6R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q6G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q6A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q6W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q6S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1Q7R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q7G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q7A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q7W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q7S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1H5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1H5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1H5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1H5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1H5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1M5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1M5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1M5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1M5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1M5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-340Q5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340Q5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-340Q6R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q6G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q6A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q6W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340Q6S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-340Q7R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q7G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q7A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q7W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340Q7S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-340H5R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340H5G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340H5A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340H5W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
HW1F-340H5S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-340M5R		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340M5G		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340M5A		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340M5W		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340M5S		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-304Q5R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q5G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q5A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q5W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q5S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304Q6R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q6G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q6A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q6W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q6S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304Q7R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q7G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q7A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q7W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q7S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304H5R		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304H5G		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304H5A		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304H5W		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304H5S		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304M5R		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304M5G		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304M5A		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304M5W		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304M5S		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-2111Q5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111Q6R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q6G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q6A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q6W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q6S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111Q7R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q7G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q7A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q7W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q7S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111H5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111H5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111H5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111H5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111H5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111M5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111M5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111M5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111M5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111M5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2120Q5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120Q6R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q6G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q6A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q6W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q6S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120Q7R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q7G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q7A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q7W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q7S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120H5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120H5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120H5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120H5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120H5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120M5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120M5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120M5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120M5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120M5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2122Q5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122Q6R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q6G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q6A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q6W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q6S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122Q7R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q7G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q7A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q7W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q7S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122H5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122H5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122H5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122H5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122H5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122M5R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122M5G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122M5A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122M5W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122M5S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-3120Q5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120Q6R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q6G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q6A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q6W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q6S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120Q7R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q7G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q7A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q7W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q7S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120H5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120H5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120H5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120H5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120H5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120M5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120M5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120M5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120M5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120M5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3102Q5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102Q6R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q6G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q6A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q6W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q6S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102Q7R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q7G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q7A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q7W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q7S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102H5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102H5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102H5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102H5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102H5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102M5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102M5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102M5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102M5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102M5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3122N1Q5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1Q6R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q6G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q6A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q6W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q6S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1Q7R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q7G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q7A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q7W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q7S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1H5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1H5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1H5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1H5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1H5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1M5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1M5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1M5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1M5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1M5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3140Q5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140Q5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3140Q6R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q6G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q6A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q6W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140Q6S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3140Q7R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q7G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q7A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q7W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140Q7S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3140H5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140H5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140H5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140H5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140H5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3140M5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140M5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140M5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140M5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140M5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3104Q5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104Q6R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q6G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q6A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q6W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q6S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104Q7R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q7G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q7A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q7W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q7S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104H5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104H5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104H5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104H5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104H5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104M5R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104M5G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104M5A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104M5W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104M5S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3220Q5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220Q6R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q6G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q6A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q6W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q6S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220Q7R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q7G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q7A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q7W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q7S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220H5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220H5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220H5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220H5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220H5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220M5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220M5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220M5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220M5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220M5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3202Q5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202Q6R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q6G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q6A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q6W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q6S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202Q7R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q7G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q7A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q7W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q7S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202H5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202H5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202H5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202H5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202H5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202M5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202M5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202M5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202M5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202M5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3222N1Q5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1Q6R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q6G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q6A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q6W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q6S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1Q7R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q7G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q7A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q7W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q7S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1H5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1H5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1H5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1H5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1H5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1M5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1M5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1M5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1M5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1M5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3240Q5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240Q5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3240Q6R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q6G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q6A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q6W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240Q6S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3240Q7R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q7G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q7A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q7W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240Q7S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3240H5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240H5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240H5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240H5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240H5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3240M5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240M5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240M5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240M5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240M5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3204Q5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204Q6R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q6G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q6A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q6W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q6S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204Q7R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q7G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q7A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q7W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q7S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204H5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204H5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204H5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204H5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204H5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204M5R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204M5G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204M5A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204M5W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204M5S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3320Q5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320Q6R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q6G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q6A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q6W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q6S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320Q7R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q7G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q7A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q7W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q7S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320H5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320H5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320H5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320H5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320H5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320M5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320M5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320M5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320M5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320M5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3302Q5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302Q6R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q6G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q6A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q6W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q6S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302Q7R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q7G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q7A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q7W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q7S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302H5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302H5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302H5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302H5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302H5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302M5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302M5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302M5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302M5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302M5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3322N1Q5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1Q6R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q6G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q6A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q6W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q6S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1Q7R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q7G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q7A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q7W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q7S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1H5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1H5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1H5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1H5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1H5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1M5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1M5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1M5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1M5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1M5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3340Q5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340Q5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3340Q6R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q6G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q6A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q6W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340Q6S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3340Q7R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q7G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q7A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q7W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340Q7S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3340H5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340H5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340H5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340H5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340H5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3340M5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340M5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340M5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340M5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340M5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
HW1F-3304Q5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304Q6R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q6G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q6A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q6W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q6S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304Q7R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q7G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q7A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q7W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q7S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304H5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304H5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304H5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304H5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304H5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304M5R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304M5G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304M5A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304M5W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304M5S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue

Selector SwitchesIDEC

650 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series 22 mm Illuminated Selector Switches (Incandescent)

Brand IDEC·Selector Switches

Available part numbers (650)

HW1F-211Q5R, HW1F-211Q5G, HW1F-211Q5A, HW1F-211Q5W, HW1F-211Q5S, HW1F-211Q6R, HW1F-211Q6G, HW1F-211Q6A, HW1F-211Q6W, HW1F-211Q6S + 640 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HW1F-211Q5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211Q6R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q6G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q6A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q6W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q6S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211Q7R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q7G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q7A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q7W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q7S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211H5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211H5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211H5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211H5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211H5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211M5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211M5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211M5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211M5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211M5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-220Q5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220Q6R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q6G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q6A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q6W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q6S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220Q7R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q7G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q7A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q7W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q7S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220H5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220H5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220H5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220H5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220H5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220M5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220M5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220M5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220M5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220M5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-222Q5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222Q6R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q6G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q6A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q6W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q6S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222Q7R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q7G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q7A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q7W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q7S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222H5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222H5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222H5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222H5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222H5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222M5R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222M5G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222M5A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222M5W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222M5S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-320Q5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320Q6R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q6G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q6A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q6W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q6S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320Q7R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q7G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q7A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q7W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q7S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320H5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320H5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320H5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320H5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320H5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320M5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320M5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320M5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320M5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320M5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-302Q5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302Q6R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q6G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q6A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q6W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q6S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302Q7R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q7G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q7A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q7W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q7S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302H5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302H5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302H5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302H5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302H5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302M5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302M5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302M5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302M5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302M5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-322N1Q5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1Q6R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q6G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q6A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q6W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q6S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1Q7R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q7G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q7A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q7W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q7S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1H5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1H5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1H5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1H5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1H5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1M5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1M5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1M5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1M5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1M5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-340Q5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340Q5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-340Q6R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q6G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q6A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q6W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340Q6S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-340Q7R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q7G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q7A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q7W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340Q7S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-340H5R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340H5G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340H5A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340H5W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340H5S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-340M5R	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340M5G	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340M5A	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340M5W	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340M5S	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-304Q5R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q5G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q5A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q5W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q5S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304Q6R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q6G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q6A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q6W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q6S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304Q7R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q7G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q7A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q7W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q7S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304H5R	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304H5G	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304H5A	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304H5W	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304H5S	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304M5R	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304M5G	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304M5A	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304M5W	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304M5S	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-2111Q5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111Q6R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q6G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q6A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q6W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q6S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111Q7R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q7G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q7A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q7W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q7S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111H5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111H5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111H5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111H5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111H5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111M5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111M5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111M5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111M5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111M5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2120Q5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120Q6R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q6G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q6A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q6W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q6S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120Q7R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q7G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q7A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q7W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q7S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120H5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120H5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120H5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120H5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120H5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120M5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120M5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120M5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120M5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120M5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2122Q5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122Q6R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q6G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q6A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q6W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q6S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122Q7R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q7G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q7A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q7W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q7S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122H5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122H5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122H5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122H5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122H5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122M5R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122M5G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122M5A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122M5W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122M5S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-3120Q5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120Q6R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q6G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q6A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q6W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q6S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120Q7R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q7G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q7A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q7W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q7S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120H5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120H5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120H5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120H5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120H5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120M5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120M5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120M5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120M5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120M5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3102Q5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102Q6R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q6G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q6A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q6W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q6S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102Q7R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q7G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q7A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q7W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q7S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102H5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102H5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102H5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102H5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102H5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102M5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102M5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102M5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102M5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102M5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3122N1Q5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1Q6R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q6G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q6A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q6W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q6S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1Q7R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q7G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q7A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q7W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q7S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1H5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1H5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1H5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1H5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1H5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1M5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1M5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1M5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1M5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1M5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3140Q5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140Q5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3140Q6R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q6G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q6A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q6W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140Q6S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3140Q7R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q7G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q7A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q7W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140Q7S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3140H5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140H5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140H5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140H5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140H5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3140M5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140M5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140M5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140M5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140M5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3104Q5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104Q6R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q6G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q6A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q6W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q6S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104Q7R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q7G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q7A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q7W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q7S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104H5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104H5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104H5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104H5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104H5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104M5R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104M5G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104M5A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104M5W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104M5S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3220Q5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220Q6R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q6G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q6A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q6W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q6S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220Q7R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q7G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q7A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q7W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q7S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220H5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220H5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220H5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220H5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220H5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220M5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220M5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220M5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220M5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220M5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3202Q5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202Q6R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q6G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q6A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q6W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q6S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202Q7R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q7G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q7A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q7W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q7S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202H5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202H5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202H5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202H5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202H5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202M5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202M5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202M5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202M5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202M5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3222N1Q5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1Q6R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q6G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q6A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q6W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q6S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1Q7R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q7G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q7A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q7W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q7S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1H5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1H5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1H5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1H5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1H5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1M5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1M5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1M5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1M5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1M5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3240Q5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240Q5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3240Q6R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q6G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q6A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q6W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240Q6S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3240Q7R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q7G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q7A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q7W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240Q7S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3240H5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240H5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240H5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240H5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240H5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3240M5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240M5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240M5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240M5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240M5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3204Q5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204Q6R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q6G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q6A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q6W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q6S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204Q7R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q7G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q7A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q7W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q7S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204H5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204H5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204H5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204H5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204H5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204M5R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204M5G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204M5A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204M5W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204M5S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3320Q5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320Q6R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q6G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q6A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q6W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q6S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320Q7R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q7G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q7A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q7W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q7S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320H5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320H5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320H5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320H5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320H5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320M5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320M5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320M5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320M5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320M5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3302Q5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302Q6R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q6G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q6A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q6W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q6S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302Q7R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q7G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q7A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q7W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q7S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302H5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302H5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302H5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302H5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302H5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302M5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302M5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302M5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302M5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302M5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3322N1Q5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1Q6R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q6G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q6A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q6W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q6S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1Q7R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q7G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q7A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q7W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q7S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1H5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1H5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1H5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1H5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1H5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1M5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1M5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1M5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1M5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1M5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3340Q5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340Q5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3340Q6R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q6G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q6A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q6W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340Q6S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3340Q7R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q7G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q7A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q7W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340Q7S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3340H5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340H5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340H5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340H5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340H5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3340M5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340M5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340M5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340M5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340M5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	HW1F-3304Q5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304Q6R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q6G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q6A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q6W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q6S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304Q7R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q7G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q7A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q7W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q7S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304H5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304H5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304H5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304H5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304H5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304M5R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304M5G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304M5A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304M5W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304M5S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

IDEC HW Series 22 mm Illuminated Selector Switches (Incandescent)
