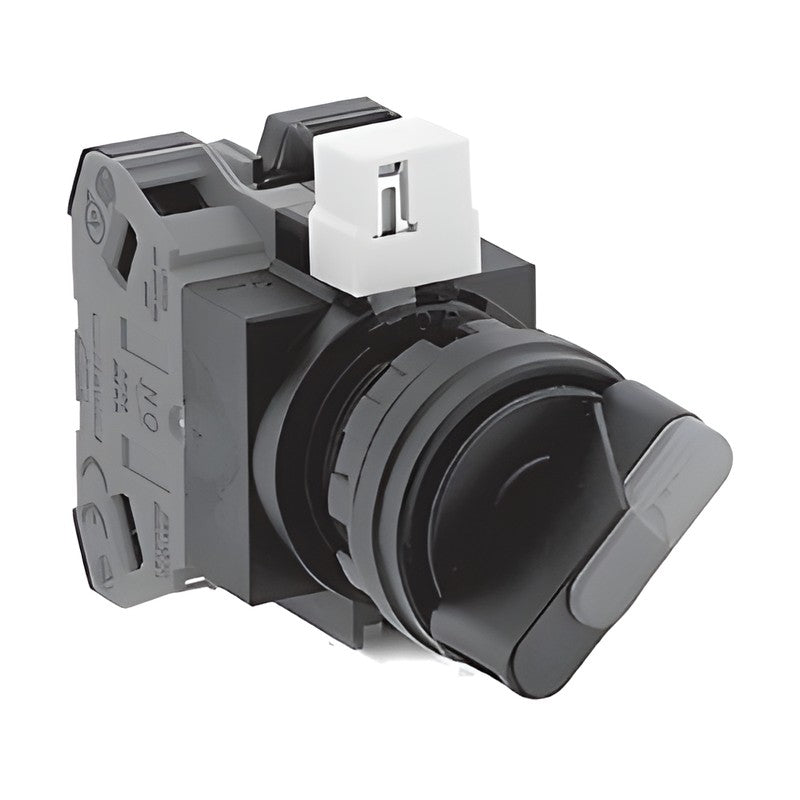

IDEC HW Series 22 mm Illuminated Selector Switches (LED)

HW1F φ22 illuminated selector switches with led lamp, 2- and 3-position, maintained or spring return.

Key features

Arrow handle (lever handle on request per catalogue)
Specify illumination colour code in the part number
φ22.3 mm panel cut-out with finger-protected SS terminals
HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
Up to 2 tiers (4 blocks) of contacts per operator
LED or incandescent illumination with direct or transformer type supply

Specifications

Operator	Illuminated arrow handle
Series	IDEC HW Series (φ22)
Mounting hole	φ22.3 mm
Panel thickness	0.8 to 6 mm
Contact block	HW-G, finger-protected SS terminals
Operating temperature	-25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance	100 MΩ min. (500 V DC megger)
Dielectric strength	AC 2500 V, 1 min (live to dead metal)
Source	IDEC HW Series φ22 Control Units catalogue, p. 40

HW1F-211Q2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-211Q2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211Q2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-211Q3R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q3G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q3Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-211Q3A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q3W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q3S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211Q3PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-211Q4R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211Q4G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211Q4Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-211Q4A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211Q4W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211Q4S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211Q4PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-211H2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211H2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211H2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-211H2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211H2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211H2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211H2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-211M2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-211M2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-211M2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-211M2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-211M2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-211M2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-211M2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-220Q2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-220Q2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220Q2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-220Q3R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q3G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q3Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-220Q3A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q3W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q3S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220Q3PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-220Q4R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220Q4G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220Q4Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-220Q4A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220Q4W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220Q4S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220Q4PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-220H2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220H2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220H2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-220H2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220H2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220H2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220H2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-220M2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-220M2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-220M2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-220M2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-220M2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-220M2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-220M2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-222Q2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-222Q2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222Q2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-222Q3R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q3G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q3Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-222Q3A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q3W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q3S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222Q3PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-222Q4R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222Q4G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222Q4Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-222Q4A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222Q4W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222Q4S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222Q4PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-222H2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222H2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222H2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-222H2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222H2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222H2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222H2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-222M2R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-222M2G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-222M2Y		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-222M2A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-222M2W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-222M2S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-222M2PW		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-320Q2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-320Q2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320Q2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-320Q3R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q3G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q3Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-320Q3A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q3W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q3S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320Q3PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-320Q4R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320Q4G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320Q4Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-320Q4A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320Q4W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320Q4S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320Q4PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-320H2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320H2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320H2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-320H2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320H2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320H2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320H2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-320M2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-320M2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-320M2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-320M2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-320M2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-320M2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-320M2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-302Q2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-302Q2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302Q2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-302Q3R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q3G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q3Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-302Q3A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q3W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q3S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302Q3PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-302Q4R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302Q4G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302Q4Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-302Q4A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302Q4W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302Q4S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302Q4PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-302H2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302H2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302H2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-302H2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302H2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302H2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302H2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-302M2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-302M2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-302M2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-302M2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-302M2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-302M2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-302M2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-322N1Q2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-322N1Q2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1Q2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-322N1Q3R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q3G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q3Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-322N1Q3A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q3W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q3S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1Q3PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-322N1Q4R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1Q4G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1Q4Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-322N1Q4A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1Q4W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1Q4S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1Q4PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-322N1H2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1H2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1H2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-322N1H2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1H2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1H2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1H2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-322N1M2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-322N1M2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-322N1M2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-322N1M2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-322N1M2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-322N1M2S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-322N1M2PW		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-340Q2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-340Q2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340Q3R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q3G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q3Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-340Q3A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q3W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340Q4R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340Q4G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340Q4Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-340Q4A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340Q4W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340H2R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340H2G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340H2Y		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-340H2A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340H2W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
HW1F-340M2R		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-340M2G		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-340M2Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-340M2A		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-340M2W		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-304Q2R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q2G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q2Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-304Q2A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q2W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q2S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304Q2PW		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-304Q3R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q3G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q3Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-304Q3A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q3W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q3S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304Q3PW		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-304Q4R		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304Q4G		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304Q4Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-304Q4A		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304Q4W		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304Q4S		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304Q4PW		Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-304H2R		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304H2G		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304H2Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-304H2A		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304H2W		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304H2S		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304H2PW		Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-304M2R		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-304M2G		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-304M2Y		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-304M2A		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-304M2W		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-304M2S		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-304M2PW		Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-2111Q2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-2111Q2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111Q2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-2111Q3R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q3G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q3Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-2111Q3A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q3W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q3S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111Q3PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-2111Q4R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111Q4G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111Q4Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-2111Q4A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111Q4W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111Q4S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111Q4PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-2111H2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111H2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111H2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-2111H2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111H2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111H2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111H2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-2111M2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
HW1F-2111M2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
HW1F-2111M2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
HW1F-2111M2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
HW1F-2111M2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
HW1F-2111M2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
HW1F-2111M2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
HW1F-2120Q2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-2120Q2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120Q2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-2120Q3R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q3G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q3Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-2120Q3A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q3W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q3S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120Q3PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-2120Q4R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120Q4G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120Q4Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-2120Q4A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120Q4W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120Q4S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120Q4PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-2120H2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120H2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120H2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-2120H2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120H2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120H2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120H2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-2120M2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-2120M2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-2120M2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-2120M2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-2120M2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-2120M2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-2120M2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-2122Q2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-2122Q2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122Q2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-2122Q3R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q3G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q3Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-2122Q3A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q3W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q3S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122Q3PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-2122Q4R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122Q4G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122Q4Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-2122Q4A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122Q4W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122Q4S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122Q4PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-2122H2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122H2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122H2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-2122H2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122H2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122H2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122H2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-2122M2R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
HW1F-2122M2G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
HW1F-2122M2Y		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
HW1F-2122M2A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
HW1F-2122M2W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
HW1F-2122M2S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
HW1F-2122M2PW		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
HW1F-3120Q2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3120Q2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120Q2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3120Q3R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q3G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q3Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3120Q3A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q3W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q3S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120Q3PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3120Q4R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120Q4G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120Q4Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3120Q4A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120Q4W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120Q4S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120Q4PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3120H2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120H2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120H2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3120H2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120H2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120H2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120H2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3120M2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3120M2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3120M2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3120M2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3120M2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3120M2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3120M2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3102Q2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3102Q2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102Q2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3102Q3R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q3G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q3Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3102Q3A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q3W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q3S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102Q3PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3102Q4R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102Q4G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102Q4Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3102Q4A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102Q4W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102Q4S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102Q4PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3102H2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102H2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102H2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3102H2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102H2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102H2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102H2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3102M2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3102M2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3102M2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3102M2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3102M2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3102M2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3102M2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3122N1Q2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3122N1Q2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1Q2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3122N1Q3R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q3G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q3Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3122N1Q3A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q3W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q3S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1Q3PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3122N1Q4R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1Q4G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1Q4Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3122N1Q4A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1Q4W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1Q4S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1Q4PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3122N1H2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1H2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1H2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3122N1H2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1H2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1H2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1H2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3122N1M2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3122N1M2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3122N1M2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3122N1M2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3122N1M2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3122N1M2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3122N1M2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3140Q2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3140Q2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140Q3R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q3G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q3Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3140Q3A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q3W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140Q4R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140Q4G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140Q4Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3140Q4A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140Q4W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140H2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140H2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140H2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3140H2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140H2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3140M2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3140M2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3140M2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3140M2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3140M2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3104Q2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3104Q2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104Q2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3104Q3R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q3G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q3Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3104Q3A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q3W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q3S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104Q3PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3104Q4R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104Q4G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104Q4Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3104Q4A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104Q4W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104Q4S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104Q4PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3104H2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104H2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104H2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3104H2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104H2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104H2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104H2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3104M2R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3104M2G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3104M2Y		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3104M2A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3104M2W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3104M2S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3104M2PW		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3220Q2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3220Q2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220Q2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3220Q3R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q3G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q3Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3220Q3A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q3W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q3S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220Q3PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3220Q4R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220Q4G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220Q4Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3220Q4A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220Q4W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220Q4S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220Q4PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3220H2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220H2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220H2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3220H2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220H2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220H2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220H2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3220M2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3220M2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3220M2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3220M2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3220M2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3220M2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3220M2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3202Q2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3202Q2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202Q2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3202Q3R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q3G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q3Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3202Q3A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q3W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q3S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202Q3PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3202Q4R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202Q4G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202Q4Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3202Q4A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202Q4W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202Q4S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202Q4PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3202H2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202H2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202H2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3202H2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202H2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202H2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202H2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3202M2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3202M2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3202M2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3202M2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3202M2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3202M2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3202M2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3222N1Q2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3222N1Q2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1Q2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3222N1Q3R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q3G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q3Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3222N1Q3A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q3W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q3S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1Q3PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3222N1Q4R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1Q4G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1Q4Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3222N1Q4A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1Q4W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1Q4S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1Q4PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3222N1H2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1H2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1H2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3222N1H2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1H2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1H2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1H2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3222N1M2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3222N1M2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3222N1M2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3222N1M2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3222N1M2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3222N1M2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3222N1M2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3240Q2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3240Q2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240Q3R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q3G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q3Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3240Q3A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q3W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240Q4R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240Q4G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240Q4Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3240Q4A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240Q4W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240H2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240H2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240H2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3240H2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240H2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3240M2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3240M2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3240M2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3240M2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3240M2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3204Q2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3204Q2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204Q2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3204Q3R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q3G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q3Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3204Q3A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q3W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q3S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204Q3PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3204Q4R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204Q4G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204Q4Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3204Q4A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204Q4W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204Q4S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204Q4PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3204H2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204H2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204H2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3204H2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204H2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204H2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204H2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3204M2R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3204M2G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3204M2Y		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3204M2A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3204M2W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3204M2S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3204M2PW		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3320Q2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3320Q2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320Q2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3320Q3R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q3G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q3Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3320Q3A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q3W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q3S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320Q3PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3320Q4R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320Q4G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320Q4Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3320Q4A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320Q4W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320Q4S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320Q4PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3320H2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320H2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320H2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3320H2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320H2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320H2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320H2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3320M2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
HW1F-3320M2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
HW1F-3320M2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
HW1F-3320M2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
HW1F-3320M2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
HW1F-3320M2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
HW1F-3320M2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
HW1F-3302Q2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3302Q2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302Q2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3302Q3R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q3G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q3Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3302Q3A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q3W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q3S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302Q3PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3302Q4R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302Q4G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302Q4Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3302Q4A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302Q4W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302Q4S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302Q4PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3302H2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302H2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302H2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3302H2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302H2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302H2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302H2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3302M2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
HW1F-3302M2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
HW1F-3302M2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
HW1F-3302M2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
HW1F-3302M2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
HW1F-3302M2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
HW1F-3302M2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
HW1F-3322N1Q2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3322N1Q2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1Q2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3322N1Q3R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q3G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q3Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3322N1Q3A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q3W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q3S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1Q3PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3322N1Q4R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1Q4G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1Q4Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3322N1Q4A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1Q4W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1Q4S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1Q4PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3322N1H2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1H2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1H2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3322N1H2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1H2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1H2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1H2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3322N1M2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
HW1F-3322N1M2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
HW1F-3322N1M2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
HW1F-3322N1M2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
HW1F-3322N1M2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
HW1F-3322N1M2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
HW1F-3322N1M2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
HW1F-3340Q2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3340Q2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340Q3R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q3G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q3Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3340Q3A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q3W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340Q4R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340Q4G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340Q4Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3340Q4A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340Q4W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340H2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340H2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340H2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3340H2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340H2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3340M2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
HW1F-3340M2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
HW1F-3340M2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
HW1F-3340M2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
HW1F-3340M2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
HW1F-3304Q2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3304Q2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304Q2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3304Q3R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q3G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q3Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3304Q3A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q3W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q3S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304Q3PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3304Q4R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304Q4G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304Q4Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3304Q4A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304Q4W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304Q4S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304Q4PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3304H2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304H2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304H2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3304H2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304H2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304H2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304H2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
HW1F-3304M2R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
HW1F-3304M2G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
HW1F-3304M2Y		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
HW1F-3304M2A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
HW1F-3304M2W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
HW1F-3304M2S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
HW1F-3304M2PW		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white

Selector SwitchesIDEC

870 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series 22 mm Illuminated Selector Switches (LED)

Brand IDEC·Selector Switches

Available part numbers (870)

HW1F-211Q2R, HW1F-211Q2G, HW1F-211Q2Y, HW1F-211Q2A, HW1F-211Q2W, HW1F-211Q2S, HW1F-211Q2PW, HW1F-211Q3R, HW1F-211Q3G, HW1F-211Q3Y + 860 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HW1F-211Q2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-211Q2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211Q2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-211Q3R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q3G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q3Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-211Q3A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q3W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q3S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211Q3PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-211Q4R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211Q4G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211Q4Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-211Q4A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211Q4W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211Q4S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211Q4PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-211H2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211H2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211H2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-211H2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211H2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211H2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211H2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-211M2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-211M2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-211M2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-211M2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-211M2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-211M2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-211M2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-220Q2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-220Q2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220Q2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-220Q3R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q3G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q3Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-220Q3A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q3W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q3S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220Q3PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-220Q4R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220Q4G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220Q4Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-220Q4A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220Q4W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220Q4S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220Q4PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-220H2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220H2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220H2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-220H2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220H2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220H2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220H2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-220M2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-220M2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-220M2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-220M2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-220M2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-220M2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-220M2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-222Q2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-222Q2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222Q2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-222Q3R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q3G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q3Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-222Q3A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q3W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q3S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222Q3PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-222Q4R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222Q4G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222Q4Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-222Q4A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222Q4W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222Q4S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222Q4PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-222H2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222H2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222H2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-222H2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222H2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222H2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222H2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-222M2R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-222M2G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-222M2Y	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-222M2A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-222M2W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-222M2S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-222M2PW	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-320Q2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-320Q2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320Q2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-320Q3R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q3G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q3Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-320Q3A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q3W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q3S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320Q3PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-320Q4R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320Q4G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320Q4Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-320Q4A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320Q4W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320Q4S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320Q4PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-320H2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320H2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320H2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-320H2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320H2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320H2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320H2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-320M2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-320M2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-320M2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-320M2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-320M2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-320M2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-320M2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-302Q2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-302Q2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302Q2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-302Q3R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q3G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q3Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-302Q3A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q3W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q3S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302Q3PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-302Q4R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302Q4G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302Q4Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-302Q4A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302Q4W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302Q4S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302Q4PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-302H2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302H2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302H2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-302H2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302H2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302H2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302H2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-302M2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-302M2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-302M2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-302M2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-302M2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-302M2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-302M2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-322N1Q2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-322N1Q2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1Q2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-322N1Q3R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q3G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q3Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-322N1Q3A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q3W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q3S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1Q3PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-322N1Q4R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1Q4G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1Q4Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-322N1Q4A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1Q4W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1Q4S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1Q4PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-322N1H2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1H2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1H2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-322N1H2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1H2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1H2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1H2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-322N1M2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-322N1M2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-322N1M2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-322N1M2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-322N1M2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-322N1M2S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-322N1M2PW	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-340Q2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-340Q2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340Q3R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q3G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q3Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-340Q3A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q3W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340Q4R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340Q4G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340Q4Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-340Q4A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340Q4W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340H2R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340H2G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340H2Y	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-340H2A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340H2W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-340M2R	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-340M2G	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-340M2Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-340M2A	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-340M2W	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-304Q2R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q2G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q2Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-304Q2A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q2W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q2S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304Q2PW	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-304Q3R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q3G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q3Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-304Q3A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q3W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q3S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304Q3PW	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-304Q4R	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304Q4G	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304Q4Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-304Q4A	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304Q4W	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304Q4S	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304Q4PW	Positions: 45° 3-position \| Operation: - \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-304H2R	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304H2G	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304H2Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-304H2A	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304H2W	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304H2S	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304H2PW	Positions: 45° 3-position \| Operation: - \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-304M2R	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-304M2G	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-304M2Y	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-304M2A	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-304M2W	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-304M2S	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-304M2PW	Positions: 45° 3-position \| Operation: - \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-2111Q2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-2111Q2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111Q2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-2111Q3R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q3G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q3Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-2111Q3A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q3W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q3S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111Q3PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-2111Q4R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111Q4G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111Q4Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-2111Q4A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111Q4W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111Q4S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111Q4PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-2111H2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111H2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111H2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-2111H2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111H2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111H2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111H2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-2111M2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	HW1F-2111M2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	HW1F-2111M2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Yellow
	HW1F-2111M2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	HW1F-2111M2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	HW1F-2111M2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	HW1F-2111M2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Pure white
	HW1F-2120Q2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-2120Q2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120Q2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-2120Q3R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q3G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q3Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-2120Q3A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q3W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q3S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120Q3PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-2120Q4R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120Q4G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120Q4Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-2120Q4A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120Q4W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120Q4S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120Q4PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-2120H2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120H2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120H2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-2120H2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120H2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120H2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120H2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-2120M2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-2120M2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-2120M2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-2120M2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-2120M2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-2120M2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-2120M2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-2122Q2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-2122Q2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122Q2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-2122Q3R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q3G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q3Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-2122Q3A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q3W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q3S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122Q3PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-2122Q4R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122Q4G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122Q4Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-2122Q4A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122Q4W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122Q4S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122Q4PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-2122H2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122H2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122H2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-2122H2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122H2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122H2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122H2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-2122M2R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	HW1F-2122M2G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	HW1F-2122M2Y	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Yellow
	HW1F-2122M2A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	HW1F-2122M2W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	HW1F-2122M2S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	HW1F-2122M2PW	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Pure white
	HW1F-3120Q2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3120Q2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120Q2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3120Q3R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q3G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q3Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3120Q3A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q3W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q3S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120Q3PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3120Q4R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120Q4G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120Q4Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3120Q4A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120Q4W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120Q4S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120Q4PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3120H2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120H2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120H2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3120H2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120H2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120H2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120H2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3120M2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3120M2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3120M2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3120M2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3120M2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3120M2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3120M2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3102Q2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3102Q2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102Q2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3102Q3R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q3G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q3Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3102Q3A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q3W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q3S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102Q3PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3102Q4R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102Q4G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102Q4Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3102Q4A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102Q4W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102Q4S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102Q4PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3102H2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102H2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102H2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3102H2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102H2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102H2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102H2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3102M2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3102M2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3102M2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3102M2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3102M2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3102M2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3102M2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3122N1Q2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3122N1Q2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1Q2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3122N1Q3R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q3G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q3Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3122N1Q3A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q3W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q3S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1Q3PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3122N1Q4R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1Q4G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1Q4Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3122N1Q4A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1Q4W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1Q4S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1Q4PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3122N1H2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1H2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1H2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3122N1H2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1H2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1H2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1H2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3122N1M2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3122N1M2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3122N1M2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3122N1M2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3122N1M2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3122N1M2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3122N1M2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3140Q2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3140Q2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140Q3R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q3G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q3Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3140Q3A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q3W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140Q4R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140Q4G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140Q4Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3140Q4A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140Q4W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140H2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140H2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140H2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3140H2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140H2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3140M2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3140M2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3140M2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3140M2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3140M2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3104Q2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3104Q2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104Q2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3104Q3R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q3G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q3Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3104Q3A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q3W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q3S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104Q3PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3104Q4R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104Q4G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104Q4Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3104Q4A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104Q4W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104Q4S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104Q4PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3104H2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104H2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104H2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3104H2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104H2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104H2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104H2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3104M2R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3104M2G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3104M2Y	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3104M2A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3104M2W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3104M2S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3104M2PW	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3220Q2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3220Q2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220Q2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3220Q3R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q3G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q3Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3220Q3A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q3W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q3S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220Q3PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3220Q4R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220Q4G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220Q4Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3220Q4A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220Q4W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220Q4S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220Q4PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3220H2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220H2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220H2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3220H2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220H2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220H2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220H2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3220M2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3220M2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3220M2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3220M2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3220M2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3220M2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3220M2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3202Q2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3202Q2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202Q2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3202Q3R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q3G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q3Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3202Q3A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q3W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q3S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202Q3PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3202Q4R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202Q4G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202Q4Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3202Q4A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202Q4W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202Q4S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202Q4PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3202H2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202H2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202H2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3202H2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202H2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202H2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202H2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3202M2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3202M2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3202M2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3202M2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3202M2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3202M2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3202M2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3222N1Q2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3222N1Q2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1Q2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3222N1Q3R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q3G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q3Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3222N1Q3A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q3W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q3S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1Q3PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3222N1Q4R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1Q4G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1Q4Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3222N1Q4A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1Q4W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1Q4S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1Q4PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3222N1H2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1H2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1H2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3222N1H2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1H2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1H2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1H2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3222N1M2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3222N1M2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3222N1M2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3222N1M2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3222N1M2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3222N1M2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3222N1M2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3240Q2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3240Q2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240Q3R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q3G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q3Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3240Q3A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q3W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240Q4R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240Q4G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240Q4Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3240Q4A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240Q4W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240H2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240H2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240H2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3240H2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240H2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3240M2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3240M2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3240M2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3240M2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3240M2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3204Q2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3204Q2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204Q2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3204Q3R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q3G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q3Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3204Q3A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q3W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q3S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204Q3PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3204Q4R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204Q4G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204Q4Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3204Q4A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204Q4W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204Q4S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204Q4PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3204H2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204H2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204H2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3204H2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204H2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204H2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204H2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3204M2R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3204M2G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3204M2Y	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3204M2A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3204M2W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3204M2S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3204M2PW	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3320Q2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3320Q2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320Q2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3320Q3R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q3G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q3Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3320Q3A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q3W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q3S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320Q3PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3320Q4R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320Q4G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320Q4Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3320Q4A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320Q4W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320Q4S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320Q4PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3320H2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320H2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320H2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3320H2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320H2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320H2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320H2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3320M2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	HW1F-3320M2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	HW1F-3320M2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Yellow
	HW1F-3320M2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	HW1F-3320M2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	HW1F-3320M2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	HW1F-3320M2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Pure white
	HW1F-3302Q2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3302Q2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302Q2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3302Q3R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q3G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q3Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3302Q3A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q3W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q3S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302Q3PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3302Q4R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302Q4G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302Q4Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3302Q4A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302Q4W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302Q4S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302Q4PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3302H2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302H2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302H2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3302H2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302H2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302H2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302H2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3302M2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	HW1F-3302M2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	HW1F-3302M2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Yellow
	HW1F-3302M2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	HW1F-3302M2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	HW1F-3302M2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	HW1F-3302M2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Pure white
	HW1F-3322N1Q2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3322N1Q2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1Q2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3322N1Q3R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q3G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q3Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3322N1Q3A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q3W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q3S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1Q3PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3322N1Q4R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1Q4G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1Q4Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3322N1Q4A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1Q4W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1Q4S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1Q4PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3322N1H2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1H2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1H2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3322N1H2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1H2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1H2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1H2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3322N1M2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Red
	HW1F-3322N1M2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Green
	HW1F-3322N1M2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Yellow
	HW1F-3322N1M2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Amber
	HW1F-3322N1M2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: White
	HW1F-3322N1M2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Blue
	HW1F-3322N1M2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) [22N1] \| Colour: Pure white
	HW1F-3340Q2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3340Q2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340Q3R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q3G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q3Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3340Q3A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q3W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340Q4R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340Q4G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340Q4Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3340Q4A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340Q4W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340H2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340H2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340H2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3340H2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340H2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3340M2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	HW1F-3340M2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	HW1F-3340M2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Yellow
	HW1F-3340M2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	HW1F-3340M2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	HW1F-3304Q2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3304Q2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304Q2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3304Q3R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q3G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q3Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3304Q3A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q3W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q3S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304Q3PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3304Q4R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304Q4G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304Q4Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3304Q4A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304Q4W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304Q4S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304Q4PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3304H2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304H2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304H2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3304H2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304H2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304H2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304H2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Pure white
	HW1F-3304M2R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	HW1F-3304M2G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	HW1F-3304M2Y	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Yellow
	HW1F-3304M2A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	HW1F-3304M2W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	HW1F-3304M2S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	HW1F-3304M2PW	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Pure white

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

IDEC HW Series 22 mm Illuminated Selector Switches (LED)
