IDEC HW Series 22 mm Key Selector Switches (Pin Tumbler)

IDEC HW Series 22 mm Key Selector Switches (Pin Tumbler)

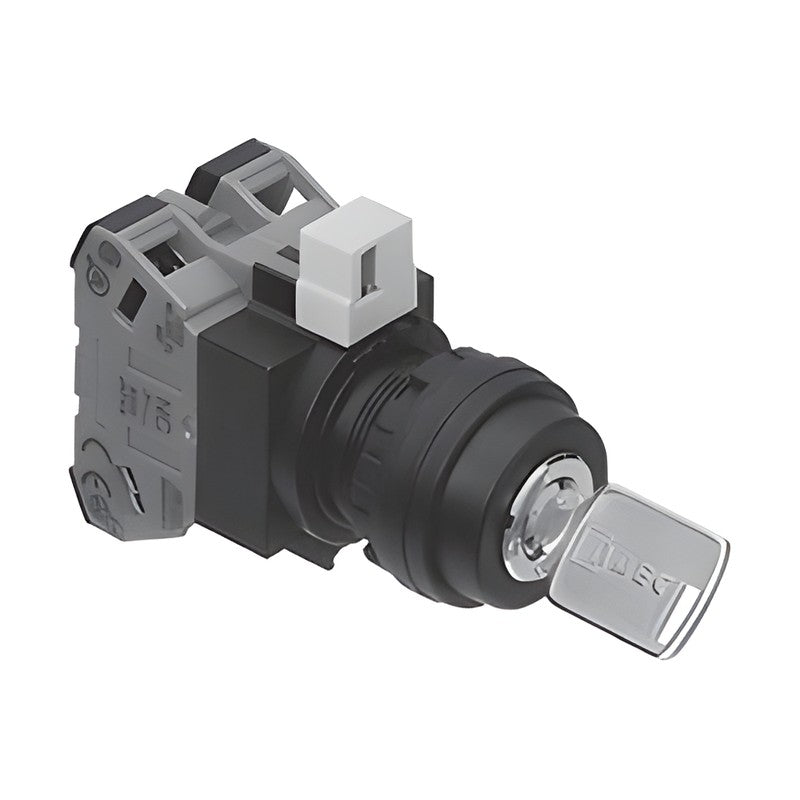

HW1K φ22 key selector switches with pin tumbler cylinder, 2- and 3-position maintained types.

Key features

  • Two keys supplied; standard key No. 500
  • Key numbers 501-515 and key-removal positions available to order
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Key, pin tumbler
Operation Maintained
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 36-37
HW1K-2PA01 Positions: 90° 2-position | Contacts: 1b (1NC) | Cam: Standard
HW1K-2PA11 Positions: 90° 2-position | Contacts: 1a-1b (1NO+1NC) | Cam: Standard
HW1K-2PA02 Positions: 90° 2-position | Contacts: 2b (2NC) | Cam: Standard
HW1K-2PA21 Positions: 90° 2-position | Contacts: 2a-1b (2NO+1NC) | Cam: Standard
HW1K-2PA12 Positions: 90° 2-position | Contacts: 1a-2b (1NO+2NC) | Cam: Standard
HW1K-2PA03 Positions: 90° 2-position | Contacts: 3b (3NC) | Cam: Standard
HW1K-2PA22 Positions: 90° 2-position | Contacts: 2a-2b (2NO+2NC) | Cam: Standard
HW1K-2PA04 Positions: 90° 2-position | Contacts: 4b (4NC) | Cam: Standard
HW1K-2JPA01 Positions: 90° 2-position | Contacts: 1b (1NC) | Cam: J
HW1K-2JPA11 Positions: 90° 2-position | Contacts: 1a-1b (1NO+1NC) | Cam: J
HW1K-2JPA02 Positions: 90° 2-position | Contacts: 2b (2NC) | Cam: J
HW1K-2JPA21 Positions: 90° 2-position | Contacts: 2a-1b (2NO+1NC) | Cam: J
HW1K-2JPA12 Positions: 90° 2-position | Contacts: 1a-2b (1NO+2NC) | Cam: J
HW1K-2JPA03 Positions: 90° 2-position | Contacts: 3b (3NC) | Cam: J
HW1K-2JPA22 Positions: 90° 2-position | Contacts: 2a-2b (2NO+2NC) | Cam: J
HW1K-2JPA04 Positions: 90° 2-position | Contacts: 4b (4NC) | Cam: J
HW1K-3PA02 Positions: 45° 3-position | Contacts: 2b (2NC) | Cam: Standard
HW1K-3PA22N1 Positions: 45° 3-position | Contacts: 2a-2b (2NO+2NC) [22N1] | Cam: Standard
HW1K-3PA04 Positions: 45° 3-position | Contacts: 4b (4NC) | Cam: Standard
HW1K-3JPA21N1 Positions: 45° 3-position | Contacts: 2a-1b (2NO+1NC) [21N1] | Cam: J
HW1K-3SPA22N9 Positions: 45° 3-position | Contacts: 2a-2b (2NO+2NC) [22N9] | Cam: Standard
HW1K-3SPA04 Positions: 45° 3-position | Contacts: 4b (4NC) | Cam: Standard
