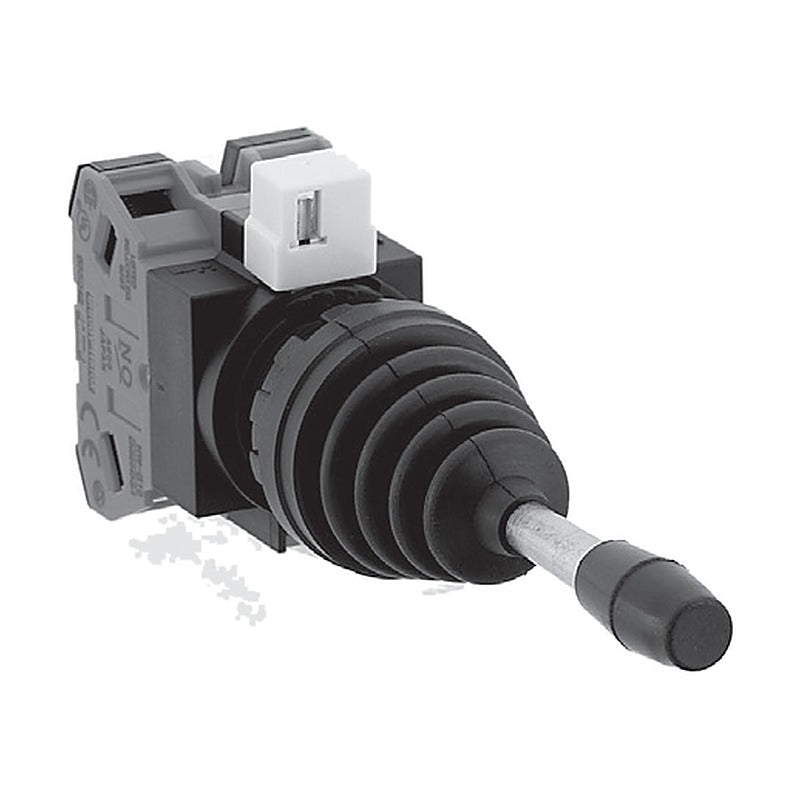

IDEC HW Series 22 mm Monolever Switches (HW1M)

IDEC HW Series 22 mm Monolever Switches (HW1M)

HW1M monolever (joystick) switches, standard or interlock type, 2-way or 4-way operation.

Key features

  • 2-way (left/right or up/down) and 4-way versions
  • Interlock type locks other directions when lever is off-centre
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 49
HW1M-1010-20 Operator: Standard | Directions: 2-way | Contact config No.: 20
HW1M-2020-20 Operator: Standard | Directions: 2-way | Contact config No.: 20
HW1M-0101-20 Operator: Standard | Directions: 2-way | Contact config No.: 20
HW1M-0202-20 Operator: Standard | Directions: 2-way | Contact config No.: 20
HW1M-0101-40 Operator: Standard | Directions: 2-way | Contact config No.: 40
HW1M-0202-40 Operator: Standard | Directions: 2-way | Contact config No.: 40
HW1M-1111-22N9 Operator: Standard | Directions: 4-way | Contact config No.: 22N9
HW1M-2222-22N9 Operator: Standard | Directions: 4-way | Contact config No.: 22N9
HW1M-L1010-20 Operator: Interlock type | Directions: 2-way | Contact config No.: 20
HW1M-L2020-20 Operator: Interlock type | Directions: 2-way | Contact config No.: 20
HW1M-L0101-20 Operator: Interlock type | Directions: 2-way | Contact config No.: 20
HW1M-L0202-20 Operator: Interlock type | Directions: 2-way | Contact config No.: 20
HW1M-L0101-40 Operator: Interlock type | Directions: 2-way | Contact config No.: 40
HW1M-L0202-40 Operator: Interlock type | Directions: 2-way | Contact config No.: 40
HW1M-L1111-22N9 Operator: Interlock type | Directions: 4-way | Contact config No.: 22N9
HW1M-L2222-22N9 Operator: Interlock type | Directions: 4-way | Contact config No.: 22N9
