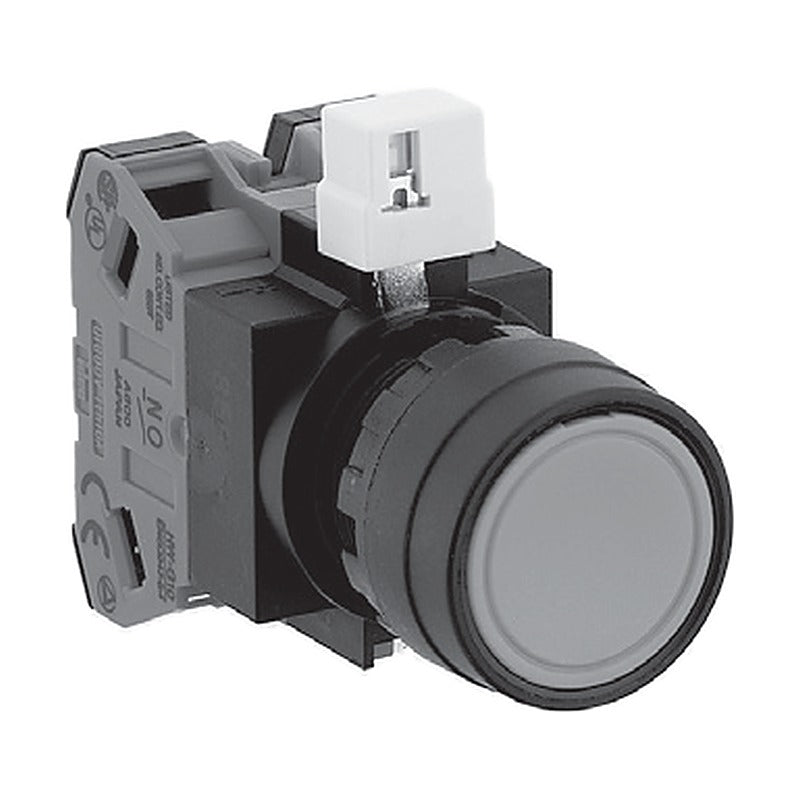

IDEC HW Series 22 mm Pushbuttons (Round, Square, Square-Bezel)

IDEC HW Series 22 mm Pushbuttons (Round, Square, Square-Bezel)

Non-illuminated HW Series φ22 pushbuttons: round (HW1B), square (HW2B) and square-bezel (HW3B) units with flush, extended, φ29, φ40 and φ60 buttons, momentary or alternate.

Key features

  • Flush, extended, φ29 medium, φ40 and φ60 mushroom buttons
  • Button colours B, G, R, Y, S, W (φ60: B, G, R)
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 8-10
HW1B-M110B Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M110G Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M110R Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M110Y Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M110S Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M110W Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M101B Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M101G Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M101R Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M101Y Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M101S Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M101W Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M111B Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M111G Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M111R Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M111Y Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M111S Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M111W Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M120B Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M120G Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M120R Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M120Y Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M120S Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M120W Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M102B Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M102G Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M102R Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M102Y Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M102S Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M102W Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M122B Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M122G Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M122R Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M122Y Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M122S Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M122W Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A110B Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A110G Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A110R Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A110Y Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A110S Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A110W Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A101B Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A101G Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A101R Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A101Y Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A101S Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A101W Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A111B Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A111G Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A111R Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A111Y Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A111S Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A111W Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A120B Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A120G Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A120R Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A120Y Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A120S Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A120W Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A102B Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A102G Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A102R Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A102Y Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A102S Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A102W Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A122B Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A122G Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A122R Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A122Y Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A122S Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A122W Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M210B Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M210G Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M210R Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M210Y Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M210S Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M210W Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M201B Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M201G Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M201R Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M201Y Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M201S Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M201W Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M211B Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M211G Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M211R Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M211Y Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M211S Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M211W Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M220B Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M220G Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M220R Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M220Y Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M220S Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M220W Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M202B Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M202G Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M202R Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M202Y Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M202S Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M202W Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M222B Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M222G Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M222R Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M222Y Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M222S Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M222W Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A210B Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A210G Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A210R Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A210Y Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A210S Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A210W Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A201B Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A201G Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A201R Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A201Y Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A201S Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A201W Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A211B Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A211G Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A211R Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A211Y Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A211S Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A211W Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A220B Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A220G Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A220R Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A220Y Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A220S Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A220W Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A202B Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A202G Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A202R Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A202Y Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A202S Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A202W Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A222B Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A222G Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A222R Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A222Y Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A222S Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A222W Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M310B Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M310G Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M310R Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M310Y Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M310S Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M310W Operator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M301B Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M301G Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M301R Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M301Y Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M301S Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M301W Operator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M311B Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M311G Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M311R Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M311Y Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M311S Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M311W Operator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M320B Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M320G Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M320R Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M320Y Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M320S Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M320W Operator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M302B Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M302G Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M302R Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M302Y Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M302S Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M302W Operator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M322B Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M322G Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M322R Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M322Y Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M322S Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M322W Operator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A310B Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A310G Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A310R Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A310Y Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A310S Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A310W Operator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A301B Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A301G Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A301R Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A301Y Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A301S Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A301W Operator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A311B Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A311G Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A311R Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A311Y Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A311S Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A311W Operator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A320B Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A320G Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A320R Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A320Y Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A320S Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A320W Operator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A302B Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A302G Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A302R Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A302Y Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A302S Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A302W Operator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A322B Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A322G Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A322R Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A322Y Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A322S Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A322W Operator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M410B Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M410G Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M410R Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M410Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M410S Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M410W Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M401B Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M401G Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M401R Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M401Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M401S Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M401W Operator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M411B Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M411G Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M411R Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M411Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M411S Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M411W Operator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M420B Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M420G Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M420R Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M420Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M420S Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M420W Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M402B Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M402G Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M402R Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M402Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M402S Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M402W Operator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M422B Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M422G Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M422R Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M422Y Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M422S Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M422W Operator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A410B Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A410G Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A410R Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A410Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A410S Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A410W Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A401B Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A401G Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A401R Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A401Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A401S Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A401W Operator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A411B Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A411G Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A411R Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A411Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A411S Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A411W Operator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A420B Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A420G Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A420R Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A420Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A420S Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A420W Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A402B Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A402G Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A402R Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A402Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A402S Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A402W Operator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A422B Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A422G Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A422R Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A422Y Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A422S Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A422W Operator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M510B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M510G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M510R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M501B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M501G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M501R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M511B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M511G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M511R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M520B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M520G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M520R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M502B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M502G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M502R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M522B Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M522G Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M522R Operator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M110B Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW2B-M110G Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW2B-M110R Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW2B-M110Y Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW2B-M110S Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW2B-M110W Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW2B-M101B Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW2B-M101G Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW2B-M101R Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW2B-M101Y Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW2B-M101S Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW2B-M101W Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW2B-M111B Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-M111G Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-M111R Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-M111Y Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-M111S Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-M111W Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-M120B Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW2B-M120G Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW2B-M120R Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW2B-M120Y Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW2B-M120S Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW2B-M120W Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW2B-M102B Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW2B-M102G Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW2B-M102R Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW2B-M102Y Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW2B-M102S Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW2B-M102W Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW2B-M122B Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-M122G Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-M122R Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M122Y Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-M122S Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-M122W Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-A110B Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW2B-A110G Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW2B-A110R Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW2B-A110Y Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW2B-A110S Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW2B-A110W Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW2B-A101B Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW2B-A101G Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW2B-A101R Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW2B-A101Y Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW2B-A101S Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW2B-A101W Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW2B-A111B Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-A111G Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-A111R Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-A111Y Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-A111S Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-A111W Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-A120B Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW2B-A120G Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW2B-A120R Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW2B-A120Y Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW2B-A120S Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW2B-A120W Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW2B-A102B Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW2B-A102G Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW2B-A102R Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW2B-A102Y Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW2B-A102S Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW2B-A102W Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW2B-A122B Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-A122G Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-A122R Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-A122Y Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-A122S Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-A122W Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-M210B Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW2B-M210G Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW2B-M210R Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW2B-M210Y Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW2B-M210S Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW2B-M210W Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW2B-M201B Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW2B-M201G Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW2B-M201R Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW2B-M201Y Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW2B-M201S Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW2B-M201W Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW2B-M211B Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-M211G Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-M211R Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-M211Y Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-M211S Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-M211W Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-M220B Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW2B-M220G Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW2B-M220R Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW2B-M220Y Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW2B-M220S Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW2B-M220W Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW2B-M202B Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW2B-M202G Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW2B-M202R Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW2B-M202Y Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW2B-M202S Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW2B-M202W Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW2B-M222B Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-M222G Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-M222R Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M222Y Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-M222S Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-M222W Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-A210B Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW2B-A210G Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW2B-A210R Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW2B-A210Y Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW2B-A210S Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW2B-A210W Operator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW2B-A201B Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW2B-A201G Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW2B-A201R Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW2B-A201Y Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW2B-A201S Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW2B-A201W Operator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW2B-A211B Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-A211G Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-A211R Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-A211Y Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-A211S Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-A211W Operator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-A220B Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW2B-A220G Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW2B-A220R Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW2B-A220Y Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW2B-A220S Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW2B-A220W Operator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW2B-A202B Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW2B-A202G Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW2B-A202R Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW2B-A202Y Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW2B-A202S Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW2B-A202W Operator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW2B-A222B Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-A222G Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-A222R Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-A222Y Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-A222S Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-A222W Operator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M110B Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M110G Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M110R Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M110Y Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M110S Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M110W Operator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M101B Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M101G Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M101R Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M101Y Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M101S Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M101W Operator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M111B Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M111G Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M111R Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M111Y Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M111S Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M111W Operator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M120B Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M120G Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M120R Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M120Y Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M120S Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M120W Operator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M102B Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M102G Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M102R Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M102Y Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M102S Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M102W Operator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M122B Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M122G Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M122R Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M122Y Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M122S Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M122W Operator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A110B Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A110G Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A110R Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A110Y Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A110S Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A110W Operator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A101B Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A101G Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A101R Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A101Y Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A101S Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A101W Operator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A111B Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A111G Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A111R Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A111Y Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A111S Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A111W Operator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A120B Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A120G Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A120R Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A120Y Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A120S Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A120W Operator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A102B Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A102G Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A102R Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A102Y Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A102S Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A102W Operator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A122B Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A122G Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A122R Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A122Y Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A122S Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A122W Operator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M210B Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M210G Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M210R Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M210Y Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M210S Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M210W Operator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M201B Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M201G Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M201R Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M201Y Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M201S Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M201W Operator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M211B Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M211G Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M211R Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M211Y Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M211S Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M211W Operator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M220B Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M220G Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M220R Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M220Y Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M220S Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M220W Operator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M202B Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M202G Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M202R Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M202Y Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M202S Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M202W Operator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M222B Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M222G Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M222R Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M222Y Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M222S Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M222W Operator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A210B Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A210G Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A210R Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A210Y Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A210S Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A210W Operator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A201B Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A201G Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A201R Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A201Y Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A201S Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A201W Operator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A211B Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A211G Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A211R Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A211Y Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A211S Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A211W Operator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A220B Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A220G Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A220R Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A220Y Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A220S Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A220W Operator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A202B Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A202G Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A202R Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A202Y Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A202S Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A202W Operator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A222B Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A222G Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A222R Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A222Y Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A222S Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A222W Operator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M310B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M310G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M310R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M310Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M310S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M310W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M301B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M301G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M301R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M301Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M301S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M301W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M311B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M311G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M311R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M311Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M311S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M311W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M320B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M320G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M320R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M320Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M320S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M320W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M302B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M302G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M302R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M302Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M302S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M302W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M322B Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M322G Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M322R Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M322Y Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M322S Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M322W Operator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A310B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A310G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A310R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A310Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A310S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A310W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A301B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A301G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A301R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A301Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A301S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A301W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A311B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A311G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A311R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A311Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A311S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A311W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A320B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A320G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A320R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A320Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A320S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A320W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A302B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A302G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A302R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A302Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A302S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A302W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A322B Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A322G Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A322R Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A322Y Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A322S Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A322W Operator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
PushbuttonsIDEC
666 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series 22 mm Pushbuttons (Round, Square, Square-Bezel)

Brand IDEC·Pushbuttons

Available part numbers (666)

HW1B-M110B, HW1B-M110G, HW1B-M110R, HW1B-M110Y, HW1B-M110S, HW1B-M110W, HW1B-M101B, HW1B-M101G, HW1B-M101R, HW1B-M101Y + 656 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW1B-M110BOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M110GOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M110ROperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M110YOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M110SOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M110WOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M101BOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M101GOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M101ROperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M101YOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M101SOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M101WOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M111BOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M111GOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M111ROperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M111YOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M111SOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M111WOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M120BOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M120GOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M120ROperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M120YOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M120SOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M120WOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M102BOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M102GOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M102ROperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M102YOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M102SOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M102WOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M122BOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M122GOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M122ROperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M122YOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M122SOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M122WOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A110BOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A110GOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A110ROperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A110YOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A110SOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A110WOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A101BOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A101GOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A101ROperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A101YOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A101SOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A101WOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A111BOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A111GOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A111ROperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A111YOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A111SOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A111WOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A120BOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A120GOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A120ROperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A120YOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A120SOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A120WOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A102BOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A102GOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A102ROperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A102YOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A102SOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A102WOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A122BOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A122GOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A122ROperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A122YOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A122SOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A122WOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M210BOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M210GOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M210ROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M210YOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M210SOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M210WOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M201BOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M201GOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M201ROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M201YOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M201SOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M201WOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M211BOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M211GOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M211ROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M211YOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M211SOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M211WOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M220BOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M220GOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M220ROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M220YOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M220SOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M220WOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M202BOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M202GOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M202ROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M202YOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M202SOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M202WOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M222BOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M222GOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M222ROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M222YOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M222SOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M222WOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A210BOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A210GOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A210ROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A210YOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A210SOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A210WOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A201BOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A201GOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A201ROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A201YOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A201SOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A201WOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A211BOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A211GOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A211ROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A211YOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A211SOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A211WOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A220BOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A220GOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A220ROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A220YOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A220SOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A220WOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A202BOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A202GOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A202ROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A202YOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A202SOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A202WOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A222BOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A222GOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A222ROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A222YOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A222SOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A222WOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M310BOperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M310GOperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M310ROperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M310YOperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M310SOperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M310WOperator: Φ29 medium | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M301BOperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M301GOperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M301ROperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M301YOperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M301SOperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M301WOperator: Φ29 medium | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M311BOperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M311GOperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M311ROperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M311YOperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M311SOperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M311WOperator: Φ29 medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M320BOperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M320GOperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M320ROperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M320YOperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M320SOperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M320WOperator: Φ29 medium | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M302BOperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M302GOperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M302ROperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M302YOperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M302SOperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M302WOperator: Φ29 medium | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M322BOperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M322GOperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M322ROperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M322YOperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M322SOperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M322WOperator: Φ29 medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A310BOperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A310GOperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A310ROperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A310YOperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A310SOperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A310WOperator: Φ29 medium | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A301BOperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A301GOperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A301ROperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A301YOperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A301SOperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A301WOperator: Φ29 medium | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A311BOperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A311GOperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A311ROperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A311YOperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A311SOperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A311WOperator: Φ29 medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A320BOperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A320GOperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A320ROperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A320YOperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A320SOperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A320WOperator: Φ29 medium | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A302BOperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A302GOperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A302ROperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A302YOperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A302SOperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A302WOperator: Φ29 medium | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A322BOperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A322GOperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A322ROperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A322YOperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A322SOperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A322WOperator: Φ29 medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M410BOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M410GOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M410ROperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M410YOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW1B-M410SOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW1B-M410WOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW1B-M401BOperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M401GOperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M401ROperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M401YOperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW1B-M401SOperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW1B-M401WOperator: Φ40 mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW1B-M411BOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M411GOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M411ROperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M411YOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-M411SOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-M411WOperator: Φ40 mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-M420BOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M420GOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M420ROperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M420YOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW1B-M420SOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW1B-M420WOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW1B-M402BOperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M402GOperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M402ROperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M402YOperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW1B-M402SOperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW1B-M402WOperator: Φ40 mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW1B-M422BOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M422GOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M422ROperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-M422YOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-M422SOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-M422WOperator: Φ40 mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-A410BOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW1B-A410GOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW1B-A410ROperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW1B-A410YOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW1B-A410SOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW1B-A410WOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW1B-A401BOperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW1B-A401GOperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW1B-A401ROperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW1B-A401YOperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW1B-A401SOperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW1B-A401WOperator: Φ40 mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW1B-A411BOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-A411GOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-A411ROperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-A411YOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW1B-A411SOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW1B-A411WOperator: Φ40 mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW1B-A420BOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW1B-A420GOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW1B-A420ROperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW1B-A420YOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW1B-A420SOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW1B-A420WOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW1B-A402BOperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW1B-A402GOperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW1B-A402ROperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW1B-A402YOperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW1B-A402SOperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW1B-A402WOperator: Φ40 mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW1B-A422BOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-A422GOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-A422ROperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW1B-A422YOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW1B-A422SOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW1B-A422WOperator: Φ40 mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW1B-M510BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW1B-M510GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW1B-M510ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW1B-M501BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW1B-M501GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW1B-M501ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW1B-M511BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW1B-M511GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW1B-M511ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW1B-M520BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW1B-M520GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW1B-M520ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW1B-M502BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW1B-M502GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW1B-M502ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW1B-M522BOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW1B-M522GOperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW1B-M522ROperator: Φ60 jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M110BOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW2B-M110GOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW2B-M110ROperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW2B-M110YOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW2B-M110SOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW2B-M110WOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW2B-M101BOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW2B-M101GOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW2B-M101ROperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW2B-M101YOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW2B-M101SOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW2B-M101WOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW2B-M111BOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-M111GOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-M111ROperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-M111YOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-M111SOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-M111WOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-M120BOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW2B-M120GOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW2B-M120ROperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW2B-M120YOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW2B-M120SOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW2B-M120WOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW2B-M102BOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW2B-M102GOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW2B-M102ROperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW2B-M102YOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW2B-M102SOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW2B-M102WOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW2B-M122BOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-M122GOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-M122ROperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M122YOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-M122SOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-M122WOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-A110BOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW2B-A110GOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW2B-A110ROperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW2B-A110YOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW2B-A110SOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW2B-A110WOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW2B-A101BOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW2B-A101GOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW2B-A101ROperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW2B-A101YOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW2B-A101SOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW2B-A101WOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW2B-A111BOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-A111GOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-A111ROperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-A111YOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-A111SOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-A111WOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-A120BOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW2B-A120GOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW2B-A120ROperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW2B-A120YOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW2B-A120SOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW2B-A120WOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW2B-A102BOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW2B-A102GOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW2B-A102ROperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW2B-A102YOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW2B-A102SOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW2B-A102WOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW2B-A122BOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-A122GOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-A122ROperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-A122YOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-A122SOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-A122WOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-M210BOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW2B-M210GOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW2B-M210ROperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW2B-M210YOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW2B-M210SOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW2B-M210WOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW2B-M201BOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW2B-M201GOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW2B-M201ROperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW2B-M201YOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW2B-M201SOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW2B-M201WOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW2B-M211BOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-M211GOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-M211ROperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-M211YOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-M211SOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-M211WOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-M220BOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW2B-M220GOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW2B-M220ROperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW2B-M220YOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW2B-M220SOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW2B-M220WOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW2B-M202BOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW2B-M202GOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW2B-M202ROperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW2B-M202YOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW2B-M202SOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW2B-M202WOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW2B-M222BOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-M222GOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-M222ROperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-M222YOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-M222SOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-M222WOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW2B-A210BOperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW2B-A210GOperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW2B-A210ROperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW2B-A210YOperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW2B-A210SOperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW2B-A210WOperator: Square extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW2B-A201BOperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW2B-A201GOperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW2B-A201ROperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW2B-A201YOperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW2B-A201SOperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW2B-A201WOperator: Square extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW2B-A211BOperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW2B-A211GOperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW2B-A211ROperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW2B-A211YOperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW2B-A211SOperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW2B-A211WOperator: Square extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW2B-A220BOperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW2B-A220GOperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW2B-A220ROperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW2B-A220YOperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW2B-A220SOperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW2B-A220WOperator: Square extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW2B-A202BOperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW2B-A202GOperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW2B-A202ROperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW2B-A202YOperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW2B-A202SOperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW2B-A202WOperator: Square extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW2B-A222BOperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW2B-A222GOperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW2B-A222ROperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW2B-A222YOperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW2B-A222SOperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW2B-A222WOperator: Square extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M110BOperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M110GOperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M110ROperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M110YOperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M110SOperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M110WOperator: Square-bezel flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M101BOperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M101GOperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M101ROperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M101YOperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M101SOperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M101WOperator: Square-bezel flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M111BOperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M111GOperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M111ROperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M111YOperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M111SOperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M111WOperator: Square-bezel flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M120BOperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M120GOperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M120ROperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M120YOperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M120SOperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M120WOperator: Square-bezel flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M102BOperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M102GOperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M102ROperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M102YOperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M102SOperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M102WOperator: Square-bezel flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M122BOperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M122GOperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M122ROperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M122YOperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M122SOperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M122WOperator: Square-bezel flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A110BOperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A110GOperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A110ROperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A110YOperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A110SOperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A110WOperator: Square-bezel flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A101BOperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A101GOperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A101ROperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A101YOperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A101SOperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A101WOperator: Square-bezel flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A111BOperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A111GOperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A111ROperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A111YOperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A111SOperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A111WOperator: Square-bezel flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A120BOperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A120GOperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A120ROperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A120YOperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A120SOperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A120WOperator: Square-bezel flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A102BOperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A102GOperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A102ROperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A102YOperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A102SOperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A102WOperator: Square-bezel flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A122BOperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A122GOperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A122ROperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A122YOperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A122SOperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A122WOperator: Square-bezel flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M210BOperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M210GOperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M210ROperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M210YOperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M210SOperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M210WOperator: Square-bezel extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M201BOperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M201GOperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M201ROperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M201YOperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M201SOperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M201WOperator: Square-bezel extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M211BOperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M211GOperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M211ROperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M211YOperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M211SOperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M211WOperator: Square-bezel extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M220BOperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M220GOperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M220ROperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M220YOperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M220SOperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M220WOperator: Square-bezel extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M202BOperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M202GOperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M202ROperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M202YOperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M202SOperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M202WOperator: Square-bezel extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M222BOperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M222GOperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M222ROperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M222YOperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M222SOperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M222WOperator: Square-bezel extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A210BOperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A210GOperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A210ROperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A210YOperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A210SOperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A210WOperator: Square-bezel extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A201BOperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A201GOperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A201ROperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A201YOperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A201SOperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A201WOperator: Square-bezel extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A211BOperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A211GOperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A211ROperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A211YOperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A211SOperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A211WOperator: Square-bezel extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A220BOperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A220GOperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A220ROperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A220YOperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A220SOperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A220WOperator: Square-bezel extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A202BOperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A202GOperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A202ROperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A202YOperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A202SOperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A202WOperator: Square-bezel extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A222BOperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A222GOperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A222ROperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A222YOperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A222SOperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A222WOperator: Square-bezel extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-M310BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
HW3B-M310GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
HW3B-M310ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
HW3B-M310YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
HW3B-M310SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
HW3B-M310WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a (1NO) | Colour: White
HW3B-M301BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
HW3B-M301GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
HW3B-M301ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
HW3B-M301YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
HW3B-M301SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
HW3B-M301WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1b (1NC) | Colour: White
HW3B-M311BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-M311GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-M311ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-M311YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-M311SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-M311WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-M320BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
HW3B-M320GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
HW3B-M320ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
HW3B-M320YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
HW3B-M320SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
HW3B-M320WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a (2NO) | Colour: White
HW3B-M302BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
HW3B-M302GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
HW3B-M302ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
HW3B-M302YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
HW3B-M302SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
HW3B-M302WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2b (2NC) | Colour: White
HW3B-M322BOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-M322GOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-M322ROperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-M322YOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-M322SOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-M322WOperator: Φ29 square-bezel medium | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
HW3B-A310BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
HW3B-A310GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
HW3B-A310ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
HW3B-A310YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
HW3B-A310SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
HW3B-A310WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a (1NO) | Colour: White
HW3B-A301BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
HW3B-A301GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
HW3B-A301ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
HW3B-A301YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
HW3B-A301SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
HW3B-A301WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1b (1NC) | Colour: White
HW3B-A311BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
HW3B-A311GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
HW3B-A311ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
HW3B-A311YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
HW3B-A311SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
HW3B-A311WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
HW3B-A320BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
HW3B-A320GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
HW3B-A320ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
HW3B-A320YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
HW3B-A320SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
HW3B-A320WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a (2NO) | Colour: White
HW3B-A302BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
HW3B-A302GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
HW3B-A302ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
HW3B-A302YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
HW3B-A302SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
HW3B-A302WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2b (2NC) | Colour: White
HW3B-A322BOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
HW3B-A322GOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
HW3B-A322ROperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
HW3B-A322YOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
HW3B-A322SOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
HW3B-A322WOperator: Φ29 square-bezel medium | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
