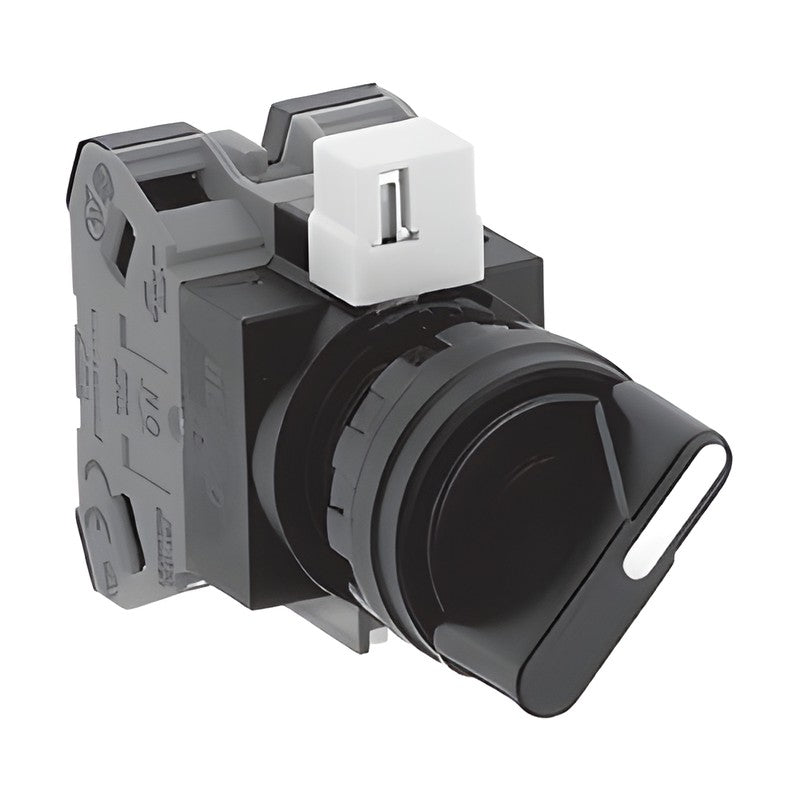

IDEC HW Series 22 mm Selector Switches (Arrow Handle)

IDEC HW Series 22 mm Selector Switches (Arrow Handle)

HW1S φ22 selector switches with arrow handle in 2-, 3-, 4- and 5-position versions, maintained or spring return.

Key features

  • Black handle, white direction indicator
  • 90°/60° 2-position, 45° 3- and 4-position, 30° 5-position
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Operator Arrow handle
Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Panel thickness 0.8 to 6 mm
Contact block HW-G, finger-protected SS terminals
Operating temperature -25 to +60 °C (illuminated -25 to +50 °C)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Source IDEC HW Series φ22 Control Units catalogue, p. 35
HW1S-2T10 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
HW1S-2T11 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
HW1S-2T20 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
HW1S-2T22 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
HW1S-3T20 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
HW1S-3T02 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
HW1S-3T22N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-3ST22N9 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N9]
HW1S-3T40 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
HW1S-3ST40N2 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO) [40N2]
HW1S-3T04 Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
HW1S-3JT21N1 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1]
HW1S-4T13N6 Positions: 45° 4-position | Operation: Maintained | Contacts: 1a-3b (1NO+3NC) [13N6]
HW1S-4T22N3 Positions: 45° 4-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N3]
HW1S-4T12 Positions: 45° 4-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC)
HW1S-21T10 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
HW1S-21T11 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
HW1S-21T20 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
HW1S-21T22 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
HW1S-31T20 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
HW1S-31T02 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
HW1S-31T22N1 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-31T40 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
HW1S-31T04 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
HW1S-5T22N3 Positions: 30° 5-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC) [22N3]
HW1S-32T20 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
HW1S-32T02 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
HW1S-32T22N1 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-32T40 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
HW1S-32T04 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
HW1S-33T20 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
HW1S-33T02 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
HW1S-33T22N1 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-33T40 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
HW1S-33T04 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
Selector SwitchesIDEC
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series 22 mm Selector Switches (Arrow Handle)

Brand IDEC·Selector Switches

Available part numbers (35)

HW1S-2T10, HW1S-2T11, HW1S-2T20, HW1S-2T22, HW1S-3T20, HW1S-3T02, HW1S-3T22N1, HW1S-3ST22N9, HW1S-3T40, HW1S-3ST40N2 + 25 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HW1S-2T10Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
HW1S-2T11Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
HW1S-2T20Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
HW1S-2T22Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
HW1S-3T20Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
HW1S-3T02Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
HW1S-3T22N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-3ST22N9Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N9]
HW1S-3T40Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
HW1S-3ST40N2Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO) [40N2]
HW1S-3T04Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
HW1S-3JT21N1Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-1b (2NO+1NC) [21N1]
HW1S-4T13N6Positions: 45° 4-position | Operation: Maintained | Contacts: 1a-3b (1NO+3NC) [13N6]
HW1S-4T22N3Positions: 45° 4-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC) [22N3]
HW1S-4T12Positions: 45° 4-position | Operation: Maintained | Contacts: 1a-2b (1NO+2NC)
HW1S-21T10Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
HW1S-21T11Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
HW1S-21T20Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
HW1S-21T22Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
HW1S-31T20Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
HW1S-31T02Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
HW1S-31T22N1Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-31T40Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
HW1S-31T04Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
HW1S-5T22N3Positions: 30° 5-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC) [22N3]
HW1S-32T20Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
HW1S-32T02Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
HW1S-32T22N1Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-32T40Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
HW1S-32T04Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
HW1S-33T20Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
HW1S-33T02Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
HW1S-33T22N1Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC) [22N1]
HW1S-33T40Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
HW1S-33T04Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
