IDEC HW Series Tools, Switch Guards & Ring Adaptors

IDEC HW Series Tools, Switch Guards & Ring Adaptors

Installation tools, anti-rotation rings, switch guards, button covers and ring adaptors for mounting HW units in φ25/φ30 holes.

Key features

  • HW9Z-A25/A30 ring adaptors for φ25 and φ30 holes
  • Shared tools and plugs listed under TW Series accessories
  • φ22.3 mm panel cut-out with finger-protected SS terminals
  • HW-G contact blocks; NO and NC blocks colour-coded for easy wiring
  • Up to 2 tiers (4 blocks) of contacts per operator
  • LED or incandescent illumination with direct or transformer type supply

Specifications

Series IDEC HW Series (φ22)
Mounting hole φ22.3 mm
Ordering Order by the order part number shown
Pack suffix PN02 / PN05 / PN10 = pack of 2 / 5 / 10
Product category Accessory / maintenance part
Brand IDEC
Source IDEC HW Series φ22 Control Units catalogue, p. 51-52

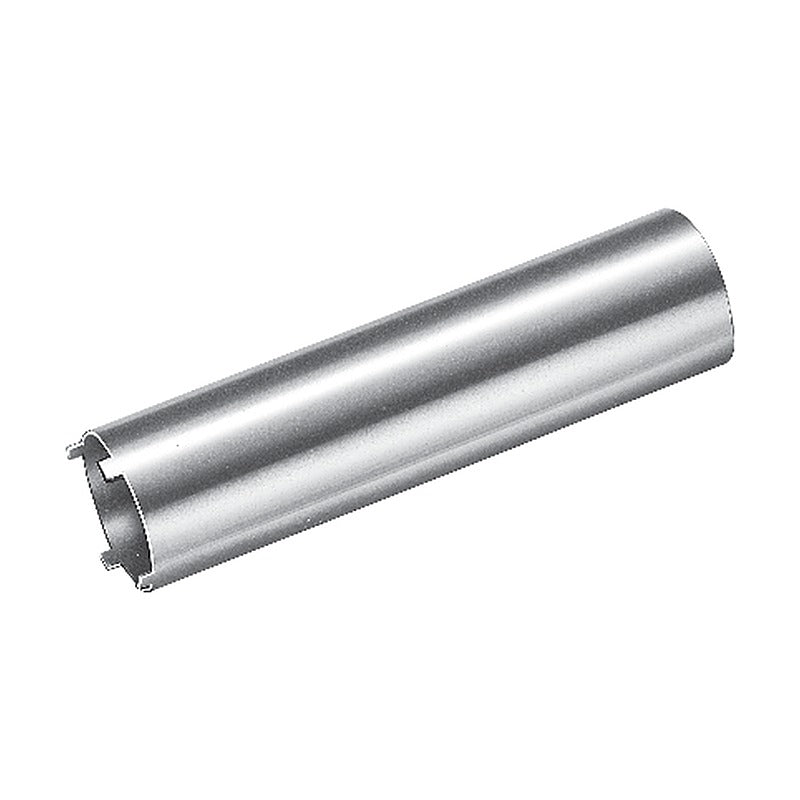

MW9Z-T1 Item: Locking nut tightening tool (brass) | Pack: 1 pc | For use with: HW Series
HW9Z-RLPN10 Item: Anti-rotation ring (polyamide) | Pack: Pack of 10 | For use with: HW Series
HW9Z-K1 Item: Switch guard, spring return cover, IP65 | Pack: 1 pc | For use with: HW Series
HW9Z-K11 Item: Switch guard, manual open/close cover | Pack: 1 pc | For use with: HW Series
HW9Z-D7D Item: Button cover for two-point pushbutton | Pack: 1 pc | For use with: HW Series
HW9Z-A25PN05 Item: Ring adaptor for φ25 hole (rubber) | Pack: Pack of 5 | For use with: HW Series
HW9Z-A30PN02 Item: Ring adaptor for φ30 hole | Pack: Pack of 2 | For use with: HW Series
HW9Z-A30EPN02 Item: Ring adaptor φ30 hole, HW1B-M5/HW1P-5Q | Pack: Pack of 2 | For use with: HW Series
Pushbutton AccessoriesIDEC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC HW Series Tools, Switch Guards & Ring Adaptors

Brand IDEC·Pushbutton Accessories

Available part numbers (8)

MW9Z-T1, HW9Z-RLPN10, HW9Z-K1, HW9Z-K11, HW9Z-D7D, HW9Z-A25PN05, HW9Z-A30PN02, HW9Z-A30EPN02

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MW9Z-T1Item: Locking nut tightening tool (brass) | Pack: 1 pc | For use with: HW Series
HW9Z-RLPN10Item: Anti-rotation ring (polyamide) | Pack: Pack of 10 | For use with: HW Series
HW9Z-K1Item: Switch guard, spring return cover, IP65 | Pack: 1 pc | For use with: HW Series
HW9Z-K11Item: Switch guard, manual open/close cover | Pack: 1 pc | For use with: HW Series
HW9Z-D7DItem: Button cover for two-point pushbutton | Pack: 1 pc | For use with: HW Series
HW9Z-A25PN05Item: Ring adaptor for φ25 hole (rubber) | Pack: Pack of 5 | For use with: HW Series
HW9Z-A30PN02Item: Ring adaptor for φ30 hole | Pack: Pack of 2 | For use with: HW Series
HW9Z-A30EPN02Item: Ring adaptor φ30 hole, HW1B-M5/HW1P-5Q | Pack: Pack of 2 | For use with: HW Series
