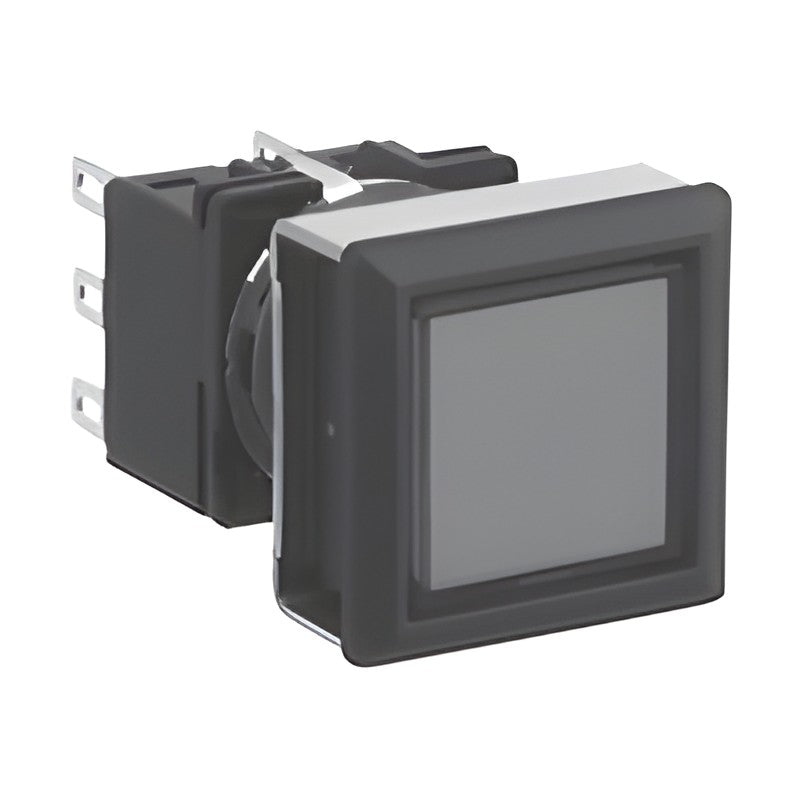

IDEC LB Series Flush Bezel Illuminated Pushbuttons (16 mm, LED)

IDEC LB Series Flush Bezel Illuminated Pushbuttons (16 mm, LED)

Flush-silhouette illuminated pushbutton switches of the IDEC LB series with a bezel height of only 2 mm in front of the panel. Built-in LED unit, gold-clad crossbar contacts.

Key features

  • Bezel projects only 2 mm from the panel front
  • Round, square and rectangular bezels in black, metal or guard style
  • Built-in LED unit, rated AC/DC24V in listed codes
  • Momentary or alternate action, 1c or 2c gold contacts
  • Film insertion for marking possible besides engraving
  • Separate operator/contact block design suited to one-board PCB mounting

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
Guard type 180 deg open, spring return
Source IDEC LB/LBW Series catalogue, p. 1-3
LB6L-M1T14R Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6L-M1T14G Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6L-M1T14Y Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6L-M1T14A Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6L-M1T14W Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6L-M1T14S Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6L-M1T14PW Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6L-M1T24R Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6L-M1T24G Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6L-M1T24Y Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6L-M1T24A Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6L-M1T24W Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6L-M1T24S Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6L-M1T24PW Bezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6L-A1T14R Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6L-A1T14G Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6L-A1T14Y Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6L-A1T14A Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6L-A1T14W Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6L-A1T14S Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6L-A1T14PW Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6L-A1T24R Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6L-A1T24G Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6L-A1T24Y Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6L-A1T24A Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6L-A1T24W Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6L-A1T24S Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6L-A1T24PW Bezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7L-M1T14R Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7L-M1T14G Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7L-M1T14Y Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7L-M1T14A Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7L-M1T14W Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7L-M1T14S Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7L-M1T14PW Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7L-M1T24R Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7L-M1T24G Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7L-M1T24Y Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7L-M1T24A Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7L-M1T24W Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7L-M1T24S Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7L-M1T24PW Bezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7L-A1T14R Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7L-A1T14G Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7L-A1T14Y Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7L-A1T14A Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7L-A1T14W Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7L-A1T14S Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7L-A1T14PW Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7L-A1T24R Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7L-A1T24G Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7L-A1T24Y Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7L-A1T24A Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7L-A1T24W Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7L-A1T24S Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7L-A1T24PW Bezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8L-M1T14R Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8L-M1T14G Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8L-M1T14Y Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8L-M1T14A Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8L-M1T14W Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8L-M1T14S Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8L-M1T14PW Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8L-M1T24R Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8L-M1T24G Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8L-M1T24Y Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8L-M1T24A Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8L-M1T24W Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8L-M1T24S Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8L-M1T24PW Bezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8L-A1T14R Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8L-A1T14G Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8L-A1T14Y Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8L-A1T14A Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8L-A1T14W Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8L-A1T14S Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8L-A1T14PW Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8L-A1T24R Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8L-A1T24G Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8L-A1T24Y Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8L-A1T24A Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8L-A1T24W Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8L-A1T24S Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8L-A1T24PW Bezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB6ML-M1T14R Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6ML-M1T14G Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6ML-M1T14Y Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6ML-M1T14A Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6ML-M1T14W Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6ML-M1T14S Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6ML-M1T14PW Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6ML-M1T24R Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6ML-M1T24G Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6ML-M1T24Y Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6ML-M1T24A Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6ML-M1T24W Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6ML-M1T24S Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6ML-M1T24PW Bezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6ML-A1T14R Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6ML-A1T14G Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6ML-A1T14Y Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6ML-A1T14A Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6ML-A1T14W Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6ML-A1T14S Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6ML-A1T14PW Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6ML-A1T24R Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6ML-A1T24G Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6ML-A1T24Y Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6ML-A1T24A Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6ML-A1T24W Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6ML-A1T24S Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6ML-A1T24PW Bezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7ML-M1T14R Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7ML-M1T14G Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7ML-M1T14Y Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7ML-M1T14A Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7ML-M1T14W Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7ML-M1T14S Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7ML-M1T14PW Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7ML-M1T24R Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7ML-M1T24G Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7ML-M1T24Y Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7ML-M1T24A Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7ML-M1T24W Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7ML-M1T24S Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7ML-M1T24PW Bezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7ML-A1T14R Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7ML-A1T14G Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7ML-A1T14Y Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7ML-A1T14A Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7ML-A1T14W Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7ML-A1T14S Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7ML-A1T14PW Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7ML-A1T24R Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7ML-A1T24G Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7ML-A1T24Y Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7ML-A1T24A Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7ML-A1T24W Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7ML-A1T24S Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7ML-A1T24PW Bezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8ML-M1T14R Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8ML-M1T14G Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8ML-M1T14Y Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8ML-M1T14A Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8ML-M1T14W Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8ML-M1T14S Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8ML-M1T14PW Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8ML-M1T24R Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8ML-M1T24G Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8ML-M1T24Y Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8ML-M1T24A Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8ML-M1T24W Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8ML-M1T24S Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8ML-M1T24PW Bezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8ML-A1T14R Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8ML-A1T14G Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8ML-A1T14Y Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8ML-A1T14A Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8ML-A1T14W Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8ML-A1T14S Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8ML-A1T14PW Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8ML-A1T24R Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8ML-A1T24G Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8ML-A1T24Y Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8ML-A1T24A Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8ML-A1T24W Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8ML-A1T24S Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8ML-A1T24PW Bezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB6GL-M1T14R Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6GL-M1T14G Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6GL-M1T14Y Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6GL-M1T14A Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6GL-M1T14W Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6GL-M1T14S Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6GL-M1T14PW Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6GL-M1T24R Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6GL-M1T24G Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6GL-M1T24Y Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6GL-M1T24A Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6GL-M1T24W Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6GL-M1T24S Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6GL-M1T24PW Bezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6GL-A1T14R Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6GL-A1T14G Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6GL-A1T14Y Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6GL-A1T14A Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6GL-A1T14W Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6GL-A1T14S Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6GL-A1T14PW Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6GL-A1T24R Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6GL-A1T24G Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6GL-A1T24Y Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6GL-A1T24A Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6GL-A1T24W Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6GL-A1T24S Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6GL-A1T24PW Bezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7GL-M1T14R Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7GL-M1T14G Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7GL-M1T14Y Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7GL-M1T14A Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7GL-M1T14W Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7GL-M1T14S Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7GL-M1T14PW Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7GL-M1T24R Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7GL-M1T24G Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7GL-M1T24Y Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7GL-M1T24A Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7GL-M1T24W Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7GL-M1T24S Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7GL-M1T24PW Bezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7GL-A1T14R Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7GL-A1T14G Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7GL-A1T14Y Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7GL-A1T14A Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7GL-A1T14W Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7GL-A1T14S Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7GL-A1T14PW Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7GL-A1T24R Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7GL-A1T24G Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7GL-A1T24Y Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7GL-A1T24A Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7GL-A1T24W Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7GL-A1T24S Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7GL-A1T24PW Bezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8GL-M1T14R Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8GL-M1T14G Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8GL-M1T14Y Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8GL-M1T14A Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8GL-M1T14W Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8GL-M1T14S Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8GL-M1T14PW Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8GL-M1T24R Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8GL-M1T24G Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8GL-M1T24Y Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8GL-M1T24A Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8GL-M1T24W Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8GL-M1T24S Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8GL-M1T24PW Bezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8GL-A1T14R Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8GL-A1T14G Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8GL-A1T14Y Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8GL-A1T14A Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8GL-A1T14W Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8GL-A1T14S Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8GL-A1T14PW Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8GL-A1T24R Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8GL-A1T24G Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8GL-A1T24Y Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8GL-A1T24A Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8GL-A1T24W Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8GL-A1T24S Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8GL-A1T24PW Bezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
Illuminated PushbuttonsIDEC
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Flush Bezel Illuminated Pushbuttons (16 mm, LED)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (252)

LB6L-M1T14R, LB6L-M1T14G, LB6L-M1T14Y, LB6L-M1T14A, LB6L-M1T14W, LB6L-M1T14S, LB6L-M1T14PW, LB6L-M1T24R, LB6L-M1T24G, LB6L-M1T24Y + 242 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB6L-M1T14RBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6L-M1T14GBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6L-M1T14YBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6L-M1T14ABezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6L-M1T14WBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6L-M1T14SBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6L-M1T14PWBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6L-M1T24RBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6L-M1T24GBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6L-M1T24YBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6L-M1T24ABezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6L-M1T24WBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6L-M1T24SBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6L-M1T24PWBezel: Black | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6L-A1T14RBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6L-A1T14GBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6L-A1T14YBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6L-A1T14ABezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6L-A1T14WBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6L-A1T14SBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6L-A1T14PWBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6L-A1T24RBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6L-A1T24GBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6L-A1T24YBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6L-A1T24ABezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6L-A1T24WBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6L-A1T24SBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6L-A1T24PWBezel: Black | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7L-M1T14RBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7L-M1T14GBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7L-M1T14YBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7L-M1T14ABezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7L-M1T14WBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7L-M1T14SBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7L-M1T14PWBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7L-M1T24RBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7L-M1T24GBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7L-M1T24YBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7L-M1T24ABezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7L-M1T24WBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7L-M1T24SBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7L-M1T24PWBezel: Black | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7L-A1T14RBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7L-A1T14GBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7L-A1T14YBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7L-A1T14ABezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7L-A1T14WBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7L-A1T14SBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7L-A1T14PWBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7L-A1T24RBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7L-A1T24GBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7L-A1T24YBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7L-A1T24ABezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7L-A1T24WBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7L-A1T24SBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7L-A1T24PWBezel: Black | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8L-M1T14RBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8L-M1T14GBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8L-M1T14YBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8L-M1T14ABezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8L-M1T14WBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8L-M1T14SBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8L-M1T14PWBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8L-M1T24RBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8L-M1T24GBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8L-M1T24YBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8L-M1T24ABezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8L-M1T24WBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8L-M1T24SBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8L-M1T24PWBezel: Black | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8L-A1T14RBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8L-A1T14GBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8L-A1T14YBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8L-A1T14ABezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8L-A1T14WBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8L-A1T14SBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8L-A1T14PWBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8L-A1T24RBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8L-A1T24GBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8L-A1T24YBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8L-A1T24ABezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8L-A1T24WBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8L-A1T24SBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8L-A1T24PWBezel: Black | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB6ML-M1T14RBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6ML-M1T14GBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6ML-M1T14YBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6ML-M1T14ABezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6ML-M1T14WBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6ML-M1T14SBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6ML-M1T14PWBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6ML-M1T24RBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6ML-M1T24GBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6ML-M1T24YBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6ML-M1T24ABezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6ML-M1T24WBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6ML-M1T24SBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6ML-M1T24PWBezel: Metal | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6ML-A1T14RBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6ML-A1T14GBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6ML-A1T14YBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6ML-A1T14ABezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6ML-A1T14WBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6ML-A1T14SBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6ML-A1T14PWBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6ML-A1T24RBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6ML-A1T24GBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6ML-A1T24YBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6ML-A1T24ABezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6ML-A1T24WBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6ML-A1T24SBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6ML-A1T24PWBezel: Metal | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7ML-M1T14RBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7ML-M1T14GBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7ML-M1T14YBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7ML-M1T14ABezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7ML-M1T14WBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7ML-M1T14SBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7ML-M1T14PWBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7ML-M1T24RBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7ML-M1T24GBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7ML-M1T24YBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7ML-M1T24ABezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7ML-M1T24WBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7ML-M1T24SBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7ML-M1T24PWBezel: Metal | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7ML-A1T14RBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7ML-A1T14GBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7ML-A1T14YBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7ML-A1T14ABezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7ML-A1T14WBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7ML-A1T14SBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7ML-A1T14PWBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7ML-A1T24RBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7ML-A1T24GBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7ML-A1T24YBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7ML-A1T24ABezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7ML-A1T24WBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7ML-A1T24SBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7ML-A1T24PWBezel: Metal | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8ML-M1T14RBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8ML-M1T14GBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8ML-M1T14YBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8ML-M1T14ABezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8ML-M1T14WBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8ML-M1T14SBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8ML-M1T14PWBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8ML-M1T24RBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8ML-M1T24GBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8ML-M1T24YBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8ML-M1T24ABezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8ML-M1T24WBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8ML-M1T24SBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8ML-M1T24PWBezel: Metal | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8ML-A1T14RBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8ML-A1T14GBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8ML-A1T14YBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8ML-A1T14ABezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8ML-A1T14WBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8ML-A1T14SBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8ML-A1T14PWBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8ML-A1T24RBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8ML-A1T24GBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8ML-A1T24YBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8ML-A1T24ABezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8ML-A1T24WBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8ML-A1T24SBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8ML-A1T24PWBezel: Metal | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB6GL-M1T14RBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB6GL-M1T14GBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB6GL-M1T14YBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB6GL-M1T14ABezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB6GL-M1T14WBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB6GL-M1T14SBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB6GL-M1T14PWBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB6GL-M1T24RBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB6GL-M1T24GBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB6GL-M1T24YBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB6GL-M1T24ABezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB6GL-M1T24WBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB6GL-M1T24SBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB6GL-M1T24PWBezel: Guard | Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB6GL-A1T14RBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB6GL-A1T14GBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB6GL-A1T14YBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB6GL-A1T14ABezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB6GL-A1T14WBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB6GL-A1T14SBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB6GL-A1T14PWBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB6GL-A1T24RBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB6GL-A1T24GBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB6GL-A1T24YBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB6GL-A1T24ABezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB6GL-A1T24WBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB6GL-A1T24SBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB6GL-A1T24PWBezel: Guard | Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB7GL-M1T14RBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB7GL-M1T14GBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB7GL-M1T14YBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB7GL-M1T14ABezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB7GL-M1T14WBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB7GL-M1T14SBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB7GL-M1T14PWBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB7GL-M1T24RBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB7GL-M1T24GBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB7GL-M1T24YBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB7GL-M1T24ABezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB7GL-M1T24WBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB7GL-M1T24SBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB7GL-M1T24PWBezel: Guard | Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB7GL-A1T14RBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB7GL-A1T14GBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB7GL-A1T14YBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB7GL-A1T14ABezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB7GL-A1T14WBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB7GL-A1T14SBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB7GL-A1T14PWBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB7GL-A1T24RBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB7GL-A1T24GBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB7GL-A1T24YBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB7GL-A1T24ABezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB7GL-A1T24WBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB7GL-A1T24SBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB7GL-A1T24PWBezel: Guard | Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB8GL-M1T14RBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB8GL-M1T14GBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB8GL-M1T14YBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB8GL-M1T14ABezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB8GL-M1T14WBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB8GL-M1T14SBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB8GL-M1T14PWBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB8GL-M1T24RBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB8GL-M1T24GBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB8GL-M1T24YBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB8GL-M1T24ABezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB8GL-M1T24WBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB8GL-M1T24SBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB8GL-M1T24PWBezel: Guard | Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB8GL-A1T14RBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB8GL-A1T14GBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB8GL-A1T14YBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB8GL-A1T14ABezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB8GL-A1T14WBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB8GL-A1T14SBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB8GL-A1T14PWBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB8GL-A1T24RBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB8GL-A1T24GBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB8GL-A1T24YBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB8GL-A1T24ABezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB8GL-A1T24WBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB8GL-A1T24SBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB8GL-A1T24PWBezel: Guard | Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
