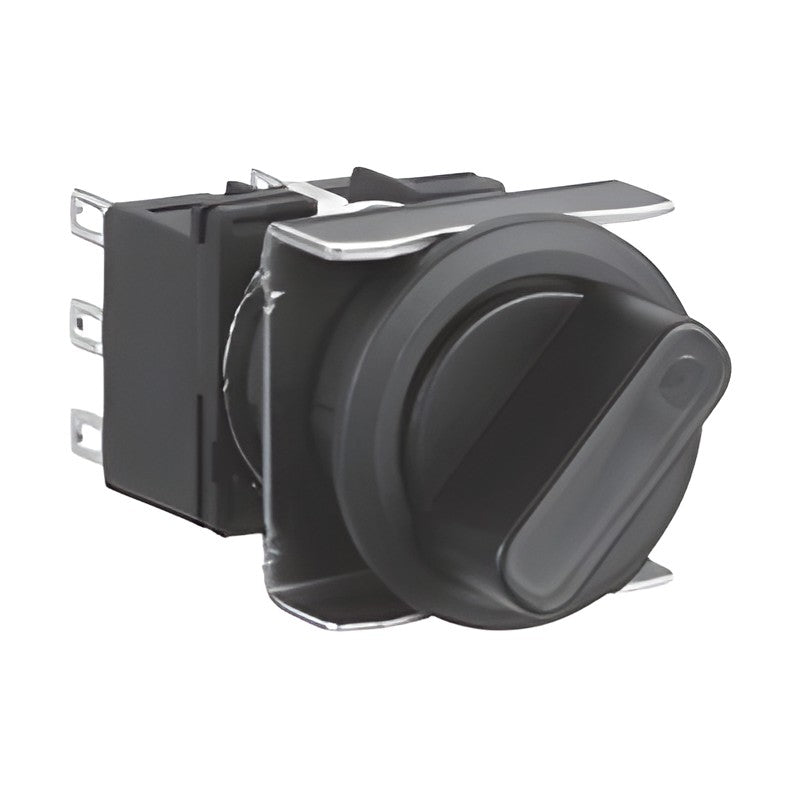

IDEC LB Series Flush Bezel Illuminated Selector Switches (16 mm)

IDEC LB Series Flush Bezel Illuminated Selector Switches (16 mm)

Flush-silhouette illuminated selector switches of the IDEC LB series with built-in LED unit, round black or metal bezel.

Key features

  • Built-in LED unit, AC/DC24V in listed codes
  • 90 deg 2-position or 45 deg 3-position maintained
  • Gold or silver contacts, 1c or 2c
  • Illumination colours red, green, white
  • Round bezel in black or metal

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
Source IDEC LB/LBW Series catalogue, p. 10-11
LB6F-2T14R Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Red
LB6F-2T14G Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Green
LB6F-2T14W Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: White
LB6F-2T24R Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6F-2T24G Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6F-2T24W Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: White
LB6F-2T54R Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Red
LB6F-2T54G Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Green
LB6F-2T54W Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: White
LB6F-2T64R Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6F-2T64G Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6F-2T64W Bezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: White
LB6F-3T24R Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6F-3T24G Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6F-3T24W Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: White
LB6F-3T64R Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6F-3T64G Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6F-3T64W Bezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: White
LB6MF-2T14R Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Red
LB6MF-2T14G Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Green
LB6MF-2T14W Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: White
LB6MF-2T24R Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6MF-2T24G Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6MF-2T24W Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: White
LB6MF-2T54R Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Red
LB6MF-2T54G Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Green
LB6MF-2T54W Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: White
LB6MF-2T64R Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6MF-2T64G Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6MF-2T64W Bezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: White
LB6MF-3T24R Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6MF-3T24G Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6MF-3T24W Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: White
LB6MF-3T64R Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6MF-3T64G Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6MF-3T64W Bezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: White
Selector SwitchesIDEC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Flush Bezel Illuminated Selector Switches (16 mm)

Brand IDEC·Selector Switches

Available part numbers (36)

LB6F-2T14R, LB6F-2T14G, LB6F-2T14W, LB6F-2T24R, LB6F-2T24G, LB6F-2T24W, LB6F-2T54R, LB6F-2T54G, LB6F-2T54W, LB6F-2T64R + 26 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB6F-2T14RBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Red
LB6F-2T14GBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Green
LB6F-2T14WBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: White
LB6F-2T24RBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6F-2T24GBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6F-2T24WBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: White
LB6F-2T54RBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Red
LB6F-2T54GBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Green
LB6F-2T54WBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: White
LB6F-2T64RBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6F-2T64GBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6F-2T64WBezel: Black | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: White
LB6F-3T24RBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6F-3T24GBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6F-3T24WBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: White
LB6F-3T64RBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6F-3T64GBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6F-3T64WBezel: Black | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: White
LB6MF-2T14RBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Red
LB6MF-2T14GBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: Green
LB6MF-2T14WBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | LED colour: White
LB6MF-2T24RBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6MF-2T24GBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6MF-2T24WBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | LED colour: White
LB6MF-2T54RBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Red
LB6MF-2T54GBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: Green
LB6MF-2T54WBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | LED colour: White
LB6MF-2T64RBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6MF-2T64GBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6MF-2T64WBezel: Metal | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | LED colour: White
LB6MF-3T24RBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Red
LB6MF-3T24GBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: Green
LB6MF-3T24WBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | LED colour: White
LB6MF-3T64RBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Red
LB6MF-3T64GBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: Green
LB6MF-3T64WBezel: Metal | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | LED colour: White
