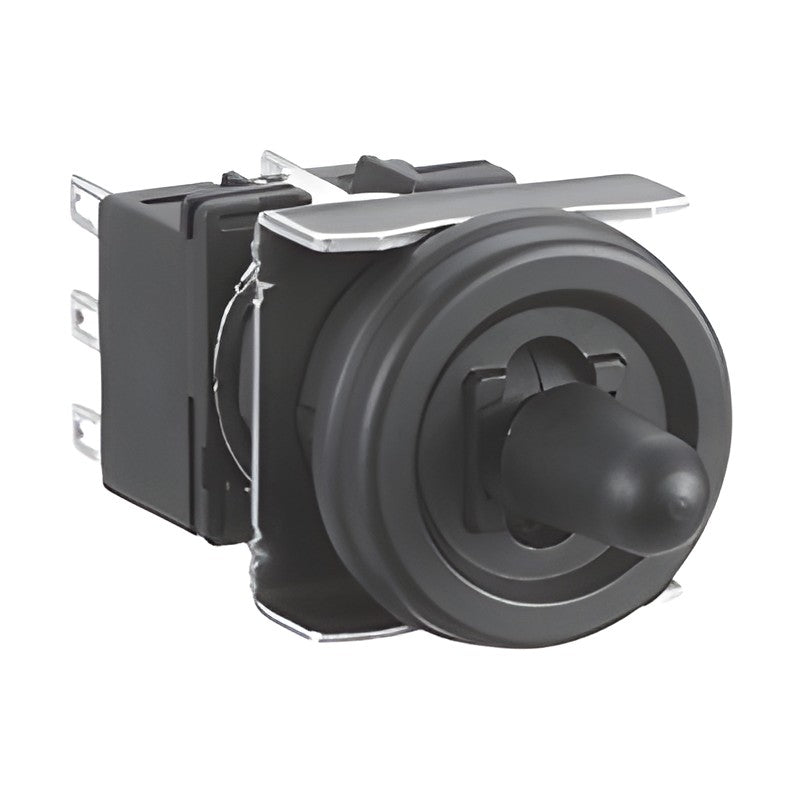

IDEC LB Series Flush Bezel Lever Switches (16 mm, round)

IDEC LB Series Flush Bezel Lever Switches (16 mm, round)

Flush-silhouette lever switches of the IDEC LB series with round black bezel, 2-notch or 3-notch operation.

Key features

  • Round black flush bezel
  • 2-position or 3-position maintained, or 3-position spring return
  • 1c to 3c contacts, gold or silver
  • PCB terminal version for gold contacts (suffix V)

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
Bezel Round, black
Source IDEC LB/LBW Series catalogue, p. 14-15
LB6T-2T1 Positions: 2-pos maintained | Contacts: Gold 1c
LB6T-2T2 Positions: 2-pos maintained | Contacts: Gold 2c
LB6T-2T3 Positions: 2-pos maintained | Contacts: Gold 3c
LB6T-2T5 Positions: 2-pos maintained | Contacts: Silver 1c
LB6T-2T6 Positions: 2-pos maintained | Contacts: Silver 2c
LB6T-2T7 Positions: 2-pos maintained | Contacts: Silver 3c
LB6T-3T2 Positions: 3-pos maintained | Contacts: Gold 2c
LB6T-3T3 Positions: 3-pos maintained | Contacts: Gold 3c
LB6T-3T6 Positions: 3-pos maintained | Contacts: Silver 2c
LB6T-3T7 Positions: 3-pos maintained | Contacts: Silver 3c
LB6T-33T2 Positions: 3-pos spring return | Contacts: Gold 2c
LB6T-33T3 Positions: 3-pos spring return | Contacts: Gold 3c
LB6T-33T6 Positions: 3-pos spring return | Contacts: Silver 2c
LB6T-33T7 Positions: 3-pos spring return | Contacts: Silver 3c
Selector SwitchesIDEC
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Flush Bezel Lever Switches (16 mm, round)

Brand IDEC·Selector Switches

Available part numbers (14)

LB6T-2T1, LB6T-2T2, LB6T-2T3, LB6T-2T5, LB6T-2T6, LB6T-2T7, LB6T-3T2, LB6T-3T3, LB6T-3T6, LB6T-3T7 + 4 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB6T-2T1Positions: 2-pos maintained | Contacts: Gold 1c
LB6T-2T2Positions: 2-pos maintained | Contacts: Gold 2c
LB6T-2T3Positions: 2-pos maintained | Contacts: Gold 3c
LB6T-2T5Positions: 2-pos maintained | Contacts: Silver 1c
LB6T-2T6Positions: 2-pos maintained | Contacts: Silver 2c
LB6T-2T7Positions: 2-pos maintained | Contacts: Silver 3c
LB6T-3T2Positions: 3-pos maintained | Contacts: Gold 2c
LB6T-3T3Positions: 3-pos maintained | Contacts: Gold 3c
LB6T-3T6Positions: 3-pos maintained | Contacts: Silver 2c
LB6T-3T7Positions: 3-pos maintained | Contacts: Silver 3c
LB6T-33T2Positions: 3-pos spring return | Contacts: Gold 2c
LB6T-33T3Positions: 3-pos spring return | Contacts: Gold 3c
LB6T-33T6Positions: 3-pos spring return | Contacts: Silver 2c
LB6T-33T7Positions: 3-pos spring return | Contacts: Silver 3c
