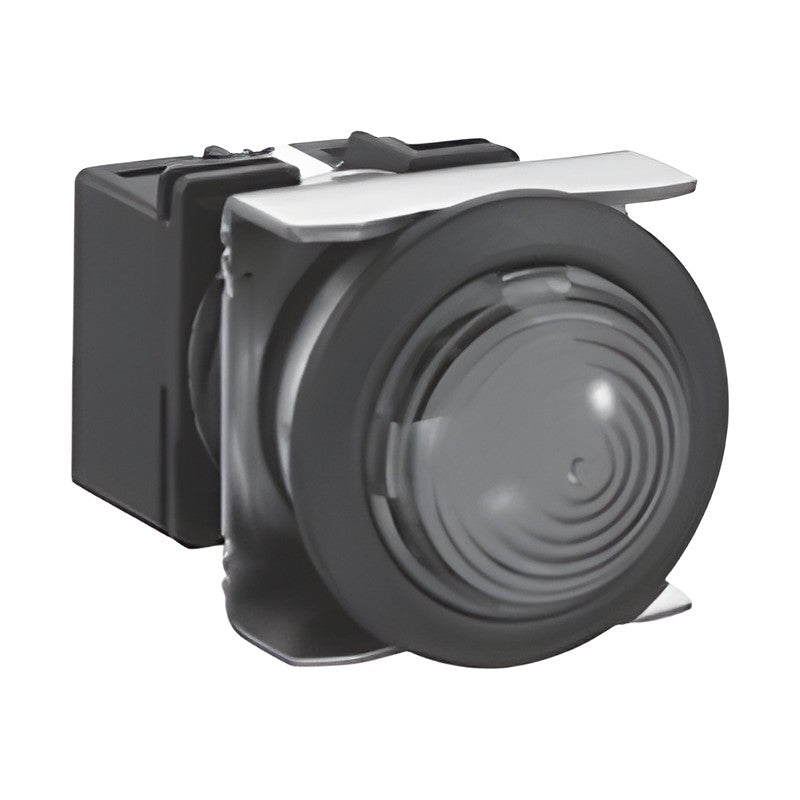

IDEC LB Series Flush Bezel Pilot Lights (16 mm, LED, AC/DC24V)

IDEC LB Series Flush Bezel Pilot Lights (16 mm, LED, AC/DC24V)

Flush-silhouette LED pilot lights of the IDEC LB series with flat or dome lens and black or metal bezel.

Key features

  • Bezel projects only 2 mm from the panel front
  • Flat lens in round, square and rectangular shapes; dome lens in round
  • Black or metal bezel
  • LED rated AC/DC24V in listed codes
  • Solder/tab terminals; PCB terminal version available

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
LED life Approx. 30,000 h (reference)
Terminals Solder/tab #110
Source IDEC LB/LBW Series catalogue, p. 1, 4-5
LB6P-1T04R Bezel: Black | Shape: Round | Lens: Flat | LED colour: Red
LB6P-1T04G Bezel: Black | Shape: Round | Lens: Flat | LED colour: Green
LB6P-1T04Y Bezel: Black | Shape: Round | Lens: Flat | LED colour: Yellow
LB6P-1T04A Bezel: Black | Shape: Round | Lens: Flat | LED colour: Amber
LB6P-1T04W Bezel: Black | Shape: Round | Lens: Flat | LED colour: White
LB6P-1T04S Bezel: Black | Shape: Round | Lens: Flat | LED colour: Blue
LB6P-1T04PW Bezel: Black | Shape: Round | Lens: Flat | LED colour: Pure white
LB7P-1T04R Bezel: Black | Shape: Square | Lens: Flat | LED colour: Red
LB7P-1T04G Bezel: Black | Shape: Square | Lens: Flat | LED colour: Green
LB7P-1T04Y Bezel: Black | Shape: Square | Lens: Flat | LED colour: Yellow
LB7P-1T04A Bezel: Black | Shape: Square | Lens: Flat | LED colour: Amber
LB7P-1T04W Bezel: Black | Shape: Square | Lens: Flat | LED colour: White
LB7P-1T04S Bezel: Black | Shape: Square | Lens: Flat | LED colour: Blue
LB7P-1T04PW Bezel: Black | Shape: Square | Lens: Flat | LED colour: Pure white
LB8P-1T04R Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Red
LB8P-1T04G Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Green
LB8P-1T04Y Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Yellow
LB8P-1T04A Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Amber
LB8P-1T04W Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: White
LB8P-1T04S Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Blue
LB8P-1T04PW Bezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Pure white
LB6MP-1T04R Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Red
LB6MP-1T04G Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Green
LB6MP-1T04Y Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Yellow
LB6MP-1T04A Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Amber
LB6MP-1T04W Bezel: Metal | Shape: Round | Lens: Flat | LED colour: White
LB6MP-1T04S Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Blue
LB6MP-1T04PW Bezel: Metal | Shape: Round | Lens: Flat | LED colour: Pure white
LB7MP-1T04R Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Red
LB7MP-1T04G Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Green
LB7MP-1T04Y Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Yellow
LB7MP-1T04A Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Amber
LB7MP-1T04W Bezel: Metal | Shape: Square | Lens: Flat | LED colour: White
LB7MP-1T04S Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Blue
LB7MP-1T04PW Bezel: Metal | Shape: Square | Lens: Flat | LED colour: Pure white
LB8MP-1T04R Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Red
LB8MP-1T04G Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Green
LB8MP-1T04Y Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Yellow
LB8MP-1T04A Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Amber
LB8MP-1T04W Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: White
LB8MP-1T04S Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Blue
LB8MP-1T04PW Bezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Pure white
LB6P-2T04R Bezel: Black | Shape: Round | Lens: Dome | LED colour: Red
LB6P-2T04G Bezel: Black | Shape: Round | Lens: Dome | LED colour: Green
LB6P-2T04Y Bezel: Black | Shape: Round | Lens: Dome | LED colour: Yellow
LB6P-2T04A Bezel: Black | Shape: Round | Lens: Dome | LED colour: Amber
LB6P-2T04W Bezel: Black | Shape: Round | Lens: Dome | LED colour: White
LB6P-2T04S Bezel: Black | Shape: Round | Lens: Dome | LED colour: Blue
LB6P-2T04PW Bezel: Black | Shape: Round | Lens: Dome | LED colour: Pure white
LB6MP-2T04R Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Red
LB6MP-2T04G Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Green
LB6MP-2T04Y Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Yellow
LB6MP-2T04A Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Amber
LB6MP-2T04W Bezel: Metal | Shape: Round | Lens: Dome | LED colour: White
LB6MP-2T04S Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Blue
LB6MP-2T04PW Bezel: Metal | Shape: Round | Lens: Dome | LED colour: Pure white
Pilot LightsIDEC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Flush Bezel Pilot Lights (16 mm, LED, AC/DC24V)

Brand IDEC·Pilot Lights

Available part numbers (56)

LB6P-1T04R, LB6P-1T04G, LB6P-1T04Y, LB6P-1T04A, LB6P-1T04W, LB6P-1T04S, LB6P-1T04PW, LB7P-1T04R, LB7P-1T04G, LB7P-1T04Y + 46 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB6P-1T04RBezel: Black | Shape: Round | Lens: Flat | LED colour: Red
LB6P-1T04GBezel: Black | Shape: Round | Lens: Flat | LED colour: Green
LB6P-1T04YBezel: Black | Shape: Round | Lens: Flat | LED colour: Yellow
LB6P-1T04ABezel: Black | Shape: Round | Lens: Flat | LED colour: Amber
LB6P-1T04WBezel: Black | Shape: Round | Lens: Flat | LED colour: White
LB6P-1T04SBezel: Black | Shape: Round | Lens: Flat | LED colour: Blue
LB6P-1T04PWBezel: Black | Shape: Round | Lens: Flat | LED colour: Pure white
LB7P-1T04RBezel: Black | Shape: Square | Lens: Flat | LED colour: Red
LB7P-1T04GBezel: Black | Shape: Square | Lens: Flat | LED colour: Green
LB7P-1T04YBezel: Black | Shape: Square | Lens: Flat | LED colour: Yellow
LB7P-1T04ABezel: Black | Shape: Square | Lens: Flat | LED colour: Amber
LB7P-1T04WBezel: Black | Shape: Square | Lens: Flat | LED colour: White
LB7P-1T04SBezel: Black | Shape: Square | Lens: Flat | LED colour: Blue
LB7P-1T04PWBezel: Black | Shape: Square | Lens: Flat | LED colour: Pure white
LB8P-1T04RBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Red
LB8P-1T04GBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Green
LB8P-1T04YBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Yellow
LB8P-1T04ABezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Amber
LB8P-1T04WBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: White
LB8P-1T04SBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Blue
LB8P-1T04PWBezel: Black | Shape: Rectangular | Lens: Flat | LED colour: Pure white
LB6MP-1T04RBezel: Metal | Shape: Round | Lens: Flat | LED colour: Red
LB6MP-1T04GBezel: Metal | Shape: Round | Lens: Flat | LED colour: Green
LB6MP-1T04YBezel: Metal | Shape: Round | Lens: Flat | LED colour: Yellow
LB6MP-1T04ABezel: Metal | Shape: Round | Lens: Flat | LED colour: Amber
LB6MP-1T04WBezel: Metal | Shape: Round | Lens: Flat | LED colour: White
LB6MP-1T04SBezel: Metal | Shape: Round | Lens: Flat | LED colour: Blue
LB6MP-1T04PWBezel: Metal | Shape: Round | Lens: Flat | LED colour: Pure white
LB7MP-1T04RBezel: Metal | Shape: Square | Lens: Flat | LED colour: Red
LB7MP-1T04GBezel: Metal | Shape: Square | Lens: Flat | LED colour: Green
LB7MP-1T04YBezel: Metal | Shape: Square | Lens: Flat | LED colour: Yellow
LB7MP-1T04ABezel: Metal | Shape: Square | Lens: Flat | LED colour: Amber
LB7MP-1T04WBezel: Metal | Shape: Square | Lens: Flat | LED colour: White
LB7MP-1T04SBezel: Metal | Shape: Square | Lens: Flat | LED colour: Blue
LB7MP-1T04PWBezel: Metal | Shape: Square | Lens: Flat | LED colour: Pure white
LB8MP-1T04RBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Red
LB8MP-1T04GBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Green
LB8MP-1T04YBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Yellow
LB8MP-1T04ABezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Amber
LB8MP-1T04WBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: White
LB8MP-1T04SBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Blue
LB8MP-1T04PWBezel: Metal | Shape: Rectangular | Lens: Flat | LED colour: Pure white
LB6P-2T04RBezel: Black | Shape: Round | Lens: Dome | LED colour: Red
LB6P-2T04GBezel: Black | Shape: Round | Lens: Dome | LED colour: Green
LB6P-2T04YBezel: Black | Shape: Round | Lens: Dome | LED colour: Yellow
LB6P-2T04ABezel: Black | Shape: Round | Lens: Dome | LED colour: Amber
LB6P-2T04WBezel: Black | Shape: Round | Lens: Dome | LED colour: White
LB6P-2T04SBezel: Black | Shape: Round | Lens: Dome | LED colour: Blue
LB6P-2T04PWBezel: Black | Shape: Round | Lens: Dome | LED colour: Pure white
LB6MP-2T04RBezel: Metal | Shape: Round | Lens: Dome | LED colour: Red
LB6MP-2T04GBezel: Metal | Shape: Round | Lens: Dome | LED colour: Green
LB6MP-2T04YBezel: Metal | Shape: Round | Lens: Dome | LED colour: Yellow
LB6MP-2T04ABezel: Metal | Shape: Round | Lens: Dome | LED colour: Amber
LB6MP-2T04WBezel: Metal | Shape: Round | Lens: Dome | LED colour: White
LB6MP-2T04SBezel: Metal | Shape: Round | Lens: Dome | LED colour: Blue
LB6MP-2T04PWBezel: Metal | Shape: Round | Lens: Dome | LED colour: Pure white
