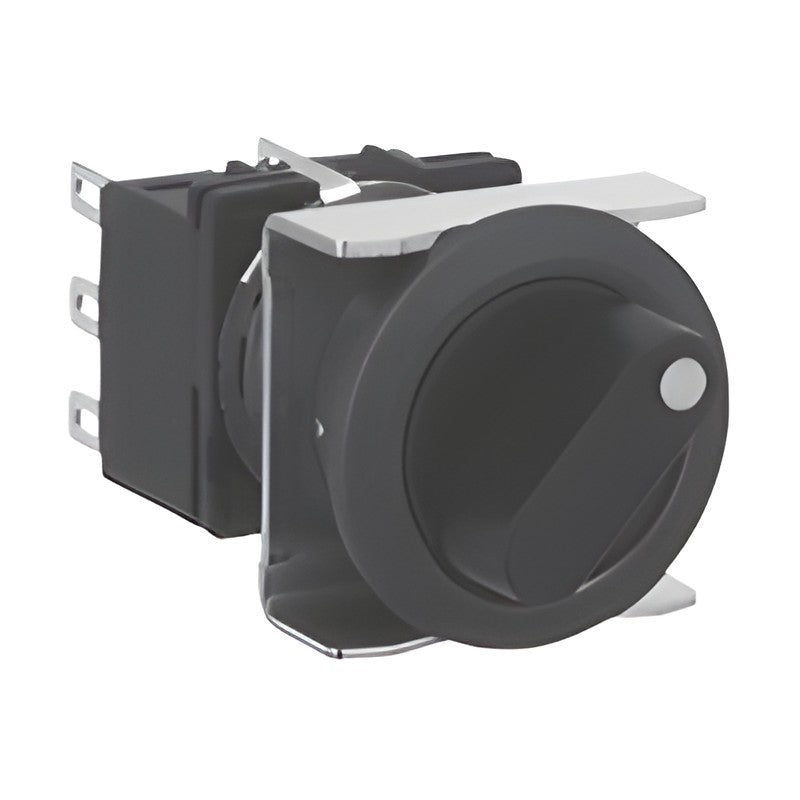

IDEC LB Series Flush Bezel Selector Switches (16 mm, 2/3-pos)

IDEC LB Series Flush Bezel Selector Switches (16 mm, 2/3-pos)

Flush-silhouette knob-type selector switches of the IDEC LB series in 90 deg 2-position and 45 deg 3-position versions.

Key features

  • Bezel projects only 2 mm from the panel front
  • 2-position maintained, 3-position maintained or spring return
  • 1c to 3c, gold or silver contacts
  • Round, square and rectangular, black or metal bezel
  • Lever handle version available (suffix L)

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
Handle Knob (lever handle on request)
Source IDEC LB/LBW Series catalogue, p. 8-9
LB6S-2T1 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB6S-2T2 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB6S-2T3 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB6S-2T5 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB6S-2T6 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB6S-2T7 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB6S-3T2 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB6S-3T3 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB6S-3T6 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB6S-3T7 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB6S-33T2 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB6S-33T3 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB6S-33T6 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB6S-33T7 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB7S-2T1 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB7S-2T2 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB7S-2T3 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB7S-2T5 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB7S-2T6 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB7S-2T7 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB7S-3T2 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB7S-3T3 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB7S-3T6 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB7S-3T7 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB7S-33T2 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB7S-33T3 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB7S-33T6 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB7S-33T7 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB8S-2T1 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB8S-2T2 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB8S-2T3 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB8S-2T5 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB8S-2T6 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB8S-2T7 Bezel: Black | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB8S-3T2 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB8S-3T3 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB8S-3T6 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB8S-3T7 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB8S-33T2 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB8S-33T3 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB8S-33T6 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB8S-33T7 Bezel: Black | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB6MS-2T1 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB6MS-2T2 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB6MS-2T3 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB6MS-2T5 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB6MS-2T6 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB6MS-2T7 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB6MS-3T2 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB6MS-3T3 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB6MS-3T6 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB6MS-3T7 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB6MS-33T2 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB6MS-33T3 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB6MS-33T6 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB6MS-33T7 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB7MS-2T1 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB7MS-2T2 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB7MS-2T3 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB7MS-2T5 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB7MS-2T6 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB7MS-2T7 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB7MS-3T2 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB7MS-3T3 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB7MS-3T6 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB7MS-3T7 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB7MS-33T2 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB7MS-33T3 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB7MS-33T6 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB7MS-33T7 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB8MS-2T1 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB8MS-2T2 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB8MS-2T3 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB8MS-2T5 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB8MS-2T6 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB8MS-2T7 Bezel: Metal | Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB8MS-3T2 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB8MS-3T3 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB8MS-3T6 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB8MS-3T7 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB8MS-33T2 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB8MS-33T3 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB8MS-33T6 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB8MS-33T7 Bezel: Metal | Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
