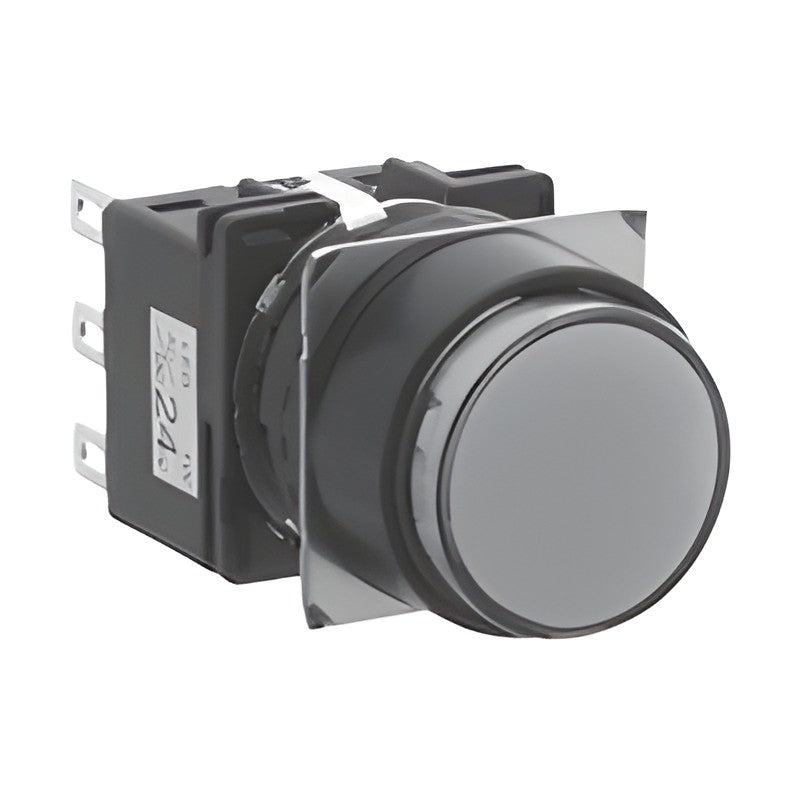

IDEC LB Series Illuminated Pushbuttons (16 mm, LED, AC/DC24V)

IDEC LB Series Illuminated Pushbuttons (16 mm, LED, AC/DC24V)

Standard-bezel illuminated pushbutton control units of the IDEC LB series with a 27.9 mm depth behind the panel and built-in LED unit.

Key features

  • Round, square, rectangular and rectangular 3-side barrier shapes
  • Momentary or alternate action
  • 1c or 2c, gold or silver contacts
  • Built-in LED unit, AC/DC24V in listed codes
  • Film insertion for marking possible

Specifications

Mounting 16 mm class panel cutout
Depth behind panel 27.9 mm (standard bezel)
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Terminals Solder/tab #110 (PCB: suffix V, gold)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
Source IDEC LB/LBW Series catalogue, p. 28-29
LB1L-M1T14R Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB1L-M1T14G Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB1L-M1T14Y Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB1L-M1T14A Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB1L-M1T14W Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB1L-M1T14S Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB1L-M1T14PW Shape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB1L-M1T24R Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB1L-M1T24G Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB1L-M1T24Y Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB1L-M1T24A Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB1L-M1T24W Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB1L-M1T24S Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB1L-M1T24PW Shape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB1L-M1T54R Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB1L-M1T54G Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB1L-M1T54Y Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB1L-M1T54A Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB1L-M1T54W Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB1L-M1T54S Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB1L-M1T54PW Shape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB1L-M1T64R Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB1L-M1T64G Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB1L-M1T64Y Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB1L-M1T64A Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB1L-M1T64W Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB1L-M1T64S Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB1L-M1T64PW Shape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB1L-A1T14R Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB1L-A1T14G Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB1L-A1T14Y Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB1L-A1T14A Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB1L-A1T14W Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB1L-A1T14S Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB1L-A1T14PW Shape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB1L-A1T24R Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB1L-A1T24G Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB1L-A1T24Y Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB1L-A1T24A Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB1L-A1T24W Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB1L-A1T24S Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB1L-A1T24PW Shape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB1L-A1T54R Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB1L-A1T54G Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB1L-A1T54Y Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB1L-A1T54A Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB1L-A1T54W Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB1L-A1T54S Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB1L-A1T54PW Shape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB1L-A1T64R Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB1L-A1T64G Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB1L-A1T64Y Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB1L-A1T64A Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB1L-A1T64W Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB1L-A1T64S Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB1L-A1T64PW Shape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB2L-M1T14R Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB2L-M1T14G Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB2L-M1T14Y Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB2L-M1T14A Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB2L-M1T14W Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB2L-M1T14S Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB2L-M1T14PW Shape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB2L-M1T24R Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB2L-M1T24G Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB2L-M1T24Y Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB2L-M1T24A Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB2L-M1T24W Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB2L-M1T24S Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB2L-M1T24PW Shape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB2L-M1T54R Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB2L-M1T54G Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB2L-M1T54Y Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB2L-M1T54A Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB2L-M1T54W Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB2L-M1T54S Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB2L-M1T54PW Shape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB2L-M1T64R Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB2L-M1T64G Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB2L-M1T64Y Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB2L-M1T64A Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB2L-M1T64W Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB2L-M1T64S Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB2L-M1T64PW Shape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB2L-A1T14R Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB2L-A1T14G Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB2L-A1T14Y Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB2L-A1T14A Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB2L-A1T14W Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB2L-A1T14S Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB2L-A1T14PW Shape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB2L-A1T24R Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB2L-A1T24G Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB2L-A1T24Y Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB2L-A1T24A Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB2L-A1T24W Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB2L-A1T24S Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB2L-A1T24PW Shape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB2L-A1T54R Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB2L-A1T54G Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB2L-A1T54Y Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB2L-A1T54A Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB2L-A1T54W Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB2L-A1T54S Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB2L-A1T54PW Shape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB2L-A1T64R Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB2L-A1T64G Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB2L-A1T64Y Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB2L-A1T64A Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB2L-A1T64W Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB2L-A1T64S Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB2L-A1T64PW Shape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB3L-M1T14R Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB3L-M1T14G Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB3L-M1T14Y Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB3L-M1T14A Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB3L-M1T14W Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB3L-M1T14S Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB3L-M1T14PW Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB3L-M1T24R Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB3L-M1T24G Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB3L-M1T24Y Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB3L-M1T24A Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB3L-M1T24W Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB3L-M1T24S Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB3L-M1T24PW Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB3L-M1T54R Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB3L-M1T54G Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB3L-M1T54Y Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB3L-M1T54A Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB3L-M1T54W Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB3L-M1T54S Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB3L-M1T54PW Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB3L-M1T64R Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB3L-M1T64G Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB3L-M1T64Y Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB3L-M1T64A Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB3L-M1T64W Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB3L-M1T64S Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB3L-M1T64PW Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB3L-A1T14R Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB3L-A1T14G Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB3L-A1T14Y Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB3L-A1T14A Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB3L-A1T14W Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB3L-A1T14S Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB3L-A1T14PW Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB3L-A1T24R Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB3L-A1T24G Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB3L-A1T24Y Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB3L-A1T24A Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB3L-A1T24W Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB3L-A1T24S Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB3L-A1T24PW Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB3L-A1T54R Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB3L-A1T54G Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB3L-A1T54Y Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB3L-A1T54A Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB3L-A1T54W Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB3L-A1T54S Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB3L-A1T54PW Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB3L-A1T64R Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB3L-A1T64G Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB3L-A1T64Y Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB3L-A1T64A Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB3L-A1T64W Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB3L-A1T64S Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB3L-A1T64PW Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB4L-M1T14R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB4L-M1T14G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB4L-M1T14Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB4L-M1T14A Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB4L-M1T14W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB4L-M1T14S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB4L-M1T14PW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB4L-M1T24R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB4L-M1T24G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB4L-M1T24Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB4L-M1T24A Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB4L-M1T24W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB4L-M1T24S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB4L-M1T24PW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB4L-M1T54R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB4L-M1T54G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB4L-M1T54Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB4L-M1T54A Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB4L-M1T54W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB4L-M1T54S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB4L-M1T54PW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB4L-M1T64R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB4L-M1T64G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB4L-M1T64Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB4L-M1T64A Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB4L-M1T64W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB4L-M1T64S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB4L-M1T64PW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB4L-A1T14R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB4L-A1T14G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB4L-A1T14Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB4L-A1T14A Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB4L-A1T14W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB4L-A1T14S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB4L-A1T14PW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB4L-A1T24R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB4L-A1T24G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB4L-A1T24Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB4L-A1T24A Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB4L-A1T24W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB4L-A1T24S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB4L-A1T24PW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB4L-A1T54R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB4L-A1T54G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB4L-A1T54Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB4L-A1T54A Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB4L-A1T54W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB4L-A1T54S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB4L-A1T54PW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB4L-A1T64R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB4L-A1T64G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB4L-A1T64Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB4L-A1T64A Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB4L-A1T64W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB4L-A1T64S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB4L-A1T64PW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
Illuminated PushbuttonsIDEC
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Illuminated Pushbuttons (16 mm, LED, AC/DC24V)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (224)

LB1L-M1T14R, LB1L-M1T14G, LB1L-M1T14Y, LB1L-M1T14A, LB1L-M1T14W, LB1L-M1T14S, LB1L-M1T14PW, LB1L-M1T24R, LB1L-M1T24G, LB1L-M1T24Y + 214 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB1L-M1T14RShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB1L-M1T14GShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB1L-M1T14YShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB1L-M1T14AShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB1L-M1T14WShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB1L-M1T14SShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB1L-M1T14PWShape: Round | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB1L-M1T24RShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB1L-M1T24GShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB1L-M1T24YShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB1L-M1T24AShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB1L-M1T24WShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB1L-M1T24SShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB1L-M1T24PWShape: Round | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB1L-M1T54RShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB1L-M1T54GShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB1L-M1T54YShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB1L-M1T54AShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB1L-M1T54WShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB1L-M1T54SShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB1L-M1T54PWShape: Round | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB1L-M1T64RShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB1L-M1T64GShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB1L-M1T64YShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB1L-M1T64AShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB1L-M1T64WShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB1L-M1T64SShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB1L-M1T64PWShape: Round | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB1L-A1T14RShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB1L-A1T14GShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB1L-A1T14YShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB1L-A1T14AShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB1L-A1T14WShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB1L-A1T14SShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB1L-A1T14PWShape: Round | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB1L-A1T24RShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB1L-A1T24GShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB1L-A1T24YShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB1L-A1T24AShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB1L-A1T24WShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB1L-A1T24SShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB1L-A1T24PWShape: Round | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB1L-A1T54RShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB1L-A1T54GShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB1L-A1T54YShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB1L-A1T54AShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB1L-A1T54WShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB1L-A1T54SShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB1L-A1T54PWShape: Round | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB1L-A1T64RShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB1L-A1T64GShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB1L-A1T64YShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB1L-A1T64AShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB1L-A1T64WShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB1L-A1T64SShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB1L-A1T64PWShape: Round | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB2L-M1T14RShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB2L-M1T14GShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB2L-M1T14YShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB2L-M1T14AShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB2L-M1T14WShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB2L-M1T14SShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB2L-M1T14PWShape: Square | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB2L-M1T24RShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB2L-M1T24GShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB2L-M1T24YShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB2L-M1T24AShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB2L-M1T24WShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB2L-M1T24SShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB2L-M1T24PWShape: Square | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB2L-M1T54RShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB2L-M1T54GShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB2L-M1T54YShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB2L-M1T54AShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB2L-M1T54WShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB2L-M1T54SShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB2L-M1T54PWShape: Square | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB2L-M1T64RShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB2L-M1T64GShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB2L-M1T64YShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB2L-M1T64AShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB2L-M1T64WShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB2L-M1T64SShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB2L-M1T64PWShape: Square | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB2L-A1T14RShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB2L-A1T14GShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB2L-A1T14YShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB2L-A1T14AShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB2L-A1T14WShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB2L-A1T14SShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB2L-A1T14PWShape: Square | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB2L-A1T24RShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB2L-A1T24GShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB2L-A1T24YShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB2L-A1T24AShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB2L-A1T24WShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB2L-A1T24SShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB2L-A1T24PWShape: Square | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB2L-A1T54RShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB2L-A1T54GShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB2L-A1T54YShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB2L-A1T54AShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB2L-A1T54WShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB2L-A1T54SShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB2L-A1T54PWShape: Square | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB2L-A1T64RShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB2L-A1T64GShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB2L-A1T64YShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB2L-A1T64AShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB2L-A1T64WShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB2L-A1T64SShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB2L-A1T64PWShape: Square | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB3L-M1T14RShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB3L-M1T14GShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB3L-M1T14YShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB3L-M1T14AShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB3L-M1T14WShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB3L-M1T14SShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB3L-M1T14PWShape: Rectangular | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB3L-M1T24RShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB3L-M1T24GShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB3L-M1T24YShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB3L-M1T24AShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB3L-M1T24WShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB3L-M1T24SShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB3L-M1T24PWShape: Rectangular | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB3L-M1T54RShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB3L-M1T54GShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB3L-M1T54YShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB3L-M1T54AShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB3L-M1T54WShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB3L-M1T54SShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB3L-M1T54PWShape: Rectangular | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB3L-M1T64RShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB3L-M1T64GShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB3L-M1T64YShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB3L-M1T64AShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB3L-M1T64WShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB3L-M1T64SShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB3L-M1T64PWShape: Rectangular | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB3L-A1T14RShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB3L-A1T14GShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB3L-A1T14YShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB3L-A1T14AShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB3L-A1T14WShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB3L-A1T14SShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB3L-A1T14PWShape: Rectangular | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB3L-A1T24RShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB3L-A1T24GShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB3L-A1T24YShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB3L-A1T24AShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB3L-A1T24WShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB3L-A1T24SShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB3L-A1T24PWShape: Rectangular | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB3L-A1T54RShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB3L-A1T54GShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB3L-A1T54YShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB3L-A1T54AShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB3L-A1T54WShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB3L-A1T54SShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB3L-A1T54PWShape: Rectangular | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB3L-A1T64RShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB3L-A1T64GShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB3L-A1T64YShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB3L-A1T64AShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB3L-A1T64WShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB3L-A1T64SShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB3L-A1T64PWShape: Rectangular | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white
LB4L-M1T14RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Red
LB4L-M1T14GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Green
LB4L-M1T14YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Yellow
LB4L-M1T14AShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Amber
LB4L-M1T14WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: White
LB4L-M1T14SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Blue
LB4L-M1T14PWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | LED colour: Pure white
LB4L-M1T24RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Red
LB4L-M1T24GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Green
LB4L-M1T24YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Yellow
LB4L-M1T24AShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Amber
LB4L-M1T24WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: White
LB4L-M1T24SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Blue
LB4L-M1T24PWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | LED colour: Pure white
LB4L-M1T54RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Red
LB4L-M1T54GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Green
LB4L-M1T54YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Yellow
LB4L-M1T54AShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Amber
LB4L-M1T54WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: White
LB4L-M1T54SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Blue
LB4L-M1T54PWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | LED colour: Pure white
LB4L-M1T64RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Red
LB4L-M1T64GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Green
LB4L-M1T64YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Yellow
LB4L-M1T64AShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Amber
LB4L-M1T64WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: White
LB4L-M1T64SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Blue
LB4L-M1T64PWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | LED colour: Pure white
LB4L-A1T14RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Red
LB4L-A1T14GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Green
LB4L-A1T14YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Yellow
LB4L-A1T14AShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Amber
LB4L-A1T14WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: White
LB4L-A1T14SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Blue
LB4L-A1T14PWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | LED colour: Pure white
LB4L-A1T24RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Red
LB4L-A1T24GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Green
LB4L-A1T24YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Yellow
LB4L-A1T24AShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Amber
LB4L-A1T24WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: White
LB4L-A1T24SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Blue
LB4L-A1T24PWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | LED colour: Pure white
LB4L-A1T54RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Red
LB4L-A1T54GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Green
LB4L-A1T54YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Yellow
LB4L-A1T54AShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Amber
LB4L-A1T54WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: White
LB4L-A1T54SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Blue
LB4L-A1T54PWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | LED colour: Pure white
LB4L-A1T64RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Red
LB4L-A1T64GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Green
LB4L-A1T64YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Yellow
LB4L-A1T64AShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Amber
LB4L-A1T64WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: White
LB4L-A1T64SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Blue
LB4L-A1T64PWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | LED colour: Pure white

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
