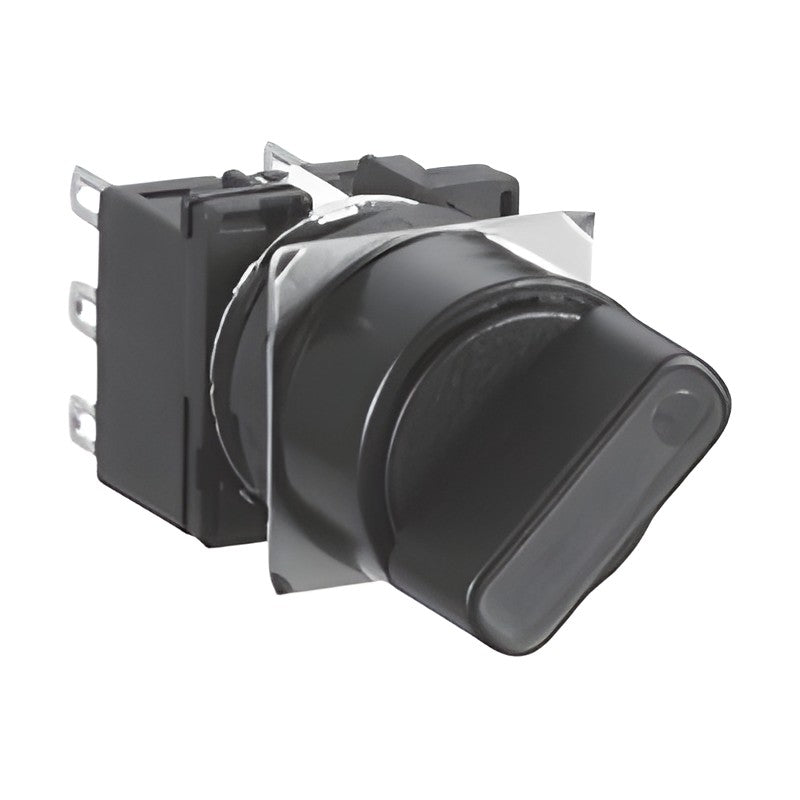

IDEC LB Series Illuminated Selector Switches (16 mm, LED)

IDEC LB Series Illuminated Selector Switches (16 mm, LED)

Standard-bezel illuminated selector switches of the IDEC LB series with built-in LED unit.

Key features

  • Round, square and rectangular shapes
  • 90 deg 2-position or 45 deg 3-position maintained
  • 1c or 2c, gold or silver contacts
  • Illumination red, green or white, AC/DC24V

Specifications

Mounting 16 mm class panel cutout
Depth behind panel 27.9 mm (standard bezel)
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Terminals Solder/tab #110 (PCB: suffix V, gold)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
Source IDEC LB/LBW Series catalogue, p. 36-37
