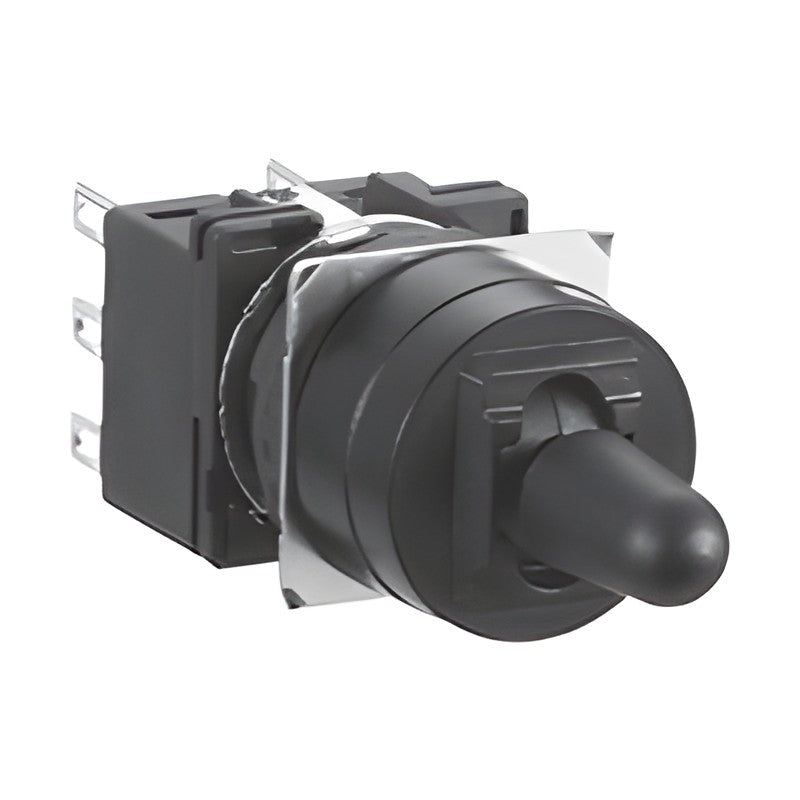

IDEC LB Series Lever Switches (16 mm, round)

IDEC LB Series Lever Switches (16 mm, round)

Standard-bezel round lever switches of the IDEC LB series with 2-notch and 3-notch operation.

Key features

  • Round standard bezel
  • 2-position or 3-position maintained, or 3-position spring return
  • 1c to 3c, gold or silver contacts
  • PCB terminal version for gold contacts (suffix V)

Specifications

Mounting 16 mm class panel cutout
Depth behind panel 27.9 mm (standard bezel)
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Terminals Solder/tab #110 (PCB: suffix V, gold)
Source IDEC LB/LBW Series catalogue, p. 40
LB1T-2T1 Positions: 2-pos maintained | Contacts: Gold 1c
LB1T-2T2 Positions: 2-pos maintained | Contacts: Gold 2c
LB1T-2T3 Positions: 2-pos maintained | Contacts: Gold 3c
LB1T-2T5 Positions: 2-pos maintained | Contacts: Silver 1c
LB1T-2T6 Positions: 2-pos maintained | Contacts: Silver 2c
LB1T-2T7 Positions: 2-pos maintained | Contacts: Silver 3c
LB1T-3T2 Positions: 3-pos maintained | Contacts: Gold 2c
LB1T-3T3 Positions: 3-pos maintained | Contacts: Gold 3c
LB1T-3T6 Positions: 3-pos maintained | Contacts: Silver 2c
LB1T-3T7 Positions: 3-pos maintained | Contacts: Silver 3c
LB1T-33T2 Positions: 3-pos spring return | Contacts: Gold 2c
LB1T-33T3 Positions: 3-pos spring return | Contacts: Gold 3c
LB1T-33T6 Positions: 3-pos spring return | Contacts: Silver 2c
LB1T-33T7 Positions: 3-pos spring return | Contacts: Silver 3c
Selector SwitchesIDEC
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Lever Switches (16 mm, round)

Brand IDEC·Selector Switches

Available part numbers (14)

LB1T-2T1, LB1T-2T2, LB1T-2T3, LB1T-2T5, LB1T-2T6, LB1T-2T7, LB1T-3T2, LB1T-3T3, LB1T-3T6, LB1T-3T7 + 4 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB1T-2T1Positions: 2-pos maintained | Contacts: Gold 1c
LB1T-2T2Positions: 2-pos maintained | Contacts: Gold 2c
LB1T-2T3Positions: 2-pos maintained | Contacts: Gold 3c
LB1T-2T5Positions: 2-pos maintained | Contacts: Silver 1c
LB1T-2T6Positions: 2-pos maintained | Contacts: Silver 2c
LB1T-2T7Positions: 2-pos maintained | Contacts: Silver 3c
LB1T-3T2Positions: 3-pos maintained | Contacts: Gold 2c
LB1T-3T3Positions: 3-pos maintained | Contacts: Gold 3c
LB1T-3T6Positions: 3-pos maintained | Contacts: Silver 2c
LB1T-3T7Positions: 3-pos maintained | Contacts: Silver 3c
LB1T-33T2Positions: 3-pos spring return | Contacts: Gold 2c
LB1T-33T3Positions: 3-pos spring return | Contacts: Gold 3c
LB1T-33T6Positions: 3-pos spring return | Contacts: Silver 2c
LB1T-33T7Positions: 3-pos spring return | Contacts: Silver 3c
