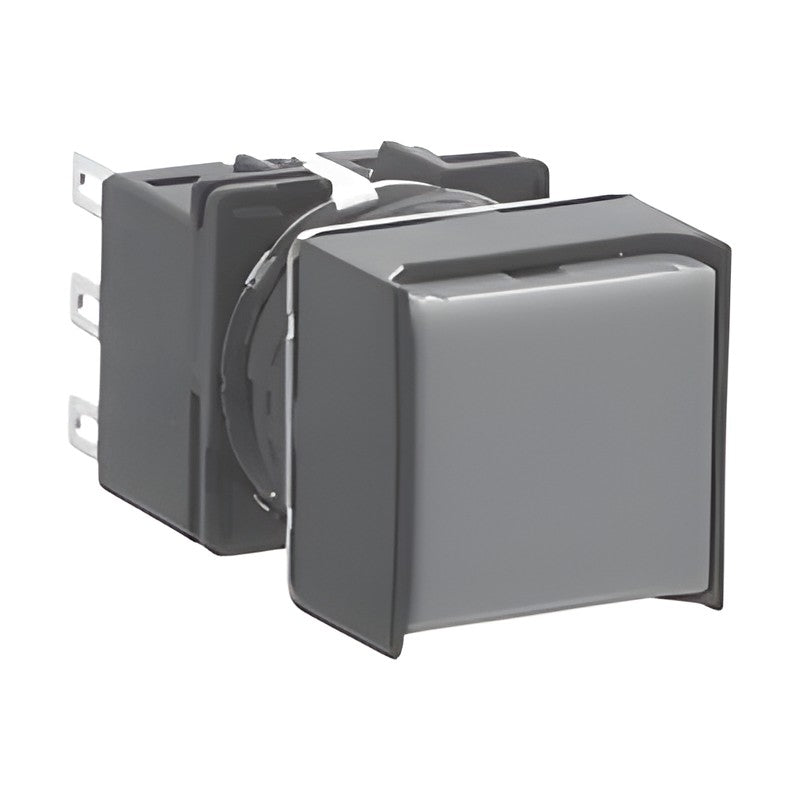

IDEC LB Series Pushbuttons (16 mm, button/lens, up to 3c)

IDEC LB Series Pushbuttons (16 mm, button/lens, up to 3c)

Standard-bezel non-illuminated pushbutton control units of the IDEC LB series with button or lens operator.

Key features

  • Round, square, rectangular and rectangular 3-side barrier
  • Button or lens operator (lens accepts marking film)
  • Momentary or alternate action
  • 1c to 3c, gold or silver contacts

Specifications

Mounting 16 mm class panel cutout
Depth behind panel 27.9 mm (standard bezel)
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Terminals Solder/tab #110 (PCB: suffix V, gold)
Source IDEC LB/LBW Series catalogue, p. 32-33
LB1B-M1T1B Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB1B-M1T1G Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB1B-M1T1R Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB1B-M1T1Y Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB1B-M1T1S Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB1B-M1T1W Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB1B-M1T1LR Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB1B-M1T1LG Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB1B-M1T1LY Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB1B-M1T1LA Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB1B-M1T1LW Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB1B-M1T1LS Shape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB1B-M1T2B Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB1B-M1T2G Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB1B-M1T2R Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB1B-M1T2Y Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB1B-M1T2S Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB1B-M1T2W Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB1B-M1T2LR Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB1B-M1T2LG Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB1B-M1T2LY Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB1B-M1T2LA Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB1B-M1T2LW Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB1B-M1T2LS Shape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB1B-M1T3B Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB1B-M1T3G Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB1B-M1T3R Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB1B-M1T3Y Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB1B-M1T3S Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB1B-M1T3W Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB1B-M1T3LR Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB1B-M1T3LG Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB1B-M1T3LY Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB1B-M1T3LA Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB1B-M1T3LW Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB1B-M1T3LS Shape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB1B-M1T5B Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB1B-M1T5G Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB1B-M1T5R Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB1B-M1T5Y Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB1B-M1T5S Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB1B-M1T5W Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB1B-M1T5LR Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB1B-M1T5LG Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB1B-M1T5LY Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB1B-M1T5LA Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB1B-M1T5LW Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB1B-M1T5LS Shape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB1B-M1T6B Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB1B-M1T6G Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB1B-M1T6R Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB1B-M1T6Y Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB1B-M1T6S Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB1B-M1T6W Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB1B-M1T6LR Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB1B-M1T6LG Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB1B-M1T6LY Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB1B-M1T6LA Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB1B-M1T6LW Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB1B-M1T6LS Shape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB1B-M1T7B Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB1B-M1T7G Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB1B-M1T7R Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB1B-M1T7Y Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB1B-M1T7S Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB1B-M1T7W Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB1B-M1T7LR Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB1B-M1T7LG Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB1B-M1T7LY Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB1B-M1T7LA Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB1B-M1T7LW Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB1B-M1T7LS Shape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB1B-A1T1B Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB1B-A1T1G Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB1B-A1T1R Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB1B-A1T1Y Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB1B-A1T1S Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB1B-A1T1W Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB1B-A1T1LR Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB1B-A1T1LG Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB1B-A1T1LY Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB1B-A1T1LA Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB1B-A1T1LW Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB1B-A1T1LS Shape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB1B-A1T2B Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB1B-A1T2G Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB1B-A1T2R Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB1B-A1T2Y Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB1B-A1T2S Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB1B-A1T2W Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB1B-A1T2LR Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB1B-A1T2LG Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB1B-A1T2LY Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB1B-A1T2LA Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB1B-A1T2LW Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB1B-A1T2LS Shape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB1B-A1T3B Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB1B-A1T3G Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB1B-A1T3R Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB1B-A1T3Y Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB1B-A1T3S Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB1B-A1T3W Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB1B-A1T3LR Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB1B-A1T3LG Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB1B-A1T3LY Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB1B-A1T3LA Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB1B-A1T3LW Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB1B-A1T3LS Shape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB1B-A1T5B Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB1B-A1T5G Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB1B-A1T5R Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB1B-A1T5Y Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB1B-A1T5S Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB1B-A1T5W Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB1B-A1T5LR Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB1B-A1T5LG Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB1B-A1T5LY Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB1B-A1T5LA Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB1B-A1T5LW Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB1B-A1T5LS Shape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB1B-A1T6B Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB1B-A1T6G Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB1B-A1T6R Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB1B-A1T6Y Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB1B-A1T6S Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB1B-A1T6W Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB1B-A1T6LR Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB1B-A1T6LG Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB1B-A1T6LY Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB1B-A1T6LA Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB1B-A1T6LW Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB1B-A1T6LS Shape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB1B-A1T7B Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB1B-A1T7G Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB1B-A1T7R Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB1B-A1T7Y Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB1B-A1T7S Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB1B-A1T7W Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB1B-A1T7LR Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB1B-A1T7LG Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB1B-A1T7LY Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB1B-A1T7LA Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB1B-A1T7LW Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB1B-A1T7LS Shape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB2B-M1T1B Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB2B-M1T1G Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB2B-M1T1R Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB2B-M1T1Y Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB2B-M1T1S Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB2B-M1T1W Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB2B-M1T1LR Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB2B-M1T1LG Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB2B-M1T1LY Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB2B-M1T1LA Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB2B-M1T1LW Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB2B-M1T1LS Shape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB2B-M1T2B Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB2B-M1T2G Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB2B-M1T2R Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB2B-M1T2Y Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB2B-M1T2S Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB2B-M1T2W Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB2B-M1T2LR Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB2B-M1T2LG Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB2B-M1T2LY Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB2B-M1T2LA Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB2B-M1T2LW Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB2B-M1T2LS Shape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB2B-M1T3B Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB2B-M1T3G Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB2B-M1T3R Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB2B-M1T3Y Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB2B-M1T3S Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB2B-M1T3W Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB2B-M1T3LR Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB2B-M1T3LG Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB2B-M1T3LY Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB2B-M1T3LA Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB2B-M1T3LW Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB2B-M1T3LS Shape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB2B-M1T5B Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB2B-M1T5G Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB2B-M1T5R Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB2B-M1T5Y Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB2B-M1T5S Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB2B-M1T5W Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB2B-M1T5LR Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB2B-M1T5LG Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB2B-M1T5LY Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB2B-M1T5LA Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB2B-M1T5LW Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB2B-M1T5LS Shape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB2B-M1T6B Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB2B-M1T6G Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB2B-M1T6R Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB2B-M1T6Y Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB2B-M1T6S Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB2B-M1T6W Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB2B-M1T6LR Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB2B-M1T6LG Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB2B-M1T6LY Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB2B-M1T6LA Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB2B-M1T6LW Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB2B-M1T6LS Shape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB2B-M1T7B Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB2B-M1T7G Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB2B-M1T7R Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB2B-M1T7Y Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB2B-M1T7S Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB2B-M1T7W Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB2B-M1T7LR Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB2B-M1T7LG Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB2B-M1T7LY Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB2B-M1T7LA Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB2B-M1T7LW Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB2B-M1T7LS Shape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB2B-A1T1B Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB2B-A1T1G Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB2B-A1T1R Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB2B-A1T1Y Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB2B-A1T1S Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB2B-A1T1W Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB2B-A1T1LR Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB2B-A1T1LG Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB2B-A1T1LY Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB2B-A1T1LA Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB2B-A1T1LW Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB2B-A1T1LS Shape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB2B-A1T2B Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB2B-A1T2G Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB2B-A1T2R Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB2B-A1T2Y Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB2B-A1T2S Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB2B-A1T2W Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB2B-A1T2LR Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB2B-A1T2LG Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB2B-A1T2LY Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB2B-A1T2LA Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB2B-A1T2LW Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB2B-A1T2LS Shape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB2B-A1T3B Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB2B-A1T3G Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB2B-A1T3R Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB2B-A1T3Y Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB2B-A1T3S Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB2B-A1T3W Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB2B-A1T3LR Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB2B-A1T3LG Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB2B-A1T3LY Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB2B-A1T3LA Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB2B-A1T3LW Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB2B-A1T3LS Shape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB2B-A1T5B Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB2B-A1T5G Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB2B-A1T5R Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB2B-A1T5Y Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB2B-A1T5S Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB2B-A1T5W Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB2B-A1T5LR Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB2B-A1T5LG Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB2B-A1T5LY Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB2B-A1T5LA Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB2B-A1T5LW Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB2B-A1T5LS Shape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB2B-A1T6B Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB2B-A1T6G Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB2B-A1T6R Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB2B-A1T6Y Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB2B-A1T6S Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB2B-A1T6W Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB2B-A1T6LR Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB2B-A1T6LG Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB2B-A1T6LY Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB2B-A1T6LA Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB2B-A1T6LW Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB2B-A1T6LS Shape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB2B-A1T7B Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB2B-A1T7G Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB2B-A1T7R Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB2B-A1T7Y Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB2B-A1T7S Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB2B-A1T7W Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB2B-A1T7LR Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB2B-A1T7LG Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB2B-A1T7LY Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB2B-A1T7LA Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB2B-A1T7LW Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB2B-A1T7LS Shape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB3B-M1T1B Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB3B-M1T1G Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB3B-M1T1R Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB3B-M1T1Y Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB3B-M1T1S Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB3B-M1T1W Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB3B-M1T1LR Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB3B-M1T1LG Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB3B-M1T1LY Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB3B-M1T1LA Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB3B-M1T1LW Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB3B-M1T1LS Shape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB3B-M1T2B Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB3B-M1T2G Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB3B-M1T2R Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB3B-M1T2Y Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB3B-M1T2S Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB3B-M1T2W Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB3B-M1T2LR Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB3B-M1T2LG Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB3B-M1T2LY Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB3B-M1T2LA Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB3B-M1T2LW Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB3B-M1T2LS Shape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB3B-M1T3B Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB3B-M1T3G Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB3B-M1T3R Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB3B-M1T3Y Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB3B-M1T3S Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB3B-M1T3W Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB3B-M1T3LR Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB3B-M1T3LG Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB3B-M1T3LY Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB3B-M1T3LA Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB3B-M1T3LW Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB3B-M1T3LS Shape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB3B-M1T5B Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB3B-M1T5G Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB3B-M1T5R Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB3B-M1T5Y Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB3B-M1T5S Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB3B-M1T5W Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB3B-M1T5LR Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB3B-M1T5LG Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB3B-M1T5LY Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB3B-M1T5LA Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB3B-M1T5LW Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB3B-M1T5LS Shape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB3B-M1T6B Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB3B-M1T6G Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB3B-M1T6R Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB3B-M1T6Y Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB3B-M1T6S Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB3B-M1T6W Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB3B-M1T6LR Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB3B-M1T6LG Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB3B-M1T6LY Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB3B-M1T6LA Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB3B-M1T6LW Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB3B-M1T6LS Shape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB3B-M1T7B Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB3B-M1T7G Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB3B-M1T7R Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB3B-M1T7Y Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB3B-M1T7S Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB3B-M1T7W Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB3B-M1T7LR Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB3B-M1T7LG Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB3B-M1T7LY Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB3B-M1T7LA Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB3B-M1T7LW Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB3B-M1T7LS Shape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB3B-A1T1B Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB3B-A1T1G Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB3B-A1T1R Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB3B-A1T1Y Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB3B-A1T1S Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB3B-A1T1W Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB3B-A1T1LR Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB3B-A1T1LG Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB3B-A1T1LY Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB3B-A1T1LA Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB3B-A1T1LW Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB3B-A1T1LS Shape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB3B-A1T2B Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB3B-A1T2G Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB3B-A1T2R Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB3B-A1T2Y Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB3B-A1T2S Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB3B-A1T2W Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB3B-A1T2LR Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB3B-A1T2LG Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB3B-A1T2LY Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB3B-A1T2LA Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB3B-A1T2LW Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB3B-A1T2LS Shape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB3B-A1T3B Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB3B-A1T3G Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB3B-A1T3R Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB3B-A1T3Y Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB3B-A1T3S Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB3B-A1T3W Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB3B-A1T3LR Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB3B-A1T3LG Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB3B-A1T3LY Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB3B-A1T3LA Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB3B-A1T3LW Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB3B-A1T3LS Shape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB3B-A1T5B Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB3B-A1T5G Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB3B-A1T5R Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB3B-A1T5Y Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB3B-A1T5S Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB3B-A1T5W Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB3B-A1T5LR Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB3B-A1T5LG Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB3B-A1T5LY Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB3B-A1T5LA Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB3B-A1T5LW Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB3B-A1T5LS Shape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB3B-A1T6B Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB3B-A1T6G Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB3B-A1T6R Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB3B-A1T6Y Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB3B-A1T6S Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB3B-A1T6W Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB3B-A1T6LR Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB3B-A1T6LG Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB3B-A1T6LY Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB3B-A1T6LA Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB3B-A1T6LW Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB3B-A1T6LS Shape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB3B-A1T7B Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB3B-A1T7G Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB3B-A1T7R Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB3B-A1T7Y Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB3B-A1T7S Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB3B-A1T7W Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB3B-A1T7LR Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB3B-A1T7LG Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB3B-A1T7LY Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB3B-A1T7LA Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB3B-A1T7LW Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB3B-A1T7LS Shape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB4B-M1T1B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB4B-M1T1G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB4B-M1T1R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB4B-M1T1Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB4B-M1T1S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB4B-M1T1W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB4B-M1T1LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB4B-M1T1LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB4B-M1T1LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB4B-M1T1LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB4B-M1T1LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB4B-M1T1LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB4B-M1T2B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB4B-M1T2G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB4B-M1T2R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB4B-M1T2Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB4B-M1T2S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB4B-M1T2W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB4B-M1T2LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB4B-M1T2LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB4B-M1T2LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB4B-M1T2LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB4B-M1T2LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB4B-M1T2LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB4B-M1T3B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB4B-M1T3G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB4B-M1T3R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB4B-M1T3Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB4B-M1T3S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB4B-M1T3W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB4B-M1T3LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB4B-M1T3LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB4B-M1T3LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB4B-M1T3LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB4B-M1T3LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB4B-M1T3LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB4B-M1T5B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB4B-M1T5G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB4B-M1T5R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB4B-M1T5Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB4B-M1T5S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB4B-M1T5W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB4B-M1T5LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB4B-M1T5LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB4B-M1T5LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB4B-M1T5LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB4B-M1T5LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB4B-M1T5LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB4B-M1T6B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB4B-M1T6G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB4B-M1T6R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB4B-M1T6Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB4B-M1T6S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB4B-M1T6W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB4B-M1T6LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB4B-M1T6LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB4B-M1T6LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB4B-M1T6LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB4B-M1T6LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB4B-M1T6LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB4B-M1T7B Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB4B-M1T7G Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB4B-M1T7R Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB4B-M1T7Y Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB4B-M1T7S Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB4B-M1T7W Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB4B-M1T7LR Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB4B-M1T7LG Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB4B-M1T7LY Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB4B-M1T7LA Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB4B-M1T7LW Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB4B-M1T7LS Shape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB4B-A1T1B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB4B-A1T1G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB4B-A1T1R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB4B-A1T1Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB4B-A1T1S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB4B-A1T1W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB4B-A1T1LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB4B-A1T1LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB4B-A1T1LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB4B-A1T1LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB4B-A1T1LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB4B-A1T1LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB4B-A1T2B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB4B-A1T2G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB4B-A1T2R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB4B-A1T2Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB4B-A1T2S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB4B-A1T2W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB4B-A1T2LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB4B-A1T2LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB4B-A1T2LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB4B-A1T2LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB4B-A1T2LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB4B-A1T2LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB4B-A1T3B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB4B-A1T3G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB4B-A1T3R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB4B-A1T3Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB4B-A1T3S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB4B-A1T3W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB4B-A1T3LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB4B-A1T3LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB4B-A1T3LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB4B-A1T3LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB4B-A1T3LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB4B-A1T3LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB4B-A1T5B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB4B-A1T5G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB4B-A1T5R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB4B-A1T5Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB4B-A1T5S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB4B-A1T5W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB4B-A1T5LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB4B-A1T5LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB4B-A1T5LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB4B-A1T5LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB4B-A1T5LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB4B-A1T5LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB4B-A1T6B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB4B-A1T6G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB4B-A1T6R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB4B-A1T6Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB4B-A1T6S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB4B-A1T6W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB4B-A1T6LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB4B-A1T6LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB4B-A1T6LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB4B-A1T6LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB4B-A1T6LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB4B-A1T6LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB4B-A1T7B Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB4B-A1T7G Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB4B-A1T7R Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB4B-A1T7Y Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB4B-A1T7S Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB4B-A1T7W Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB4B-A1T7LR Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB4B-A1T7LG Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB4B-A1T7LY Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB4B-A1T7LA Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB4B-A1T7LW Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB4B-A1T7LS Shape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
PushbuttonsIDEC
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB Series Pushbuttons (16 mm, button/lens, up to 3c)

Brand IDEC·Pushbuttons

Available part numbers (576)

LB1B-M1T1B, LB1B-M1T1G, LB1B-M1T1R, LB1B-M1T1Y, LB1B-M1T1S, LB1B-M1T1W, LB1B-M1T1LR, LB1B-M1T1LG, LB1B-M1T1LY, LB1B-M1T1LA + 566 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB1B-M1T1BShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB1B-M1T1GShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB1B-M1T1RShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB1B-M1T1YShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB1B-M1T1SShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB1B-M1T1WShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB1B-M1T1LRShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB1B-M1T1LGShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB1B-M1T1LYShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB1B-M1T1LAShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB1B-M1T1LWShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB1B-M1T1LSShape: Round | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB1B-M1T2BShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB1B-M1T2GShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB1B-M1T2RShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB1B-M1T2YShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB1B-M1T2SShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB1B-M1T2WShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB1B-M1T2LRShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB1B-M1T2LGShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB1B-M1T2LYShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB1B-M1T2LAShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB1B-M1T2LWShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB1B-M1T2LSShape: Round | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB1B-M1T3BShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB1B-M1T3GShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB1B-M1T3RShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB1B-M1T3YShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB1B-M1T3SShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB1B-M1T3WShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB1B-M1T3LRShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB1B-M1T3LGShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB1B-M1T3LYShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB1B-M1T3LAShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB1B-M1T3LWShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB1B-M1T3LSShape: Round | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB1B-M1T5BShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB1B-M1T5GShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB1B-M1T5RShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB1B-M1T5YShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB1B-M1T5SShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB1B-M1T5WShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB1B-M1T5LRShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB1B-M1T5LGShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB1B-M1T5LYShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB1B-M1T5LAShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB1B-M1T5LWShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB1B-M1T5LSShape: Round | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB1B-M1T6BShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB1B-M1T6GShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB1B-M1T6RShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB1B-M1T6YShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB1B-M1T6SShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB1B-M1T6WShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB1B-M1T6LRShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB1B-M1T6LGShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB1B-M1T6LYShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB1B-M1T6LAShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB1B-M1T6LWShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB1B-M1T6LSShape: Round | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB1B-M1T7BShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB1B-M1T7GShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB1B-M1T7RShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB1B-M1T7YShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB1B-M1T7SShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB1B-M1T7WShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB1B-M1T7LRShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB1B-M1T7LGShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB1B-M1T7LYShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB1B-M1T7LAShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB1B-M1T7LWShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB1B-M1T7LSShape: Round | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB1B-A1T1BShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB1B-A1T1GShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB1B-A1T1RShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB1B-A1T1YShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB1B-A1T1SShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB1B-A1T1WShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB1B-A1T1LRShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB1B-A1T1LGShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB1B-A1T1LYShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB1B-A1T1LAShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB1B-A1T1LWShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB1B-A1T1LSShape: Round | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB1B-A1T2BShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB1B-A1T2GShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB1B-A1T2RShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB1B-A1T2YShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB1B-A1T2SShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB1B-A1T2WShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB1B-A1T2LRShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB1B-A1T2LGShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB1B-A1T2LYShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB1B-A1T2LAShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB1B-A1T2LWShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB1B-A1T2LSShape: Round | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB1B-A1T3BShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB1B-A1T3GShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB1B-A1T3RShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB1B-A1T3YShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB1B-A1T3SShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB1B-A1T3WShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB1B-A1T3LRShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB1B-A1T3LGShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB1B-A1T3LYShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB1B-A1T3LAShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB1B-A1T3LWShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB1B-A1T3LSShape: Round | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB1B-A1T5BShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB1B-A1T5GShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB1B-A1T5RShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB1B-A1T5YShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB1B-A1T5SShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB1B-A1T5WShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB1B-A1T5LRShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB1B-A1T5LGShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB1B-A1T5LYShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB1B-A1T5LAShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB1B-A1T5LWShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB1B-A1T5LSShape: Round | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB1B-A1T6BShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB1B-A1T6GShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB1B-A1T6RShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB1B-A1T6YShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB1B-A1T6SShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB1B-A1T6WShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB1B-A1T6LRShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB1B-A1T6LGShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB1B-A1T6LYShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB1B-A1T6LAShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB1B-A1T6LWShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB1B-A1T6LSShape: Round | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB1B-A1T7BShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB1B-A1T7GShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB1B-A1T7RShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB1B-A1T7YShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB1B-A1T7SShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB1B-A1T7WShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB1B-A1T7LRShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB1B-A1T7LGShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB1B-A1T7LYShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB1B-A1T7LAShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB1B-A1T7LWShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB1B-A1T7LSShape: Round | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB2B-M1T1BShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB2B-M1T1GShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB2B-M1T1RShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB2B-M1T1YShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB2B-M1T1SShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB2B-M1T1WShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB2B-M1T1LRShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB2B-M1T1LGShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB2B-M1T1LYShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB2B-M1T1LAShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB2B-M1T1LWShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB2B-M1T1LSShape: Square | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB2B-M1T2BShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB2B-M1T2GShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB2B-M1T2RShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB2B-M1T2YShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB2B-M1T2SShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB2B-M1T2WShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB2B-M1T2LRShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB2B-M1T2LGShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB2B-M1T2LYShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB2B-M1T2LAShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB2B-M1T2LWShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB2B-M1T2LSShape: Square | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB2B-M1T3BShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB2B-M1T3GShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB2B-M1T3RShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB2B-M1T3YShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB2B-M1T3SShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB2B-M1T3WShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB2B-M1T3LRShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB2B-M1T3LGShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB2B-M1T3LYShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB2B-M1T3LAShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB2B-M1T3LWShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB2B-M1T3LSShape: Square | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB2B-M1T5BShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB2B-M1T5GShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB2B-M1T5RShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB2B-M1T5YShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB2B-M1T5SShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB2B-M1T5WShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB2B-M1T5LRShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB2B-M1T5LGShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB2B-M1T5LYShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB2B-M1T5LAShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB2B-M1T5LWShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB2B-M1T5LSShape: Square | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB2B-M1T6BShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB2B-M1T6GShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB2B-M1T6RShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB2B-M1T6YShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB2B-M1T6SShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB2B-M1T6WShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB2B-M1T6LRShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB2B-M1T6LGShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB2B-M1T6LYShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB2B-M1T6LAShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB2B-M1T6LWShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB2B-M1T6LSShape: Square | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB2B-M1T7BShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB2B-M1T7GShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB2B-M1T7RShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB2B-M1T7YShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB2B-M1T7SShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB2B-M1T7WShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB2B-M1T7LRShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB2B-M1T7LGShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB2B-M1T7LYShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB2B-M1T7LAShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB2B-M1T7LWShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB2B-M1T7LSShape: Square | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB2B-A1T1BShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB2B-A1T1GShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB2B-A1T1RShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB2B-A1T1YShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB2B-A1T1SShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB2B-A1T1WShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB2B-A1T1LRShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB2B-A1T1LGShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB2B-A1T1LYShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB2B-A1T1LAShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB2B-A1T1LWShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB2B-A1T1LSShape: Square | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB2B-A1T2BShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB2B-A1T2GShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB2B-A1T2RShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB2B-A1T2YShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB2B-A1T2SShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB2B-A1T2WShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB2B-A1T2LRShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB2B-A1T2LGShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB2B-A1T2LYShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB2B-A1T2LAShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB2B-A1T2LWShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB2B-A1T2LSShape: Square | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB2B-A1T3BShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB2B-A1T3GShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB2B-A1T3RShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB2B-A1T3YShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB2B-A1T3SShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB2B-A1T3WShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB2B-A1T3LRShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB2B-A1T3LGShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB2B-A1T3LYShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB2B-A1T3LAShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB2B-A1T3LWShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB2B-A1T3LSShape: Square | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB2B-A1T5BShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB2B-A1T5GShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB2B-A1T5RShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB2B-A1T5YShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB2B-A1T5SShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB2B-A1T5WShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB2B-A1T5LRShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB2B-A1T5LGShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB2B-A1T5LYShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB2B-A1T5LAShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB2B-A1T5LWShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB2B-A1T5LSShape: Square | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB2B-A1T6BShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB2B-A1T6GShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB2B-A1T6RShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB2B-A1T6YShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB2B-A1T6SShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB2B-A1T6WShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB2B-A1T6LRShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB2B-A1T6LGShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB2B-A1T6LYShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB2B-A1T6LAShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB2B-A1T6LWShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB2B-A1T6LSShape: Square | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB2B-A1T7BShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB2B-A1T7GShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB2B-A1T7RShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB2B-A1T7YShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB2B-A1T7SShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB2B-A1T7WShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB2B-A1T7LRShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB2B-A1T7LGShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB2B-A1T7LYShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB2B-A1T7LAShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB2B-A1T7LWShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB2B-A1T7LSShape: Square | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB3B-M1T1BShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB3B-M1T1GShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB3B-M1T1RShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB3B-M1T1YShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB3B-M1T1SShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB3B-M1T1WShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB3B-M1T1LRShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB3B-M1T1LGShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB3B-M1T1LYShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB3B-M1T1LAShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB3B-M1T1LWShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB3B-M1T1LSShape: Rectangular | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB3B-M1T2BShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB3B-M1T2GShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB3B-M1T2RShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB3B-M1T2YShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB3B-M1T2SShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB3B-M1T2WShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB3B-M1T2LRShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB3B-M1T2LGShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB3B-M1T2LYShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB3B-M1T2LAShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB3B-M1T2LWShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB3B-M1T2LSShape: Rectangular | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB3B-M1T3BShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB3B-M1T3GShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB3B-M1T3RShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB3B-M1T3YShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB3B-M1T3SShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB3B-M1T3WShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB3B-M1T3LRShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB3B-M1T3LGShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB3B-M1T3LYShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB3B-M1T3LAShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB3B-M1T3LWShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB3B-M1T3LSShape: Rectangular | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB3B-M1T5BShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB3B-M1T5GShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB3B-M1T5RShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB3B-M1T5YShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB3B-M1T5SShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB3B-M1T5WShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB3B-M1T5LRShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB3B-M1T5LGShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB3B-M1T5LYShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB3B-M1T5LAShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB3B-M1T5LWShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB3B-M1T5LSShape: Rectangular | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB3B-M1T6BShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB3B-M1T6GShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB3B-M1T6RShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB3B-M1T6YShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB3B-M1T6SShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB3B-M1T6WShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB3B-M1T6LRShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB3B-M1T6LGShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB3B-M1T6LYShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB3B-M1T6LAShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB3B-M1T6LWShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB3B-M1T6LSShape: Rectangular | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB3B-M1T7BShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB3B-M1T7GShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB3B-M1T7RShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB3B-M1T7YShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB3B-M1T7SShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB3B-M1T7WShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB3B-M1T7LRShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB3B-M1T7LGShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB3B-M1T7LYShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB3B-M1T7LAShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB3B-M1T7LWShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB3B-M1T7LSShape: Rectangular | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB3B-A1T1BShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB3B-A1T1GShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB3B-A1T1RShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB3B-A1T1YShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB3B-A1T1SShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB3B-A1T1WShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB3B-A1T1LRShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB3B-A1T1LGShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB3B-A1T1LYShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB3B-A1T1LAShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB3B-A1T1LWShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB3B-A1T1LSShape: Rectangular | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB3B-A1T2BShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB3B-A1T2GShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB3B-A1T2RShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB3B-A1T2YShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB3B-A1T2SShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB3B-A1T2WShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB3B-A1T2LRShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB3B-A1T2LGShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB3B-A1T2LYShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB3B-A1T2LAShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB3B-A1T2LWShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB3B-A1T2LSShape: Rectangular | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB3B-A1T3BShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB3B-A1T3GShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB3B-A1T3RShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB3B-A1T3YShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB3B-A1T3SShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB3B-A1T3WShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB3B-A1T3LRShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB3B-A1T3LGShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB3B-A1T3LYShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB3B-A1T3LAShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB3B-A1T3LWShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB3B-A1T3LSShape: Rectangular | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB3B-A1T5BShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB3B-A1T5GShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB3B-A1T5RShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB3B-A1T5YShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB3B-A1T5SShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB3B-A1T5WShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB3B-A1T5LRShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB3B-A1T5LGShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB3B-A1T5LYShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB3B-A1T5LAShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB3B-A1T5LWShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB3B-A1T5LSShape: Rectangular | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB3B-A1T6BShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB3B-A1T6GShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB3B-A1T6RShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB3B-A1T6YShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB3B-A1T6SShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB3B-A1T6WShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB3B-A1T6LRShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB3B-A1T6LGShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB3B-A1T6LYShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB3B-A1T6LAShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB3B-A1T6LWShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB3B-A1T6LSShape: Rectangular | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB3B-A1T7BShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB3B-A1T7GShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB3B-A1T7RShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB3B-A1T7YShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB3B-A1T7SShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB3B-A1T7WShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB3B-A1T7LRShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB3B-A1T7LGShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB3B-A1T7LYShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB3B-A1T7LAShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB3B-A1T7LWShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB3B-A1T7LSShape: Rectangular | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue
LB4B-M1T1BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button black
LB4B-M1T1GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button green
LB4B-M1T1RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button red
LB4B-M1T1YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button yellow
LB4B-M1T1SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button blue
LB4B-M1T1WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Button white
LB4B-M1T1LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens red
LB4B-M1T1LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens green
LB4B-M1T1LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens yellow
LB4B-M1T1LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens amber
LB4B-M1T1LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens white
LB4B-M1T1LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 1c | Operator: Lens blue
LB4B-M1T2BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button black
LB4B-M1T2GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button green
LB4B-M1T2RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button red
LB4B-M1T2YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button yellow
LB4B-M1T2SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button blue
LB4B-M1T2WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Button white
LB4B-M1T2LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens red
LB4B-M1T2LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens green
LB4B-M1T2LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens yellow
LB4B-M1T2LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens amber
LB4B-M1T2LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens white
LB4B-M1T2LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 2c | Operator: Lens blue
LB4B-M1T3BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button black
LB4B-M1T3GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button green
LB4B-M1T3RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button red
LB4B-M1T3YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button yellow
LB4B-M1T3SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button blue
LB4B-M1T3WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Button white
LB4B-M1T3LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens red
LB4B-M1T3LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens green
LB4B-M1T3LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens yellow
LB4B-M1T3LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens amber
LB4B-M1T3LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens white
LB4B-M1T3LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Gold 3c | Operator: Lens blue
LB4B-M1T5BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button black
LB4B-M1T5GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button green
LB4B-M1T5RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button red
LB4B-M1T5YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button yellow
LB4B-M1T5SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button blue
LB4B-M1T5WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Button white
LB4B-M1T5LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens red
LB4B-M1T5LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens green
LB4B-M1T5LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens yellow
LB4B-M1T5LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens amber
LB4B-M1T5LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens white
LB4B-M1T5LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 1c | Operator: Lens blue
LB4B-M1T6BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button black
LB4B-M1T6GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button green
LB4B-M1T6RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button red
LB4B-M1T6YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button yellow
LB4B-M1T6SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button blue
LB4B-M1T6WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Button white
LB4B-M1T6LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens red
LB4B-M1T6LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens green
LB4B-M1T6LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens yellow
LB4B-M1T6LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens amber
LB4B-M1T6LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens white
LB4B-M1T6LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 2c | Operator: Lens blue
LB4B-M1T7BShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button black
LB4B-M1T7GShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button green
LB4B-M1T7RShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button red
LB4B-M1T7YShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button yellow
LB4B-M1T7SShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button blue
LB4B-M1T7WShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Button white
LB4B-M1T7LRShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens red
LB4B-M1T7LGShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens green
LB4B-M1T7LYShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens yellow
LB4B-M1T7LAShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens amber
LB4B-M1T7LWShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens white
LB4B-M1T7LSShape: Rect. 3-side barrier | Action: Momentary | Contacts: Silver 3c | Operator: Lens blue
LB4B-A1T1BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button black
LB4B-A1T1GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button green
LB4B-A1T1RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button red
LB4B-A1T1YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button yellow
LB4B-A1T1SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button blue
LB4B-A1T1WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Button white
LB4B-A1T1LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens red
LB4B-A1T1LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens green
LB4B-A1T1LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens yellow
LB4B-A1T1LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens amber
LB4B-A1T1LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens white
LB4B-A1T1LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 1c | Operator: Lens blue
LB4B-A1T2BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button black
LB4B-A1T2GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button green
LB4B-A1T2RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button red
LB4B-A1T2YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button yellow
LB4B-A1T2SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button blue
LB4B-A1T2WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Button white
LB4B-A1T2LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens red
LB4B-A1T2LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens green
LB4B-A1T2LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens yellow
LB4B-A1T2LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens amber
LB4B-A1T2LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens white
LB4B-A1T2LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 2c | Operator: Lens blue
LB4B-A1T3BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button black
LB4B-A1T3GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button green
LB4B-A1T3RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button red
LB4B-A1T3YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button yellow
LB4B-A1T3SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button blue
LB4B-A1T3WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Button white
LB4B-A1T3LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens red
LB4B-A1T3LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens green
LB4B-A1T3LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens yellow
LB4B-A1T3LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens amber
LB4B-A1T3LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens white
LB4B-A1T3LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Gold 3c | Operator: Lens blue
LB4B-A1T5BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button black
LB4B-A1T5GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button green
LB4B-A1T5RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button red
LB4B-A1T5YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button yellow
LB4B-A1T5SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button blue
LB4B-A1T5WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Button white
LB4B-A1T5LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens red
LB4B-A1T5LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens green
LB4B-A1T5LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens yellow
LB4B-A1T5LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens amber
LB4B-A1T5LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens white
LB4B-A1T5LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 1c | Operator: Lens blue
LB4B-A1T6BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button black
LB4B-A1T6GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button green
LB4B-A1T6RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button red
LB4B-A1T6YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button yellow
LB4B-A1T6SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button blue
LB4B-A1T6WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Button white
LB4B-A1T6LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens red
LB4B-A1T6LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens green
LB4B-A1T6LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens yellow
LB4B-A1T6LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens amber
LB4B-A1T6LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens white
LB4B-A1T6LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 2c | Operator: Lens blue
LB4B-A1T7BShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button black
LB4B-A1T7GShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button green
LB4B-A1T7RShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button red
LB4B-A1T7YShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button yellow
LB4B-A1T7SShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button blue
LB4B-A1T7WShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Button white
LB4B-A1T7LRShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens red
LB4B-A1T7LGShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens green
LB4B-A1T7LYShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens yellow
LB4B-A1T7LAShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens amber
LB4B-A1T7LWShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens white
LB4B-A1T7LSShape: Rect. 3-side barrier | Action: Alternate | Contacts: Silver 3c | Operator: Lens blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
