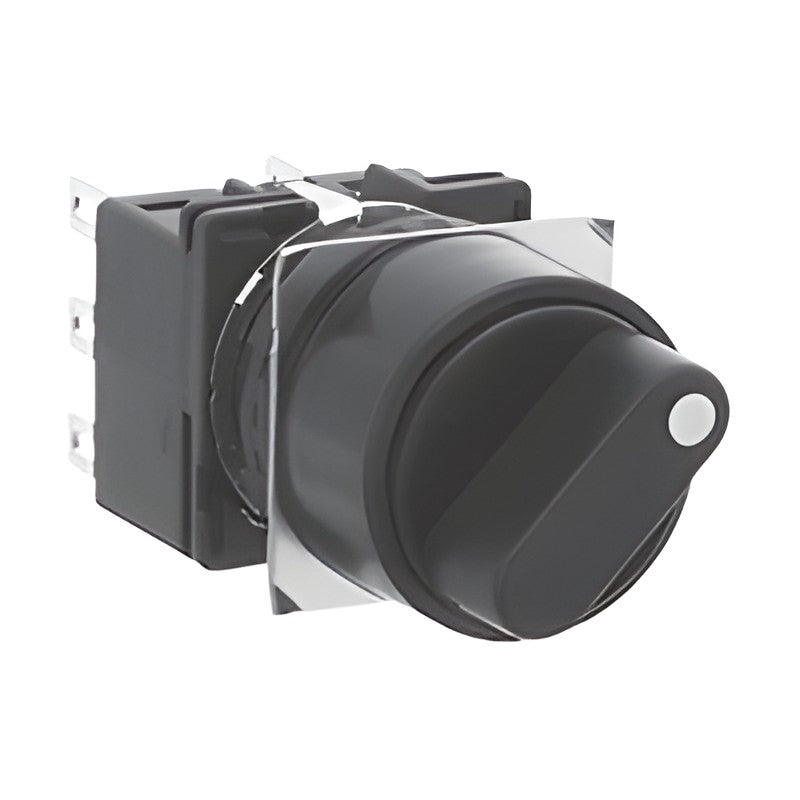

IDEC LB Series Selector Switches (16 mm, 2/3-position)

IDEC LB Series Selector Switches (16 mm, 2/3-position)

Standard-bezel knob-type selector switch control units of the IDEC LB series.

Key features

  • Round, square and rectangular shapes
  • 90 deg 2-position or 45 deg 3-position maintained, 3-position spring return
  • 1c to 3c, gold or silver contacts
  • Lever handle version available (suffix L)

Specifications

Mounting 16 mm class panel cutout
Depth behind panel 27.9 mm (standard bezel)
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Terminals Solder/tab #110 (PCB: suffix V, gold)
Source IDEC LB/LBW Series catalogue, p. 34-35
LB1S-2T1 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB1S-2T2 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB1S-2T3 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB1S-2T5 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB1S-2T6 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB1S-2T7 Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB1S-3T2 Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB1S-3T3 Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB1S-3T6 Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB1S-3T7 Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB1S-33T2 Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB1S-33T3 Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB1S-33T6 Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB1S-33T7 Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB2S-2T1 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB2S-2T2 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB2S-2T3 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB2S-2T5 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB2S-2T6 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB2S-2T7 Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB2S-3T2 Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB2S-3T3 Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB2S-3T6 Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB2S-3T7 Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB2S-33T2 Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB2S-33T3 Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB2S-33T6 Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB2S-33T7 Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LB3S-2T1 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LB3S-2T2 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LB3S-2T3 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LB3S-2T5 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LB3S-2T6 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LB3S-2T7 Shape: Rectangular | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LB3S-3T2 Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LB3S-3T3 Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LB3S-3T6 Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LB3S-3T7 Shape: Rectangular | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LB3S-33T2 Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LB3S-33T3 Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LB3S-33T6 Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LB3S-33T7 Shape: Rectangular | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
