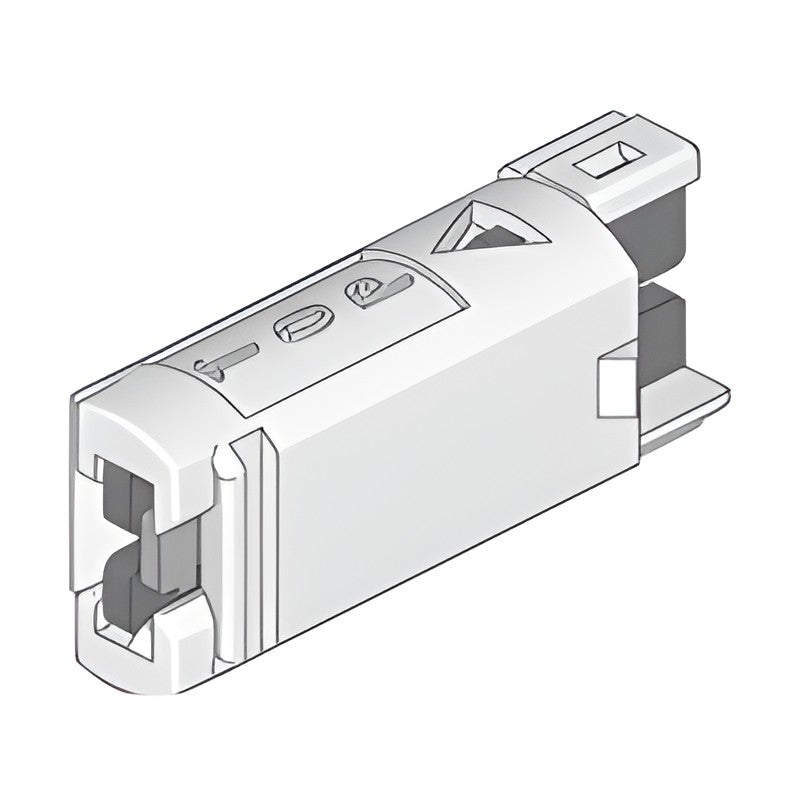

IDEC LB9Z-LED Replacement LED Units for LB/LBW Series

IDEC LB9Z-LED Replacement LED Units for LB/LBW Series

Replacement LED units for IDEC LB and LBW series illuminated control units, in DC5V, AC/DC12V and AC/DC24V versions.

Key features

  • Six illumination colours incl. pure white
  • Built-in current-limiting resistor
  • Rated voltage marked on the side of the unit
  • Use pure white unit for yellow illumination

Specifications

Current draw R/A/W 18 mA, G/S 6 mA, PW 5 mA
Voltage tolerance DC5V +/-5%, AC/DC12/24V +/-10%
LED life Approx. 30,000 h (reference)
Series LB / LBW
Supplied Built into all illuminated units
Source IDEC LB/LBW Series catalogue, p. 1, 54
LB9Z-LED5R Rated voltage: DC5V | Colour: Red
LB9Z-LED5G Rated voltage: DC5V | Colour: Green
LB9Z-LED5A Rated voltage: DC5V | Colour: Amber
LB9Z-LED5W Rated voltage: DC5V | Colour: White
LB9Z-LED5S Rated voltage: DC5V | Colour: Blue
LB9Z-LED5PW Rated voltage: DC5V | Colour: Pure white
LB9Z-LED1R Rated voltage: AC/DC12V | Colour: Red
LB9Z-LED1G Rated voltage: AC/DC12V | Colour: Green
LB9Z-LED1A Rated voltage: AC/DC12V | Colour: Amber
LB9Z-LED1W Rated voltage: AC/DC12V | Colour: White
LB9Z-LED1S Rated voltage: AC/DC12V | Colour: Blue
LB9Z-LED1PW Rated voltage: AC/DC12V | Colour: Pure white
LB9Z-LED2R Rated voltage: AC/DC24V | Colour: Red
LB9Z-LED2G Rated voltage: AC/DC24V | Colour: Green
LB9Z-LED2A Rated voltage: AC/DC24V | Colour: Amber
LB9Z-LED2W Rated voltage: AC/DC24V | Colour: White
LB9Z-LED2S Rated voltage: AC/DC24V | Colour: Blue
LB9Z-LED2PW Rated voltage: AC/DC24V | Colour: Pure white
Pushbutton AccessoriesIDEC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LB9Z-LED Replacement LED Units for LB/LBW Series

Brand IDEC·Pushbutton Accessories

Available part numbers (18)

LB9Z-LED5R, LB9Z-LED5G, LB9Z-LED5A, LB9Z-LED5W, LB9Z-LED5S, LB9Z-LED5PW, LB9Z-LED1R, LB9Z-LED1G, LB9Z-LED1A, LB9Z-LED1W + 8 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LB9Z-LED5RRated voltage: DC5V | Colour: Red
LB9Z-LED5GRated voltage: DC5V | Colour: Green
LB9Z-LED5ARated voltage: DC5V | Colour: Amber
LB9Z-LED5WRated voltage: DC5V | Colour: White
LB9Z-LED5SRated voltage: DC5V | Colour: Blue
LB9Z-LED5PWRated voltage: DC5V | Colour: Pure white
LB9Z-LED1RRated voltage: AC/DC12V | Colour: Red
LB9Z-LED1GRated voltage: AC/DC12V | Colour: Green
LB9Z-LED1ARated voltage: AC/DC12V | Colour: Amber
LB9Z-LED1WRated voltage: AC/DC12V | Colour: White
LB9Z-LED1SRated voltage: AC/DC12V | Colour: Blue
LB9Z-LED1PWRated voltage: AC/DC12V | Colour: Pure white
LB9Z-LED2RRated voltage: AC/DC24V | Colour: Red
LB9Z-LED2GRated voltage: AC/DC24V | Colour: Green
LB9Z-LED2ARated voltage: AC/DC24V | Colour: Amber
LB9Z-LED2WRated voltage: AC/DC24V | Colour: White
LB9Z-LED2SRated voltage: AC/DC24V | Colour: Blue
LB9Z-LED2PWRated voltage: AC/DC24V | Colour: Pure white
