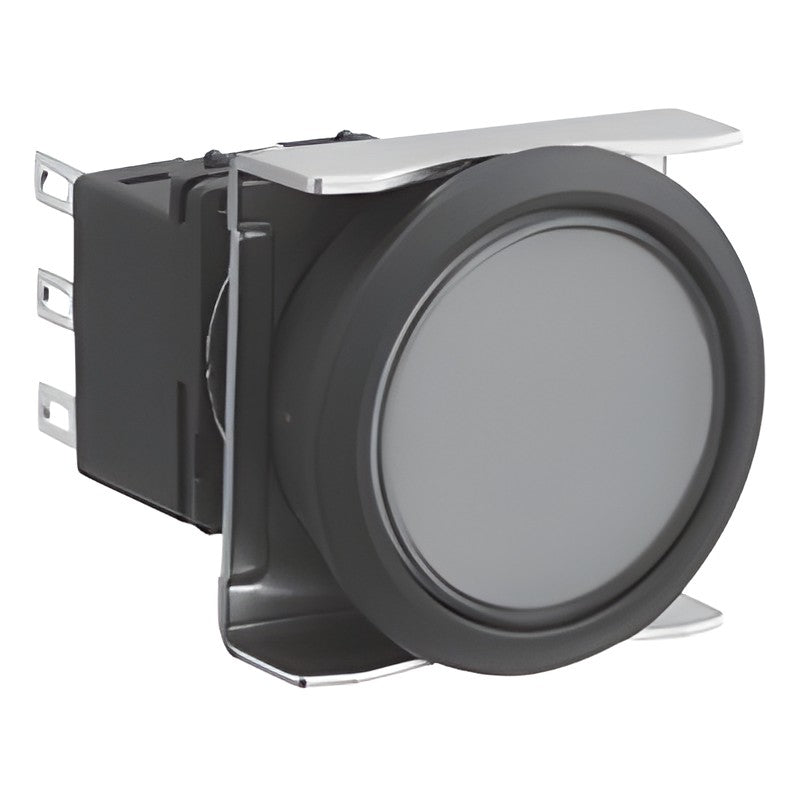

IDEC LBW Series Flush Bezel Illuminated Pushbuttons (LED)

IDEC LBW Series Flush Bezel Illuminated Pushbuttons (LED)

IDEC LBW series flush-silhouette illuminated pushbuttons, the larger-bezel variant of the LB series, with flat or extended operator and built-in LED.

Key features

  • Flush bezel with larger bezel size than LB series
  • Flat operator in round/square, black, metal or guard bezel
  • Extended operator for round momentary types
  • Momentary or alternate, 1c or 2c gold contacts
  • Built-in LED, AC/DC24V in listed codes

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
LED rated voltage AC/DC24V (DC5V, AC/DC12V on request)
Source IDEC LB/LBW Series catalogue, p. 18-19
LBW6L-M1T14R Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6L-M1T14G Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6L-M1T14Y Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6L-M1T14A Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6L-M1T14W Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6L-M1T14S Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6L-M1T14PW Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6L-M1T24R Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6L-M1T24G Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6L-M1T24Y Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6L-M1T24A Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6L-M1T24W Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6L-M1T24S Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6L-M1T24PW Bezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6L-A1T14R Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6L-A1T14G Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6L-A1T14Y Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6L-A1T14A Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6L-A1T14W Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6L-A1T14S Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6L-A1T14PW Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6L-A1T24R Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6L-A1T24G Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6L-A1T24Y Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6L-A1T24A Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6L-A1T24W Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6L-A1T24S Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6L-A1T24PW Bezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7L-M1T14R Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7L-M1T14G Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7L-M1T14Y Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7L-M1T14A Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7L-M1T14W Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7L-M1T14S Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7L-M1T14PW Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7L-M1T24R Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7L-M1T24G Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7L-M1T24Y Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7L-M1T24A Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7L-M1T24W Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7L-M1T24S Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7L-M1T24PW Bezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7L-A1T14R Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7L-A1T14G Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7L-A1T14Y Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7L-A1T14A Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7L-A1T14W Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7L-A1T14S Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7L-A1T14PW Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7L-A1T24R Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7L-A1T24G Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7L-A1T24Y Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7L-A1T24A Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7L-A1T24W Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7L-A1T24S Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7L-A1T24PW Bezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-M1T14R Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6ML-M1T14G Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6ML-M1T14Y Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-M1T14A Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6ML-M1T14W Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6ML-M1T14S Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6ML-M1T14PW Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-M1T24R Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6ML-M1T24G Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6ML-M1T24Y Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-M1T24A Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6ML-M1T24W Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6ML-M1T24S Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6ML-M1T24PW Bezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-A1T14R Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6ML-A1T14G Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6ML-A1T14Y Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-A1T14A Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6ML-A1T14W Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6ML-A1T14S Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6ML-A1T14PW Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-A1T24R Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6ML-A1T24G Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6ML-A1T24Y Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-A1T24A Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6ML-A1T24W Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6ML-A1T24S Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6ML-A1T24PW Bezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7ML-M1T14R Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7ML-M1T14G Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7ML-M1T14Y Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7ML-M1T14A Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7ML-M1T14W Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7ML-M1T14S Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7ML-M1T14PW Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7ML-M1T24R Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7ML-M1T24G Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7ML-M1T24Y Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7ML-M1T24A Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7ML-M1T24W Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7ML-M1T24S Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7ML-M1T24PW Bezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7ML-A1T14R Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7ML-A1T14G Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7ML-A1T14Y Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7ML-A1T14A Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7ML-A1T14W Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7ML-A1T14S Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7ML-A1T14PW Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7ML-A1T24R Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7ML-A1T24G Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7ML-A1T24Y Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7ML-A1T24A Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7ML-A1T24W Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7ML-A1T24S Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7ML-A1T24PW Bezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6GL-M1T14R Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6GL-M1T14G Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6GL-M1T14Y Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6GL-M1T14A Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6GL-M1T14W Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6GL-M1T14S Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6GL-M1T14PW Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6GL-M1T24R Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6GL-M1T24G Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6GL-M1T24Y Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6GL-M1T24A Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6GL-M1T24W Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6GL-M1T24S Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6GL-M1T24PW Bezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6GL-A1T14R Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6GL-A1T14G Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6GL-A1T14Y Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6GL-A1T14A Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6GL-A1T14W Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6GL-A1T14S Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6GL-A1T14PW Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6GL-A1T24R Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6GL-A1T24G Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6GL-A1T24Y Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6GL-A1T24A Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6GL-A1T24W Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6GL-A1T24S Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6GL-A1T24PW Bezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7GL-M1T14R Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7GL-M1T14G Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7GL-M1T14Y Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7GL-M1T14A Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7GL-M1T14W Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7GL-M1T14S Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7GL-M1T14PW Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7GL-M1T24R Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7GL-M1T24G Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7GL-M1T24Y Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7GL-M1T24A Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7GL-M1T24W Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7GL-M1T24S Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7GL-M1T24PW Bezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7GL-A1T14R Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7GL-A1T14G Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7GL-A1T14Y Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7GL-A1T14A Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7GL-A1T14W Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7GL-A1T14S Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7GL-A1T14PW Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7GL-A1T24R Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7GL-A1T24G Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7GL-A1T24Y Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7GL-A1T24A Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7GL-A1T24W Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7GL-A1T24S Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7GL-A1T24PW Bezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6L-M2T14R Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Red
LBW6L-M2T14G Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Green
LBW6L-M2T14Y Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Yellow
LBW6L-M2T14A Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Amber
LBW6L-M2T14W Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: White
LBW6L-M2T14S Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Blue
LBW6L-M2T14PW Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Pure white
LBW6L-M2T24R Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Red
LBW6L-M2T24G Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Green
LBW6L-M2T24Y Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Yellow
LBW6L-M2T24A Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Amber
LBW6L-M2T24W Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: White
LBW6L-M2T24S Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Blue
LBW6L-M2T24PW Bezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-M2T14R Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Red
LBW6ML-M2T14G Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Green
LBW6ML-M2T14Y Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-M2T14A Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Amber
LBW6ML-M2T14W Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: White
LBW6ML-M2T14S Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Blue
LBW6ML-M2T14PW Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-M2T24R Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Red
LBW6ML-M2T24G Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Green
LBW6ML-M2T24Y Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-M2T24A Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Amber
LBW6ML-M2T24W Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: White
LBW6ML-M2T24S Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Blue
LBW6ML-M2T24PW Bezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Pure white
Illuminated PushbuttonsIDEC
196 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LBW Series Flush Bezel Illuminated Pushbuttons (LED)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (196)

LBW6L-M1T14R, LBW6L-M1T14G, LBW6L-M1T14Y, LBW6L-M1T14A, LBW6L-M1T14W, LBW6L-M1T14S, LBW6L-M1T14PW, LBW6L-M1T24R, LBW6L-M1T24G, LBW6L-M1T24Y + 186 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LBW6L-M1T14RBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6L-M1T14GBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6L-M1T14YBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6L-M1T14ABezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6L-M1T14WBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6L-M1T14SBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6L-M1T14PWBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6L-M1T24RBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6L-M1T24GBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6L-M1T24YBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6L-M1T24ABezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6L-M1T24WBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6L-M1T24SBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6L-M1T24PWBezel: Black | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6L-A1T14RBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6L-A1T14GBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6L-A1T14YBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6L-A1T14ABezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6L-A1T14WBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6L-A1T14SBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6L-A1T14PWBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6L-A1T24RBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6L-A1T24GBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6L-A1T24YBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6L-A1T24ABezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6L-A1T24WBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6L-A1T24SBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6L-A1T24PWBezel: Black | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7L-M1T14RBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7L-M1T14GBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7L-M1T14YBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7L-M1T14ABezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7L-M1T14WBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7L-M1T14SBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7L-M1T14PWBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7L-M1T24RBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7L-M1T24GBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7L-M1T24YBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7L-M1T24ABezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7L-M1T24WBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7L-M1T24SBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7L-M1T24PWBezel: Black | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7L-A1T14RBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7L-A1T14GBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7L-A1T14YBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7L-A1T14ABezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7L-A1T14WBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7L-A1T14SBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7L-A1T14PWBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7L-A1T24RBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7L-A1T24GBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7L-A1T24YBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7L-A1T24ABezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7L-A1T24WBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7L-A1T24SBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7L-A1T24PWBezel: Black | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-M1T14RBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6ML-M1T14GBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6ML-M1T14YBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-M1T14ABezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6ML-M1T14WBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6ML-M1T14SBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6ML-M1T14PWBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-M1T24RBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6ML-M1T24GBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6ML-M1T24YBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-M1T24ABezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6ML-M1T24WBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6ML-M1T24SBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6ML-M1T24PWBezel: Metal | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-A1T14RBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6ML-A1T14GBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6ML-A1T14YBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-A1T14ABezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6ML-A1T14WBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6ML-A1T14SBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6ML-A1T14PWBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-A1T24RBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6ML-A1T24GBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6ML-A1T24YBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-A1T24ABezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6ML-A1T24WBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6ML-A1T24SBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6ML-A1T24PWBezel: Metal | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7ML-M1T14RBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7ML-M1T14GBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7ML-M1T14YBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7ML-M1T14ABezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7ML-M1T14WBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7ML-M1T14SBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7ML-M1T14PWBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7ML-M1T24RBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7ML-M1T24GBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7ML-M1T24YBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7ML-M1T24ABezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7ML-M1T24WBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7ML-M1T24SBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7ML-M1T24PWBezel: Metal | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7ML-A1T14RBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7ML-A1T14GBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7ML-A1T14YBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7ML-A1T14ABezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7ML-A1T14WBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7ML-A1T14SBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7ML-A1T14PWBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7ML-A1T24RBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7ML-A1T24GBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7ML-A1T24YBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7ML-A1T24ABezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7ML-A1T24WBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7ML-A1T24SBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7ML-A1T24PWBezel: Metal | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6GL-M1T14RBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6GL-M1T14GBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6GL-M1T14YBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6GL-M1T14ABezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6GL-M1T14WBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6GL-M1T14SBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6GL-M1T14PWBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6GL-M1T24RBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6GL-M1T24GBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6GL-M1T24YBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6GL-M1T24ABezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6GL-M1T24WBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6GL-M1T24SBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6GL-M1T24PWBezel: Guard | Shape: Round | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6GL-A1T14RBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW6GL-A1T14GBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW6GL-A1T14YBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW6GL-A1T14ABezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW6GL-A1T14WBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW6GL-A1T14SBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW6GL-A1T14PWBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW6GL-A1T24RBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW6GL-A1T24GBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW6GL-A1T24YBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW6GL-A1T24ABezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW6GL-A1T24WBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW6GL-A1T24SBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW6GL-A1T24PWBezel: Guard | Shape: Round | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7GL-M1T14RBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7GL-M1T14GBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7GL-M1T14YBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7GL-M1T14ABezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7GL-M1T14WBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7GL-M1T14SBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7GL-M1T14PWBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7GL-M1T24RBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7GL-M1T24GBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7GL-M1T24YBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7GL-M1T24ABezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7GL-M1T24WBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7GL-M1T24SBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7GL-M1T24PWBezel: Guard | Shape: Square | Action: Momentary | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW7GL-A1T14RBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Red
LBW7GL-A1T14GBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Green
LBW7GL-A1T14YBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Yellow
LBW7GL-A1T14ABezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Amber
LBW7GL-A1T14WBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: White
LBW7GL-A1T14SBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Blue
LBW7GL-A1T14PWBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 1c | LED colour: Pure white
LBW7GL-A1T24RBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Red
LBW7GL-A1T24GBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Green
LBW7GL-A1T24YBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Yellow
LBW7GL-A1T24ABezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Amber
LBW7GL-A1T24WBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: White
LBW7GL-A1T24SBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Blue
LBW7GL-A1T24PWBezel: Guard | Shape: Square | Action: Alternate | Operator: Flat | Contacts: Gold 2c | LED colour: Pure white
LBW6L-M2T14RBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Red
LBW6L-M2T14GBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Green
LBW6L-M2T14YBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Yellow
LBW6L-M2T14ABezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Amber
LBW6L-M2T14WBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: White
LBW6L-M2T14SBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Blue
LBW6L-M2T14PWBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Pure white
LBW6L-M2T24RBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Red
LBW6L-M2T24GBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Green
LBW6L-M2T24YBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Yellow
LBW6L-M2T24ABezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Amber
LBW6L-M2T24WBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: White
LBW6L-M2T24SBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Blue
LBW6L-M2T24PWBezel: Black | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Pure white
LBW6ML-M2T14RBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Red
LBW6ML-M2T14GBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Green
LBW6ML-M2T14YBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Yellow
LBW6ML-M2T14ABezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Amber
LBW6ML-M2T14WBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: White
LBW6ML-M2T14SBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Blue
LBW6ML-M2T14PWBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 1c | LED colour: Pure white
LBW6ML-M2T24RBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Red
LBW6ML-M2T24GBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Green
LBW6ML-M2T24YBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Yellow
LBW6ML-M2T24ABezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Amber
LBW6ML-M2T24WBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: White
LBW6ML-M2T24SBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Blue
LBW6ML-M2T24PWBezel: Metal | Shape: Round | Action: Momentary | Operator: Extended | Contacts: Gold 2c | LED colour: Pure white

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
