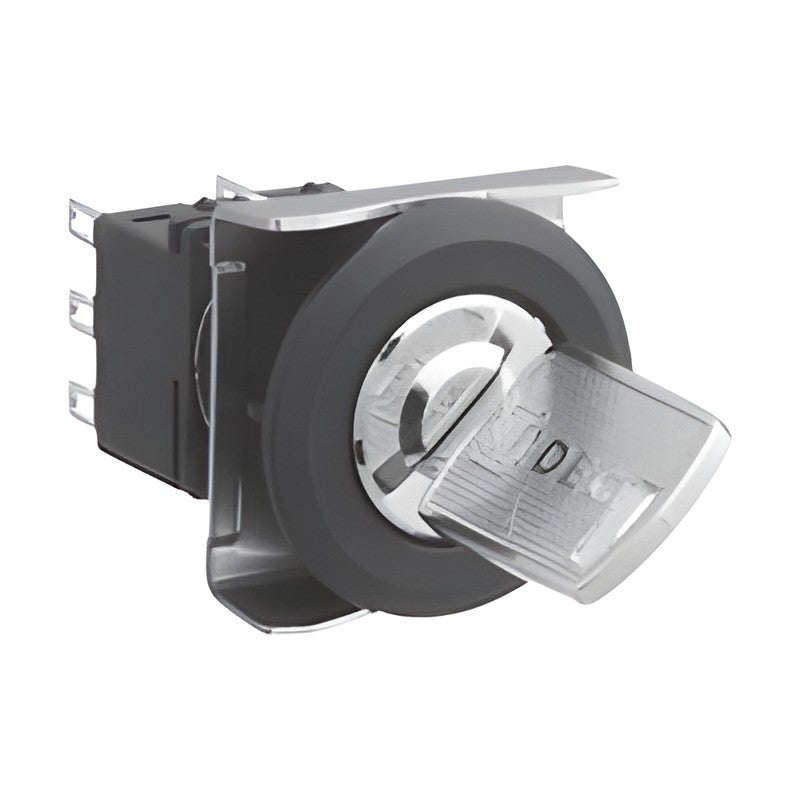

IDEC LBW Series Flush Bezel Key Selector Switches

IDEC LBW Series Flush Bezel Key Selector Switches

IDEC LBW series flush-silhouette key selector switches with hard-to-copy wave key, key removable in all positions in listed codes.

Key features

  • Wave key that is difficult to duplicate; 2 keys supplied
  • 90 deg 2-position or 45 deg 3-position maintained
  • 1c to 3c, gold or silver contacts
  • Round or square, black or metal bezel
  • Disc tumbler key version available

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
Key Wave key, 2 pcs supplied
Source IDEC LB/LBW Series catalogue, p. 26-27
LBW6K-2ST1A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | Key removal: All positions
LBW6K-2ST2A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW6K-2ST3A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW6K-2ST5A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | Key removal: All positions
LBW6K-2ST6A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW6K-2ST7A Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW6K-3ST2A Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW6K-3ST3A Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW6K-3ST6A Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW6K-3ST7A Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW7K-2ST1A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | Key removal: All positions
LBW7K-2ST2A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW7K-2ST3A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW7K-2ST5A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | Key removal: All positions
LBW7K-2ST6A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW7K-2ST7A Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW7K-3ST2A Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW7K-3ST3A Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW7K-3ST6A Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW7K-3ST7A Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW6MK-2ST1A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | Key removal: All positions
LBW6MK-2ST2A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW6MK-2ST3A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW6MK-2ST5A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | Key removal: All positions
LBW6MK-2ST6A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW6MK-2ST7A Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW6MK-3ST2A Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW6MK-3ST3A Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW6MK-3ST6A Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW6MK-3ST7A Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW7MK-2ST1A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c | Key removal: All positions
LBW7MK-2ST2A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW7MK-2ST3A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW7MK-2ST5A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c | Key removal: All positions
LBW7MK-2ST6A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW7MK-2ST7A Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c | Key removal: All positions
LBW7MK-3ST2A Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c | Key removal: All positions
LBW7MK-3ST3A Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c | Key removal: All positions
LBW7MK-3ST6A Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c | Key removal: All positions
LBW7MK-3ST7A Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c | Key removal: All positions
Key SwitchesIDEC
40 product codes available in this family
