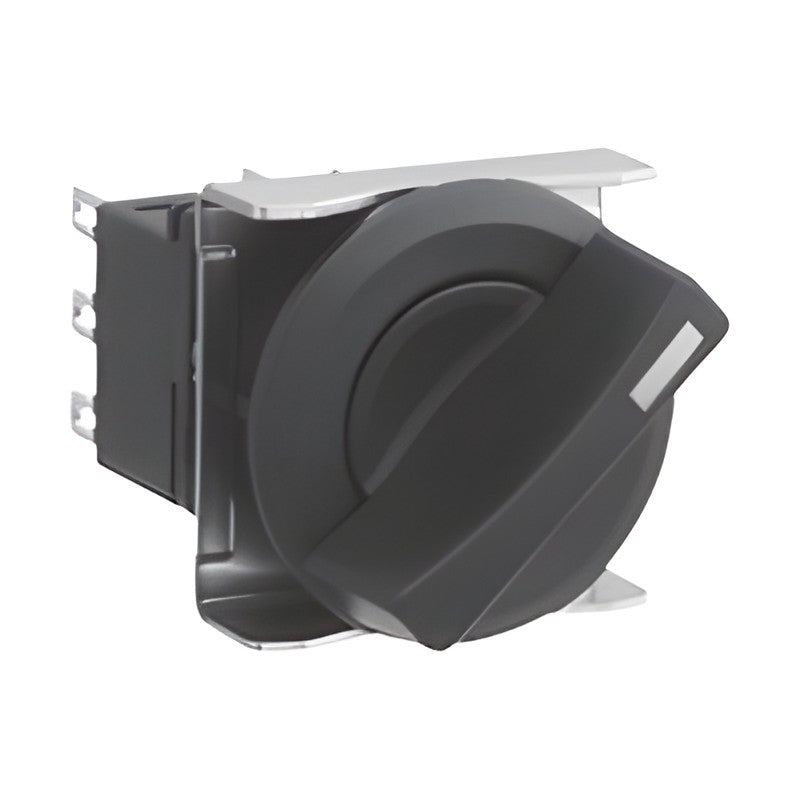

IDEC LBW Series Flush Bezel Selector Switches (2/3-pos)

IDEC LBW Series Flush Bezel Selector Switches (2/3-pos)

IDEC LBW series flush-silhouette selector switches in 90 deg 2-position and 45 deg 3-position versions.

Key features

  • Flush bezel, larger bezel size than LB series
  • 2-position or 3-position maintained, 3-position spring return
  • 1c to 3c, gold or silver contacts
  • Round or square, black or metal bezel

Specifications

Mounting 16 mm class panel cutout
Degree of protection IP65 (IEC 60529)
Gold contact rating 0.1 A at DC30V / AC125V (Ith 3 A)
Silver contact rating AC250V 3 A / DC30V 5 A resistive
Operating temperature -25 to +60 C (LED: -25 to +55 C)
Terminals Solder/tab #110 (PCB: suffix V, gold)
Source IDEC LB/LBW Series catalogue, p. 24-25
LBW6S-2T1 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW6S-2T2 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW6S-2T3 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW6S-2T5 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW6S-2T6 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW6S-2T7 Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW6S-3T2 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW6S-3T3 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW6S-3T6 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW6S-3T7 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW6S-33T2 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW6S-33T3 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW6S-33T6 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW6S-33T7 Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW7S-2T1 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW7S-2T2 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW7S-2T3 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW7S-2T5 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW7S-2T6 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW7S-2T7 Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW7S-3T2 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW7S-3T3 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW7S-3T6 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW7S-3T7 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW7S-33T2 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW7S-33T3 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW7S-33T6 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW7S-33T7 Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW6MS-2T1 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW6MS-2T2 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW6MS-2T3 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW6MS-2T5 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW6MS-2T6 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW6MS-2T7 Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW6MS-3T2 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW6MS-3T3 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW6MS-3T6 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW6MS-3T7 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW6MS-33T2 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW6MS-33T3 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW6MS-33T6 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW6MS-33T7 Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW7MS-2T1 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW7MS-2T2 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW7MS-2T3 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW7MS-2T5 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW7MS-2T6 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW7MS-2T7 Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW7MS-3T2 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW7MS-3T3 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW7MS-3T6 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW7MS-3T7 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW7MS-33T2 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW7MS-33T3 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW7MS-33T6 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW7MS-33T7 Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
Selector SwitchesIDEC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC LBW Series Flush Bezel Selector Switches (2/3-pos)

Brand IDEC·Selector Switches

Available part numbers (56)

LBW6S-2T1, LBW6S-2T2, LBW6S-2T3, LBW6S-2T5, LBW6S-2T6, LBW6S-2T7, LBW6S-3T2, LBW6S-3T3, LBW6S-3T6, LBW6S-3T7 + 46 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LBW6S-2T1Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW6S-2T2Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW6S-2T3Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW6S-2T5Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW6S-2T6Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW6S-2T7Bezel: Black | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW6S-3T2Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW6S-3T3Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW6S-3T6Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW6S-3T7Bezel: Black | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW6S-33T2Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW6S-33T3Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW6S-33T6Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW6S-33T7Bezel: Black | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW7S-2T1Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW7S-2T2Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW7S-2T3Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW7S-2T5Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW7S-2T6Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW7S-2T7Bezel: Black | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW7S-3T2Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW7S-3T3Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW7S-3T6Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW7S-3T7Bezel: Black | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW7S-33T2Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW7S-33T3Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW7S-33T6Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW7S-33T7Bezel: Black | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW6MS-2T1Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW6MS-2T2Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW6MS-2T3Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW6MS-2T5Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW6MS-2T6Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW6MS-2T7Bezel: Metal | Shape: Round | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW6MS-3T2Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW6MS-3T3Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW6MS-3T6Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW6MS-3T7Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW6MS-33T2Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW6MS-33T3Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW6MS-33T6Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW6MS-33T7Bezel: Metal | Shape: Round | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
LBW7MS-2T1Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 1c
LBW7MS-2T2Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 2c
LBW7MS-2T3Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Gold 3c
LBW7MS-2T5Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 1c
LBW7MS-2T6Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 2c
LBW7MS-2T7Bezel: Metal | Shape: Square | Notch: 90 deg 2-pos maintained | Contacts: Silver 3c
LBW7MS-3T2Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 2c
LBW7MS-3T3Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Gold 3c
LBW7MS-3T6Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 2c
LBW7MS-3T7Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos maintained | Contacts: Silver 3c
LBW7MS-33T2Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 2c
LBW7MS-33T3Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Gold 3c
LBW7MS-33T6Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 2c
LBW7MS-33T7Bezel: Metal | Shape: Square | Notch: 45 deg 3-pos spring return both | Contacts: Silver 3c
