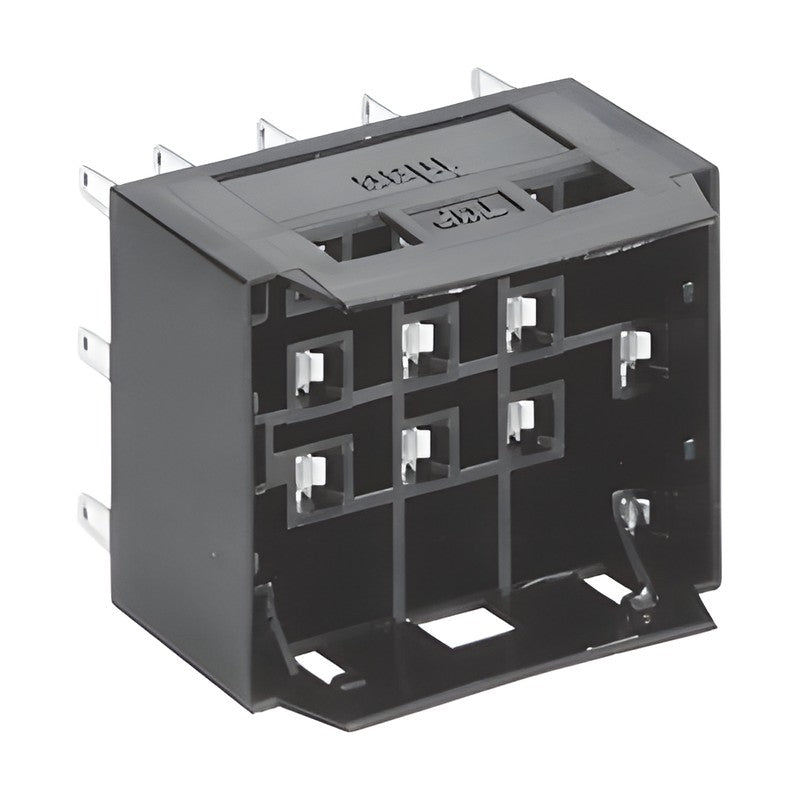

IDEC MC Series Accessories (barriers, sockets, guards, tools)

Accessories for IDEC MC3D/MC2D miniature control units: tools, switch guard lenses, barriers, sockets, terminal covers, dust covers and vertical mounting springs.

Key features

Lamp holder removal and wiring cutter tools
Polycarbonate switch guard lenses
Barriers and guard barriers for flange types
Sockets with solder or PCB terminals
Dust covers and vertical mounting springs

Specifications

Series	MC3D / MC2D
Barrier material	Polycarbonate
Socket material	Polyamide
Terminal cover material	PBT, white
Dust cover temperature	-10 to +40 C (not waterproof)
Source	IDEC MC Series catalogue, p. 7, 9-10

MCM-T001		Item: Lamp holder removal tool \| For: All MC models \| Pack: 1 pc
MC9Z-J1		Item: Wiring cutter tool \| For: MC3D split illumination \| Pack: 1 pc
MC9Z-KF3		Item: Switch guard lens, horizontal \| For: MC3D \| Pack: 1 pc
MC9Z-KT3		Item: Switch guard lens, vertical \| For: MC3D \| Pack: 1 pc
MC9Z-KF2		Item: Switch guard lens, horizontal \| For: MC2D \| Pack: 1 pc
MC9Z-BF1BPN10		Item: Barrier, end, black \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MC9Z-BF1NPN10		Item: Barrier, end, grey \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MC9Z-BF2BPN10		Item: Barrier, center, black \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MC9Z-BF2NPN10		Item: Barrier, center, grey \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MC9Z-BT1BPN10		Item: Barrier, end, black \| For: MC3D vertical flange \| Pack: 10 pcs
MC9Z-BT1NPN10		Item: Barrier, end, grey \| For: MC3D vertical flange \| Pack: 10 pcs
MC9Z-BT2BPN10		Item: Barrier, center, black \| For: MC3D vertical flange \| Pack: 10 pcs
MC9Z-BT2NPN10		Item: Barrier, center, grey \| For: MC3D vertical flange \| Pack: 10 pcs
MCM-BF3BPN10		Item: Guard barrier, end, black \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MCM-BF3NPN10		Item: Guard barrier, end, grey \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MCM-BF4BPN10		Item: Guard barrier, center, black \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MCM-BF4NPN10		Item: Guard barrier, center, grey \| For: MC3D horiz. flange/MC2D \| Pack: 10 pcs
MC9Z-C3		Item: Socket, solder terminal \| For: MC3D \| Pack: 1 pc
MC9Z-C3V		Item: Socket, PCB terminal \| For: MC3D \| Pack: 1 pc
MC9Z-C2		Item: Socket, solder terminal \| For: MC2D \| Pack: 1 pc
MC9Z-C2V		Item: Socket, PCB terminal \| For: MC2D \| Pack: 1 pc
MC9Z-VL23PN05		Item: Insulating terminal cover \| For: MC3D \| Pack: 5 pcs
MC9Z-VL22PN05		Item: Insulating terminal cover \| For: MC2D \| Pack: 5 pcs
MCM-D3		Item: Dust cover \| For: MC3D flange \| Pack: 1 pc
MCM-D2		Item: Dust cover \| For: MC2D flange \| Pack: 1 pc
MC9Z-T3PN10		Item: Vertical mounting panel spring \| For: MC3D/MC2D flange \| Pack: 10 pcs

Pushbutton AccessoriesIDEC

26 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC MC Series Accessories (barriers, sockets, guards, tools)

Brand IDEC·Pushbutton Accessories

Available part numbers (26)

MCM-T001, MC9Z-J1, MC9Z-KF3, MC9Z-KT3, MC9Z-KF2, MC9Z-BF1BPN10, MC9Z-BF1NPN10, MC9Z-BF2BPN10, MC9Z-BF2NPN10, MC9Z-BT1BPN10 + 16 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
