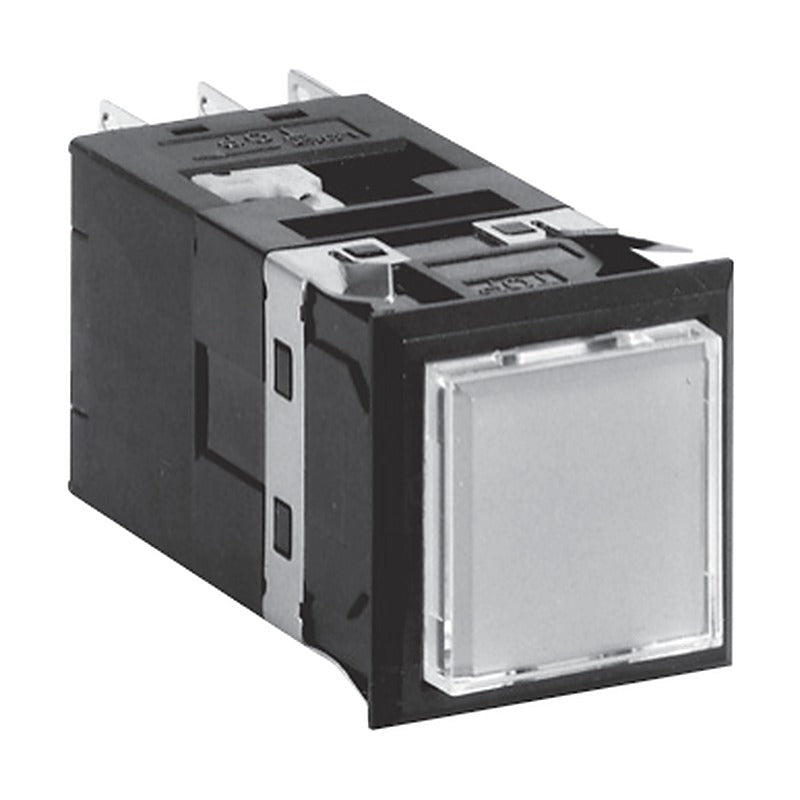

IDEC MC2D Square Control Units, Flange Type

IDEC MC2D Square Control Units, Flange Type

IDEC MC2D square miniature control units, flange type, with an 18.8 x 18.8 mm illuminated face, full-face or 2-split illumination.

Key features

  • Illuminated face 18.8 x 18.8 mm, full face or upper/lower split
  • Accepts both LED and incandescent lamps
  • Momentary (snap/slow action), alternate and pilot light types
  • 1 or 2 contacts, silver or gold
  • Black or grey body

Specifications

Contacts Microswitch (1c each), silver or gold
Light source LED (LFTD) or incandescent (LH), sold separately
Terminals Solder/tab #110 (positive lock) or PCB
Operating temperature -25 to +40 C
Mechanical life Momentary 1M, alternate 250k operations
Electrical life 100,000 operations min.
Nameplate Milky white acrylic, supplied
Colour screen MC9Z-PA2/-2DB, sold separately
Source IDEC MC Series catalogue, p. 1-3, 6
MC2D-M10B Operation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-M10N Operation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-M20B Operation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-M20N Operation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-M50B Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-M50N Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-M50VB Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-M50VN Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-M60B Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-M60N Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-M60VB Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-M60VN Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-S10B Operation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-S10N Operation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-S20B Operation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-S20N Operation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-S50B Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-S50N Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-S50VB Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-S50VN Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-S60B Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-S60N Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-S60VB Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-S60VN Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-A10B Operation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-A10N Operation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-A20B Operation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-A20N Operation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-A50B Operation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-A50N Operation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-A50VB Operation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-A50VN Operation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-A60B Operation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-A60N Operation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-A60VB Operation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-A60VN Operation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-P00B Operation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Black
MC2D-P00N Operation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Grey
MC2D-P00VB Operation: Pilot light | Contacts: None | Terminal: PCB | Body: Black
MC2D-P00VN Operation: Pilot light | Contacts: None | Terminal: PCB | Body: Grey
Illuminated PushbuttonsIDEC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC MC2D Square Control Units, Flange Type

Brand IDEC·Illuminated Pushbuttons

Available part numbers (40)

MC2D-M10B, MC2D-M10N, MC2D-M20B, MC2D-M20N, MC2D-M50B, MC2D-M50N, MC2D-M50VB, MC2D-M50VN, MC2D-M60B, MC2D-M60N + 30 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MC2D-M10BOperation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-M10NOperation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-M20BOperation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-M20NOperation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-M50BOperation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-M50NOperation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-M50VBOperation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-M50VNOperation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-M60BOperation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-M60NOperation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-M60VBOperation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-M60VNOperation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-S10BOperation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-S10NOperation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-S20BOperation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-S20NOperation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-S50BOperation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-S50NOperation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-S50VBOperation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-S50VNOperation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-S60BOperation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-S60NOperation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-S60VBOperation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-S60VNOperation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-A10BOperation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC2D-A10NOperation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC2D-A20BOperation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC2D-A20NOperation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC2D-A50BOperation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC2D-A50NOperation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC2D-A50VBOperation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC2D-A50VNOperation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC2D-A60BOperation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC2D-A60NOperation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC2D-A60VBOperation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC2D-A60VNOperation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC2D-P00BOperation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Black
MC2D-P00NOperation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Grey
MC2D-P00VBOperation: Pilot light | Contacts: None | Terminal: PCB | Body: Black
MC2D-P00VNOperation: Pilot light | Contacts: None | Terminal: PCB | Body: Grey
