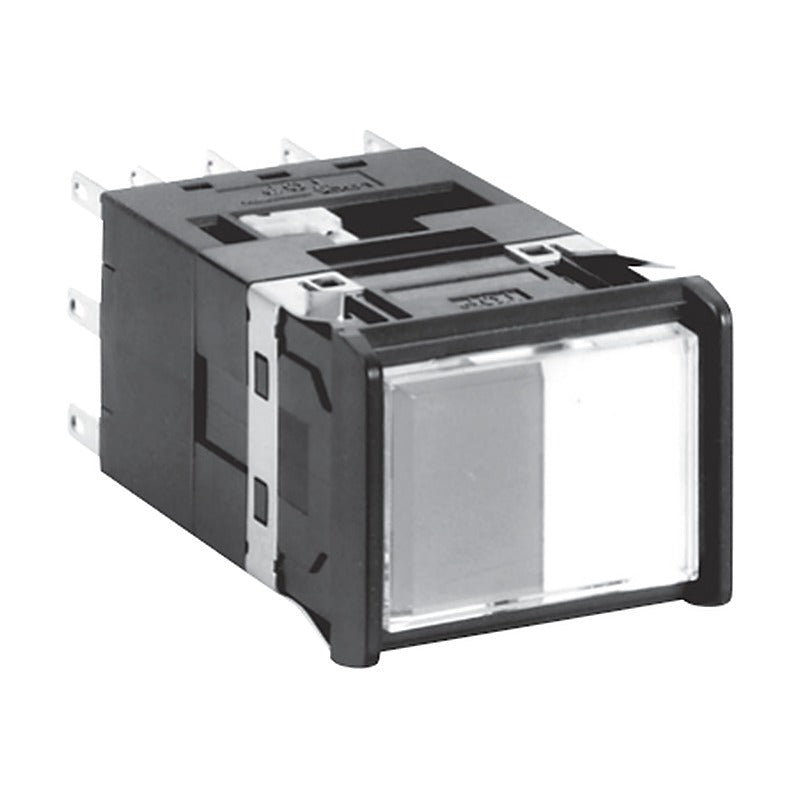

IDEC MC3D Rectangular Control Units, Barrier Type

IDEC MC3D rectangular miniature control units, barrier type, with an 18.8 x 26.8 mm illuminated face that can be split up to four ways with LED lamps.

Key features

Illuminated face 18.8 x 26.8 mm, full face to 4-split with LED
Accepts both super-bright LED and incandescent lamps
Operator and contact block separable; Y-structure keeps contacts from operating during lens insertion
Momentary (snap/slow action), alternate and pilot light types
1 to 3 contacts, silver or gold

Specifications

Contacts	Microswitch (1c each), silver or gold
Light source	LED (LFTD) or incandescent (LH), sold separately
Terminals	Solder/tab #110 (positive lock) or PCB
Operating temperature	-25 to +40 C
Mechanical life	Momentary 1M, alternate 250k operations
Electrical life	100,000 operations min.
Nameplate	Milky white acrylic, supplied
Colour screen	MC9Z-PA3/-3D series, sold separately
Source	IDEC MC Series catalogue, p. 1-4

MC3D-M10RB		Operation: Momentary, snap action \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Black
MC3D-M10RN		Operation: Momentary, snap action \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-M20RB		Operation: Momentary, snap action \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Black
MC3D-M20RN		Operation: Momentary, snap action \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-M30RB		Operation: Momentary, snap action \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Black
MC3D-M30RN		Operation: Momentary, snap action \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-M50RB		Operation: Momentary, snap action \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Black
MC3D-M50RN		Operation: Momentary, snap action \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-M50VRB		Operation: Momentary, snap action \| Contacts: Gold 1c \| Terminal: PCB \| Body: Black
MC3D-M50VRN		Operation: Momentary, snap action \| Contacts: Gold 1c \| Terminal: PCB \| Body: Grey
MC3D-M60RB		Operation: Momentary, snap action \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Black
MC3D-M60RN		Operation: Momentary, snap action \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-M60VRB		Operation: Momentary, snap action \| Contacts: Gold 2c \| Terminal: PCB \| Body: Black
MC3D-M60VRN		Operation: Momentary, snap action \| Contacts: Gold 2c \| Terminal: PCB \| Body: Grey
MC3D-M70RB		Operation: Momentary, snap action \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Black
MC3D-M70RN		Operation: Momentary, snap action \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-M70VRB		Operation: Momentary, snap action \| Contacts: Gold 3c \| Terminal: PCB \| Body: Black
MC3D-M70VRN		Operation: Momentary, snap action \| Contacts: Gold 3c \| Terminal: PCB \| Body: Grey
MC3D-S10RB		Operation: Momentary, slow action \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Black
MC3D-S10RN		Operation: Momentary, slow action \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-S20RB		Operation: Momentary, slow action \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Black
MC3D-S20RN		Operation: Momentary, slow action \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-S30RB		Operation: Momentary, slow action \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Black
MC3D-S30RN		Operation: Momentary, slow action \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-S50RB		Operation: Momentary, slow action \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Black
MC3D-S50RN		Operation: Momentary, slow action \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-S50VRB		Operation: Momentary, slow action \| Contacts: Gold 1c \| Terminal: PCB \| Body: Black
MC3D-S50VRN		Operation: Momentary, slow action \| Contacts: Gold 1c \| Terminal: PCB \| Body: Grey
MC3D-S60RB		Operation: Momentary, slow action \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Black
MC3D-S60RN		Operation: Momentary, slow action \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-S60VRB		Operation: Momentary, slow action \| Contacts: Gold 2c \| Terminal: PCB \| Body: Black
MC3D-S60VRN		Operation: Momentary, slow action \| Contacts: Gold 2c \| Terminal: PCB \| Body: Grey
MC3D-S70RB		Operation: Momentary, slow action \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Black
MC3D-S70RN		Operation: Momentary, slow action \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-S70VRB		Operation: Momentary, slow action \| Contacts: Gold 3c \| Terminal: PCB \| Body: Black
MC3D-S70VRN		Operation: Momentary, slow action \| Contacts: Gold 3c \| Terminal: PCB \| Body: Grey
MC3D-A10RB		Operation: Alternate \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Black
MC3D-A10RN		Operation: Alternate \| Contacts: Silver 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-A20RB		Operation: Alternate \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Black
MC3D-A20RN		Operation: Alternate \| Contacts: Silver 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-A30RB		Operation: Alternate \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Black
MC3D-A30RN		Operation: Alternate \| Contacts: Silver 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-A50RB		Operation: Alternate \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Black
MC3D-A50RN		Operation: Alternate \| Contacts: Gold 1c \| Terminal: Solder/tab \| Body: Grey
MC3D-A50VRB		Operation: Alternate \| Contacts: Gold 1c \| Terminal: PCB \| Body: Black
MC3D-A50VRN		Operation: Alternate \| Contacts: Gold 1c \| Terminal: PCB \| Body: Grey
MC3D-A60RB		Operation: Alternate \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Black
MC3D-A60RN		Operation: Alternate \| Contacts: Gold 2c \| Terminal: Solder/tab \| Body: Grey
MC3D-A60VRB		Operation: Alternate \| Contacts: Gold 2c \| Terminal: PCB \| Body: Black
MC3D-A60VRN		Operation: Alternate \| Contacts: Gold 2c \| Terminal: PCB \| Body: Grey
MC3D-A70RB		Operation: Alternate \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Black
MC3D-A70RN		Operation: Alternate \| Contacts: Gold 3c \| Terminal: Solder/tab \| Body: Grey
MC3D-A70VRB		Operation: Alternate \| Contacts: Gold 3c \| Terminal: PCB \| Body: Black
MC3D-A70VRN		Operation: Alternate \| Contacts: Gold 3c \| Terminal: PCB \| Body: Grey
MC3D-P00RB		Operation: Pilot light \| Contacts: None \| Terminal: Solder/tab \| Body: Black
MC3D-P00RN		Operation: Pilot light \| Contacts: None \| Terminal: Solder/tab \| Body: Grey
MC3D-P00VRB		Operation: Pilot light \| Contacts: None \| Terminal: PCB \| Body: Black
MC3D-P00VRN		Operation: Pilot light \| Contacts: None \| Terminal: PCB \| Body: Grey
