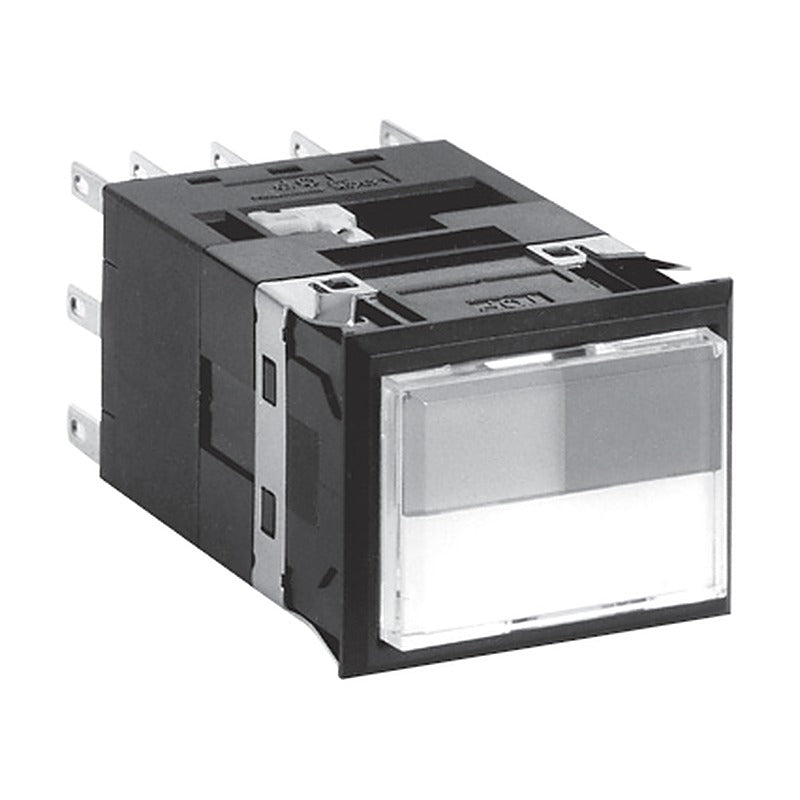

• IDEC MC3D Rectangular Control Units, Flange Type
1 1

IDEC MC3D Rectangular Control Units, Flange Type

IDEC MC3D Rectangular Control Units, Flange Type

IDEC MC3D rectangular miniature control units, flange type, with an 18.8 x 26.8 mm illuminated face; vertical mounting possible with MC9Z-T3 springs.

Key features

  • Illuminated face 18.8 x 26.8 mm, full face to 4-split with LED
  • Accepts both super-bright LED and incandescent lamps
  • Vertical mounting by exchanging to MC9Z-T3 panel springs
  • Momentary (snap/slow action), alternate and pilot light types
  • 1 to 3 contacts, silver or gold

Specifications

Contacts Microswitch (1c each), silver or gold
Light source LED (LFTD) or incandescent (LH), sold separately
Terminals Solder/tab #110 (positive lock) or PCB
Operating temperature -25 to +40 C
Mechanical life Momentary 1M, alternate 250k operations
Electrical life 100,000 operations min.
Nameplate Milky white acrylic, supplied
Colour screen MC9Z-PA3/-3D series, sold separately
Source IDEC MC Series catalogue, p. 1-3, 5
MC3D-M10FB Operation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC3D-M10FN Operation: Momentary, snap action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC3D-M20FB Operation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC3D-M20FN Operation: Momentary, snap action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC3D-M30FB Operation: Momentary, snap action | Contacts: Silver 3c | Terminal: Solder/tab | Body: Black
MC3D-M30FN Operation: Momentary, snap action | Contacts: Silver 3c | Terminal: Solder/tab | Body: Grey
MC3D-M50FB Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC3D-M50FN Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC3D-M50VFB Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC3D-M50VFN Operation: Momentary, snap action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC3D-M60FB Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC3D-M60FN Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC3D-M60VFB Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC3D-M60VFN Operation: Momentary, snap action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC3D-M70FB Operation: Momentary, snap action | Contacts: Gold 3c | Terminal: Solder/tab | Body: Black
MC3D-M70FN Operation: Momentary, snap action | Contacts: Gold 3c | Terminal: Solder/tab | Body: Grey
MC3D-M70VFB Operation: Momentary, snap action | Contacts: Gold 3c | Terminal: PCB | Body: Black
MC3D-M70VFN Operation: Momentary, snap action | Contacts: Gold 3c | Terminal: PCB | Body: Grey
MC3D-S10FB Operation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC3D-S10FN Operation: Momentary, slow action | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC3D-S20FB Operation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC3D-S20FN Operation: Momentary, slow action | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC3D-S30FB Operation: Momentary, slow action | Contacts: Silver 3c | Terminal: Solder/tab | Body: Black
MC3D-S30FN Operation: Momentary, slow action | Contacts: Silver 3c | Terminal: Solder/tab | Body: Grey
MC3D-S50FB Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC3D-S50FN Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC3D-S50VFB Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC3D-S50VFN Operation: Momentary, slow action | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC3D-S60FB Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC3D-S60FN Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC3D-S60VFB Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC3D-S60VFN Operation: Momentary, slow action | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC3D-S70FB Operation: Momentary, slow action | Contacts: Gold 3c | Terminal: Solder/tab | Body: Black
MC3D-S70FN Operation: Momentary, slow action | Contacts: Gold 3c | Terminal: Solder/tab | Body: Grey
MC3D-S70VFB Operation: Momentary, slow action | Contacts: Gold 3c | Terminal: PCB | Body: Black
MC3D-S70VFN Operation: Momentary, slow action | Contacts: Gold 3c | Terminal: PCB | Body: Grey
MC3D-A10FB Operation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Black
MC3D-A10FN Operation: Alternate | Contacts: Silver 1c | Terminal: Solder/tab | Body: Grey
MC3D-A20FB Operation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Black
MC3D-A20FN Operation: Alternate | Contacts: Silver 2c | Terminal: Solder/tab | Body: Grey
MC3D-A30FB Operation: Alternate | Contacts: Silver 3c | Terminal: Solder/tab | Body: Black
MC3D-A30FN Operation: Alternate | Contacts: Silver 3c | Terminal: Solder/tab | Body: Grey
MC3D-A50FB Operation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Black
MC3D-A50FN Operation: Alternate | Contacts: Gold 1c | Terminal: Solder/tab | Body: Grey
MC3D-A50VFB Operation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Black
MC3D-A50VFN Operation: Alternate | Contacts: Gold 1c | Terminal: PCB | Body: Grey
MC3D-A60FB Operation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Black
MC3D-A60FN Operation: Alternate | Contacts: Gold 2c | Terminal: Solder/tab | Body: Grey
MC3D-A60VFB Operation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Black
MC3D-A60VFN Operation: Alternate | Contacts: Gold 2c | Terminal: PCB | Body: Grey
MC3D-A70FB Operation: Alternate | Contacts: Gold 3c | Terminal: Solder/tab | Body: Black
MC3D-A70FN Operation: Alternate | Contacts: Gold 3c | Terminal: Solder/tab | Body: Grey
MC3D-A70VFB Operation: Alternate | Contacts: Gold 3c | Terminal: PCB | Body: Black
MC3D-A70VFN Operation: Alternate | Contacts: Gold 3c | Terminal: PCB | Body: Grey
MC3D-P00FB Operation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Black
MC3D-P00FN Operation: Pilot light | Contacts: None | Terminal: Solder/tab | Body: Grey
MC3D-P00VFB Operation: Pilot light | Contacts: None | Terminal: PCB | Body: Black
MC3D-P00VFN Operation: Pilot light | Contacts: None | Terminal: PCB | Body: Grey
