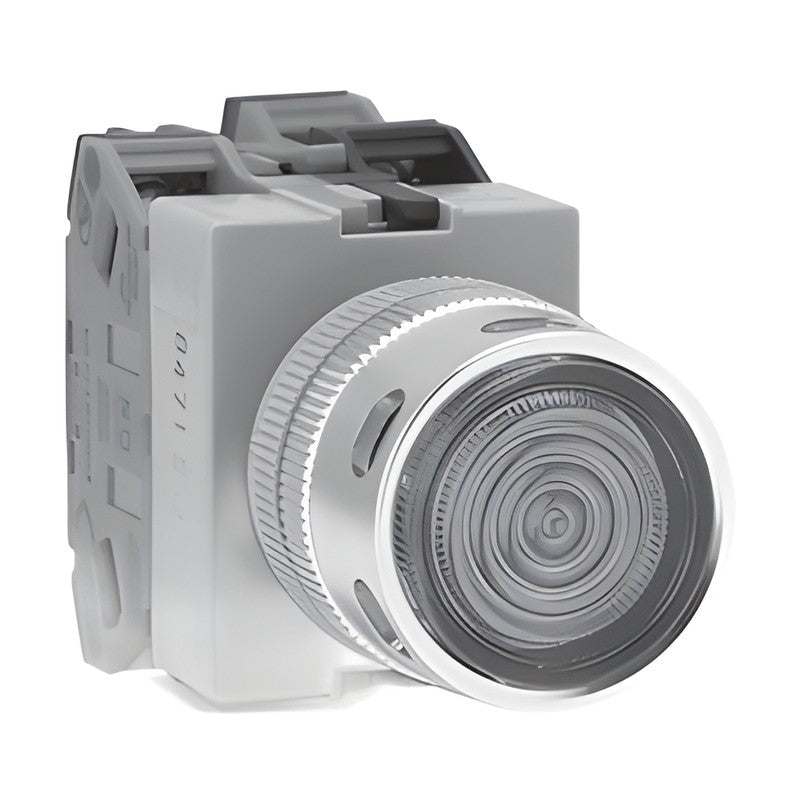

IDEC TW 22 mm Illuminated Pushbuttons (Full Guard)

IDEC TW 22 mm Illuminated Pushbuttons (Full Guard)

TW Series φ22 illuminated pushbuttons, full guard type, with built-in LED or incandescent lamp; rated voltages from AC/DC6V to AC200/220V.

Key features

  • LED or incandescent illumination; transformer type for AC100V and above
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Operator Extended, full guard
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 15-16
ALFW26611DR Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW26611DG Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW26611DY Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW26611DA Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW26611DW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW26611DS Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW26611DPW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW26620DR Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALFW26620DG Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALFW26620DY Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
ALFW26620DA Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALFW26620DW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALFW26620DS Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALFW26620DPW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
ALFW26622DR Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW26622DG Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW26622DY Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW26622DA Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW26622DW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW26622DS Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW26622DPW Action: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21111DR Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21111DG Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21111DY Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21111DA Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21111DW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21111DS Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21111DPW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21120DR Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALFW21120DG Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALFW21120DY Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21120DA Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALFW21120DW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALFW21120DS Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALFW21120DPW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21122DR Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21122DG Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21122DY Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21122DA Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21122DW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21122DS Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21122DPW Action: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW22211DR Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22211DG Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22211DY Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW22211DA Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22211DW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22211DS Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22211DPW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW22220DR Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALFW22220DG Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALFW22220DY Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
ALFW22220DA Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALFW22220DW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALFW22220DS Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALFW22220DPW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
ALFW22222DR Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22222DG Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22222DY Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW22222DA Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22222DW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22222DS Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22222DPW Action: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21611DR Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611DG Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611DY Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21611DA Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611DW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611DS Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21611DPW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21620DR Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620DG Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620DY Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21620DA Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620DW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALFW21620DS Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21620DPW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21622DR Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622DG Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622DY Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21622DA Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622DW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622DS Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21622DPW Action: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW22611DR Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22611DG Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22611DY Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW22611DA Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22611DW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22611DS Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22611DPW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW22620DR Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALFW22620DG Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALFW22620DY Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
ALFW22620DA Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALFW22620DW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALFW22620DS Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALFW22620DPW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
ALFW22622DR Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22622DG Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22622DY Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW22622DA Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22622DW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22622DS Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22622DPW Action: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21611DDR Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611DDG Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611DDY Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21611DDA Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611DDW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611DDS Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21611DDPW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21620DDR Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620DDG Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620DDY Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21620DDA Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620DDW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
ALFW21620DDS Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21620DDPW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21622DDR Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622DDG Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622DDY Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21622DDA Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622DDW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622DDS Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21622DDPW Action: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW26611DR Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW26611DG Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW26611DY Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW26611DA Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW26611DW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW26611DS Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26611DPW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW26620DR Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLFW26620DG Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLFW26620DY Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW26620DA Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLFW26620DW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLFW26620DS Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLFW26620DPW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW26622DR Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW26622DG Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW26622DY Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW26622DA Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW26622DW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW26622DS Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW26622DPW Action: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21111DR Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21111DG Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21111DY Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21111DA Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21111DW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21111DS Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21111DPW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21120DR Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLFW21120DG Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLFW21120DY Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21120DA Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21120DW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLFW21120DS Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21120DPW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21122DR Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21122DG Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21122DY Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21122DA Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21122DW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21122DS Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21122DPW Action: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW22211DR Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22211DG Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22211DY Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW22211DA Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22211DW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22211DS Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22211DPW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW22220DR Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLFW22220DG Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLFW22220DY Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW22220DA Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22220DW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLFW22220DS Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22220DPW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW22222DR Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22222DG Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22222DY Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW22222DA Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22222DW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22222DS Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22222DPW Action: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21611DR Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611DG Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611DY Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21611DA Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611DW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611DS Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21611DPW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21620DR Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620DG Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620DY Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21620DA Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620DW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620DS Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21620DPW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21622DR Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622DG Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622DY Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21622DA Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622DW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622DS Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21622DPW Action: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW22611DR Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22611DG Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22611DY Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW22611DA Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22611DW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22611DS Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22611DPW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW22620DR Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLFW22620DG Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLFW22620DY Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW22620DA Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22620DW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLFW22620DS Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22620DPW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW22622DR Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22622DG Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22622DY Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW22622DA Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22622DW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22622DS Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22622DPW Action: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21611DDR Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611DDG Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611DDY Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21611DDA Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611DDW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611DDS Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21611DDPW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21620DDR Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620DDG Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620DDY Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21620DDA Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620DDW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620DDS Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21620DDPW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21622DDR Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622DDG Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622DDY Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21622DDA Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622DDW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622DDS Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21622DDPW Action: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW26611R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW26611G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW26611A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW26611W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW26611S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW26620R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALFW26620G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALFW26620A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALFW26620W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALFW26620S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALFW26622R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW26622G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW26622A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW26622W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW26622S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW28811R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW28811G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW28811A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW28811W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW28811S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW28820R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALFW28820G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALFW28820A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALFW28820W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALFW28820S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALFW28822R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW28822G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW28822A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW28822W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW28822S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW23311R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW23311G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW23311A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW23311W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW23311S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW23320R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALFW23320G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALFW23320A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALFW23320W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALFW23320S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALFW23322R Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW23322G Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW23322A Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW23322W Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW23322S Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21611R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21620R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALFW21620S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21622R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22611R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22611G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22611A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22611W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22611S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22620R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALFW22620G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALFW22620A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALFW22620W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALFW22620S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALFW22622R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22622G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22622A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22622W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22622S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW216S10R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
ALFW216S10G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
ALFW216S10A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
ALFW216S10W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
ALFW216S10S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
ALFW216S01R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
ALFW216S01G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
ALFW216S01A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
ALFW216S01W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
ALFW216S01S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
ALFW216S11R Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW216S11G Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW216S11A Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW216S11W Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW216S11S Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW226S10R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
ALFW226S10G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
ALFW226S10A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
ALFW226S10W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
ALFW226S10S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
ALFW226S01R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
ALFW226S01G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
ALFW226S01A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
ALFW226S01W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
ALFW226S01S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
ALFW226S11R Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW226S11G Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW226S11A Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW226S11W Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW226S11S Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26611R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW26611G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW26611A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW26611W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW26611S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26620R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLFW26620G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLFW26620A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLFW26620W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLFW26620S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLFW26622R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW26622G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW26622A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW26622W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW26622S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW28811R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW28811G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW28811A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW28811W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW28811S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW28820R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLFW28820G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLFW28820A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLFW28820W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLFW28820S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLFW28822R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW28822G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW28822A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW28822W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW28822S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW23311R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW23311G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW23311A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW23311W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW23311S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW23320R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLFW23320G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLFW23320A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLFW23320W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLFW23320S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLFW23322R Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW23322G Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW23322A Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW23322W Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW23322S Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21611R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21620R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21622R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22611R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22611G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22611A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22611W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22611S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22620R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLFW22620G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLFW22620A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22620W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLFW22620S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22622R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22622G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22622A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22622W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22622S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW216S10R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AOLFW216S10G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AOLFW216S10A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AOLFW216S10W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
AOLFW216S10S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AOLFW216S01R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AOLFW216S01G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AOLFW216S01A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AOLFW216S01W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
AOLFW216S01S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AOLFW216S11R Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW216S11G Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW216S11A Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW216S11W Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW216S11S Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW226S10R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AOLFW226S10G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AOLFW226S10A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AOLFW226S10W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
AOLFW226S10S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AOLFW226S01R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AOLFW226S01G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AOLFW226S01A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AOLFW226S01W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
AOLFW226S01S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AOLFW226S11R Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW226S11G Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW226S11A Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW226S11W Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW226S11S Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
Illuminated PushbuttonsIDEC
462 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW 22 mm Illuminated Pushbuttons (Full Guard)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (462)

ALFW26611DR, ALFW26611DG, ALFW26611DY, ALFW26611DA, ALFW26611DW, ALFW26611DS, ALFW26611DPW, ALFW26620DR, ALFW26620DG, ALFW26620DY + 452 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALFW26611DRAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW26611DGAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW26611DYAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW26611DAAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW26611DWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW26611DSAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW26611DPWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW26620DRAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALFW26620DGAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALFW26620DYAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
ALFW26620DAAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALFW26620DWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALFW26620DSAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALFW26620DPWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
ALFW26622DRAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW26622DGAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW26622DYAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW26622DAAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW26622DWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW26622DSAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW26622DPWAction: Momentary | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21111DRAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21111DGAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21111DYAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21111DAAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21111DWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21111DSAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21111DPWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21120DRAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALFW21120DGAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALFW21120DYAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21120DAAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALFW21120DWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALFW21120DSAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALFW21120DPWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21122DRAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21122DGAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21122DYAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21122DAAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21122DWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21122DSAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21122DPWAction: Momentary | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW22211DRAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22211DGAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22211DYAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW22211DAAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22211DWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22211DSAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22211DPWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW22220DRAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALFW22220DGAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALFW22220DYAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
ALFW22220DAAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALFW22220DWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALFW22220DSAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALFW22220DPWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
ALFW22222DRAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22222DGAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22222DYAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW22222DAAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22222DWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22222DSAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22222DPWAction: Momentary | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21611DRAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611DGAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611DYAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21611DAAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611DWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611DSAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21611DPWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21620DRAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620DGAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620DYAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21620DAAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620DWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALFW21620DSAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21620DPWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21622DRAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622DGAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622DYAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21622DAAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622DWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622DSAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21622DPWAction: Momentary | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW22611DRAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22611DGAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22611DYAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW22611DAAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22611DWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22611DSAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22611DPWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW22620DRAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALFW22620DGAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALFW22620DYAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
ALFW22620DAAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALFW22620DWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALFW22620DSAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALFW22620DPWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
ALFW22622DRAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22622DGAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22622DYAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW22622DAAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22622DWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22622DSAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22622DPWAction: Momentary | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW21611DDRAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611DDGAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611DDYAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ALFW21611DDAAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611DDWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611DDSAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21611DDPWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
ALFW21620DDRAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620DDGAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620DDYAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
ALFW21620DDAAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620DDWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
ALFW21620DDSAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21620DDPWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
ALFW21622DDRAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622DDGAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622DDYAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ALFW21622DDAAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622DDWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622DDSAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21622DDPWAction: Momentary | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW26611DRAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW26611DGAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW26611DYAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW26611DAAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW26611DWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW26611DSAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26611DPWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW26620DRAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLFW26620DGAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLFW26620DYAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW26620DAAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLFW26620DWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLFW26620DSAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLFW26620DPWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW26622DRAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW26622DGAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW26622DYAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW26622DAAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW26622DWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW26622DSAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW26622DPWAction: Alternate | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21111DRAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21111DGAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21111DYAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21111DAAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21111DWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21111DSAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21111DPWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21120DRAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLFW21120DGAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLFW21120DYAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21120DAAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21120DWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLFW21120DSAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21120DPWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21122DRAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21122DGAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21122DYAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21122DAAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21122DWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21122DSAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21122DPWAction: Alternate | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW22211DRAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22211DGAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22211DYAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW22211DAAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22211DWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22211DSAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22211DPWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW22220DRAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLFW22220DGAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLFW22220DYAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW22220DAAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22220DWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLFW22220DSAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22220DPWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW22222DRAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22222DGAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22222DYAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW22222DAAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22222DWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22222DSAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22222DPWAction: Alternate | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21611DRAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611DGAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611DYAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21611DAAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611DWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611DSAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21611DPWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21620DRAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620DGAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620DYAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21620DAAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620DWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620DSAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21620DPWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21622DRAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622DGAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622DYAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21622DAAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622DWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622DSAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21622DPWAction: Alternate | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW22611DRAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22611DGAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22611DYAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW22611DAAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22611DWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22611DSAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22611DPWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW22620DRAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLFW22620DGAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLFW22620DYAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW22620DAAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22620DWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLFW22620DSAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22620DPWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW22622DRAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22622DGAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22622DYAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW22622DAAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22622DWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22622DSAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22622DPWAction: Alternate | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
AOLFW21611DDRAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611DDGAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611DDYAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOLFW21611DDAAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611DDWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611DDSAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21611DDPWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
AOLFW21620DDRAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620DDGAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620DDYAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Yellow
AOLFW21620DDAAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620DDWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620DDSAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21620DDPWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a (2NO) | Colour: Pure white
AOLFW21622DDRAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622DDGAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622DDYAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOLFW21622DDAAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622DDWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622DDSAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21622DDPWAction: Alternate | Lamp: LED | Voltage: DC110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
ALFW26611RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW26611GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW26611AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW26611WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW26611SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW26620RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALFW26620GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALFW26620AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALFW26620WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALFW26620SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALFW26622RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW26622GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW26622AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW26622WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW26622SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW28811RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW28811GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW28811AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW28811WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW28811SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW28820RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALFW28820GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALFW28820AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALFW28820WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALFW28820SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALFW28822RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW28822GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW28822AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW28822WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW28822SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW23311RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW23311GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW23311AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW23311WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW23311SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW23320RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALFW23320GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALFW23320AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALFW23320WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALFW23320SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALFW23322RAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW23322GAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW23322AAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW23322WAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW23322SAction: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW21611RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW21611GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW21611AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW21611WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW21611SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW21620RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALFW21620GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALFW21620AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALFW21620WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALFW21620SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALFW21622RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW21622GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW21622AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW21622WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW21622SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW22611RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW22611GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW22611AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW22611WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW22611SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW22620RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALFW22620GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALFW22620AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALFW22620WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALFW22620SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALFW22622RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALFW22622GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALFW22622AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALFW22622WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALFW22622SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALFW216S10RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
ALFW216S10GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
ALFW216S10AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
ALFW216S10WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
ALFW216S10SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
ALFW216S01RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
ALFW216S01GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
ALFW216S01AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
ALFW216S01WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
ALFW216S01SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
ALFW216S11RAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW216S11GAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW216S11AAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW216S11WAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW216S11SAction: Momentary | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALFW226S10RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
ALFW226S10GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
ALFW226S10AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
ALFW226S10WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
ALFW226S10SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
ALFW226S01RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
ALFW226S01GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
ALFW226S01AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
ALFW226S01WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
ALFW226S01SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
ALFW226S11RAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALFW226S11GAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALFW226S11AAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALFW226S11WAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALFW226S11SAction: Momentary | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26611RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW26611GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW26611AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW26611WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW26611SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW26620RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLFW26620GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLFW26620AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLFW26620WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLFW26620SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLFW26622RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW26622GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW26622AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW26622WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW26622SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW28811RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW28811GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW28811AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW28811WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW28811SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW28820RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLFW28820GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLFW28820AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLFW28820WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLFW28820SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLFW28822RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW28822GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW28822AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW28822WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW28822SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW23311RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW23311GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW23311AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW23311WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW23311SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW23320RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLFW23320GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLFW23320AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLFW23320WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLFW23320SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLFW23322RAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW23322GAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW23322AAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW23322WAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW23322SAction: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW21611RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW21611GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW21611AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW21611WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW21611SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW21620RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLFW21620GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLFW21620AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLFW21620WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLFW21620SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLFW21622RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW21622GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW21622AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW21622WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW21622SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW22611RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW22611GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW22611AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW22611WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW22611SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW22620RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLFW22620GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLFW22620AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLFW22620WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLFW22620SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLFW22622RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLFW22622GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLFW22622AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLFW22622WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLFW22622SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLFW216S10RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AOLFW216S10GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AOLFW216S10AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AOLFW216S10WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
AOLFW216S10SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AOLFW216S01RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AOLFW216S01GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AOLFW216S01AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AOLFW216S01WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
AOLFW216S01SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AOLFW216S11RAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW216S11GAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW216S11AAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW216S11WAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW216S11SAction: Alternate | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLFW226S10RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AOLFW226S10GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AOLFW226S10AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AOLFW226S10WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
AOLFW226S10SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AOLFW226S01RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AOLFW226S01GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AOLFW226S01AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AOLFW226S01WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
AOLFW226S01SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AOLFW226S11RAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLFW226S11GAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLFW226S11AAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLFW226S11WAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLFW226S11SAction: Alternate | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
