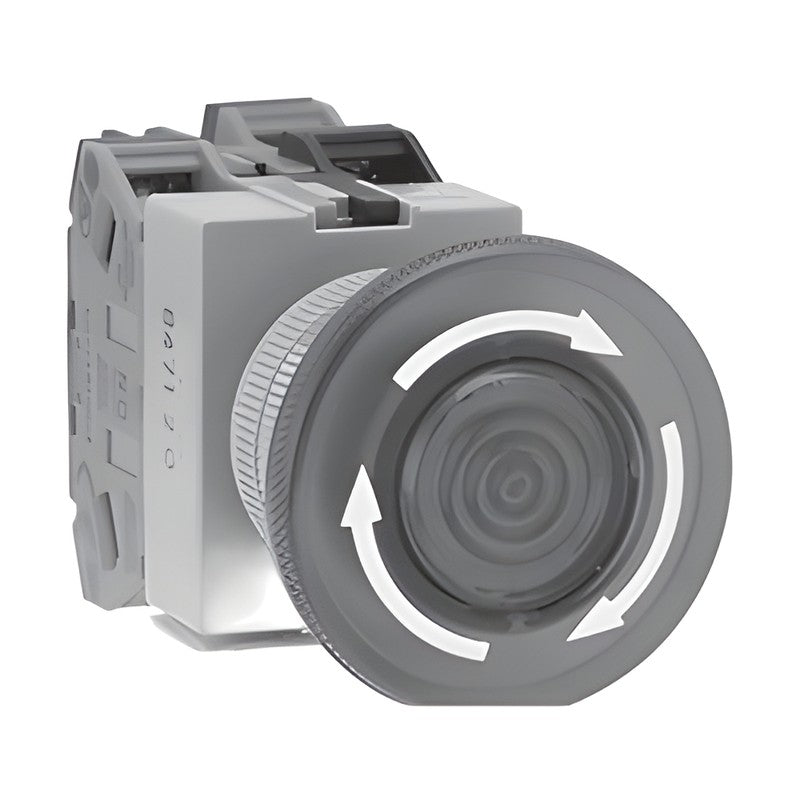

IDEC TW 22 mm Illuminated Pushbuttons (φ40 Push-Lock Turn-Reset)

IDEC TW 22 mm Illuminated Pushbuttons (φ40 Push-Lock Turn-Reset)

TW Series φ22 illuminated pushbuttons, φ40 push-lock turn-reset type, with built-in LED or incandescent lamp; rated voltages from AC/DC6V to AC200/220V.

Key features

  • LED or incandescent illumination; transformer type for AC100V and above
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Colour Red
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 24-25
AVLW46611DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW46620DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW46622DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW41111DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW41120DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW41122DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW42211DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW42220DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW42222DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW41611DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW41620DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW41622DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW42611DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW42620DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW42622DR Operator: Φ40 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW4B6611DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW4B6620DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW4B6622DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW4B1111DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW4B1120DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW4B1122DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW4B2211DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW4B2220DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW4B2222DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW4B1611DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW4B1620DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW4B1622DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW4B2611DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW4B2620DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW4B2622DR Operator: Φ40 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW46611R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW46620R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW46622R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW48811R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW48820R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW48822R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW43311R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW43320R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW43322R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW41611R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW41620R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW41622R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW42611R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW42620R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW42622R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW416S10R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO)
AVLW416S01R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC)
AVLW416S11R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW426S10R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO)
AVLW426S01R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC)
AVLW426S11R Operator: Φ40 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW4B6611R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW4B6620R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW4B6622R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW4B8811R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW4B8820R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW4B8822R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW4B3311R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW4B3320R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW4B3322R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW4B1611R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW4B1620R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW4B1622R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW4B2611R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW4B2620R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW4B2622R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW4B16S10R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO)
AVLW4B16S01R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC)
AVLW4B16S11R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW4B26S10R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO)
AVLW4B26S01R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC)
AVLW4B26S11R Operator: Φ40 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC)
Illuminated PushbuttonsIDEC
72 product codes available in this family
