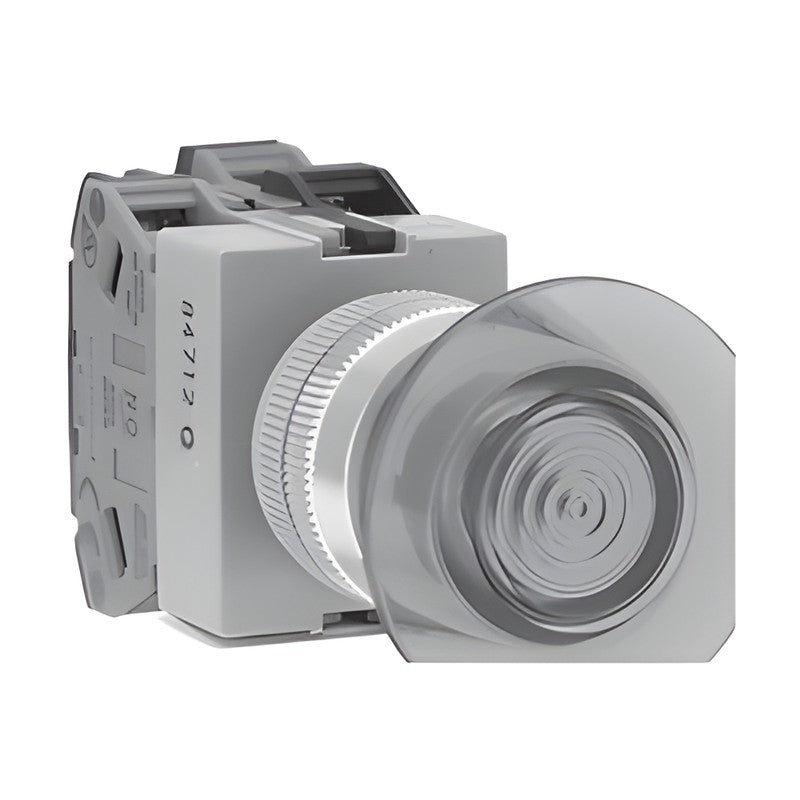

IDEC TW 22 mm Illuminated Pushbuttons (φ40 Push-Pull)

IDEC TW 22 mm Illuminated Pushbuttons (φ40 Push-Pull)

TW Series φ22 illuminated pushbuttons, φ40 push-pull type, with built-in LED or incandescent lamp; rated voltages from AC/DC6V to AC200/220V.

Key features

  • LED or incandescent illumination; transformer type for AC100V and above
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Lamp Incandescent
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 26
AYLW46611R Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW46611G Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW46611A Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW46611W Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW46611S Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW46620R Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AYLW46620G Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AYLW46620A Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AYLW46620W Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AYLW46620S Operator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AYLW48811R Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW48811G Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW48811A Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW48811W Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW48811S Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW48820R Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AYLW48820G Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AYLW48820A Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AYLW48820W Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AYLW48820S Operator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AYLW43311R Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW43311G Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW43311A Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW43311W Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW43311S Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW43320R Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AYLW43320G Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AYLW43320A Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AYLW43320W Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AYLW43320S Operator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AYLW41611R Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW41611G Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW41611A Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW41611W Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW41611S Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW41620R Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AYLW41620G Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AYLW41620A Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AYLW41620W Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AYLW41620S Operator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AYLW42611R Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW42611G Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW42611A Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW42611W Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW42611S Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW42620R Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AYLW42620G Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AYLW42620A Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AYLW42620W Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AYLW42620S Operator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AYLW416S10R Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW416S10G Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW416S10A Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW416S10W Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
AYLW416S10S Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW416S01R Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW416S01G Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW416S01A Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW416S01W Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
AYLW416S01S Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW416S11R Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW416S11G Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW416S11A Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW416S11W Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW416S11S Operator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW426S10R Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW426S10G Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW426S10A Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW426S10W Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
AYLW426S10S Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW426S01R Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW426S01G Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW426S01A Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW426S01W Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
AYLW426S01S Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW426S11R Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW426S11G Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW426S11A Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW426S11W Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW426S11S Operator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B6611R Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B6611G Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B6611A Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B6611S Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B6620R Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AYLW4B6620G Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AYLW4B6620A Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B6620S Operator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B8811R Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B8811G Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B8811A Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B8811S Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B8820R Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AYLW4B8820G Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AYLW4B8820A Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B8820S Operator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B3311R Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B3311G Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B3311A Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B3311S Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B3320R Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AYLW4B3320G Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AYLW4B3320A Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B3320S Operator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B1611R Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B1611G Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B1611A Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B1611S Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B1620R Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AYLW4B1620G Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AYLW4B1620A Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B1620S Operator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B2611R Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B2611G Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B2611A Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B2611S Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B2620R Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AYLW4B2620G Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AYLW4B2620A Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B2620S Operator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B16S10R Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW4B16S10G Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW4B16S10A Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW4B16S10S Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW4B16S01R Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW4B16S01G Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW4B16S01A Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW4B16S01S Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW4B16S11R Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B16S11G Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B16S11A Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B16S11S Operator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B26S10R Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW4B26S10G Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW4B26S10A Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW4B26S10S Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW4B26S01R Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW4B26S01G Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW4B26S01A Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW4B26S01S Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW4B26S11R Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B26S11G Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B26S11A Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B26S11S Operator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
Illuminated PushbuttonsIDEC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW 22 mm Illuminated Pushbuttons (φ40 Push-Pull)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (144)

AYLW46611R, AYLW46611G, AYLW46611A, AYLW46611W, AYLW46611S, AYLW46620R, AYLW46620G, AYLW46620A, AYLW46620W, AYLW46620S + 134 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AYLW46611ROperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW46611GOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW46611AOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW46611WOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW46611SOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW46620ROperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AYLW46620GOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AYLW46620AOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AYLW46620WOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AYLW46620SOperator: Mushroom push-pull | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AYLW48811ROperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW48811GOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW48811AOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW48811WOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW48811SOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW48820ROperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AYLW48820GOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AYLW48820AOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AYLW48820WOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AYLW48820SOperator: Mushroom push-pull | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AYLW43311ROperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW43311GOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW43311AOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW43311WOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW43311SOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW43320ROperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AYLW43320GOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AYLW43320AOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AYLW43320WOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AYLW43320SOperator: Mushroom push-pull | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AYLW41611ROperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW41611GOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW41611AOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW41611WOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW41611SOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW41620ROperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AYLW41620GOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AYLW41620AOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AYLW41620WOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AYLW41620SOperator: Mushroom push-pull | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AYLW42611ROperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW42611GOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW42611AOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW42611WOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW42611SOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW42620ROperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AYLW42620GOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AYLW42620AOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AYLW42620WOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AYLW42620SOperator: Mushroom push-pull | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AYLW416S10ROperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW416S10GOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW416S10AOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW416S10WOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: White
AYLW416S10SOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW416S01ROperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW416S01GOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW416S01AOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW416S01WOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: White
AYLW416S01SOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW416S11ROperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW416S11GOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW416S11AOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW416S11WOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW416S11SOperator: Mushroom push-pull | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW426S10ROperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW426S10GOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW426S10AOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW426S10WOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: White
AYLW426S10SOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW426S01ROperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW426S01GOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW426S01AOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW426S01WOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: White
AYLW426S01SOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW426S11ROperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW426S11GOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW426S11AOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW426S11WOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYLW426S11SOperator: Mushroom push-pull | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B6611ROperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B6611GOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B6611AOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B6611SOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B6620ROperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AYLW4B6620GOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AYLW4B6620AOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B6620SOperator: Mushroom push-pull (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B8811ROperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B8811GOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B8811AOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B8811SOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B8820ROperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AYLW4B8820GOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AYLW4B8820AOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B8820SOperator: Mushroom push-pull (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B3311ROperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B3311GOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B3311AOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B3311SOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B3320ROperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AYLW4B3320GOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AYLW4B3320AOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B3320SOperator: Mushroom push-pull (marking) | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B1611ROperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B1611GOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B1611AOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B1611SOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B1620ROperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AYLW4B1620GOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AYLW4B1620AOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B1620SOperator: Mushroom push-pull (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B2611ROperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B2611GOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B2611AOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B2611SOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B2620ROperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AYLW4B2620GOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AYLW4B2620AOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AYLW4B2620SOperator: Mushroom push-pull (marking) | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AYLW4B16S10ROperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW4B16S10GOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW4B16S10AOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW4B16S10SOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW4B16S01ROperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW4B16S01GOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW4B16S01AOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW4B16S01SOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW4B16S11ROperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B16S11GOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B16S11AOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B16S11SOperator: Mushroom push-pull (marking) | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYLW4B26S10ROperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Red
AYLW4B26S10GOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Green
AYLW4B26S10AOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Amber
AYLW4B26S10SOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO) | Colour: Blue
AYLW4B26S01ROperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Red
AYLW4B26S01GOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Green
AYLW4B26S01AOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Amber
AYLW4B26S01SOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC) | Colour: Blue
AYLW4B26S11ROperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYLW4B26S11GOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYLW4B26S11AOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AYLW4B26S11SOperator: Mushroom push-pull (marking) | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
