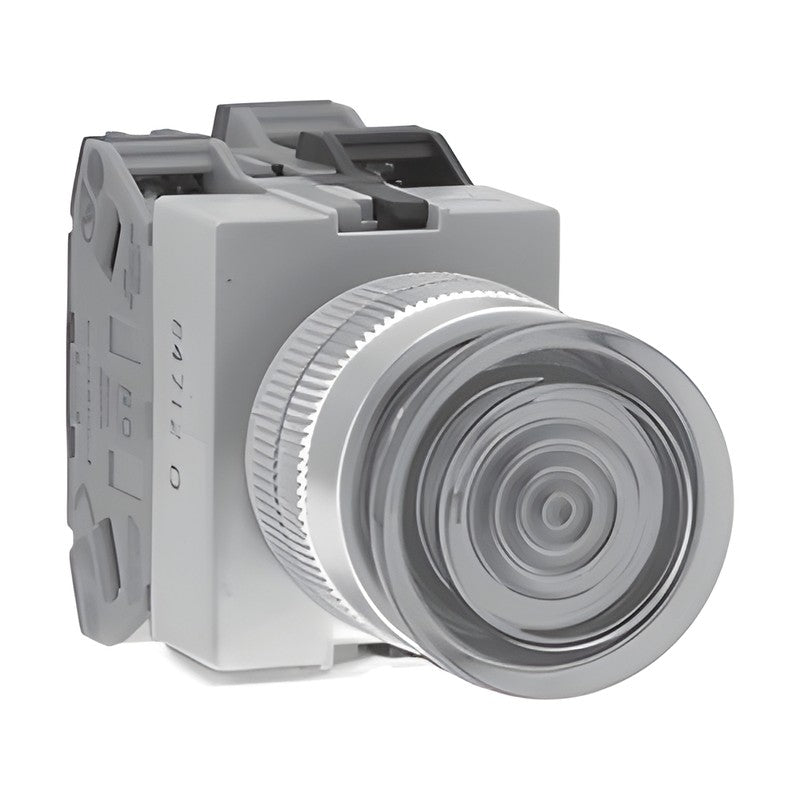

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Medium)

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Medium)

TW Series φ22 illuminated pushbuttons, φ29 medium type, with built-in LED or incandescent lamp; rated voltages from AC/DC6V to AC200/220V.

Key features

  • LED or incandescent illumination; transformer type for AC100V and above
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Lamp Incandescent
Contacts 1a-1b (1NO+1NC)
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 21
ALW36611R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Red
ALW36611G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Green
ALW36611A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Amber
ALW36611W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: White
ALW36611S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Blue
ALW38811R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Red
ALW38811G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Green
ALW38811A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Amber
ALW38811W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: White
ALW38811S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Blue
ALW33311R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Red
ALW33311G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Green
ALW33311A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Amber
ALW33311W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: White
ALW33311S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Blue
ALW31611R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Red
ALW31611G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Green
ALW31611A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Amber
ALW31611W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: White
ALW31611S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Blue
ALW32611R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Red
ALW32611G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Green
ALW32611A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Amber
ALW32611W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: White
ALW32611S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Blue
ALW316S11R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Red
ALW316S11G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Green
ALW316S11A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Amber
ALW316S11W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: White
ALW316S11S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Blue
ALW326S11R Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Red
ALW326S11G Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Green
ALW326S11A Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Amber
ALW326S11W Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: White
ALW326S11S Operator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Blue
AOLW36611R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Red
AOLW36611G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Green
AOLW36611A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Amber
AOLW36611W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: White
AOLW36611S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Blue
AOLW38811R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Red
AOLW38811G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Green
AOLW38811A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Amber
AOLW38811W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: White
AOLW38811S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Blue
AOLW33311R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Red
AOLW33311G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Green
AOLW33311A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Amber
AOLW33311W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: White
AOLW33311S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Blue
AOLW31611R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Red
AOLW31611G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Green
AOLW31611A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Amber
AOLW31611W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: White
AOLW31611S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Blue
AOLW32611R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Red
AOLW32611G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Green
AOLW32611A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Amber
AOLW32611W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: White
AOLW32611S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Blue
AOLW316S11R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Red
AOLW316S11G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Green
AOLW316S11A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Amber
AOLW316S11W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: White
AOLW316S11S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Blue
AOLW326S11R Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Red
AOLW326S11G Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Green
AOLW326S11A Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Amber
AOLW326S11W Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: White
AOLW326S11S Operator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Blue
ALW3B6611R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Red
ALW3B6611G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Green
ALW3B6611A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Amber
ALW3B6611W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: White
ALW3B6611S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Blue
ALW3B8811R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Red
ALW3B8811G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Green
ALW3B8811A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Amber
ALW3B8811W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: White
ALW3B8811S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Blue
ALW3B3311R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Red
ALW3B3311G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Green
ALW3B3311A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Amber
ALW3B3311W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: White
ALW3B3311S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Blue
ALW3B1611R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Red
ALW3B1611G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Green
ALW3B1611A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Amber
ALW3B1611W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: White
ALW3B1611S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Blue
ALW3B2611R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Red
ALW3B2611G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Green
ALW3B2611A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Amber
ALW3B2611W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: White
ALW3B2611S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Blue
ALW3B16S11R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Red
ALW3B16S11G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Green
ALW3B16S11A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Amber
ALW3B16S11W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: White
ALW3B16S11S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Blue
ALW3B26S11R Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Red
ALW3B26S11G Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Green
ALW3B26S11A Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Amber
ALW3B26S11W Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: White
ALW3B26S11S Operator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Blue
AOLW3B6611R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Red
AOLW3B6611G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Green
AOLW3B6611A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Amber
AOLW3B6611W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: White
AOLW3B6611S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Blue
AOLW3B8811R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Red
AOLW3B8811G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Green
AOLW3B8811A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Amber
AOLW3B8811W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: White
AOLW3B8811S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Blue
AOLW3B3311R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Red
AOLW3B3311G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Green
AOLW3B3311A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Amber
AOLW3B3311W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: White
AOLW3B3311S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Blue
AOLW3B1611R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Red
AOLW3B1611G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Green
AOLW3B1611A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Amber
AOLW3B1611W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: White
AOLW3B1611S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Blue
AOLW3B2611R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Red
AOLW3B2611G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Green
AOLW3B2611A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Amber
AOLW3B2611W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: White
AOLW3B2611S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Blue
AOLW3B16S11R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Red
AOLW3B16S11G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Green
AOLW3B16S11A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Amber
AOLW3B16S11W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: White
AOLW3B16S11S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Blue
AOLW3B26S11R Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Red
AOLW3B26S11G Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Green
AOLW3B26S11A Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Amber
AOLW3B26S11W Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: White
AOLW3B26S11S Operator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Blue
Illuminated PushbuttonsIDEC
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Medium)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (140)

ALW36611R, ALW36611G, ALW36611A, ALW36611W, ALW36611S, ALW38811R, ALW38811G, ALW38811A, ALW38811W, ALW38811S + 130 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALW36611ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Red
ALW36611GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Green
ALW36611AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Amber
ALW36611WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: White
ALW36611SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC6V | Colour: Blue
ALW38811ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Red
ALW38811GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Green
ALW38811AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Amber
ALW38811WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: White
ALW38811SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC12V | Colour: Blue
ALW33311ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Red
ALW33311GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Green
ALW33311AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Amber
ALW33311WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: White
ALW33311SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC/DC24V | Colour: Blue
ALW31611ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Red
ALW31611GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Green
ALW31611AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Amber
ALW31611WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: White
ALW31611SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V | Colour: Blue
ALW32611ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Red
ALW32611GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Green
ALW32611AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Amber
ALW32611WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: White
ALW32611SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V | Colour: Blue
ALW316S11ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Red
ALW316S11GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Green
ALW316S11AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Amber
ALW316S11WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: White
ALW316S11SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Blue
ALW326S11ROperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Red
ALW326S11GOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Green
ALW326S11AOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Amber
ALW326S11WOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: White
ALW326S11SOperator: Medium (φ29 button) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Blue
AOLW36611ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Red
AOLW36611GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Green
AOLW36611AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Amber
AOLW36611WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: White
AOLW36611SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC6V | Colour: Blue
AOLW38811ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Red
AOLW38811GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Green
AOLW38811AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Amber
AOLW38811WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: White
AOLW38811SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC12V | Colour: Blue
AOLW33311ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Red
AOLW33311GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Green
AOLW33311AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Amber
AOLW33311WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: White
AOLW33311SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC/DC24V | Colour: Blue
AOLW31611ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Red
AOLW31611GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Green
AOLW31611AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Amber
AOLW31611WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: White
AOLW31611SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V | Colour: Blue
AOLW32611ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Red
AOLW32611GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Green
AOLW32611AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Amber
AOLW32611WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: White
AOLW32611SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V | Colour: Blue
AOLW316S11ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Red
AOLW316S11GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Green
AOLW316S11AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Amber
AOLW316S11WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: White
AOLW316S11SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Blue
AOLW326S11ROperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Red
AOLW326S11GOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Green
AOLW326S11AOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Amber
AOLW326S11WOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: White
AOLW326S11SOperator: Medium (φ29 button) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Blue
ALW3B6611ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Red
ALW3B6611GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Green
ALW3B6611AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Amber
ALW3B6611WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: White
ALW3B6611SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC6V | Colour: Blue
ALW3B8811ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Red
ALW3B8811GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Green
ALW3B8811AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Amber
ALW3B8811WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: White
ALW3B8811SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC12V | Colour: Blue
ALW3B3311ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Red
ALW3B3311GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Green
ALW3B3311AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Amber
ALW3B3311WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: White
ALW3B3311SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC/DC24V | Colour: Blue
ALW3B1611ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Red
ALW3B1611GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Green
ALW3B1611AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Amber
ALW3B1611WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: White
ALW3B1611SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V | Colour: Blue
ALW3B2611ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Red
ALW3B2611GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Green
ALW3B2611AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Amber
ALW3B2611WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: White
ALW3B2611SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V | Colour: Blue
ALW3B16S11ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Red
ALW3B16S11GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Green
ALW3B16S11AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Amber
ALW3B16S11WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: White
ALW3B16S11SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC100/110V (half-size) | Colour: Blue
ALW3B26S11ROperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Red
ALW3B26S11GOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Green
ALW3B26S11AOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Amber
ALW3B26S11WOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: White
ALW3B26S11SOperator: Medium (φ29 button, marking) | Action: Momentary | Voltage: AC200/220V (half-size) | Colour: Blue
AOLW3B6611ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Red
AOLW3B6611GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Green
AOLW3B6611AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Amber
AOLW3B6611WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: White
AOLW3B6611SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC6V | Colour: Blue
AOLW3B8811ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Red
AOLW3B8811GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Green
AOLW3B8811AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Amber
AOLW3B8811WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: White
AOLW3B8811SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC12V | Colour: Blue
AOLW3B3311ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Red
AOLW3B3311GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Green
AOLW3B3311AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Amber
AOLW3B3311WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: White
AOLW3B3311SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC/DC24V | Colour: Blue
AOLW3B1611ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Red
AOLW3B1611GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Green
AOLW3B1611AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Amber
AOLW3B1611WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: White
AOLW3B1611SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V | Colour: Blue
AOLW3B2611ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Red
AOLW3B2611GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Green
AOLW3B2611AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Amber
AOLW3B2611WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: White
AOLW3B2611SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V | Colour: Blue
AOLW3B16S11ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Red
AOLW3B16S11GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Green
AOLW3B16S11AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Amber
AOLW3B16S11WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: White
AOLW3B16S11SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC100/110V (half-size) | Colour: Blue
AOLW3B26S11ROperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Red
AOLW3B26S11GOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Green
AOLW3B26S11AOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Amber
AOLW3B26S11WOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: White
AOLW3B26S11SOperator: Medium (φ29 button, marking) | Action: Alternate | Voltage: AC200/220V (half-size) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
