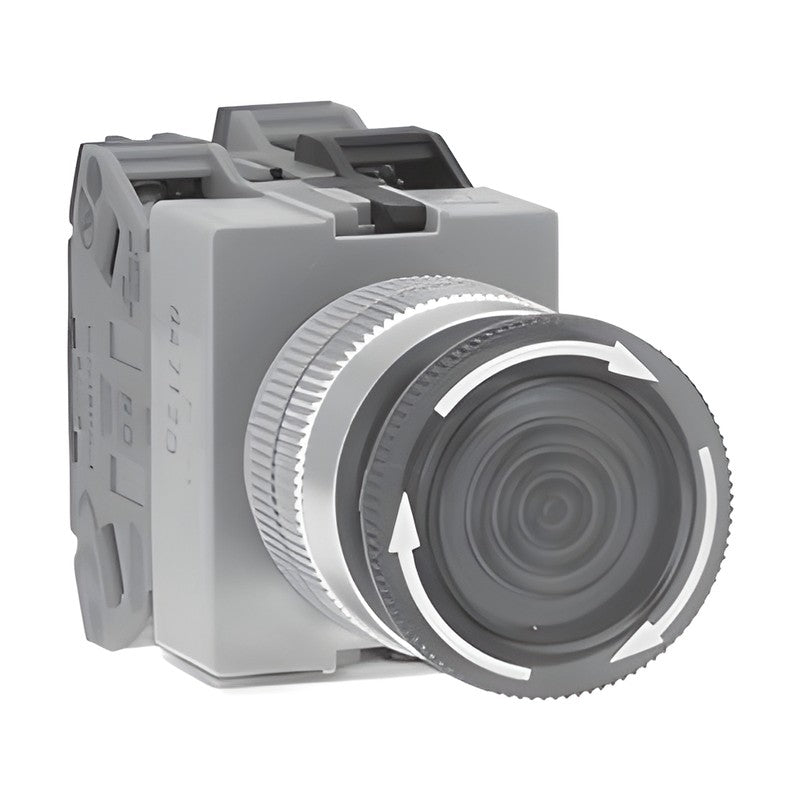

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Push-Lock Turn-Reset)

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Push-Lock Turn-Reset)

TW Series φ22 illuminated pushbuttons, φ29 push-lock turn-reset type, with built-in LED or incandescent lamp; rated voltages from AC/DC6V to AC200/220V.

Key features

  • LED or incandescent illumination; transformer type for AC100V and above
  • Specify the illumination colour code in the part number
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Colour Red
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 22-23
AVLW36611DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW36620DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW36622DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW31111DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW31120DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW31122DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW32211DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW32220DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW32222DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW31611DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW31620DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW31622DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW32611DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW32620DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW32622DR Operator: Φ29 push-lock turn-reset | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW3B6611DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW3B6620DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW3B6622DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW3B1111DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW3B1120DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW3B1122DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW3B2211DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW3B2220DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW3B2222DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW3B1611DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW3B1620DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW3B1622DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW3B2611DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW3B2620DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW3B2622DR Operator: Φ29 push-lock turn-reset (marking) | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW36611R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW36620R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW36622R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW38811R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW38820R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW38822R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW33311R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW33320R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW33322R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW31611R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW31620R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW31622R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW32611R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW32620R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW32622R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW316S10R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO)
AVLW316S01R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC)
AVLW316S11R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW326S10R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO)
AVLW326S01R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC)
AVLW326S11R Operator: Φ29 push-lock turn-reset | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW3B6611R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC)
AVLW3B6620R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO)
AVLW3B6622R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC)
AVLW3B8811R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC)
AVLW3B8820R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO)
AVLW3B8822R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC)
AVLW3B3311R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC)
AVLW3B3320R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO)
AVLW3B3322R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC)
AVLW3B1611R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC)
AVLW3B1620R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO)
AVLW3B1622R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC)
AVLW3B2611R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC)
AVLW3B2620R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO)
AVLW3B2622R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC)
AVLW3B16S10R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a (1NO)
AVLW3B16S01R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1b (1NC)
AVLW3B16S11R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC100/110V (half-size) | Contacts: 1a-1b (1NO+1NC)
AVLW3B26S10R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a (1NO)
AVLW3B26S01R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1b (1NC)
AVLW3B26S11R Operator: Φ29 push-lock turn-reset (marking) | Lamp: Incandescent | Voltage: AC200/220V (half-size) | Contacts: 1a-1b (1NO+1NC)
Illuminated PushbuttonsIDEC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW 22 mm Illuminated Pushbuttons (φ29 Push-Lock Turn-Reset)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (72)

AVLW36611DR, AVLW36620DR, AVLW36622DR, AVLW31111DR, AVLW31120DR, AVLW31122DR, AVLW32211DR, AVLW32220DR, AVLW32222DR, AVLW31611DR + 62 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
